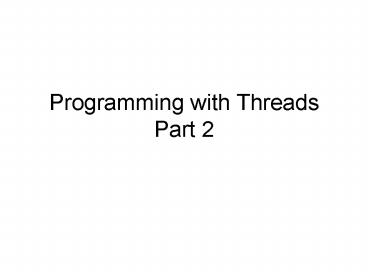

Programming with Threads Part 2

1
Programming with ThreadsPart 2
2
Recall Conditional Variable

• pthread_mutex_t m_varPTHREAD_MUTEX_INITIALIZER
• pthread_cond_t c_varPTHREAD_COND_INITIALIZER
• pthread_mutex_lock (m_var)
• while (ltsome blocking condition is truegt)
• pthread_cond_wait (c_var, m_var)
• ltaccess shared data structruregt
• pthread_mutex_unlock(m_var)
• Note Use while not if.

3
Readers/Writers Problem(example of monitor-style
programming)

• Control access to shared data
• Threads (operations) may either
• Only read data (reader)
• Write (and possibly read) data (writer)
• Multiple readers can access shared data
  concurrently
• At most one writer can be accessing shared data
  at any time

4
Schematic View of a Monitor
5
A Solution

• P_mutex m
• Int Readers 0 Boolean Writer
• P_condition read_phase, write_phase
• / Code for reader /
• P_lock(m)
• While (Writer)
• P_wait (read_phase, m)
• Readers
• P_unlock(m)
• read data
• P_lock(m)
• Readers--
• If (Readers 0)
• P_signal(write_phase)
• P_unlock (m)

/ Code for writer / P_lock(m) While (readers
! 0 Writer ) P_wait (write_phase,
m) Writer true P_unlock(m) write
data P_lock(m) Writer false P_broadcast
(read_phase) P_signal(write_phase) P_unlock
(m)
Note A problem with this solution is extra wake
ups, especially on multiprocessors
6
Deadlocks

• Examples
• A locks M1, B locks M2, A blocks on M2, B blocks
  on M1
• Can occur on mutex locks and conditional
  variables
• Deadlocks are easy to detect!
• Solutions
• Lock granularity
• Order locks and acquire them in order (e.g., all
  threads must acquire M1, then M2, etc.)
• Two-phase locking acquire all locks youll need
  first, release all locks if you fail to acquire
  any one
• pthread_mutex_trylock(M) returns even if lock
  fails

7
Priority Inversion

• Locking can subvert thread priorities
• Example
• Low priority thread A locks M
• Medium priority thread B preempts A, runs for a
  long time
• High priority thread C waits on M
• C cant run, even though it is the highest
  priority thread!
• Solution
• Priority inheritance once C locks on M, A (which
  holds M) gets Cs priority (or higher) allowing A
  to exit its critical section
• pthread_mutex_setprioceiling( M, prio, old)
• Set prio to priority of highest-priority thread
  that can lock M
• Use old to store previous priority

8
Threads Programming Golden Rules

• Shared data should always be accessed through a
  single mutex
• Define a boolean expression for the blocking
  condition (expressed via program variables) for
  each condition variable
• Every time the value of the boolean expression
  might have changed, call Broadcast for the
  condition variable use Signal only if you are
  absolutely certain that only one waiting thread
  can enter the critical section
• Broadcast (rather than signal) simplifies logic
  assuming your code is designed to deal with
  spurious interrupts (which it must!)
• Some performance penalty
• Must be used when multiple threads should be
  allowed to progress due to change in state (e.g.,
  multiple readers)
• Globally order locks, and acquire them in the
  pre-specified order in all threads to avoid
  deadlock

9
Thread Design Patterns

• Common ways to structure programs using threads
• Manager/Worker
• One thread does the main work
• Create other threads to help on some parts
• Example parallel program library
• Client/Server (thread per request)
• One thread (server) listens for requests
• Create new thread to process each request
• Client/Server (thread per client)
• One thread (server) listens for new clients
• New thread created when a client attaches
• Thread is dedicated to only work for that client

10
Client / Server Model(thread per request)

• / Server /
• While (1)
• get a request
• switch (request.type)
• case X P_create (taskX)
• case Y P_create (taskY)
• / Client /
• taskX() do work synchronize as needed

• Advantage simplicity
• Disadvantages
• No bound on number of clients if burst of
  requests arrives results in contention for
  resources (CPU, locks, memory)
• Recoding to limit number of threads somewhat ugly
• Poor design unless low thread count guaranteed!

11
Thread Design Patterns(continued)

• Producer/Consumer (work queue or work pile)
• Some threads (producers/clients) place requests
  for work in queue
• Other threads (consumers/workers) remove requests
  from queue, process them
• Trivial to control the number of consumers/worker
  threads
• Dogpile
• Similar to workpile, except all threads look for
  work directly rather than using a queue
• Pipeline
• Organize threads into a linear list (pipeline)
• Each thread does a portion of a task, then passes
  work on to next thread in pipeline
• The work to be done needs to be structured as a
  linear set of tasks!

12
Libraries and Compilation

• Caution Some functions in libraries may not be
  thread-safe.
• E.g., MPI implementations are typically not
  thread-safe
• Some machines (e.g., IBM) provide thread-safe and
  (faster) non-thread safe libraries
• Always check users guide or man page
• When using gcc, use -pthreads option for both
  compilation and linking

13
Summary

• Follow the golden rules and you should be OK
• Keep it simple!
• Worry about performance, but not too much
• Be cautious about compiler and libraries

14
Additional References

• Books
• D. Butenhof, Programming With POSIX Threads,
  Addison Wesley, 1998
• Bill Lewis and Daniel J. Berg, PThread Primer,
  1996 (available online)
• Bill Lewis and Daniel J. Berg, Multithreaded
  Programming with PThreads. Prentice Hall, 1998
• Brief tutorial on the web
• Tutorial at LLNL (with links to man pages)
• Tutorial by Mark Hays (with long examples)
• Tutorial by Alfred Park (shorter)
