Title: Systems Vulnerability and Resilience Beyond Risk Analysis


1

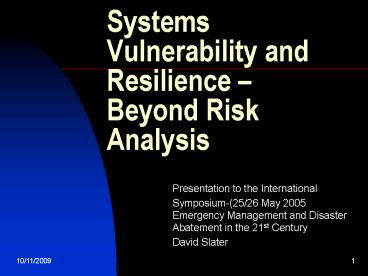

Systems Vulnerability and Resilience Beyond
Risk Analysis
  • Presentation to the International
  • Symposium-(25/26 May 2005 Emergency Management
    and Disaster Abatement in the 21st Century
  • David Slater

2
Introduction
  • Emergency and Disaster Response is an often
    neglected, but much discussed necessity
  • It is normally underappreciated when it is in
    place, but has usually been underestimated when
    called upon for real (thankfully rarely)
  • Often a candidate for short term economies when
    it appears to be unused, or
  • A form of gesture politics (often overkill) as
    add-ons in the wake of unexpected disasters
  • It is time this issue took its place as a
    fundamental part of the design of sustainable
    systems.

3
A New Paradigm?
  • We talk currently about Emergency RESPONSE,
    MANAGEMENT and ABATEMENT.
  • Implication is, it is unavoidable, (perhaps a
    safety net is!)
  • Parallels with SAFETY in the 1970s and
    POLLUTION in the 90s(End of Pipe)
  • i.e. DE(IF)FUSE and DEFEND
  • Shouldnt we be thinking DESIGN and REFINE
  • Instead of being reactive and retroactive cant
    we think SYSTEMIC and inherently resilient ?

4
Overview
  • Why change?
  • What to?
  • Why now?
  • What next?

5
Quantitative Risk Analysis (QRA)
  • Has been very important in the planning, design
    and safe operation of Hazardous Installations
    worldwide for many (formative) years.
  • External Risk Policy, Piper Alpha flame, BSE
  • Required by law COMAH, Cullen etc. Vital for
    emergency planning.
  • Now becoming less and utilised by Industries and
    Regulators, who rely more and more on
    unquantified (unscientific?) alternatives, e.g
    qualitative matrices, or magic checklists.
  • Why?

6
The Swiss Cheese Model
Some holes due to active failures
Hazards
Some holes due to latent conditions
Accident
7
HAZID and Risk Assessment Table
  • Better traceability
  • One team assesses all elements
  • Links improvement to specific risks
  • Shows severity/probability effect of each measure
  • Includes responsibility for follow-up and
    implementation

8
Mapping the Effect of Risk Mitigation
9
Systems Behaviour
  • Increasing Complexity VUCA
  • Perception of increasing threats not necessarily
    matching QRA outputs. (population, energy
    densities, political insecurities, global
    knock-on etc.)
  • Infrastructure integration and interdependency
  • Short termism versus the long now

10
The Human Factor
  • Classical QRA treats operators etc. as
    Equipment with inherent reliabilities etc.
  • But humans are not machines and the interaction
    between people and people and people and systems
    needs a different approach.
  • (For example Latours Actor Network Theory,
    Rasmussens Accimaps.)

11
New Definitions Required?
  • Emergency planners are interested in what can go
    wrong, not the design details.
  • With safety responsibilities being pushed
    (rightly), further down the operations line, the
    classical risk expertise is increasingly missing
    (fault and event tree and physical modelling)
  • Risk , essentially a summation of (all?)
    individual frequency/consequence pairs, requires
    detailed knowledge of the system.
  • Nowadays the more appropriate question is how can
    the overall system (ignore internal details)
    fail?
  • What is its vulnerability?

12
What This Means
  • Look at systems as a whole! (Black
    Box?)
  • What can go wrong? (Loss of Control EVENTS)
  • How?
    (CAUSE)
  • What should prevent it happening? (BARRIERS)
  • What are all the impacts? (CONSEQUENCES)
  • What is the survivability?
    (INTEGRITY)
  • What does this remind you of?
  • HAZOP, BOW TIES, LOPA , SIL

13
New Tools for Old
  • HAZOP
  • Bow Ties
  • LOPA
  • SIL
  • Accimaps

14
HAZOPs So what can go wrong?
Ive done this thousands of times before I know
what Im doing
This stuff comes naturally to me
15
Bow Ties
16
LOPA - When Accidents Happen
Loss of Control
17
Insights from Paradigm
  • Pragmatic definition of Vulnerability-
  • Propensity to loss of control
  • (i.e. Left Hand Side of Bow Tie)
  • And Resilience
  • Effectiveness and depth of Defences
  • (i.e. Right Hand Side of BT)

18
Implications
  • LHS
  • Design out branches, inherent safety
  • Design in checks and balances.
  • RHS
  • Layers of Protection Analysis, permeability,
    performance criteria
  • Fail to Safety, Redundancy, Recovery

19
Real Life
  • The Electricity Supply Grids

20
System Stability of Grids
  • Imbalances between Supply and Demand cause the
    frequency to change
  • Too much load slows it down frequency drops
  • Too much generation speeds it up frequency
    rises
  • Inherently unstable collapse unless corrected
  • Limited by inertia a few seconds before
    Catastrophe Blackout
  • Frequency is visible throughout the network
  • an extraordinary integration of all devices on
    the grid
  • Generators listen to the frequency and are paid
    to change their output to compensate for the
    imbalance
  • Must have capacity to increase or reduce so not
    optimal settings
  • This service is known as frequency response, or
    just Response
  • Other sources of instability can also trigger
    imbalances

21
Frequency Variations
22
Infrastructure Security
  • Crises happen lost plant, lost lines, lost
    penalties

23
Classic Response
  • Response is capacity for Generators to change
    output quickly (seconds - minutes) when frequency
    shows imbalance
  • System Operators buy Response (UK 190m p.a.),
    but it is often mixed up with Energy Reactive
    Load
  • Need to buy head-room, so less efficient running

24
System Vulnerability Approach
  • Population of smaller, duty cycle, loads such
    as fridges air conditioners Respond to
    frequency signal (when this has negligible
    consequence to user)
  • New paradigm suggests decrease propensity to
    failure
  • How? By probability based selection of frequency
    for switching action

25
Effective Storage
26
Effects of ResponsiveLoad
27
Why Fridges?
  • Zero Impact on End use Invisible
  • 24 7 Always on. Every day
  • Fit and Forget long lifetime of service
  • Huge numbers so high statistical reliability
  • Negligible Marginal Cost
  • Small increment to electronic control
  • Tiny compared to value
  • Elegant

Fridges are Cool
28
AVIATION
  • ESARR-4 requires Risk Assessments
  • Total System is defined
  • HAZOP generates System Failures
  • Bow Ties used to address Vulnerabilities,
  • Barriers deployed to add Resilience
  • (mitigation of residual events)
  • Performance criteria assessed from Matrices
  • System Integrity Levels specified and monitored
    on a National level

29
ESARR 4 Methodology
SCHEMATIC REPRESENTATION OF ESARR 4 REQUIREMENTS
EUROCONTROL SRC - January 2002
THE PROCESS INCLUDES
  • ESARR-4 ppr slides
  • VERIFICATION
  • THAT ALL IDENTIFIED
  • SAFETY OBJECTIVES
  • SAFETY REQUIREMENTS
  • HAVE BEEN MET

DERIVATION OF RISK MITIGATION STRATEGY

DETERMINATION OF SAFETY OBJECTIVES (to be placed
on the constituent part)
  • DETERMINATION OF
  • SCOPE
  • BOUNDARIES
  • INTERFACES
  • FUNCTIONS
  • OPERATIONAL ENVIRONMENT
  • OF THE CONSTITUENT
  • BEING CONSIDERED

SPECIFY DEFENCES TO MEET SAFETY OBJECTIVES AND
REDUCE OR ELIMINATE THE RISKS INDUCED BY
IDENTIFIED HAZARDS SAFETY REQUIREMENTS MAY BEAR
ON THE CONSTITUENT PART UNDER CONSIDERATION AND/OR
OTHER PARTS OF THE ATM SYSTEM OR OPERATIONAL ENVI
RONMENT
  • DETERMINE
  • THEIR
  • TOLERABILITY
  • IN TERMS OF
  • HAZARD'S
  • MAXIMUM
  • PROBABILITY OF
  • OCCURRENCE
  • ASSESS
  • THE EFFECTS
  • THEY MAY
  • HAVE ON THE
  • SAFETY OF
  • AIRCRAFT
  • THE SEVERITY
  • OF THOSE
  • EFFECTS
  • IDENTIFY
  • ATM-RELATED
  • CREDIBLE
  • HAZARDS
  • FAILURE
  • CONDITIONS
  • THEIR
  • COMBINED
  • EFFECTS
  • PRIOR TO IMPLEMENTATION
  • OF THE CHANGE
  • DURING ANY TRANSITION
  • INTO OPERATIONAL SERVICE
  • DURING OPERATIONAL LIFE
  • DURING ANY TRANSITION
  • TILL DECOMMISIONING

30
The Overall Process
31
SKYGUIDE Bowtie
32
A Form for Performance Criteria
33
System Integrity LevelSeveso II Requirements
for Inspections
Guidance on Inspections as Required by Article
18 of The Council Directive 96/82/EC (Seveso II)
by GEORGIOS A. PAPADAKIS SAM PORTER (Editors),
Institute for Systems Informatics and Safety.
1999, EUR 18692 EN
34
SZW- Occupational Risk of Ladder use
  • HAZOP employed to generate Bow Ties.
  • Identical with Bow Ties generated from Accident
    Records.
  • Analysis shows vulnerability due to Human
    nature over reaching instead of moving ladder
  • Risk reduction possibilities on resilience
    (harnesses etc.)
  • Ladder design, placement etc. secondary!

35
Complete Systems Approach
  • The Systems approach (CAUSE, BARRIERS, CRITICAL
    EVENT, DEFENCES, OUTCOME), works well for the
    complete suite - How?
  • By utilising
  • HAZOPs to
    predict/construct Bow ties
  • (Record in
    same format)
  • and
  • Incident reporting, recording and
    analysis to validate/confirm the basic Bow Tie
    structures (Story Builder)
  • Importing the Vulnerability/Resilience
    insights/performance data back into the design
    process as basic requirements .(paradigm)
  • Setting publicly acceptable System
    Integrity Levels based on validated and
    monitorable system behaviours (inc FAILURES!)
  • i.e,
    Vulnerabilities and Resilience

36
The Aviation Process
37
Analysis of incidents?
38
Hindenberg Disaster
  • German air-ship manufacturer Zeppelin used H2
    to provide buoyancy/lift
  • Routine landing, New Jersey (USA), 1936
  • Radiant flame engulfs airship 35/97 perish
  • Electrostatic ignition? - Storm

39
(No Transcript)
40
Hindenberg Analysis 1990s
  • Hindenberg revisited 1999 NASA/Uni.Cal (Bain
    van Vorst)
  • Identifies other flammable material onboard
    within Skin particularly
  • Cellulose acetate butyrate
  • iron oxide
  • aluminium powder
  • Fire characteristics -gt skin material burning
    another Helium (inert) airship fire/loss
  • Conclude H2 not responsible for the Hindenberg
    Disaster!
  • They dont understand Vulnerability

41
Next Steps
  • Opportunity in Manchester
  • Model proposed for Centre to act as cross
    disciplinary focus on Systems Mis-Behaviour
  • Lessons Learned
  • Development of theory (QVA), tools, network
    (External/internal)
  • Applications to focus on Abatement of Disasters
    and protection of the community

42
Summary
  • Beyond Risk Analysis?
  • Recognise a new paradigm
  • A Systems approach is more
  • Pragmatic
  • Practical
  • Realistic
  • Useful
  • Useable
  • Our aim should be to obtain a more fundamental
    appreciation of the factors that determine
    Vulnerabilities and Resilience to consider
    emergency aspects Proactively, not just clean
    up.
  • QRA is dead long live QVA? NO!
  • Keep it simple --------!

43
Useful Tools
44
A Bow-Tie
45
Bow-Tie second level
About PowerShow.com
