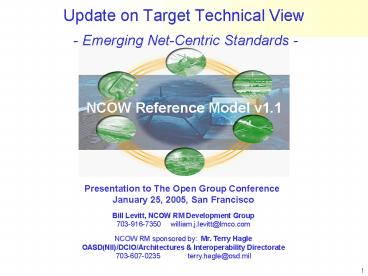

Update on Target Technical View

1
Update on Target Technical View
- Emerging Net-Centric Standards -
NCOW Reference Model v1.1
Presentation to The Open Group Conference
January 25, 2005, San Francisco Bill Levitt,
NCOW RM Development Group 703-916-7350
william.j.levitt_at_lmco.com NCOW RM sponsored by
Mr. Terry Hagle OASD(NII)/DCIO/Architectures
Interoperability Directorate 703-607-0235
terry.hagle_at_osd.mil
2
Outline
NCOW RM v1.1 Target Technical View Outline

• Background
• Purpose and Description
• Structure and Categories
• Usage
• Backup Slides - Content

3
Background
NCOW RM v1.1 Target Technical View Background
Related to the NCOIF

• Net-Centric Operations Industry Forum (NCOIF)
  provided industry review of NCOW RM version 0.9
  in Dec 03
• Adjudicated review comments incorporated into
  versions 1.0 Final, 1.1 Draft, and future
  versions 1.1 Final and 1.2
• Note all explicit standards identified in
  version 1.0 carried forward to version 1.1

4
Purpose Description
NCOW RM v1.1 Target Technical View Purpose and
Description

• Provides technical view guidance regarding
  emerging net-centric standards, profiles and
  technologies
• Assists CD/PMs in assessing relative value
  towards achieving target net-centric information
  environment
• Driven by technology communities of interest
• Complements the DISR

5
Addressing Emerging IT Complexities
NCOW RM v1.1 Target Technical View Addressing
Emerging IT Technical Complexities

• Registry of authoritative source websites for
  standards development
• Repository of core technology forecasting
  information
• The TTV organizes emerging technologies into
  loosely coupled categories based upon technology
  communities of interest

6
Structure
NCOW RM v1.1 Target Technical View
TTV Structure

• Enables isolation of complex relationships and
  emergent properties within category
• Facilitates detailed IT forecasting
• Category interfaces are not of primary interest

7
Categories
NCOW RM v1.1 TTV Categories

• SV-1 familiar content - specific apps supporting
  enumerated domains of the Business, Warfighter,
  and Intel Mission Areas

• policy and rule-based mgt of GIG resources

• SV-1 familiar content (distributed computing on
  platform environments) for capability
  development, execution, and integration

• SV-2 familiar content

• OO modeling the GIG leading to exec. architect.

• the foundation of TTV technologies metadata
  tagging enabling info sharing

8
Distrib Repository
NCOW RM v1.1 TTV Distributed Repository
9
Usage
NCOW RM v1.1 Target Technical View Usage

• The TTV assists the CD/PM
• to focus on emerging technologies that enable
  net-centric capabilities and doctrine change
• to identify IT forecasts for intermediate and
  objective milestones
• TV-2, SV-8, SV-9

10
Interactions
NCOW RM v1.1 TTV Interactions (Using DoDAF 1.0)
11
PMs, Capability Developers
NCOW Reference Model v1.1 PMs, Capability
Developers and Architects

• PMs, capability developers, and architects use
  the DISR to build Technical Standards Profiles
  (TV-1)
• PMs, capability developers and architects use
  the TTV to build Technical Standards Forecast
  (TV-2), Systems Evolution Description (SV-8), or
  Systems Technology Forecast (SV-9)
• DISR developers use the TTV to update the DISR
  Registry
• Service enterprise architects can use the TTV to
  focus on future capabilities

12
TTV Summary
NCOW Reference Model v1.1 TTV Summary

• The TTV will continue to develop content that
  captures and articulates
• significant n-c technologies, attributes and
  issues
• relevance/prioritization for the NCIE
• traceability to the reference model OV and SV
• maturation timeframes and authoritative sources
• TTV V1.2 will integrate IA technologies as per
  the IA SPO deliverables

13
GIG Website
NCOW Reference Model v1.1
How can I get the GIG Architectures and the NCOW
Reference Model?
https//disain.disa.mil/ncow.html
What can I find on the website?
14
Questions
NCOW Reference Model v1.1
15
Backup Slides - TTV Content
NCOW RM v1.1 Target Technical View
16
Content - Data Strategy
NCOW RM v1.1 Target Technical View

• DoD Data Strategy and DDMS
• Technologies that address
• metadata registries
• discovery catalogs
• service and COI directories
• taxonomies, ontologies, federation
• internationalization

17
Content Information Modeling
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories

• Common Information Model (CIM) Standard
• OO model that supports policy-based management of
  GIG artifacts in the NCIE
• supports technologies in distributed computing,
  information assurance and other categories
• PCIM
• DEN
• SMI-S
• WBEM

Mission-Specific Applications
Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Computing Infrastructure
18
Content Information Modeling Organizations and
Technologies
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Computing Infrastructure
19
Content Transport Infrastructure
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications

• Communications and networking environment
• DoDAF SV-2 content
• IPv6
• already DoD mandated
• functional complexity
• dependencies on other technologies
• TCP RD activities supporting tactical
  requirements

Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
20
Content Transport Infrastructure Organizations
and Technologies
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
21
Content Computing Infrastructure
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications

• Traditional systems and applications
• DoDAF SV-1 content
• Platform environments application frameworks
  for capability development, execution, and
  integration
• Operating systems, storage networks, edge devices
• Distributed computing capabilities

Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
22
Content Computing Infrastructure Organizations
Technologies
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
23
Content Service Oriented Computing
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications

• Service-Oriented Architecture
• Basis for enterprise services
• Web Services Architecture (WSA)
• SOAP, WSDL, UDDI
• Additional WS-_at_ standards
• Other WSA styles
• Semantic Web
• RDF, OWL-S

Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing

Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
24
Content Service Oriented ComputingOrganizations
and Technologies
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Grid Computing

Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
25
Content Grid Computing
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications

• coordinates resources that are not subject to
  centralized control
• delivers non-trivial QoS

Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
Organizations and Technologies

Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
26
Content Autonomous Computing
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance

• Autonomic technologies provide computing
  entities that can take care of themselves
• Automation Maturity Levels
• Agent technologies support User Assistant
  Services
• Workflow

Policy-Based Management
Collaborative Computing


Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
27
Content Autonomous Computing Organizations
Technologies
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance
Policy-Based Management
Collaborative Computing


Autonomous Computing
Grid Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
28
Content Collaborative Computing
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications

• Current collection of capabilities
• NCIE objective capabilities
• Dependent on other emerging technologies

Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
GRID Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
29
Content Policy-Based Management
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications

• PBM includes all technologies based upon the CIM
  standard (DMTF)
• Open Group, IETF, IA SPO
• For describing computing and business entities in
  enterprise and Internet environments
• PCIM
• DEN
• SMI-I
• WBEM
• BPEL

Information Assurance
Policy-Based Management
Collaborative Computing
Autonomous Computing
GRID Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
30
Content Information Assurance
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance

• Deliverable in Version 1.2 from the IAA SPO

Policy-Based Management
Collaborative Computing
Autonomous Computing
GRID Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
31
Content Domains
NCOW RM v1.1 Target Technical View
TTV Emerging Technology Categories
Mission-Specific Applications
Information Assurance

• These technologies are from the domains of three
  of the four Mission Areas (MA)
• Business
• Warfighter
• Intel
• The technologies of the EIEMA are those that
  reside in all the TTV categories except
  Mission-Specific Applications

Policy-Based Management
Collaborative Computing
Autonomous Computing
GRID Computing
Service Oriented Computing
Computing Infrastructure
Transport Infrastructure
Information Modeling
Data Strategy
Sub-categories of Distributed Computing Group
