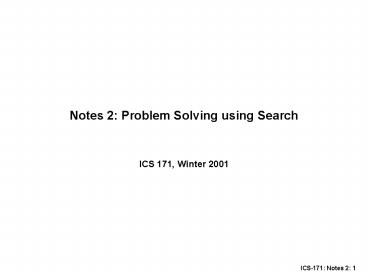

Notes 2 Problem Solving using Search

• ICS 171, Winter 2001

2
Summary

• Problem solving as search
• Search consists of
• state space
• operators
• start state
• goal states
• A Search Tree is an efficient way to represent a
  search
• There are a variety of specific search
  techniques, including
• Depth-First Search
• Breadth-First Search
• Others which use heuristic knowledge (in future
  lectures)

3
What do these problems have in common?

• Find the layout of chips on a circuit board which
  minimize the total length of interconnecting
  wires
• Schedule which airplanes and crew fly to which
  cities for American, United, British Airways,
  etc
• Write a program which can play chess against a
  human
• Build a system which can find human faces in an
  arbitrary digital image
• Program a tablet-driven portable computer to
  recognize your handwriting
• Decrypt data which has been encrypted but you do
  not have the key
• Answer
• they can all be formulated as search problems

4
Setting Up a State Space Model

• State-space Model is a Model for The Search
  Problem
• usually a set of discrete states X
• e.g., in driving, the states in the model could
  be towns/cities
• Start State - a state from X where the search
  starts
• Goal State(s)
• a goal is defined as a target state
• For now all goal states have utility 1, and all
  non-goals have utility 0
• there may be many states which satisfy the goal
• e.g., drive to a town with an airport
• or just one state which satisfies the goal
• e.g., drive to Las Vegas
• Operators
• operators are mappings from X to X
• e.g. moves from one city to another that are
  legal (connected with a road)

5
Summary Defining Search Problems

• A statement of a Search problem has 4 components
• 1. A set of states
• 2. A set of operators which allow one to get
  from one state to another
• 3. A start state S
• 4. A set of possible goal states, or ways to test
  for goal states
• Search solution consists of
• a sequence of operators which transform S into a
  a unique goal state G (this is the sequence of
  actions the we would take to maximize the
  success function)
• Representing real problems in a search framework
• may be many ways to represent states and
  operators
• key idea represent only the relevant aspects of
  the problem

6
Example 1 Formulation of Map Problem

• Set of States
• individual cities
• e.g., Irvine, SF, Las Vegas, Reno, Boise,
  Phoenix, Denver
• Operators
• freeway routes from one city to another
• e.g., Irvine to SF via 5, SF to Seattle, etc
• Start State
• current city where we are, Irvine
• Goal States
• set of cities we would like to be in
• e.g., cities which are cooler than Irvine
• Solution
• a sequence of operators which get us a specific
  goal city,
• e.g., Irvine to SF via 5, SF to Reno via 80, etc

7
State Space Graph Map Navigationnot to be
confused with Search Tree!!
S start, G goal, other nodes
intermediate states, links legal transitions
8
Abstraction

• Definition of Abstraction
• Navigation Example how do we define states and
  operators?
• First step is to abstract the big picture
• i.e., solve a map problem
• nodes cities, links freeways/roads (a
  high-level description)
• this description is an abstraction of the real
  problem
• Can later worry about details like freeway
  onramps, refueling, etc
• Abstraction is critical for automated problem
  solving
• must create an approximate, simplified, model of
  the world for the computer to deal with
  real-world is too detailed to model exactly
• good abstractions retain all important details

Process of removing irrelevant detail to create
an abstract representation high-level,
ignores irrelevant details
9
Qualities of a Good Representation

• Given a good representation/abstraction, solving
  a problem can be easy!
• Conversely, a poor representation makes a problem
  harder
• Qualities which make a Representation useful
• important objects and relations are emphasized
• irrelevant details are suppressed
• natural constraints are made explicit and clear
• completeness
• transparency
• concise
• efficient

10
Example 2 Puzzle-Solving as Search

• You have a 3-gallon and a 4-gallon
• You have a faucet with an unlimited amount of
  water
• You need to get exactly 2 gallons in 4-gallon jug
• State representation (x, y)
• x Contents of four gallon
• y Contents of three gallon
• Start state (0, 0)
• Goal state(s) G (2, 0), (2, 1), (2, 2)
• Operators
• Fill 3-gallon (0,0)-gt(0,3), fill 4-gallon
  (0,0)-gt(0,4)
• Fill 3-gallon from 4-gallon (4,0)-gt(1,3), fill
  4-gallon from 3-gallon (0,3)-gt(3,0) or
  (1,3)-gt(4,0) or (2,3)-gt(4,0).
• Empty 3-gallon into 4-gallon, empty 4-gallon into
  3-gallon
• Dump 3-gallon down drain (0,3)-gt(0,0), dump
  4-gallon down drain (4,0)-gt(0,0)

11
Example 3 The 8-Puzzle Problem
Start State
1
2
3
4
6
8
7
5
1
2
3
4
6
5
8
7
1
2
3
4
5
6
7
8
Goal State
12
8-puzzle as a Search Problem

• States
• ?
• Operators
• ?
• Start State
• ?
• Goal State

13
Search Tree For Searching a State Space

• 1. State Space Graph
• nodes are states
• links are operators mapping states to states
• 2. Search Tree (not a tree data structure
  strictly speaking)
• S, the starting point for the search, is always
  the root node
• The search algorithm searches by expanding leaf
  nodes
• Internal nodes are states the algorithm has
  already explored
• Leaves are potential goal nodes the algorithm
  stops expanding once it finds (attempts to
  expand) the first goal node G
• Key Concept
• Search trees are a data structure to represent
  how the search algorithm explores the state
  space, i.e., they dynamically evolve as the
  search proceeds

14
Example 1 a Search Tree for Map Navigation
S

D
A

B
D
E
E
C
Note this is the search tree at some particular
point in in the search.
15
Searching Using a Search Tree

• Given a state space, start state S, and set of
  goal states G, the search algorithm must
  determine how to get from S to an element of G
• General Search Procedure using a Search Tree
• Let S be the root node of the search tree
• Expand S i.e., determine the children of S
• expanded nodes (internal) are closed
• unexpanded nodes (leaves) are open
• Add the children of S to the tree
• Visit the open nodes of the tree in some order
• test if each node is a goal node
• if not expand it and add children to the open
  queue
• Different search algorithms differ in the order
  in which nodes are expanded

16
Main Definitions

• State Space - a graph showing states (nodes) and
  operators (edges)
• Search tree - a tree showing the list of explored
  (closed) and leaf (open) nodes
• Fringe (open nodes) - nodes on the priority queue
  waiting to be expanded, organized as a priority
  queue. Search algorithm differ primarily in the
  way they organize priority queue for the fringe
• Node expansion - applying all possible operators
  the node (state corresponding to it) and adding
  the children to the fringe
• Solution - is a path (sequence of states) from
  start state to a goal
• Uninformed or blind search is performed in state
  spaces where operators have no costs, informed
  search is performed in search spaces where
  operators have costs and it makes sense to talk
  about optimality of a search algorithm
• Optimal algorithm - finds the lowest cost
  solution (i.e. path from start state to goal with
  lowest cost)
• Complete algorithm - finds a solution if one
  exists

17
Search Tree Notation

• Branching Factor, b
• b is the number of children of a node
• Depth of a node, d
• number of branches from root to a node
• Partial Paths
• paths which do not end in a goal
• Complete Paths
• paths which end in a goal
• Open Nodes (Fringe)
• nodes which are not expanded (i.e., the leaves of
  the tree)
• Closed Nodes
• nodes which have already been expanded (internal
  nodes)

d Depth 0 1 2
S
b2
G
18
Why Search can be difficult

• At the start of the search, the search algorithm
  does not know
• the size of the tree
• the shape of the tree
• the depth of the goal states
• How big can a search tree be?
• say there is a constant branching factor b
• and one goal exists at depth d
• search tree which includes a goal can have
  bd different branches in the tree (worst
  case)
• Examples
• b 2, d 10 bd 210 1024
• b 10, d 10 bd 1010 10,000,000,000

19
What is a Search Algorithm ?

• A search algorithm is an algorithm which
  specifies precisely how the state space is
  searched to find a goal state
• Search algorithms differ in the order in which
  nodes are explored in the state space
• since it is intractable to look at all nodes, the
  order in which we search is critically important
• different search algorithms will generate
  different search trees
• For now we will assume
• we are looking for one goal state
• all goal states are equally good, i.e., all have
  the same utility 1

20
How can we compare Search Algorithms?

• Completeness
• is it guaranteed to find a goal state if one
  exists?
• Time Complexity
• if a goal state exists, how long does it take
  (worst-case) to find it?
• Space Complexity
• if a goal state exists, how much memory
  (worst-case) is needed to perform the search?
• Optimality
• if goal states have different qualities, will the
  search algorithm find the state with the highest
  quality?
• (we will return to optimal search later, when
  goals can have different qualities/utilities for
  now assume they are all the same)

21
Types of Search Algorithms

• Blind/Uninformed Search (Chapter 3)
• do not use any specific problem domain
  information
• e.g., searching for a route on a map without
  using any information about direction
• yes, it seems dumb but the power is in the
  generality
• examples breadth-first, depth-first, etc
• we will look at several of these classic
  algorithms
• Heuristic/Informed Search (Chapter 4)
• use domain specific heuristics (rules of thumb,
  hints)
• e.g. since Seattle is north of LA, explore
  northerly routes first
• This is the AI approach to search
• i.e., add domain-specific knowledge
• Later we will see that this can transform
  intractable search problems into ones we can
  solve in real-time

22
Depth First Search (DFS)
S
D
A
B
D
E
C
Here, to avoid repeated states assume we dont
expand any child node which appears already in
the path from the root S to the parent. (Other
strategies are also possible)
F
D
G
23
Pseudocode for Depth-First Search
Initialize Let Q S While Q is not
empty pull Q1, the first element in Q if Q1 is
a goal report(success) and quit else child_no
des expand(Q1) eliminate child_nodes which
represent loops put remaining child_nodes at
the front of Q end Continue

• Comments
• a specific example of the general search tree
  method
• open nodes are stored in a queue Q of nodes
• key feature
• new unexpanded nodes are put at front of the
  queue
• convention is that nodes are ordered left to
  right

24
Breadth First Search
S
D
A
B
A
E
D
E
S
E
C
F
B
B
S
(Use the simple heuristic of not generating a
child node if that node is a parent to avoid
obvious loops this clearly does not avoid all
loops and there are other ways to do this)
25
Pseudocode for Breadth-First Search
Initialize Let Q S While Q is not
empty pull Q1, the first element in Q if Q1 is
a goal report(success) and quit else child_no
des expand(Q1) eliminate child_nodes which
represent loops put remaining child_nodes at
the back of Q end Continue

• Comments
• another specific example of the general search
  tree method
• open nodes are stored in a queue Q of nodes
• differs from depth-first only in that
• new unexpanded nodes are put at back of the queue
• convention again is that nodes are ordered left
  to right

26
Summary

• Intelligent agents can often be viewed as
  searching for problem solutions in a discrete
  state-space
• Search consists of
• state space
• operators
• start state
• goal states
• A Search Tree is an efficient way to represent a
  search
• There are a variety of general blind search
  techniques, including
• Depth-First Search
• Breadth-First Search
• we will look at several others in the next few
  lectures
• Assigned Reading Nilsson Ch.II -7 R.N. Ch. 3
  (3.1-3.4)

27
Notes 3 Extensions of Blind Search

• ICS 171 Winter 2001

28
Summary

• Search basics
• repeat main definitions
• search spaces and search trees
• complexity of search algorithms
• Some new search strategies
• depth-limited search
• iterative deepening
• bidirectional search
• Repeated states can lead to infinitely large
  search trees
• methods for for detecting repeated states
• But all of these are blind algorithms in the
  sense that they do not take into account how far
  away the goal is.

29
Defining Search Problems

• A statement of a Search problem has 4 components
• 1. A set of states
• 2. A set of operators which allow one to get
  from one state to another
• 3. A start state S
• 4. A set of possible goal states, or ways to test
  for goal states
• Search solution consists of
• a unique goal state G
• a sequence of operators which transform S into a
  goal state G
• For now we are only interested in finding any
  path from S to G

30
Important A State Space and a Search Tree are
different
S
B
D
S
B
C
C
B
State Space
Example of a Search Tree

• A State Space represents all states and operators
  for the problem
• A Search Tree is what an algorithm constructs as
  it solves a search problem
• so we can have different search trees for the
  same problem
• search trees grow in a dynamic fashion until the
  goal is found

31
Why is Search often difficult?

• At the start of the search, the search algorithm
  does not know
• the size of the tree
• the shape of the tree
• the depth of the goal states
• How big can a search tree be?
• say there is a constant branching factor b
• and a goal exists at depth d
• search tree which includes a goal can have
  bd different branches in the tree
• Examples
• b 2, d 10 bd 210 1024
• b 10, d 10 bd 1010 10,000,000,000

32
Quick Review of Complexity

• In analyzing an algorithm we often look at
  worst-case
• 1. Time complexity
• (how many seconds it will take to run)
• 2. Space complexity
• (how much memory is required)
• The complexity will be a function of the size of
  the inputs to the algorithm, e.g., n is the
  length of a list to be sorted
• we want to know how the algorithm scales with n
• We use notation O( f(n) ) to denote behavior,
  e.g.,
• O(n) for linear behavior
• O(n2) for quadratic behavior
• O(cn) for exponential behavior, c is some
  constant
• In practice we want algorithms which scale
  nicely

33
What is the Complexity of Depth-First Search?

• Time Complexity
• assume (worst case) that there is 1 goal leaf at
  the RHS
• so DFS will expand all nodes 1 b b2
  ......... bd O (bd)
• Space Complexity
• how many nodes can be in the queue (worst-case)?
• at depth l lt d we have b-1 nodes
• at depth d we have d nodes
• total (d-1)(b-1) d O(bd)

d0
d1
d2
G
d0
d1
d2 d3 d4

34
What is the Complexity of Breadth-First Search?

• Time Complexity
• assume (worst case) that there is 1 goal leaf at
  the RHS
• so BFS will expand all nodes 1 b b2
  ......... bd O (bd)
• Space Complexity
• how many nodes can be in the queue (worst-case)?
• at depth d-1 there are bd unexpanded nodes in
  the Q O (bd)

d0
d1
d2
G
d0
d1
d2
G
35
Comparing DFS and BFS

• Same Time Complexity, unless...
• say we have a search problem with
• goals at some depth d
• but paths without goals and which have infinite
  depth (i.e., loops in the search space)
• in this case DFS never may never find a goal!
• (it stays on an infinite (non-goal) path forever)
• BFS does not have this problem
• it will find the finite depth goals in time
  O(bd)
• Practical considerations
• if there are no infinite paths, and many possible
  goals in the search tree, DFS will work best
• For large branching factors b, BFS may run out of
  memory
• BFS is safer if we know there can be loops

36
Depth-Limited Search

• This is Depth-first Search with a cutoff on the
  maximum depth of any path
• i.e., implement the usual DFS algorithm
• when any path gets to be of length m, then do not
  expand this path any further and backup
• this will systematically explore a search tree of
  depth m
• Properties of DLS
• Time complexity O(bm), Space complexity
  O(bm)
• If goal state is within m steps from S
• DLS is complete
• e.g., with N cities, we know that if there is a
  path to goal state G it can be of length N-1 at
  most
• But usually we dont know where the goal is!
• if goal state is more than m steps from S, DLS is
  incomplete!
• gt the big problem is how to choose the value of m

37
Iterative Deepening Search

• Basic Idea
• we can run DFS with a maximum depth constraint, m
• i.e., DFS algorithm but it backs-up at depth m
• this avoids the problem of infinite paths
• But how do we choose m in practice? say m lt d
  (!!)
• We can run DFS multiple times, gradually
  increasing m
• this is known as Iterative Deepening Search

Procedure for m 1 to infinity if (depth-first
search with max-depth m ) returns
success then report (success) and
quit else continue end
38
Comments on Iterative Deepening Search

• Complexity
• Space complexity O(bd)
• (since its like depth first search run different
  times)
• Time Complexity
• 1 (1b) (1 bb2) .......(1 b....bd)
  O(bd) (i.e., the same as BFS or DFS in the the
  worst case)
• The overhead in repeated searching of the same
  subtrees is small relative to the overall time
• e.g., for b10, only takes about 11 more time
  than DFS
• A useful practical method
• combines
• guarantee of finding a solution if one exists (as
  in BFS)
• space efficiency, O(bd) of DFS

39
Search Method 5 Bidirectional Search

• Idea
• simultaneously search forward from S and
  backwards from G
• stop when both meet in the middle
• need to keep track of the intersection of 2 open
  sets of nodes
• What does searching backwards from G mean
• need a way to specify the predecessors of G
• this can be difficult,
• e.g., predecessors of checkmate in chess?
• what if there are multiple goal states?
• what if there is only a goal test, no explicit
  list?
• Complexity
• time complexity is O(2 b(d/2)) O(b (d/2)) steps
• memory complexity is the same

40
Repeated States
S
B
S
B
C
C
S
C
B
S
State Space
Example of a Search Tree

• For many problems we can have repeated states in
  the search tree
• i.e., the same state can be gotten to by
  different paths
• gt same state appears in multiple places in the
  tree
• this is inefficient, we want to avoid it
• How inefficient can this be?
• a problem with a finite number of states can have
  an infinite search tree!

41
Techniques for Avoiding Repeated States

• Method 1
• when expanding, do not allow return to parent
  state
• (but this will not avoid triangle loops for
  example)
• Method 2
• do not create paths containing cycles (loops)
• i.e., do not keep any child-node which is also an
  ancestor in the tree
• Method 3
• never generate a state generated before
• only method which is guaranteed to always avoid
  repeated states
• must keep track of all possible states (uses a
  lot of memory)
• e.g., 8-puzzle problem, we have 9! 362,880
  states
• Methods 1 and 2 are most practical, work well on
  most problems

42
Summary

• A review of search
• a search space consists of states and operators
  it is a graph
• a search tree represents a particular exploration
  of search space
• There are various extensions to standard BFS and
  DFS
• depth-limited search
• iterative deepening
• bidirectional search
• Repeated states can lead to infinitely large
  search trees
• we looked at methods for for detecting repeated
  states
• Reading Nilsson Ch.II-8 R.N. Ch. 3, Ch.4
  (4.1)
• All of the search techniques so far do not care
  about the cost of the path to the goal. Next we
  will look at algorithms which are optimal in the
  sense they always find a path to goal which has
  minimum cost.
