Title: HyperText Transfer Protocol


1

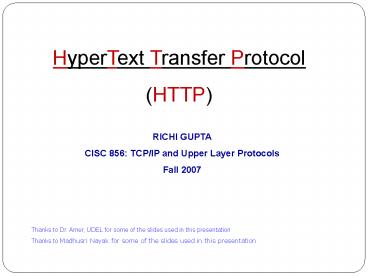

HyperText Transfer Protocol (HTTP)
RICHI GUPTA CISC 856 TCP/IP and Upper Layer
Protocols Fall 2007
Thanks to Dr. Amer, UDEL for some of the slides
used in this presentation Thanks to Madhusri
Nayak for some of the slides used in this
presentation
2
Motivation ?
  • Single informational network
  • Light protocol
  • Speed

Tim-Berners Lee Director of the W3C
HTTP Versions
Format HTTP/ltmajorgt.ltminorgt
  • HTTP/0.9 No RFC
  • HTTP/1.0 RFC 1945
  • HTTP/1.1 RFC 2616

2
3
Position of HTTP in the TCP/IP Protocol suite
Application-layer
Transport layer
IGMP
ICMP
Network layer
IP
ARP
RARP
Data link layer
Physical layer
4
Request Response Protocol
TCP connection
5
A-PDU format
Note Each line ends with cr lf control
characters.
6
A-PDU format (contd)
7
A-PDU format Contd
1xx Informational Continue (100) ,
Switching Protocols(101) 2xx Success - action
was successfully received, understood, and
accepted Created (201), Accepted (202), No
Content (204), OK (200) 3xx Redirection -
further action needed to complete request
Moved Permanently (301) , Moved Temporarily
(302), Not Modified (304) 4xx Client Error -
request contains bad syntax or cannot be
fulfilled Bad Request (400), Unauthorized
(401), Forbidden (403), Not Found (404) 5xx
Server Error - server failed to fulfill an
apparently valid request Internal Server
Error (500), Not Implemented (501), Bad Gateway
(502), Service Unavailable
(503)
8
Example Of Request/Response
Note Headers are in ascii format.
9
4 variations of HTTP
  • Nonpersistent with one connection
  • Nonpersistent with parallel connections
  • Persistent without pipelining
  • Persistent with pipelining

10
Nonpersistent (HTTP /1.0 default)
11
Client
Server
SYN
SYN-ACK
3-way handshake
ACK
Get web page
Web page
Web page transferred
Client parses HTML web page
Ack
Data
1.Found referenced object Image 1 2.
Found referenced object Image 2
12
Nonpersistent (contd)
Ack
Data
13
Key points
  • Connection does not persist for other objects
  • Connections are sequential

14
Rough calculation for number of RTTS
Client
Server
Web Page
Can we reduce the number of RTTS?
Image 1
Image 2
Delay due to connection request/handshake
Delay Due to HTML Page Request
Time delay in RTTs 6
Delay Due to Object Request
15
  • Nonpersistent with parallel connections ( browser
    dependent)

16
Client parses HTML web page
1. Referenced object Image 1 2.
Referenced object Image 2
Parallel connections
Ack
Data
17
Rough calculation
Client
Server
Web page
Image1 Image2
Time delay in RTTs 4
Delay due to connection request/handshake
Delay due to HTML page request
Delay due to object request
18
Disadvantages
  • overhead of multiple TCP connections
  • A busy server could end up with lots of
    connections in the TIME-WAIT state
  • Seldom does each connection get past the
    slow-start region
  • failure to use the full end-to-end available
    bandwidth
  • extra time opening connections increases
    user-perceived latency

Can HTTP be further improved?
19
Persistent without pipelining
20
Ack
Data
Note 1) Requests are sequential 2)
Timer is at application layer
20
21
Rough calculation
Client
Server
Web page
Time delay in RTTs 4
Delay due to connection request/handshake
Delay due to HTML page request
Delay due to object request
22
Persistent with pipelining
23
Back to back requests
Client parses web page Gets Image 1 Gets Image
2
Ack
Data
24
Rough calculation
Client
Server
Web page
24
Image1 Image2

Time delay in RTTs 3
Delay due to connection request/handshake
Delay due to HTML page request
Delay due to object request
25
  • Advantages
  • fewer connections
  • Reduced network traffic
  • CPU time is saved in routers and hosts
  • Reduced perceived latency on subsequent requests
  • Either client or server can close the
    connection
  • Disadvantages
  • Connections stay open longer at the server

26
FTP vs HTTP
27
Experimental Results
(NP HTTP/1.0) without parallel connections
(Persistent without pipelining)
(Persistent with pipelining)
Network Latency (seconds)
Number of in lined images
Figure 6-1 Latencies for a remote server, image
size 2544 bytes
28
Experimental Results (contd)
(NP HTTP/1.0) without parallel connections
(Persistent without pipelining)
(Persistent with pipelining)
Network Latency (seconds)
Number of in lined images
Figure 6-2 Latencies for a remote server, image
size 45566 bytes
29
Cache
Proxy Servers
HTTP Request (MISS)
HTTP Request
HTTP Response
HTTP Response(HIT)
  • Eliminate the need to send
  • requests to origin servers
  • reduces the number of
  • network round-trips
  • expiration mechanism
  • Eliminate the need to send full
  • responses
  • reduces network bandwidth
  • requirements
  • validation mechanism

HTTP Request
30
  • Expiration Model
  • Explicit expiration times (expires / max-age
    directive ).
  • Heuristic expiration times
  • Validation model
  • Cache validators (e.g Last-Modified Dates )
  • Server attaches validator with full response
  • user agent or proxy cache includes the
    associated validator in
  • request
  • The server then checks the validator
  • Special status code (304 (Not modified))
  • Full response

31
What Clients control
What servers control
  • Cachable/non-cachable object
  • Cachable at proxy
  • Cached object expiration time
  • Operations performed on copy
  • max-age age is no greater than the specified .
  • min-fresh fresh for at least the specified
    number of seconds
  • max-stale exceeded its expiration time by no
    more than the specified number of seconds.

32
Content negotiation
  • Multiple representations (variants) of a single
    resource
  • The process of selecting the best representation
    for a given response
  • Types
  • Server-driven Negotiation
  • Selection algorithm located at server
  • Agent-driven Negotiation
  • Selection done by the user agent from the list
    of available representations within header fields
    or entity-body of initial response
  • This negotiation is performed in 2 steps
  • Transparent Negotiation
  • Combination of both server-driven and
    agent-driven negotiation

33
Messages for www.google.com
Request Header
GET / HTTP/1.1 User-Agent Mozilla/5.0 (Windows
U Windows NT 6.0 en-US rv1.8.1.7)
Gecko/20070914 Firefox/2.0.0.7 Host
www.google.com Accepttext/xml,application/xml,app
lication/xhtmlxmltext/htmlq0.9,text/plainq0.
8,image/png,/q0.5 Accept-Language
en,en-usq0.5q0.5 Accept-Encoding
none Accept-Charset ISO-8859-1,utf-8q0.7,q0.
7 Connection Keep-Alive
Response Header
HTTP/1.1 200 OK Cache-Control private Content-Typ
e text/html charsetUTF-8 Set-Cookie
PREFIDb77cac251a771420TM1191977279LM11919772
79SrI0Vm3o4ZErGKlM8 expiresFri, 09-Oct-2009
004759 GMT path/ domain.google.com Server
gws Content-Length 5471 Date Wed, 10 Oct 2007
004759 GMT
34
Summary 4 variations of HTTP
  • Nonpersistent with 1 connection
  • One TCP connection at a time
  • Server initiates connection close
  • Nonpersistent with parallel connections
  • More than one TCP connection at a time
  • Server initiates connection close
  • Persistent without pipelining
  • One TCP connection at a time
  • Sequential requests of embedded web page objects
  • Server or client initiates connection close
  • Persistent with pipelining
  • One TCP connection at a time
  • Back to back requests for embedded web page
    objects
  • Server or client initiates connection close

35
Questions?
Do you know? IE will only open 2 parallel HTTP
connections to a named server by default
Do you know? Firefox will open 4 parallel HTTP
connections to a named server by default
Do you know? Pipelining is implemented entirely
at the browser end.
Thanks
