Title: Remote%20Sensing%20Review

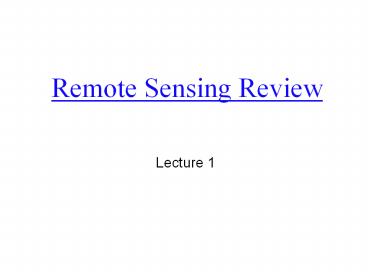

1
Remote Sensing Review
  • Lecture 1

2
What is remote sensing
  • Remote Sensing remote sensing is science of
  • acquiring,
  • processing, and
  • interpreting
  • images and related data that are obtained from
    ground-based, air-or space-borne instruments that
    record the interaction between matter (target)
    and electromagnetic radiation.
  • Remote Sensing using electromagnetic spectrum to
    image the land, ocean, and atmosphere.

3
Electromagnetic Spectrum
Source http//oea.larc.nasa.gov/PAIS/DIAL.html
4
Ways of Energy Transfer
Energy is the ability to do work. In the process
of doing work, energy is often transferred from
one body to another or from one place to another.
The three basic ways in which energy can be
transferred include conduction, convection, and
radiation. Most people are familiar with
conduction which occurs when one body (molecule
or atom) transfers its kinetic energy to another
by colliding with it (physical contact). This is
how a pan gets heated on a stove. In
convection, the kinetic energy of bodies is
transferred from one place to another by
physically moving the bodies. A good example is
the convectional heating of air in the atmosphere
in the early afternoon (less dense air rises).
The transfer of energy by electromagnetic
radiation is of primary interest to remote
sensing because it is the only form of energy
transfer that can take place in a vacuum such as
the region between the Sun and the Earth.
Jensen, 2000
5
Wave model of EMR
  • Electromagnetic wave consists of an electrical
    field (E) which varies in magnitude in a
    direction perpendicular to the direction in which
    the radiation is traveling, and a magnetic field
    (M) oriented at right angles to the electrical
    field. Both these fields travel at the speed of
    light (c).

Jensen, 2000
6
Three characteristics of electromagnetic wave
  • Velocity is the speed of light, c3 x 108 m/s
  • wavelength (?) is the length of one wave cycle,
    is measured in metres (m) or some factor of
    metres such as
  • centimetres (cm) 10-2 m
  • micrometres (µm) 10-6 m
  • nanometres (nm) 10-9 m
  • Frequency (v) refers to the number of cycles of a
    wave passing a fixed point per unit of time.
    Frequency is normally measured in hertz (Hz),
    equivalent to one cycle per second, and various
    multiples of hertz. unlike c and ? changing as
    propagated through media of different densities,
    v remains constant.
  • Hertz (Hz) 1
  • kilohertz (KHz) 103
  • megahertz (MHz) 106
  • gigahertz (GHz) 109

The amplitude of an electromagnetic wave is the
height of the wave crest above the undisturbed
position
Travel time from the Sun to Earth is 8 minutes
7
Particle model of EMR
  • Sir Isaac Newton (1704) was the first person
    stated that the light had not only wavelike
    characteristics but also light was a stream of
    particles, traveling in straight lines.
  • Niels Bohr and Max Planck (20s) proposed the
    quantum theory of EMR
  • Energy content Q (Joules) hv (h is the
    Planck constant 6.626 x 10 34 J s)
  • ? c/vhc/Q or Qhc/ ?
  • The longer the wavelength, the lower its energy
    content, which is important in remote sensing
    because it suggests it is more difficult to
    detect longer wavelength energy

Newtons experiment in 1966
8
Energy of quanta (photons)
Jensen, 2000
9
EMR details
  • (mm)
  • Red 0.620 - 0.7
  • Orange 0.592 - 0.620
  • Yellow 0.578 - 0.592
  • Green 0.500 - 0.578
  • Blue 0.446 - 0.500
  • Violet 0.4 - 0.446

Bees and some other insects can see near UV. The
Sun is the source of UV, but only gt 0.3 mm (near
UV) can reach the Earth.
10
EMR details (2)
11
Source of EMR
  • All objects above absolute zero emit
    electromagnetic energy, including water, soil,
    rock, vegetation, and the surface of the Sun. The
    Sun represents the initial source of most of the
    electromagnetic energy remote sensing systems
    (except radar and sonar)
  • Total radiation emitted M (Wm2) sT4
    (Stefan-Boltzmann Law), where T is in degrees K
    and s is the Stefan-Boltzmann constant,
    5.67108 K4Wm2
  • -- Energy at Sun enormous, 7.3107 Wm2,
    reduced to 459 Wm2 by Earth-Sun distance
  • Wavelength ?max of peak radiation, in µm 2897/T
    (Wiens Displacement Law) Examples
  • -- Peak of Suns radiation ?max 2897/6000
    0.48 µm
  • -- Peak of Earths radiation ?max 2897/300
    9.7 µm

Jensen, 2000
12
Jensen, 2000
13
Paths and Interactions
  • If the energy being remotely sensed comes from
    the Sun, the energy
  • is radiated by atomic particles at the
    source (the Sun),
  • propagates through the vacuum of space at
    the speed of light,
  • interacts with the Earth's atmosphere (3A),
  • interacts with the Earth's surface (3B),
  • interacts with the Earth's atmosphere once
    again (3C),
  • finally reaches the remote sensor where it
    interacts with various optical systems, filters,
    emulsions, or detectors (3D).

60 miles or 100km
Jensen, 2000
14
Several concepts
  • Plancks equation
  • - if a blackbody transforms heat into radiant
    energy, then the radiation received at a sensor
    is given by Plancks equation.
  • Spectral Emissivity

15
  • Spectral reflectivity is the percentage of EMR
    reflected by the object in a each wavelength or
    spectral bands
  • Albedo is ratio of the amount of EMR reflected by
    a surface to the amount of incident radiation on
    the surface. Fresh Snow has high albedo of
    0.8-0.95, old snow 0.5-0.6, forest 0.1-0.2, Earth
    system 0.35

EMR
EMR
EMR
16
Some others
  • Pixel
  • FOV and IFOV
  • Solid angle
  • Radiance
  • Cross track and along track
  • Whiskbroom and Push broom
  • Dwell time
  • Nadir and off-nadir

17
Remote sensing platforms
18
Ground and Aircraft Based
  • Ground
  • repeat or continuous sampling
  • regional or local coverage
  • example NEXRAD for precipitation
  • Aircraft
  • repeat sampling , any sampling interval
  • regional or local coverage
  • examples AVIRIS for minerals exploration
  • LIDAR for ozone and aerosols

19
Space Based
  • Sun-synchronous polar orbits
  • global coverage, fixed crossing, repeat sampling
  • typical altitude 500-1,500 km
  • example MODIS, Landsat
  • Low-inclination, non-Sun-synchronous orbits
  • tropics and mid-latitudes coverage, varying
    sampling
  • typical altitude 200-2,000 km
  • example TRMM
  • Geostationary orbits
  • regional coverage, continuous sampling
  • over equator only, altitude 35,000 km
  • example GOES

20
Types of remote sensing
  • Passive source of energy is either the Sun,
    Earth, or atmosphere
  • Sun
  • - wavelengths 0.4-5 µm
  • Earth or its atmosphere
  • - wavelengths 3 µm -30 cm
  • Active source of energy is part of the remote
    sensor system
  • Radar
  • - wavelengths mm-m
  • Lidar
  • - wavelengths UV, Visible, and near infrared

21
Measurement scales constrained by physics and
technology
  • Spatial resolution (IFOV/GSD) and coverage (FOV)
  • Optical diffraction sets minimum aperture size
  • Spectral resolution (Dl ) and coverage (lmin to
    lmax)
  • Narrow bands need bigger aperture, more
    detectors, longer integration time
  • Radiometric resolution (S/N, NEDr, NEDT ) and
    coverage (dynamic range)
  • Aperture size, detector size, number of
    detectors, and integration time
  • Temporal resolution (site revisit) and coverage
    (global repeat)
  • Pointing agility, period for full coverage

22
Basics of Bit
  • Computer store everything in 0 or 1

bits Max. num
1 2
2 4
3 8
6 64
8 256
11 2048
12 4096
(2bits)
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1
Bit no.
0
256
8 bits as an example
23
The size of a cell we call image resolution,
depending on Such as 1 m, 30 m, 1 km, or 4 km
24
Digital Image Data Formats
  • Each band of image is stored as a matrix (array)
    format
  • To efficiently handle the multi-bands (and
    hyperspectral) imagery in an image processing
    software, BSQ (band sequential), BIL (band
    interleaved by line), BIP (band interleaved by
    pixel) are common image data format (see an
    example in p103 of the text book) .

25
Procedures of image processing
  • Preprocessing
  • Radiometric correction is concerned with
    improving the accuracy of surface spectral
    reflectance, emittance, or back-scattered
    measurements obtained using a remote sensing
    system. Atmospheric and topographic corrections
  • Geometric correction is concerned with placing
    the above measurements or derivative products in
    their proper locations.
  • Information enhancement
  • Point operations change the value of each
    individual pixel independent of all other pixels
  • Local operations change the value of individual
    pixels in the context of the values of
    neighboring pixels.
  • They are image reduction, image magnification,
    transect extraction, contrast adjustments (linear
    and non-linear), band ratioing, spatial
    filtering, fourier transformations, principle
    components analysis, and texture transformations
  • Information extraction
  • Post-classification
  • Information output
  • Image or enhanced image itself, thematic map,
    vector map, spatial database, summary statistics
    and graphs

26
Remote Sensing Applications
  • Land
  • rocks, minerals, faults, land use and land
    cover, vegetation, DEM, snow and ice, urban
    growth, environmental studies,
  • Ocean
  • ocean color, sea surface temperature, ocean
    winds,
  • Atmosphere
  • temperature, precipitation, clouds, ozone,
    aerosols,

27
Applications driving remote sensing
Jensen, 2000
Jensen, 2000
Various application demands as driving forces for
the resolution improvements of remote sensing
28
From Terra, Aqua to NPP to JPSS
NPP (2011, Oct) CrIS/ATMS VIIRS OMPS
Coriolis (2003) WindSat
Terra (1999) Aqua (2002) AIRS, AMSU MODIS
METOP (2006) IASI/AMSU/MHS AVHRR
JPSS/ (2016, 2019) CrIS/ATMS, VIIRS, CMIS,
OMPS ERBS
Use of Advanced Sounder Data for Improved Weather
Forecasting Numerical Weather Prediction
NOAA Real-Time Data Delivery Timeline Ground
Station Scenario
NWS/NCEP GSFC/DAO ECMWF UKMO FNMOC Meteo-France BM
RC-Australia Met Serv Canada
NOAA Real-time User
NWP Forecasts
IDPS
C3S
Joint Center for Satellite Data Assimilation
29
NPP Goals
  • The NPP mission has two major goals
  • To provide a continuation of the EOS record of
    climate-quality observations after EOS Terra,
    Aqua, and Aura (i.e., it will extend key Earth
    system data records and/or climate data records
    of equal or better quality and uncertainty in
    comparison to those of the Terra, Aqua, and Aura
    sensors), and
  • To provide risk reduction for JPSS instruments,
    algorithms, ground data processing, archive, and
    distribution prior to the launch of the first
    JPSS spacecraft (but note that there are now
    plans to use NPP data operationally)

30
NPP sensors
31
NPP Satellite Scheduled for Launch
  • Nadir facing antennas
  • TC
  • HRD
  • SMD

Launched October 28, 2011
VIIRS
CrIS
ATMS
OMPS
http//jointmission.gsfc.nasa.gov/
32
Data Products
  • Level 1 products
  • VIIRS, CrIS, ATMS and OMPS Sensor Data Records
    (SDRs) are full resolution sensor data that are
    time referenced, Earth located, and calibrated by
    applying the ancillary information, including
    radiometric and geometric calibration
    coefficients and geo-referencing parameters such
    as platform ephemeris. These data are processed
    to sensor units (e.g., radiances). Calibration,
    ephemeris, and other ancillary data necessary to
    convert the sensor data back to sensor raw data
    (counts) are included.
  • Level 2 (EDR/CDRs) products
  • EDR emphasis will be on generating products with
    a more rapid data delivery that necessarily
    involves high-speed availability of ancillary
    data and high-performance execution of the sensor
    contractors' state-of-the-art science algorithms
    for civilian and military applications.
  • CDR, the requirement of timeliness can be
    relaxed, thereby allowing for the implementation
    of complex algorithms using diverse ancillary
    data. As understanding of sensor calibration
    issues and radiative transfer from the Earth and
    Atmosphere improves, algorithms can be improved,
    and products can be generated via reprocessing

33
(No Transcript)
34
EDR environmental data records
35
(No Transcript)
36
(No Transcript)
37
Major image processing software
  • ENVI/IDL http//www.rsinc.com/
  • ERDAS Imagine http//www.gis.leica-geosystems.com
    /Products/Imagine/
  • PCI Geomatics http//www.pci.on.ca/
  • ER Mapper http//www.ermapper.com/
  • INTEGRAPH http//imgs.intergraph.com/gimage/
  • IDRIS
  • Ecognition http//www.definiens-imaging.com/ecogn
    ition/pro/40.htm
  • See5 and decision tree
Write a Comment
User Comments (0)
About PowerShow.com
