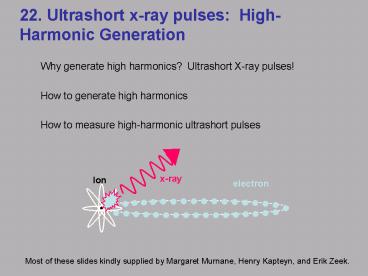

22. Ultrashort x-ray pulses High-Harmonic
Generation

• Why generate high harmonics? Ultrashort X-ray
  pulses!
• How to generate high harmonics
• How to measure high-harmonic ultrashort pulses

Most of these slides kindly supplied by Margaret
Murnane, Henry Kapteyn, and Erik Zeek.
2
High-Harmonic Generation
Amplified femtosecond laser pulse
gas jet
Coherent, ultrashort-pulse, low-divergence, x-ray
beam generated by focusing a femtosecond laser in
a gas jet Harmonic orders gt 300, photon energy gt
500 eV, observed to date Highest-order
nonlinear-optical processes observed to date
3
The VUV, XUV, and soft x-ray regions
Soft x-rays 5 nm gt l gt 0.5 nm Strongly interacts
with core electrons in materials
Vacuum-ultraviolet (VUV) 180 nm gt l gt 50 nm
Absorbed by ltlt1 mm of air Ionizing to many
materials
Extreme-ultraviolet (XUV) 50 nm gt l gt 5
nm Ionizing radiation to all materials
4
Applications of Short-wavelength light

• Applications in Molecular Dynamics
• Charge transfer to solvent dynamics
• Ultrafast dynamics of small molecules, coherent
  control
• Ultrafast photoelectron spectroscopy (excited
  state dynamics, local order)
• Electron-nuclear coupling (validity of
  Frank-Condon approximation)
• Coherent phonon dynamics (short scalelength
  correlations, large k-vectors)
• Time-resolved radiation chemistry
• Efficient cross-linking of proteins to DNA
• Applications in Materials Science
• VUV lithography, x-ray nanoprobes
• Ultrafast x-ray holography, x-ray microscopy
• Laser-induced materials processing
  (micromachining and data storage)
• Applications in Laser Physics
• Coherent uv sources
• Nonlinear optics at short wavelengths
  (quasi-phasematching, designer waveguides,
  clusters, nonadiabatic effects, attosecond
  pulses, coherent control)

5
Application of x-rays lithography
Jorge J. Rocca
6
Synchrotron X-ray source and uses at LBL
7
X-ray wavelengths between 2.2 and 4.5 nm have
major biological applications.
Carbon absorbs these wavelengths, but water
doesnt. This is the water window.
8
VUV, EUV, and Soft X-ray Issues

• Absorbed in lt1 mm of air
• Needs vacuum
• Sensitive to surface contamination
• Surface-sensitive spectroscopies
• Surface contaminants can kill an optical system
• As few as 100 atomic layers of solid
• Refractive optics (i.e. lenses) virtually
  impossible
• Mirrors limited, but possible

9
X-ray multilayer mirrors can reflect up to 70.
Jorge J. Rocca
10
High Harmonic Generation in a gas
X-ray spectrometer
800 nm lt 1ps
detector
1015W/cm2
grating
Laser dump
HHG in neon

plateau
cutoff
Harmonic
31
7
10
15
Symmetry issues prevent HHG from occurring at
even harmonics. But it yields odd harmonics and
lots of them!
6
10
Photons/pulse
65

5
10
4
10
50
40
30
20
Wavelength (nm)
11
High Harmonic Generation with Ultra-intense Pulses
neon
helium
Kapteyn and Murnane, Phys. Rev. Lett., 79, 2967
(1997)
12
HHG is a highly nonlinear process resulting from
highly nonharmonic motion of an electron in an
intense field.
The strong field smashes the electron into the
nucleusa highly non-harmonic motion!
How do we know this? Circularly polarized light
(or even slightly elliptically polarized light)
yields no harmonics!
13
Modeling high harmonics
The potential due to the nucleus in the absence
of the intense laser field
But the laser field is so intense that it highly
distorts the potential!
14
High harmonics in both domains
Spectrum
A measured HHG spectrum And the field vs.
time from a high-intensity, non-perturbative
model
Possible E-field vs. time
t
15
High harmonics exhibit a perturbative region, a
plateau region, and a cut-off.
For low-order harmonics, the intensity decreases
rapidly with harmonic number.
Then the harmonics plateau for a while, until a
cut-off wavelength is reached.
In the perturbative regime, frequencies couple to
each other and compete for energy, and
perturbation theory applies.
16
The cut-off wavelength depends on the medium.
17
In He, its possible to generate x-rays in the
water window.
4 nm
5 nm
3.5 nm
Coherent lt 10fs x-ray generation in He at 2.7 nm
Cutoff of Spectrometer
Z. Chang et al, Phys. Rev. Lett. 79, 2967
(1997) C. Spielmann et al, Science 278, 661 (1997)
18
HHG works best with the shortest pulses.
argon
PRL 76,752 (1996) PRL 77,1743 (1996) PRL 78,1251
(1997)

• Shorter pulses generate higher harmonics and do
  so more efficiently.

19
How do we measure VUV and x-ray pulses?
Autocorrelation using two-photon absorption is
possible.
Autocorrelation trace of just the 9th harmonic
Even a single high harmonic pulse can be as short
as (or shorter than) the initial pulse that
generates it.
This measurement method lacks the bandwidth,
however, to measure a pulse containing all the
harmonics. Also, the x-rays are weak, and
available nonlinear-optical effects are too weak.
20
A more broadband process is Laser-Assisted
Photoelectron Emission
The original (intense) IR pulse in combination
with the (weak) x-ray pulse will ionize atoms.
This process is effectively sum- and
difference-frequency generation.
This process yields electron energies
corresponding to the even harmonics!
21
X-ray cross-correlation
Use a second gas jet to use LAPE to produce a
cross-correlation with the input pulse.
Energy-filter the photoelectrons to see only the
sum or difference frequency.
J. M. Schins et al, JOSA B 13, 197 (1996) T. E.
Glover et al, Physical Review Letters, 76, 2468
(1996)
22
HHG in a hollow fiber yields a longer interaction
length and phase-matching.
By propagating the laser light in a hollow fiber,
its phase velocity can be phase-matched to that
of the generated x-rays, increasing the
conversion efficiency. The wave-guide refractive
index depends on the pressure (as usual), but
also the size of the wave-guide and the cladding
material.
Science 280, 1412 (1998)
23
Pressure-tuned phase-matching of soft x-rays
29th harmonic at 27nm Created in a hollow fiber

• Phase-matched length in fiber 1-3 cm
• Output enhanced by 102-103
• Can phase-match harmonic orders 19 - 60 (or 28 -
  90 eV)
• Harmonic photon energy is limited by the presence
  of plasma

24
X-rays produced from hollow fibers are spatially
coherent.
The hollow fiber yields a high-quality spatial
intensity and phase.
X-ray beam spatial profile
Double-slit interference
These x-ray beams are temporally and spatially
coherent, with a sub-5fs duration.
25
Pulse-shaping (coherent control) in HHG
Input 27 fs, 1.4 mJ, 800 nm pulse at
1kHz Coupled into a hollow core fiber Ar gas
pressure 2.5 Torr. Not phase-matched.
Detector X-ray CCD coupled to an X-ray
Spectrometer. Allow detection of multiple
harmonics simultaneously.
26
Feedback control in high-harmonic generation
Same idea as chemical control, but now were
optimizing x-rays.
27
The excitation pulse can be shaped to select one
EUV harmonic.
Controls phase and shape of electron
wave-function using light Coherence of EUV beam
can be adjusted to generate transform-limited
x-ray pulses Enhancements of gt30 obtained to
date.
Bartels, R. et al., Nature, Vol. 406,164 (2000)
28
Shaping the pulse rephases the harmonic light.
Optimized pulse has a nonlinear chirp on the
leading edge
Christov et al, PRL 86, 5458 (2001)
29
Average brillianceHHG vs. other x-ray sources

• High harmonics are weaker, but theyre ultrafast
  and spatially coherent

(APS web page)
