Clustering

1

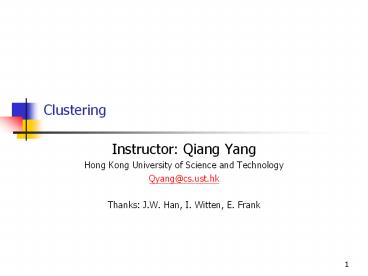

Clustering

• Instructor Qiang Yang
• Hong Kong University of Science and Technology
• Qyang_at_cs.ust.hk
• Thanks J.W. Han, I. Witten, E. Frank

2
Essentials

• Terminology
• Objects rows records
• Variables attributes features
• A good clustering method
• high on intra-class similarity and low on
  inter-class similarity
• What is similarity?
• Based on computation of distance
• Between two numerical attributes
• Between two nominal attributes
• Mixed attributes

3
The database
Object i
4
Numerical Attributes

• Distances are normally used to measure the
  similarity or dissimilarity between two data
  objects
• Euclideandistance
• where i (xi1, xi2, , xip) and j (xj1, xj2,
  , xjp) are two p-dimensional records,
• Manhattan distance

5
Binary Variables (0, 1, or true, false)

• A contingency table for binary data
• Simple matching coefficient
• Invariant of coding of binary variable if you
  assign 1 to pass and 0 to fail, or the other
  way around, youll get the same distance value.

Row j
Row i
6
Nominal Attributes

• A generalization of the binary variable in that
  it can take more than 2 states, e.g., red,
  yellow, blue, green
• Method 1 Simple matching
• m of matches, p total of variables
• Method 2 use a large number of binary variables
• creating a new binary variable for each of the M
  nominal states

7
Other measures of cluster distance

• Minimum distance
• Max distance
• Mean distance
• Avarage distance

8
Major clustering methods

• Partition based (K-means)
• Produces sphere-like clusters
• Good when
• know number of clusters,
• Small and med sized databases
• Hierarchical methods (Agglomerative or divisive)
• Produces trees of clusters
• Fast
• Density based (DBScan)
• Produces arbitrary shaped clusters
• Good when dealing with spatial clusters (maps)
• Grid-based
• Produces clusters based on grids
• Fast for large, multidimensional databases
• Model-based
• Based on statistical models
• Allow objects to belong to several clusters

9
The K-Means Clustering Method for numerical
attributes

• Given k, the k-means algorithm is implemented in
  four steps
• Partition objects into k non-empty subsets
• Compute seed points as the centroids of the
  clusters of the current partition (the centroid
  is the center, i.e., mean point, of the cluster)
• Assign each object to the cluster with the
  nearest seed point
• Go back to Step 2, stop when no more new
  assignment

10
The mean point
The mean point can be a virtual point
11
The K-Means Clustering Method

• Example

10
9
8
7
6
5
Update the cluster means
Assign each objects to most similar center
4
3
2
1
0
0
1
2
3
4
5
6
7
8
9
10
reassign
reassign
K2 Arbitrarily choose K object as initial
cluster center
Update the cluster means
12
Comments on the K-Means Method

• Strength Relatively efficient O(tkn), where n
  is objects, k is clusters, and t is
  iterations. Normally, k, t ltlt n.
• Comment Often terminates at a local optimum.
• Weakness
• Applicable only when mean is defined, then what
  about categorical data?
• Need to specify k, the number of clusters, in
  advance
• Unable to handle noisy data and outliers too well
• Not suitable to discover clusters with non-convex
  shapes

13
Robustness
14
Variations of the K-Means Method

• A few variants of the k-means which differ in
• Selection of the initial k means
• Dissimilarity calculations
• Strategies to calculate cluster means
• Handling categorical data k-modes (Huang98)
• Replacing means of clusters with modes
• Using new dissimilarity measures to deal with
  categorical objects
• Using a frequency-based method to update modes of
  clusters
• A mixture of categorical and numerical data
  k-prototype method

15
K-Modes See J. X. Huangs paper online (Data
Mining and Knowledge Discovery Journal, Springer)
16
Formalization of K-Means
17
K-Means Cont.
18
K-Modes See J. X. Huangs paper online (Data
Mining and Knowledge Discovery Journal, Springer)
19
K-Modes (Cont.)
20
K-Modes
21
K-Modes Cost Function
22
Finding K-Modes
23
Mixed Types K-Prototypes
24
K-Modes Evaluation Data
25
K-Modes Evaluation
26
Some Experiments
27
What is the problem of k-Means Method?

• The k-means algorithm is sensitive to outliers !
• Since an object with an extremely large value may
  substantially distort the distribution of the
  data.
• K-Medoids Instead of taking the mean value of
  the object in a cluster as a reference point,
  medoids can be used, which is the most centrally
  located object in a cluster.

28
The K-Medoids Clustering Method

• Find representative objects, called medoids, in
  clusters
• Medoids are located in the center of the
  clusters.
• Given data points, how to find the medoid?

10
9
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
7
8
9
10
29
K-Medoids most centrally located objects
30
CLARA
31
CLASA Simulated Annealing
32
Sampling based method MCMRS
33
KMedoids Evaluation
34
Density-Based Clustering Methods

• Clustering based on density (local cluster
  criterion), such as density-connected points
• Major features
• Discover clusters of arbitrary shape
• Handle noise
• One scan
• Need density parameters as termination condition
• Several interesting studies
• DBSCAN Ester, et al. (KDD96)
• OPTICS Ankerst, et al (SIGMOD99).
• DENCLUE Hinneburg D. Keim (KDD98)
• CLIQUE Agrawal, et al. (SIGMOD98)

35
Density-Based Clustering

• Clustering based on density (local cluster
  criterion), such as density-connected points
• Each cluster has a considerable higher density of
  points than outside of the cluster

36
Density-Based Clustering Background

• Two parameters
• e Maximum radius of the neighbourhood
• MinPts Minimum number of points in an
  Eps-neighbourhood of that point
• Ne(p) q belongs to D dist(p,q) lt e
• Directly density-reachable A point p is directly
  density-reachable from a point q wrt. e, MinPts
  if
• 1) p belongs to Ne(q)
• 2) core point condition
• Ne (q) gt MinPts

37
Density-Based Clustering Background (II)

• Density-reachable
• A point p is density-reachable from a point q
  wrt. e, MinPts if there is a chain of points p1,
  , pn, p1 q, pn p such that pi1 is directly
  density-reachable from pi
• Density-connected
• A point p is density-connected to a point q wrt.
  e, MinPts if there is a point o such that both, p
  and q are density-reachable from o wrt. e and
  MinPts.

p
p1
q
38
DBSCAN Density Based Spatial Clustering of
Applications with Noise

• Relies on a density-based notion of cluster A
  cluster is defined as a maximal set of
  density-connected points
• Discovers clusters of arbitrary shape in spatial
  databases with noise

39
DBSCAN The Algorithm

• Arbitrary select a point p
• Retrieve all points density-reachable from p wrt
  e and MinPts.
• If p is a core point, a cluster is formed.
• If p is a border point, no points are
  density-reachable from p and DBSCAN visits the
  next point of the database.
• Continue the process until all of the points have
  been processed.

40
DBSCAN Properties

• Generally takes O(nlogn) time
• Still requires user to supply Minpts and e
• Advantage
• Can find points of arbitrary shape
• Requires only a minimal (2) of the parameters

41
Model-Based Clustering Methods

• Attempt to optimize the fit between the data and
  some mathematical model
• Statistical and AI approach
• Conceptual clustering
• A form of clustering in machine learning
• Produces a classification scheme for a set of
  unlabeled objects
• Finds characteristic description for each concept
  (class)
• COBWEB (Fisher87)
• A popular a simple method of incremental
  conceptual learning
• Creates a hierarchical clustering in the form of
  a classification tree
• Each node refers to a concept and contains a
  probabilistic description of that concept

42
The COBWEB Conceptual Clustering Algorithm 8.8.1

• The COBWEB algorithm was developed by D. Fisher
  in the 1990 for clustering objects in a
  object-attribute data set.
• Fisher, Douglas H. (1987) Knowledge Acquisition
  Via Incremental Conceptual Clustering
• The COBWEB algorithm yields a classification tree
  that characterizes each cluster with a
  probabilistic description
• Probabilistic description of a node (fish,
  prob0.92)
• Properties
• incremental clustering algorithm, based on
  probabilistic categorization trees
• The search for a good clustering is guided by a
  quality measure for partitions of data
• COBWEB only supports nominal attributes CLASSIT
  is the version which works with nominal and
  numerical attributes

43
The Classification Tree Generated by the COBWEB
Algorithm
44
Input A set of data like before

• Can automatically guess the class attribute
• That is, after clustering, each cluster more or
  less corresponds to one of PlayYes/No category
• Example applied to vote data set, can guess
  correctly the party of a senator based on the
  past 14 votes!

45
Clustering COBWEB

• In the beginning tree consists of empty node
• Instances are added one by one, and the tree is
  updated appropriately at each stage
• Updating involves finding the right leaf an
  instance (possibly restructuring the tree)
• Updating decisions are based on partition
  utility and category utility measures

46
Clustering COBWEB

• The larger this probability, the greater the
  proportion of class members sharing the value
  (Vij) and the more predictable the value is of
  class members.

47
Clustering COBWEB

• The larger this probability, the fewer the
  objects that share this value (Vij) and the more
  predictive the value is of class Ck.

48
Clustering COBWEB

• The formula is a trade-off between intra-class
  similarity and inter-class dissimilarity, summed
  across all classes (k), attributes (i), and
  values (j).

49
Clustering COBWEB
50
Clustering COBWEB
Increase in the expected number of attribute
values that can be correctly guessed (Posterior
Probability)
The expected number of correct guesses give no
such knowledge (Prior Probability)
51
The Category Utility Function

• The COBWEB algorithm operates based on the
  so-called category utility function (CU) that
  measures clustering quality.
• If we partition a set of objects into m clusters,
  then the CU of this particular partition is

Question Why divide by m? - hint if mobjects,
CU is max!
52
Insights of the CU Function

• For a given object in cluster Ck, if we guess its
  attribute values according to the probabilities
  of occurring, then the expected number of
  attribute values that we can correctly guess is

53

• Given an object without knowing the cluster that
  the object is in, if we guess its attribute
  values according to the probabilities of
  occurring, then the expected number of attribute
  values that we can correctly guess is

54

• P(Ck)is incorporated in the CU function to give
  proper weighting to each cluster.
• Finally, m is placed in the denominator to
  prevent over-fitting.

55
Question about CU

• Are their other ways to define category utility
  for a partition?
• For example, using information theory?
• Recall that mutual information I(X,Y) defines the
  reduction of uncertainty in X when knowing Y
  I(X,Y)H(X)-H(XY), where
• H(X)-p(X)log(X), and
• H(XY)E-p(XY)logp(XY) over Yy_i
• Now, let X X_i(A_iV_ij), Y y_lC_l
• I(A_i,C)E_clusters(H(A_i)-H(A_iC_j)
• I(C)E_A_i(H(A_i, C))

56
Finite mixtures

• Probabilistic clustering algorithms model the
  data using a mixture of distributions
• Each cluster is represented by one distribution
• The distribution governs the probabilities of
  attributes values in the corresponding cluster
• They are called finite mixtures because there is
  only a finite number of clusters being
  represented
• Usually individual distributions are normal
  distribution
• Distributions are combined using cluster weights

57
A two-class mixture model
data
A 51A 43B 62B 64A
45A 42A 46A 45A 45
B 62A 47A 52B 64A
51B 65A 48A 49 A 46
B 64A 51A 52B 62A
49A 48B 62A 43A 40
A 48B 64A 51B 63A
43B 65B 66 B 65A 46
A 39B 62B 64A 52B
63B 64A 48B 64A 48
A 51A 48B 64A 42A
48A 41
model
?A50, ?A 5, pA0.6 ?B65, ?B 2, pB0.4
58
Using the mixture model

• The probability of an instance x belonging to
  cluster A is
• with
• The likelihood of an instance given the clusters
  is

59
Learning the clusters

• Assume we know that there are k clusters
• To learn the clusters we need to determine their
  parameters
• I.e. their means and standard deviations
• We actually have a performance criterion the
  likelihood of the training data given the
  clusters
• Fortunately, there exists an algorithm that finds
  a local maximum of the likelihood

60
The EM algorithm

• EM algorithm expectation-maximization algorithm
• Generalization of k-means to probabilistic
  setting
• Similar iterative procedure
• Calculate cluster probability for each instance
  (expectation step)
• Estimate distribution parameters based on the
  cluster probabilities (maximization step)
• Cluster probabilities are stored as instance
  weights

61
More on EM

• Estimating parameters from weighted instances
• Procedure stops when log-likelihood saturates
• Log-likelihood (increases with each iteration we
  wish it to be largest)
