Tak Kaneko, Astrophysics, Cavendish,

1

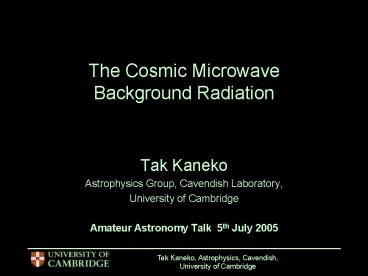

The Cosmic Microwave Background Radiation

• Tak Kaneko
• Astrophysics Group, Cavendish Laboratory,
• University of Cambridge
• Amateur Astronomy Talk 5th July 2005

2
CMB Situation in 1999

• From http//ulysse.iap.fr/CMB/index.htm

3
CMB Situation in 2004

• From the WMAP Science Team http//lambda.gsfc.nas
  a.gov/product/map/

4
Relativity and the Birth of Cosmology

• 1917 Einstein derives a static solution of the
  Universe.
• 1922/24 Aleksander Friedman discovers an
  expanding solution of the Universe but attracts
  little attention.
• 1923 Georges Lemaître arrives at the same
  solution.

5
The Universe is Expanding

• 1929 Edwin Hubble observes galaxies moving away
  from the Milky Way and shows that the Universe is
  expanding.

6
The Hot Big Bang

• The early days in an expanding Universe, it must
  have been hot.
• 1940s George Gamow, Alpher and Herman proposed
  that chemical elements could have been
  synthesised in the hot, early Universe.

7
The Ingredients of the Universe

• By 1964 The Universe consists mainly of
  Hydrogen, 25 Helium-4, 0.01 Deuterium, even
  less Lithium
• Heavier elements including Carbon are synthesised
  in stars.

8
Relic of the Big Bang

• 1948 Alpher and Herman proposed that it should
  be possible to detect the afterglow of the big
  bang (ie. The CMB).
• But their proposal was largely ignored

9
CMB Spray Can Analogy

• When you spray deoderant, it feels cold.
• This is because the gas cools as it expands on
  being released from the spray can.
• Similarly, in the early Universe, energy was
  concentrated in a small space so it was hotter.

10
CMB Redshift Explanation

• The early Universe 30,000 years after the big
  bang was
• Hot (3000K)
• Filled with radiation.
• As the Universe expanded, the fabric of spacetime
  was stretched 1,000-fold.

11
CMB Redshift Explantion

• This stretches the wavelength of light
  1,000-fold.
• Longer wavelengths are less energetic and
  colder (think X-ray vs radio).
• We should be able to observe these colder light
  permeating the Universe.

12
The Surface of Last Scattering

• The CMB dates from 379,000 years after the big
  bang and is called the surface of last
  scattering.
• It reaches us largely unimpeded, so it is 13
  billion year old light.
• We cannot see beyond the CMB using
  light/radio/X-rays. The surface of last
  scattering is like the surface of the sun.

13
The Violent Past of the Universe

• The advent of radio astronomy led to the
  discovery of many distant and powerful radio
  galaxies.
• A long time ago, the Universe was a pretty
  violent place.
• The Universe must have evolved from the Big Bang.

The 4C Telescope at Cambridge
14
Steady State Universe Camp
Gold, Bondi and Hoyle

• Some cosmologists were not happy with the Big
  Bang view and came up with the Steady-state
  theory.

15
Cosmology in the Early 1960s

• By the early 1960s, cosmologists were divided
  5050 between the big bang camp and the
  steady-state camp.

16
Renewed Interest in the CMB

• 1964-65 Robert Dicke realises it should be
  possible to detect the relic of the big bang.
• James Peebles calculates the necessary conditions
  in the early Universe.

Dicke and Peebles.
17
Dicke, Roll and Wilkinson

• Roll and Wilkinson made and instrument and before
  they could get any data
• Arno Penzias was told about Dicke and Peebles
  work by Bernard Burke from MIT in a chance
  meeting.

David Wilkinson
18
Penzias and Wilson

• Penzias Wilson at the Bell Labs began
  converting a communications antenna in 1963.
• They were unable to account for around 10 of the
  noise.

19
The Excess Noise

• They checked everything Galactic and
  extragalactic sources, emissions from New York
  City, interference from the ground, pigeon
  nesting in the antenna

20
Well boys. Weve been Scooped. -Dicke

• Dicke visited Penzias Wilson and realised that
  their noise was the CMB.
• Penzias Wilson measured a CMB temperature of
  3K, compared to Alphers prediction of 5K.

Penzias Wilson receiving the 1978 Nobel Prize.
21
Post-1965

• Most cosmologists switched to the big bang camp.
• The CMB had a characteristic temperature of 3K
  and uniform in all direction.
• But, the early universe couldnt have been
  completely uniform, otherwise we wouldnt have
  structures today like galaxies and human beings.

22
Part II Ripples in the Sky
23
Structure Formation

• For galaxies and human beings to form, there must
  have been seeds of imperfections in the early
  Universe.

http//uchicago.edu/lss/filaments.html
24
Ripples in the CMB

• Late 1960s Peeble Yu in Princeton and
  Zeldovich Sunyaev in Russia independently
  realised that the early universe would have
  contained sound waves.
• The sound waves (or density variation) would have
  imprinted themselves on the CMB.

25
Tin Whistle Analogy

• The sound waves in the early Universe is like the
  standing waves in a tin whistle.
• Theres a mixture of wavelengths.

26
1992 COBE

• NASAs COBE satellite determined the CMB
  temperature to 2.7K and detected structures in
  the CMB to 1 part in 100,000.

27
A Few Problems

• What seeded the variations in the CMB?
• Two patches of the CMB a few degree apart were
  never in causal contact. So how come they have
  the same temperature?

28
Flatness Problem

• Mass energy in the Universe curves spacetime.
• The geometry can be inferred by measuring the
  angles of a triangle.
• Peculiarly, the Universe is very close to being
  flat.

29
1981 Inflation

• In the first 1000 billionth of a second, the
  Universe may have undergone rapid expansion.
• This solves the horizon problem and the flatness
  problem.
• Quantum fluctuation seeded the Universe with tiny
  imperfections.

30
High Resolution Imaging
CAT, Cambridge
CBI, Atacama Desert
Boomerang, Antartica

• Starting the late 1990s, a number of ground-based
  instruments detected the CMB anisotropies.

31
2003 WMAP

• Launched in 2001
• Improved the resolution of the CMB.

32
CMB Power Spectrum
33
What WMAP Tells us

• The Universe is 13.7 Byrs old (to 1)
• CMB dates from 379,000 years after the big bang.
• Universe is close to being flat.
• First stars formed 200 million years after the
  big bang.

34
Inflation Put to the Test

• Fits the observations remarkably well.
• But needs new physics to explain why and how
  inflation happens.
• Still open to debate, C-

35
Part III The Future
36
CMB Polarisation

• Inflation predict that gravitational waves were
  produced during the rapid expansion.
• Gravitational waves would have left
  characteristic (B-mode) polarisation patterns in
  the CMB.

37
CMB Polarisation
Simulated image from http//cosmologist.info/lensp
ix/
38
CMB Polarisation Current Status
39
Planck Satellite

• European Space Agencys new CMB satellite.
• Launch in 2007

40
Planck Expected Sensitivity
41
Summary

• The CMB has dramatically advanced our
  understanding of the Cosmos.
• The big bang paradigm has so far passed tests
  drawn from many corners of astronomy physics
  (A)
• Inflation seems to fit observations so far but
  requires huge extrapolation of the laws of
  physics (Inc).
• Other problems remain The nature of dark matter
  and dark energy.

42
Bonus Slides
43
1998 Supernovae 1A Results infer accelerating
expansion
44
Hubble Deep Field North South
45
(No Transcript)
46
Geometry of The Universe
47
Horizon Problem
48
DASI CMB Polarisation
