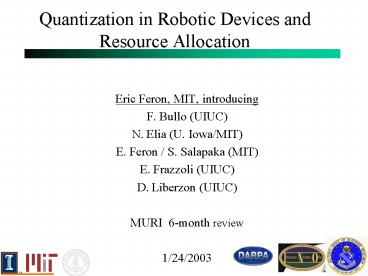

Quantization in Robotic Devices and Resource Allocation

1
Quantization in Robotic Devices and Resource
Allocation

• Eric Feron, MIT, introducing
• F. Bullo (UIUC)
• N. Elia (U. Iowa/MIT)
• E. Feron / S. Salapaka (MIT)
• E. Frazzoli (UIUC)
• D. Liberzon (UIUC)
• MURI 6-month review
• 1/24/2003

2
Important message

• Quantization is a need and an opportunity
• in cooperative networked control of dynamical
  peer-to-peer systems

• Traditional View Quantization issue is an
  afterthought
• New View Quantization can be made part of
  design process

• Application to
• System guidance and control under limited
  communication
• capabilities
• System guidance and control under limited
  computational power
• Coarse resource allocation

3
Outline

• Quantization in control robotic systems
• Vehicle Guidance with Finite Automata
• Control Systems with quantized inputs
• Quantization for sensor networks and resource
  allocation
• Problem statement
• Geometric Solution
• Technical issues
• Technology Transitions Transition Opportunities

4
Quantization in control systems

• A fundamental question
• What is the minimal information about/description
  of the current state of the system I need in
  order to achieve a given goal, within a given
  class?
• Focus on Quantization
• Quantization of inputs
• Quantization of behaviors (outputs)

5
Behavior Management

• Optimize Performance(time, fuel, e.m.
  signature, safety)
• Subject to Vehicle Dynamics (including under
  failed mode)
• Structural/Aerodynamic Constraints
• Uncertain current position, final position,
  intermediate points
• Obstacle and vehicle avoidance requ'ts
• Report Progress toward goal

• Need to solve in real time an optimal control
  problem for a nonlinear, high-dimensional,
  high-bandwidth system

6
Motion Description Languages

• Main purpose Reduction in Computation/Communicati
  on /Implementation of control strategies
• Motion Description Languages (Brockett et al.)
• Control Quanta (Bicchi et al.)
• Maneuver Automata (Frazzoli et al.)
• Kinematic Decoupling (Bullo Lynch)
• Motion Graphs (Kovar et al.)
• Experimental Data (Feron, Frazzoli, Gavrilets,
  Mettler)

7
Important considerations

• System Symmetries
• Continuous Car driving in Boston vs. Cambridge,
  headed south vs. north.
• Discrete Identical UAVs are insensitive to
  position swaps.
• Automatic state complexity reduction
  trajectories and maneuvers modulo symmetries
• Classes of objective functions ?Important motion
  classes

8
Sequential Combination of Primitives

• Two main classes of motion primitives
• Trim primitives prefix- and postfix-closed
  repeatable primitives
• Maneuvers Finite time transitions from one state
  to another From trim to trim or otherwise.
• Recent evolutions Replace /Complement trims with
  LTI modes . Match flight reality better. May
  simplify planning tasks (under investigation) via
  Mixed LP planning/ polynomial optimization.

9
Finite-State (?) Machine
Gain-scheduling or other
Trim surface 1
Immelman
Trim Surface 2
Upright
Roll
Flip
Split S
Upside down
10
Aerospace example
11
Composition of automata Operating several
vehicles together

• Composition of Maneuver Automata is not a
  Maneuver Automaton
• Recompute new multi-vehicle automaton, with new
  trims, etc ? Scalability issues.
• Use single-vehicle maneuvers trim states to
  generate scalable maneuvers and trim states for
  vehicle group.

or
More on this with Frazzoli
12
From constructive quantization to quantization
Engineering
Consider the unstable system S For a given
quadratic CLF Find a quantizer such that
Elia/Frazzoli/Liberzon
13
PERTURBATION APPROACH

• Design ignoring constraint
• View as approximation
• Prove that this still solves the problem

14
Result Logarithmic Quantization
(Single Input)
X
Elia Mitter TAC 01
15
Design Criterion
Optimal sampling minimizes R(T)
System independent constants
Elia Mitter TAC 01
16
Quantization for Two-Input Systems.
Elia / Frazzoli
17
Example of Joint Log Partition
18
WEIGHTED MULTICENTER PROBLEM
.
Logarithmic partition
Minimize H(Q,W)
19
Resource Allocation Problems

• Quantization
• How to partition state space and assign control
  values?
• Objective Obtain coarsest quantization
• Coverage control and resource allocation
• How to partition a domain
• Assign a resource to each cell
• Objective minimize
• resources,

• partition

20
Some applications

• Mobile Sensing Networks in surveillance and
  exploration
• Ad hoc sensor networks
• Multi vehicle systems
• Coverage Control optimal placement and tuning of
  sensors, and optimal space partitioning via
  decentralized/scalable control protocols
• Resource Allocation Problems
• Facility location where to place mailboxes in a
  city/ cache servers on internet?
• Data compression how to assign codebook vectors
  to input data to minimize distortion?
• Clustering analysis how to cluster, i.e.
  optimally partition a set of events?
• Weapon pre-positioning how to preposition
  Weapons wrt target distribution?

21
Distributed Coverage Problem

• Objective Given sensors
  moving in an environment , to
  achieve optimal coverage in closed loop
• Assumptions
• Identical isotropic sensors
• the coverage or performance at point q taken
  from i th sensor at
  degrades with distance
• Cost function
• is a
  distribution/information/prob. density function

is a partition of
22
Lloyds Algorithm sensor platform dynamics (eg
UAV platform)

• Each agent i performs
• determine own Voronoi cell of the partition
• determine the centroid of cell
• compute the advance strategy
• using Lyapunov function
• is the mass of , is the
  area moment about
• Convergence to local minimum

23
Connection with MICA program Facility Location
(resource allocation)

• (Problem suggested by Jeff Shamma / Jerry
  Wohletz)
• Objective to optimally place the facilities
  in a domain
• i.e. find optimal partition and
  resource locations
• for a given distribution function
• Facility/domains
• mailboxes/cities
• water towers/forest fires
• weapons/targets
• cache servers/internet
• Cost function is the same

24
Connection with MICA program

• Cost function is called distortion
• non convex and computationally complex
• e.g. 30 targets/ 20 weapons implies checking over
  30 million partitions
• emphasis on global minimum
• Related areas
• signal compression (minimum-distorsion quantizer
  design)
• statistical pattern recognition (learning vector
  quantization)

25
Deterministic Annealing Algorithm

• Deterministic Annealing algorithm
• solves an approximate problem
• solution is an upper bound on actual problem
• The approximate problem includes
• a modified distortion term
• a new parameter called associated
  probability
• is convex w.r.t. for given

• an entropy term
• measures randomness of association

-
26
Deterministic annealing

• Cost function at th iteration
• is called temperature,
• analogous to free energy FE-TS in statistical
  physics
• Where E is energy, T is temperature and S is
  entropy
• is determined by using Free Energy
  Principle
• minimum of free energy determines the
  distribution at thermal equilibrium

27
DA Algorithm

• Free energy principle gives
• is the gibbs function,
• Substituting this into the cost function and
  solving for optimal resource location gives
• centroid with a posteriori weights

28
Example 20 targets, 15 resources
29
Conclusions

• Quantization effects ubiquitous in multi-resource
  allocation and planning problems
• Significant potential for cross-fertilization
  between seemingly unrelated basic research and
  applications

30
Variations

• New problems
• In the algorithm all resources were assumed
  identical
• Variations by having constraints on resources
• Associated problems are solved by modifying the
  free energy term
• (A) Total mass constraints
• Scenario (Water tower/Forest Fire)
• Water towers can be of different sizes
• Total amount of water W is given
• Modified free energy term
• is the weighting parameter on the i th
  resource

31
Other constraints

• (B) capacity constraint
• each water-truck has a respective capacity
• Modified free energy term
• (C) unit constraints
• water has to be transported in buckets of
  different sizes,
• Limit the number of th type of bucket by
• Modified free energy term

32
Other constraints (contd.)

• (D) multi capacity constraint
• There are types of targets on the ground
• th type of target can be destroyed by th type
  weapon
• relative capacities of weapons in each UAV is
  given
• Modified free energy
• is the weighting function of
  the target of type at location

33
animations
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
conclusions
