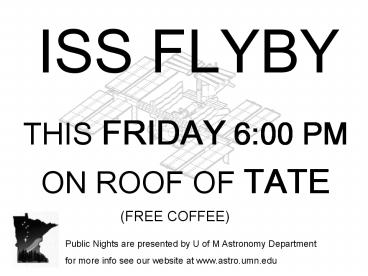

ISS FLYBY

1
ISS FLYBY

• THIS FRIDAY 600 PM
• ON ROOF OF TATE

(FREE COFFEE)
Public Nights are presented by U of M Astronomy
Department for more info see our website at
www.astro.umn.edu
2
Simplifying the Homework

• Many students do not have access.
• Thus
• All future homework will be shorter and only
  contain book problems.
• If you do not have the online material, just send
  me an email w/ your answers, print them out, etc.
• Online Homework
• Register in ASTRO1001AUSTIN
• Ill add additional problem sets that take
  advantage of the online tutorials, but they are
  not required or graded.
• Assignment 2 (Due 2/4 at noon)

3
Planetary MotionReadings 2.4
4
Wandering stars

• Planets were seen to move through the sky along
  the zodiac
• Nearly always moved eastwards across the stars.

Uranus
Mars
5
Wandering stars

• Apparent retrograde motion.
• A period where the planet moves westward across
  the sky.
• Takes place over weeks or months.

Uranus
Mars
6
Retrograde motion

• This is when the planets appear to move backwards
  w.r.t. the stars, i.e. westward.
• It is caused by Earth passing (or being passed)
  in its orbit.
• 02_MarsRetrogradeMotion.swf
• Retrograde demo

7

• Last night I saw Mars move westward through the
  sky in its apparent retrograde motion.
• Yes, this occurs during certain times of the year
  when Earth overtakes Mars in its orbit.
• Yes, this is a well studied phenomenon and its
  explanation proved a challenge to ancient
  astronomers.
• All planets (and stars) move westward because of
  Earths rotation, so this is not unusual.
• No, apparent retrograde motion is only noticeable
  over many nights, not a single night.
• No, because Mars lies further from the Sun than
  Earth, it does not undergo retrograde motion.

4. No, apparent retrograde motion is only
noticeable over many nights, not a single night.
8
The beginning of modern science and astronomy

• Readings 3.3 (the beginnings of modern astronomy)

9

• Many ancient cultures studied astronomy
  Chinese, Mayan, Native Americans, and Egyptians
  are just a few.
• Astronomy was studied to predict seasons,
  eclipses, understand the heavens, tell time of
  day, etc.
• Earliest astronomical record a lunar calendar
  etched on bone from 6500 B.C. Uganda.

10

• Stonehenge (3100 BC - 1500 BC) is aligned such
  that the sun rises along the main axis on the
  summer solstice.

11

• Chinese Oracle bones
• Contain records of novae and comets.
• 1100 BC

12
Ancient Greeks

• By 500 BC, the Greeks had constructed a model
  that describes the motions of the sky.
• Geocentric model
• Spherical Earth at the center of the universe
• Sun, Moon, and planets surrounded us on perfect
  spheres.

13
Ancient Greeks

• We often say that modern science began with the
  Ancient Greeks.
• They would debate and challenge ideas
• Their ideas could only be correct if they agreed
  with observations.
• Used mathematic models to explain behavior of
  phenomena
• A scientific model is a conceptual representation
  of observed phenomena.
• It may be simpler than reality.
• Is used to predict future occurrences or
  observations.

14
Pythagoras 500 BC

• Teaching that the Earth was round
• Believe Earth was at the center of a great
  celestial sphere.

Aristotle 350 BC

• Earth was round due to gravity
• All heavy things sank, thus the stars and planets
  had to be lighter than the air.
• Cited the Earths curved shadow during a lunar
  eclipse as evidence for a spherical Earth.

15
The Geocentric Model

• Earth is at the center of the Universe.
• Each planet, the sun, and the moon all moved on
  their own spheres around the Earth.

16
Ptolemaic Model

• Common belief heavenly objects could only move
  in perfect circles.
• Model agreed with planetary positions and could
  predict future positions within a few degrees.
• Problem kept adding epicycles for better
  accuracy.
• 03_PtolemaicModel.swf

Ptolemy (100 - 170 AD)
Ptolemys Universe
17
Copernican Revolution

• First heliocentric model by Aristarchus about 250
  BC
• The Earth and planets orbit the Sun.
• Revived by Copernicus early 1500s
• Motivation Ptolemaic model had been growing
  inaccurate and was very complex.
• Feared persecution for his beliefs.

Copernicus
Copernican Model
18
Copernicus 1500s

• Still believed all motions were on perfect
  circles.
• Thus needed to add epicycles to accurately
  explain the planets positions.
• His model did
• Not make better predictions than the Geocentric
  model.
• Not simplify the calculations from the Geocentric
  model.
• Not convince many people!

19
Tycho Brahe late 1500s

• Was frustrated with the current planetary
  predictions being inaccurate.
• The geocentric model started out with small
  errors, but over time, they had built up to a
  couple of days.
• Made very accurate (1 arc minute) observations of
  the motions in the sky.
• These are still the most accurate naked-eye
  observations the telescope was invented soon
  after.

20
Tycho Brahe late 1500s

• With his excellent observations, he could not
  detect stellar parallax.
• Parallax is caused by the Earths motion around
  the Sun.
• Effect Close stars appear to move. Stars that
  are further away do not show this effect.
• 03_ParallaxNearbyStar.swf
• Thus he believed the Earth did not move.
• He advocated a model where the Sun orbited the
  Earth and other planets orbit the sun -- not
  widely accepted.

21
Johannes Kepler 1600

• Was asked by Tycho to find a model to describe
  his observations so his life was not in vain.
• Using the data and circular orbits, the planets
  positions were only 8 arc minutes off.
• Thus abandoned circles and found that the planets
  orbits are ellipses!

22
Keplers 1st law

• All planets orbit the Sun on an ellipse, with the
  sun at one focus.

23
Keplers 2nd Law

• As a planet moves through its orbit, it sweeps
  out equal areas in equal times.
• 03_Kepler2VvsOrbitR.swf

• Planets move
• Fast at perihelion
• Slow at aphelion

24
Keplers 3rd law

• More distant planets orbit the Sun at slower
  speeds than closer ones.

Works for asteroids, comets, and everything
orbiting the Sun!
25
Keplers Laws.

• Kepler provided strong evidence that the Sun was
  the center of the solar system, though there were
  still 3 main objections
• The Earth cannot be moving, or we would leave
  behind the clouds, etc.
• The heavens should be perfect and unchanging, and
  ellipses are not perfect.
• Stellar parallax had not been detected yet.

26
Galileo (1600s) and the main objections

• The Earth cannot be moving, or we would leave
  behind the clouds, etc.
• Demonstrated that an object remains in motion
  until a force acts on it. This contradicted the
  view that the natural tendency is for an object
  to come to rest.
• The heavens should be perfect and unchanging, and
  ellipses are not perfect.
• Built a telescope (invented in 1608 by
  Lippershey) and showed that the sun had sun
  spots.
• Stellar parallax had not been detected yet.
• Showed that there were many, many stars in the
  galaxy which argued that they were too far away
  to detect parallax.

27
Galileos other proof for a Sun-centric system.

• He found 4 moons orbiting Jupiter, showing that
  not everything orbited Earth.
• Showed that Venus had a full range of phases, and
  thus could not orbit the earth.

28
Why the sun-centered model became dominant!

• It was the simplest explanation for the
  observations.
• It made predictions, and they were correct.
• It has not yet been proven wrong, unlike the
  geocentric model.

29
Why do many scientists consider Galileo the
originator of modern science?

• He invented the telescope
• He proved that Copernicus was right
• He emphasized how important it is to test ideas
  through experiment

3. He emphasized how important it is to test
ideas through experiment
30
Modern science

• Readings 3.4 (modern science)

31
(No Transcript)
32
Modern science

• Main process of science
• A hypothesis, or educated guess, is made about a
  natural phenomena.
• Test this hypothesis with new observations and
  making predictions.
• If the predictions are correct, great! If not,
  time to make a new hypothesis.
• A scientific model must make testable predictions
• These tests can be verified by anyone!

33
Scientific Theories
Its just a theory.

• Theory
• An explanation of a group of occurrences in
  nature that has been confirmed by a substantial
  number of experiments and observations.
• Can never be proved beyond all doubt better
  observations may disagree.

Scientific theory is not mere conjecture.
34
What characterizes a scientific explanation?

• It is based on the ideas of the smartest people
• The more ancient the wisdom, the better the
  explanation
• It is based on observations
• It is tested through prediction and experiments
• 3 and 4

5. 3 and 4
35
Why is a scientific theory supposed to predict,
and not just explain after the fact?

• The scientific method is supposed to be followed
  in order
• People can usually think up explanations after
  something happens, but they may not be right
• Predicting things before they happen requires
  more understandingyou are more likely to have
  the correct explanation
• 2 and 3

4. 2 and 3
36
What is the difference between the word theory
asused in everyday speech, and the word theory
as used in science?

• Theory, in common speech, is something uncertain
  (Its just a theory)
• A scientific theory is different. It has been
  thoroughly tested
• A scientific theory must be discarded if it fails
  to explain what is observed in any experiment
• All of the above

4. All of the above
37
Do you think scientists follow the steps of the
scientific method given in the previous slide in
order (step 1, then 2, then 3) ?

• Yesthats the scientific method
• No
• Often, but not always

3. Often, but not always
38
If scientists skip a step in the scientific
methodfor instance, intuitively guessing the
answer even before doing the experimentwhat
happens?

• They flunk out of science
• Real scientists never skip steps
• They go back later and do the steps they didnt
  do
• Other scientists repeat the experiment
• 3 and 4 often happen

5. 3 and 4 often happen
39
Do you think that the scientific method involves
much creativity?

• Yes
• No

1. Yes
