SIREC DS SIREC DM SIREC DH

1

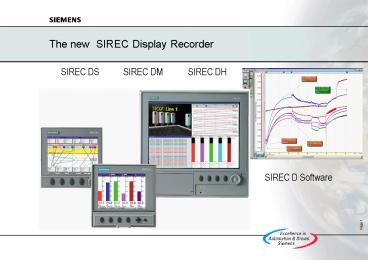

The new SIREC Display Recorder

• SIREC DS SIREC DM SIREC DH

SIREC D Software
2
Market - Display Recorders
SCADA DCS Solutions
Display Recorder
Replacement of paper recorders by
Data Logger
PC based Solutions
Installed base of paper based recorders gt 2 Bn !
3
Display Recorder SIREC DS Standard

• 6 universal inputs
• 5 color display
• 100 msec scanning rate Screen Update time is 250
  msec
• 2 digital in / 6 relay out (opt)
• 2 Mb int. RAM buffer enables large online replay
  function in the recorder.
• 1.44Mb disk data storage
• Ethernet connectivity (TCP/IP)
• Password protection guarantees optimal
  traceability and safety
• Fuzzy logging
• Totalization

4
Display Recorder SIREC DS for Standard
Application

• Screen Update time is 250 msec.
• Pen Colors assigned and fixed.
• Button functions are described at the bottom of
  screen and may change with each screen
• Not ideal for angled viewing. Refer to SIREC DM
  or DH for better viewing angle.

5
Display Recorder SIREC DM Middle Range

• 5.5 TFT color display
• 8-16 universal inputs
• 8 digital in / 8 relay out (opt)
• 200/ 500 msec scanning rate
• Trend display max. speed 12.000 mm/h
• 4 Mb int. RAM memory allows quick review of
  recent history.
• PCMCIA card enable long storage times
• Ethernet connectivity or RS232/RS485/ Profibus
  and Modbus
• 4-level password protection
• Mathematical function

6
Display Recorder SIREC DM Middle Range

• Different standard screens allow individual group
  displays.
• PCMCIA card enable long storage times.
• With event functions you can also solve more
  complicated control tasks and links.
• Mathematical functions and additional virtual
  channels extend the field of application.
• For further characteristics see also SIREC DH

7
Display Recorder SIREC DM Middle Range

• RS485 Modbus is mutually exclusive with ethernet
• Modbus over Ethernet in January 02
• Up to 4 levels of passwords with 10
• 21 CFR part 11 FDA compliant
• Message screen logs various message and events.
• You can assign up to 10 displays for recorder and
  can build custom

8
Display Recorder SIREC DH High End

• Max. 32 universal inputs
• 12.1 TFT color display
• 200/500 msec scanning rate
• 16 binary in / 16 relay out (opt)
• 8 Mb int. RAM memory
• 120 Mb / 100 Mb zip disk or PCMCIA card 8 Mb to 1
  GB
• Ethernet connectivity or RS232/485/ Profibus
• 4-level password protection
• Fuzzy logging 101
• Mathematical function

9
Display Recorder SIREC DH High End

• Also as a replacement for 32 channel paper
  recorder such as Piezograph or other types.
• Display with 800x600 pixel secures exact
  monitoring of the processes.
• High scanning rate also allows reliable recording
  during fast processes.
• 16 binary in / 16 relay out, make external
  additional modules superfluous and save costs.
• In the selectable Fuzzy logging mode a
  signal-dependent data compression is effected,
  which saves valuable storage space.
• Password protection prevents manipulation.
• Further characteristics see SIREC DM.

10
Display Recorder SIREC DH High End

• Can show alarms by changing logging background
  for better visualization for both DM and DH
• Math available for each pen.
• Can use virtual pens
• To display math expressions
• To duplicate output to second storage media
• You can freehand notes on the logger which
  replaces the old notes on paper

11
Display Recorder what storage times are
possible?

• Calculation of storage times is done in the
  parameterization module of SIREC D Manager or
  SIREC D Server. There the respective storage time
  for the chosen medium is displayed automatically
  after the storage rate and storage mode are
  defined. (Instantaneous value, max/min, or
  average value). Following are a few examples
• 1,44 Mb disk with 6 channels and 1 sec storage
  rate storage time 32 hours
• 120 Mb disk with 12 channels and 1 sec storage
  rate storage time 43 days
• 100 Mb PC card with 32 channels and 1 sec storage
  rate storage time 18 days

12
SIREC D Software

• SIREC D Viewer ? Free of charge
• ? Prints graphs
• ? Export function
• SIREC D Manager ? Configuration
• ? Data management
• SIREC D Server ? All above
• ? Network administration
• ? Export facilities
• SIREC D Designer ? Customer specific displays

13
SIREC D Manager

• Drag Drop seamless graphing
• No files
• No folders
• Compare pens from different recorders
• Save graph templates
• Overlay events
• Printing - what you see is what you get
• Full online help
• Comprehensive pass wording audit trail

14
SIREC D Designer

• Customer specific displays - Mass Customisation -
  infinite variety
• Reproduce various display combinations in the
  control room,
• such as trend display, digital display, bar
  graph, bitmaps, digitized pictures
• Mimics using photo of process, e.g. to insert a
  bar graph
• SIREC DM and DH compatible

15
SIREC D Designer

• Full process graphics designed by the customer
  for their own process
• Programmable screens for secure monitoring of the
  process by the operator.
• Competitive Advantage - unique
• High performance at premium pricing

16
SIREC D Server Real Time Comms

• Large internal Comms Buffer
• Data automatically seamlessly recovered when
• LAN fault a)
• Hub fault b)
• Individual or Multiple connection fault c)

c)
SIREC D server
b)
a)
17
SIREC D Server Network Topology
À

Hub
D
Ethernet 10BaseT
18
SIREC DS DM DH Common Characteristics

• The SIREC product range offers substantial
  competitive technical advantages
• over all competition paperless recorder
  products
• Fastest logging - 100ms scanning and logging
• Fastest trending 12.000mm/hr
• Fastest start-up from power on
• Largest internal memory 8Mb
• Largest removable media 120Mb floppy, 2Gb hard
  drive
• Large family offering more choice
• Most protected Multi User, Multi Level pass
  wording with audit trail
• Most secure Binary encoded data with CRC
• Most flexible Screen designer
• Most innovative Web and WAP enabled
• Most efficient data storage Fuzzy Logging
  Patent applied for
• Most advanced Software Tools SIREC D Software (
  4 packages)
