Title: Wild Circuits

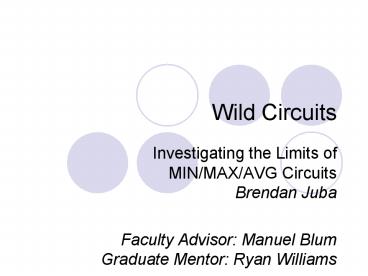

1
Wild Circuits
  • Investigating the Limits of MIN/MAX/AVG
    CircuitsBrendan Juba
  • Faculty Advisor Manuel BlumGraduate Mentor
    Ryan Williams

2
Definitions MIN/MAX/AVG Circuits
unsatisfied
satisfied
  • We are given a circuit, C, with feedback,
    operating on real numbers from the closed
    interval 0,1.
  • C contains
  • MIN, MAX, or AVG gates with two inputs
  • Inputs to the circuit that are hard-wired to
    either 0 or 1.
  • C denotes the number of gates of C
  • Here, C 3
  • When the output of a gate is the appropriate
    function of its inputs, we say that the gate is
    satisfied

1
0
0
MIN
AVG
0
MAX
0
satisfied
3
Definitions MIN/MAX/AVG Circuits
  • Settings of the gate outputs from the interval
    0,1 are value vectors
  • A value vector for C, v ? 0,1C
  • The ith entry, vi, is the output of the ith gate.
  • We may also consider an update function, F
    0,1C ? 0,1C
  • We are interested in two varieties single-gate
    update functions and circuit-wide update
    functions
  • A single gate update function replaces the output
    of a single designated gate with the correct
    output value.
  • We will call iterating over the single gate
    update functions gate-by-gate update
  • The circuit-wide update function simultaneously
    replaces the output of every gate with a value
    that is correct with respect to the old values

1
0
MIN
AVG
MAX
4
Definition Stable Circuit Problem
  • A vector v is stable iff every gate is satisfied.
    (F(v) v)
  • Gate-by-gate update from the vector 0 obtains a
    stable vector in the limit. This is the minimum
    stable solution
  • We wish to find the minimum stable solution

1
0
1
0
unstable
stable
MIN
MIN
0
0
1/2
1/2
AVG
AVG
MAX
MAX
1/2
0
5
Definition STABLE CIRCUIT (Decision Problem)
  • We are given a circuit C, and some designated ith
    gate. In the minimum stable solution of C, s,
    is si 1/2?
  • If we can efficiently solve this decision
    problem, we can efficiently solve the function
    problem we can find 2C bits of any si, which
    may be shown to be sufficient.
  • Inductively suppose we know the first k-1 bits of
    si to be v
  • Modify C
  • (1-1/2k-v) requires k gates

(1-v-1/2k)
AVG
ith gate
  • In the minimum stable solution, this new AVG
    gates output is above 1/2 iff the kth bit of si
    is a 1, so the decision problem tells us the kth
    bit of si
  • Ex Suppose v .011010, si .0110101 (k 7)
    thenAVG(si,1-1/2k-v) (.0110101 .1001011)/2
    .10000000
  • If si .0110100 then AVG(si,1-1/2k-v)
    (.0110100 .1001011)/2 .01111111

6
Unique Solution Circuits
0
x
  • Replace any wire from x to y in the circuit with
    the construction on the right using m AVG gates
  • This circuit has a unique solution (Shapley,
    1953)
  • Suppose the original circuit-wide update function
    is F, stable solutions are u and v
  • If u-v8 c, then it is easy to seec
    u-v (1-1/2m)F(u)-F(v) (1-1/2m)c
  • Clearly, c 0.
  • These solutions turn out to be arbitrarily close
    to the minimum stable solutions (for appropriate
    m).

AVG
AVG
AVG
y
7
STABLE CIRCUIT is in NP?co-NP (Condon, 1992)
  • A nondeterministic machine M can, in polynomial
    time, on input circuit C, for gate i
  • Build a suitably close unique solution circuit C
  • It may be shown that damping by (1-1/25C)
    suffices
  • Guess the solution to C
  • Verify the guessed vector is a solution
  • Accept or reject, respectively, precisely when
    the value of gate i is above 1/2 (since C was
    close to C, either i is above 1/2 in neither, or
    it is above 1/2 in both)

8
STABLE CIRCUIT is P-hard
  • If we use no AVG gates, the wires of the circuit
    will only carry 0 or 1
  • It is immediate that we may use MIN as AND, MAX
    as OR
  • For any circuit with fixed inputs, we can
    construct a complement circuit
  • Switch 0 inputs with 1 inputs
  • Switch MIN gates with MAX gates
  • We can now negate by crossing a wire between the
    original and complement circuits
  • (In this AVG-free case, deciding the output is in
    P, too)

9
Observations and Motivations
  • Our original motivation was to show STABLE
    CIRCUIT was hard for some class larger than P
  • If we apply gate-by-gate or circuit-wide update
    on arbitrary starting value vectors, we can
    obtain interesting circuits
  • One such interesting circuit is a binary
    counter
  • A circuit that halts conditionally would also be
    interesting
  • We do not necessarily obtain stable
    configurations of our circuits when starting from
    arbitrary value vectors -- this is not Stable
    Circuit
  • If we apply gate-by-gate or circuit-wide update
    on the value vector 0, can we obtain
    interesting circuits?
  • If so, the minimum stable solution is the
    configuration of the device after an unbounded
    amount of time!

10
Can we obtain interesting circuits starting
from 0?
  • YES

11
Leapfrog circuits
  • We assign each wire a threshold wire and
    interpret its value relative to that threshold
  • Above threshold T
  • Below threshold F
  • It is already clear that we still have AND and OR
  • There is also a construction for NOT (next slide)
  • If there are W wires which we wish to interpret
    relative to the same threshold, this gadget takes
    T(W) gates
  • NB The circuits are still monotone!
  • As we update, a value may seem to rise or fall,
    as we follow it across different wires through
    the circuit
  • The value on any particular wire only rises as
    the gates of the circuit are updated

12
NOT Gadget
th
x1
x0
x2
AVG
AVG
AVG
MAX
MAX
MAX
AVG
AVG
AVG
MIN
MIN
MIN
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
MAX
MAX
MAX
x0
th
x0
x1
x2
th
x1
x2
13
Caveats
  • Assumptions
  • All values above below threshold are equal
  • The values th, T, and F are all different
  • We may specify the update order for the gates of
    the circuit
  • Take each in turn
  • Everything starts from zero and the property is
    preserved by our AND, OR, and NOT gates
  • We can push th above zero by means of an AVG gate
  • With feedback, we must also pass the other wires
    through AVG gates to preserve relative values
  • Update order doesnt change the solution we
    approach

14
Two-bit Counter Circuit
1
1
AVG
AVG
AVG
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
AVG
AVG
AVG
AVG
0
x0
x1
th
15
Two-bit Counter Circuit
1
17/32
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
1/2
x0
x1
th
16
Two-bit Counter Circuit
1
781/ 1024
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
195/256
x0
x1
th
17
Two-bit Counter Circuit
1
7217/8192
AVG
x0
x1
th
NOT
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
1
1
AVG
AVG
28867/32768
x0
x1
th
18
Serving Suggestions
  • The counter generalizes to n bits easily
  • The n-bit counter takes T(n2) gates, due to the
    size of the NOT gadgets
  • We now have our counter
  • We next investigate the power of Leapfrog
    circuits, using the counter
  • First, we will need to make precise what we mean
    by Leapfrog circuits

carry-in
xi
NOT
NOT
MIN
MIN
MIN
carry-out
MAX
xi
19
Definition LEAPFROG
  • Let LEAPFROG be the following problem Given a
    circuit C and designated gates i and th, consider
    the sequence of vectors v1, v2, obtained during
    gate-by-gate update of C from 0 in the order of
    the gate indices of CIs there an index t such
    that vti vtth?
  • LEAPFROG captures our notion of what Leapfrog
    circuits compute

20
LEAPFROG vs. STABLE CIRCUIT
  • NB Not the same problem!!
  • But, STABLE CIRCUIT obviously reduces to a
    special case of LEAPFROG (include a gate that
    outputs constant 1/2-1/22C)
  • Is LEAPFROG hard?
  • YES -- we will see in a moment
  • Does LEAPFROG reduce to STABLE CIRCUIT?
  • If yes, then STABLE CIRCUIT is also hard.
  • Notice the gadget if its input is ever above
    threshold, a wire in the gadget stays above
    threshold
  • Still, this does not show LEAPFROG reduces to
    STABLE CIRCUIT

(the internal wire must also pass through the NOT
gadgets)
21
LEAPFROG is hard! (NP-hard)
Let any boolean formula be given Ex
(x1?x2?x3) ? (x1?x2?x3) Since we have AND,
OR, and NOT gates, formulas easily translate into
circuits.
x1
x2
x3
th, etc.
If we attach xi to the ith bit of the counter, we
try all possible assignments, allowing us to
reduce SAT to LEAPFROG. The number of gates in
these SAT circuits is quadratic in the length of
the formula.
(x1?x2?x3)?(x1?x2?x3)
22
LEAPFROG is really hard! (PSPACE-hard)
  • We can still do better using the counter, we
    will decide whether quantified boolean formulas
    are valid (Reducing TQBF to LEAPFROG)
  • Assume WLOG that the quantifiers alternate odd
    variables are universal, even ones are
    existential
  • Observe that the counter walks along the leaves
    of a tree of assignments, left to right.
  • Suppose that at the bottom we evaluate the
    quantifier-free part of the formula on the
    specified assignment.

x1
?
x0
x0
?
00
01
10
11
  • Now suppose at every ? level of the tree, we have
    one bit of memory for the left branch
  • Set it to T when the branch is T, reset it to F
    when leaving that subtree.
  • Pass T up the tree when
  • We see T at either branch at an ? level
  • We see T at the right branch of a ? level with
    the left branch bit already set to T.
  • T is passed up from the top of the tree iff we
    have a TQBF.

23
Quantifier Circuit ?xi (?xi-1 A)
A
xi
vi0
Carry-out xi
  • IH the wire A will be T iff the shorter formula
    with alternating quantifiers, A, is satisfied by
    the assignment to xn,,xi-1 from the counter
  • vi0 is our bit of memory storing the value of
    (Axi F) (the left branch) under the fixed
    assignment to xn,,xi1
  • When there is a carry out of xi, xi1 has
    altered, so we reset vi0 to F
  • If vi0 (Axi F) T and (Axi T) T (on
    the right branch), then the wire labeled ?xi?xi-1
    A is T. Otherwise, the wire remains F.
  • Notice we try both settings of xi-1 for each
    branch. The wire ?xi ?xi-1 A is T iff ?xi ?xi-1 A
    is satisfied by the assignment to xn,,xi1, so
    the Inductive Hypothesis is satisfied

NOT
MIN
MIN
MIN
NOT
MIN
MIN
MIN
MIN
MIN
MIN
MAX
MAX
MAX
MIN
MIN
MIN
xi
vi0
?xi ?xi-1 A
24
End of the Line Thwarted by PSPACE
  • In the limit, the separation between T and F in
    our counter shrinks as the internal wires
    approach 1.
  • Recall finding values in the limit (the minimum
    stable solution) is known to be in NP?co-NP
  • Answers to PSPACE-hard problems (TQBF) may be
    encoded on the wires as we update
  • Since circuits of AND/OR/NOT gates can be
    evaluated in PSPACE, we would need to drastically
    alter our model to solve anything harder
  • In the limit, it is impossible to distinguish the
    values in Leapfrog circuits unless NP PSPACE
  • That is, unless NP PSPACE, LEAPFROG does not
    reduce to STABLE CIRCUIT

25
Stoppable NOT Gadget
This gadget behaves identically to the regular
NOT, unless check is set high, in which case, all
outputs are set high. Gadgets such as this
suggest that the problem with our Leapfrog
counter was in the AVG gates we used to power
it from 0.
th
x1
check
x0
x2
AVG
MAX
MIN
MIN
MIN
MIN
MAX
AVG
MAX
MAX
MAX
x1
th
x2
check
x0
26
Open problems
  • How hard is STABLE CIRCUIT?
  • We had also succeeded in placing it in PLS, but
    still have no hardness results
  • Is STABLE CIRCUIT PLS-complete?
  • Is STABLE CIRCUIT in P?
  • How hard is LEAPFROG, actually?
  • Trivially RE, but this says rather little
  • Is LEAPFROG decidable?
Write a Comment
User Comments (0)
About PowerShow.com
