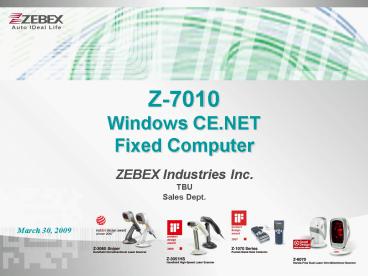

Z7010 Windows CE.NET Fixed Computer

1
Z-7010Windows CE.NETFixed Computer
ZEBEX Industries Inc. TBU Sales Dept.
March 30, 2009
2
Content

• ZEBEX Terminal Product Road Map
• Z-7010 Hardware
• Z-7010 PowerPack Utility

3
Product Road Map
OS
New
WIN CE.Net Handheld / Fixed Computer
WIN CE.NET
Z-2060 Series
Z-2070 Series
Z-7010
Proprietary Handheld Computer
Proprietary
Z-2050 Series
Entry Level Data Collector
8051 C Complier
Z-1060
Z-1070 Series
Z-2030 Series
PDL-20
8-bit C-MOS
32-bit, Intel PXA 270 520MHz
32-bit, Motorola 33MHz
CPU
4
Content

• ZEBEX Terminal Product Road Map
• Z-7010 Hardware
• Z-7010 PowerPack Utility

5
Overview
Z-7010 Windows CE.NET Fix Computer
6
Z-7010 Features
1gt Open architecture
5gt Power System

• - OS Microsoft Windows CE.NET 5.0
• - CPU Intel PXA270 ,.520MHz
• Memory 64 MB RAM , Up to 128MB
• 64 MB F-ROM

• 110V220V AC Adapter
• 120mAH Li-ion backup battery
• Power Over Ethernet (PoE) Support

6gt Key Pad
2gt Display
- 5 keys with 8 functions Home, Esc, Up/
Down/ Right/ Left ENT (Enter), FN (Function) -
Software setting support
- 5.7 VGA TFT Color Display - 640x480 with
Touch Panel
3gt Integrated

• 10/100 Mbps Ethernet
• Two Stereo Speaker

7gt Interface

• RS232,
• USB 1.1 Host and Client

Z-7010
4gt Input Device Selection

• 1D Omni directional Laser Scanner
• 2D Image Scan Module
• HF RFID Reader (ISO-15693 or 14443)
• UHF RFID Reader
• RS-232 Serial Port

8gt Expandability

• One SD I/O Card slot for Wi-Fi or
• Bluetooth
• Compact Flash Card slot
• (Data reserve only)

7
Z-7010 Model List
8
System Configuration
Operation Model
Requirement / Market
Standard
1
Small area install Easy to implement power system
-24hrs operation ltCVS storegt

Ethernet Network
AC Adapter
PoE
2
Large area install Hard to implement power system
ltHyper Marketgt lt Manufacturing gt

Ethernet Network
Power Inject (PoE)
Real-time
3
Hard to setup network Install on track or Stack
machine lt Wheelhousegt

SD card (WLAN or Bluetooth)
AC Adapter
9
Accessories
For Z-7010 Standard Accessories
SD WLAN Card Cover
RS-232 Cable (RJ45 to D-Sub 9)
AC Adapter
Wall Mount Kit
For Z-7010 Optional Accessories
Power over Ethernet Adapter
Bracket Kit
SD Card
C/F Card
Wi-Fi SD Card
Bluetooth SD Card
Memory Only
10
Focus Market
Membership Management Supermarket Asset
Facility Management Online Shopping Information
Kiosk Telecommunication
Administration Lottery Machine Price
Check Market Research Library Custom
Control
Shop Floor Control Transportation Manu
Ordering
11
Content

• ZEBEX Terminal Product Road Map
• Z-7010 Hardware
• Z-7010 PowerPack Utility

12
Z-7010 PowerPack Utility
What is PowerPack?

• ZEBEX WinCE Software Utilities
• Easy to Manage ZEBEX WinCE Products
• Reduce S/W Development Cost
• Protect Vendors Software Properties
• Integrated WinCE Application Software

13
Z-7010 PowerPack Utility
lt Single Device Utility gt

• Tray Reader
• Shortcut Manager
• Backup Restore
• Triple Code
• Firmware Information

• Backlight
• Calculator
• FTP Support
• Launcher
• A.D. Manager

This application is located on path
\settings\control Panel\.
14
Z-7010 PowerPack Utility
Backlight

• LCD Backlight ON/OFF
• Auto Mode
• Adjust LCD Brightness

15
Z-7010 PowerPack Utility
Calculator

• Good helpmate tool

16
Z-7010 PowerPack Utility
FTP Support
17
Z-7010 PowerPack Utility
Launcher

• Auto launch the checked items when startup
• Use Profile can define the characteristics of
  device
• Define and save Flash Restore file
• Can Auto Restore registry or setting

18
Z-7010 PowerPack Utility
A.D. Manager

• Multi Media File Play with Auto run/off time
  setting

19
Z-7010 PowerPack Utility
Tray Reader

• Basic Barcode Setting Function
• Enable/Disable Barcode Scanner
• Emulate Keyboard input when scan
• - Terminator setting
• - Preamble setting

20
Z-7010 PowerPack Utility
Shortcut Manager
Catalog ? FunctionSimple but Powerful !!

• Function Key Define

Readable Description No more _at_.EXE
Easy to customize your own Catalogs and Functions
more Readability, more Easy
21
Z-7010 PowerPack Utility
Backup Restore

• Registry data Backup
• Database Backup
• Files/Directions Backup
• Backup into removable storage
• Restore from removable storage
• System duplicate

22
Z-7010 PowerPack Utility
Triple Code

• UID - Device S/N , Backup/Restore depend on UID
• VID - ZEBEX Vendor ID Code
• SIC - Software ID code

UID
VID
Check the Triple Code Before AP S/W executive!!
UID
Zebex Distributor
VID
SIC
UID
AP S/W
Dealer or S/W Company
VID
END User
SIC
23
Z-7010 PowerPack Utility
Firmware Information

• Power Pack Version
• OS Version
• Device Model name
• Device ID (click Model)

Click Model to Show out Device ID
24
