Title: European Rail Infrastructure Managers (EIM)


1

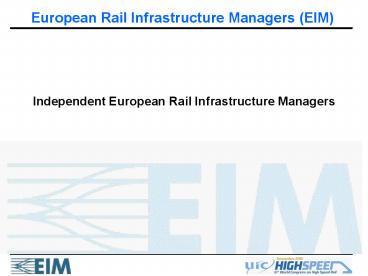

European Rail Infrastructure Managers (EIM)
  • Independent European Rail Infrastructure Managers

2
European Rail Infrastructure Managers (EIM)
  • Our mission
  • Improve the development of the rail transport
    mode
  • Act as a lobbying organisation towards the
    European Institutions and together with the
    industry
  • Provide our expertise to the appropriate bodies
    including the European Railway Agency (ERA)

3
European Rail Infrastructure Managers (EIM)
  • Our vision is to
  • Create an intra- and intermodal level playing
    field
  • Promote the development of rail traffic
  • Provide an efficient cost effective and open rail
    network
  • Allow infrastructure managers to operate in an
    independent and non-discriminatory manner to
    facilitate optimisation of overall system cost
    and performance

4
European Rail Infrastructure Managers (EIM)
  • Created in April 2002.
  • 11 members Finland, Sweden, Norway, Denmark, the
    Netherlands, Belgium, Italy, the UK, France,
    Portugal, Spain (and Slovenia until recently)
  • 52 of EU27 lines
  • 61 of EU27 rail passengers
  • 40 of EU27 rail freight
  • Social dimension direct and indirect employment
    of over 300.000.
  • Total investments of 12.5bn (2006 fig.)

5
European Rail Infrastructure Managers (EIM)
  • High Speed Rail
  • EIM Members Activity
  • 17/18/19 March 2008

6
European Rail Infrastructure Managers (EIM)
  • ADIF - Spain

7
European Rail Infrastructure Managers (EIM)
  • ADIF Spanish rail infrastructure manager

8
European Rail Infrastructure Managers (EIM)
  • First high-speed line in Spain MadridSeville
    (471 km) 2h20min

9
European Rail Infrastructure Managers (EIM)
  • First high-speed line in Spain MadridSeville
    (471 km) 2h20min

10
European Rail Infrastructure Managers (EIM)
ADIFs current high-speed network
11
European Rail Infrastructure Managers (EIM)
  • ADIFs current high-speed network

12
European Rail Infrastructure Managers (EIM)
  • Spanish high-speed current outlook
  • Total investment year 2007 4717 million Euro
  • By mid-2008 1800 km operated
  • Construction of another 1800 km is underway
  • Spain is leading the implementation of ERTMS
    (1016 kilometres of lines)
  • Longest high-speed network in service by 2010
  • 10000 km forecasted for 2020

13
European Rail Infrastructure Managers (EIM)
  • High-speed line Madrid-Valladolid (North and
    Northwest Railway Access)
  • In service 22nd December 2007
  • Total Length 179 km
  • Investment 4.205 M
  • Guadarrama Tunnel 28.377 m long (bitube) the
    fifth longest tunnel in the world 1.219 M
  • San Pedro Tunnel 8.930 m long (bitube)
  • After the opening of the line Overall reduction
    in distances (68,5 km) and journey times (more
    than 2 hours)
  • Madrid-Valladolid 56 min

14
European Rail Infrastructure Managers (EIM)
  • High-speed line Madrid - Córdoba Málaga
  • In service 23rd December 2007
  • Total Length 155 km
  • Total Investment 2.538 M
  • Abdalajís Tunnel 7.000 m length (bitube)
  • After opening
  • Distance reduction Córdoba Málaga 20 km
  • Madrid-Málaga 2h30min

15
European Rail Infrastructure Managers (EIM)
  • High-speed line Madrid Barcelona French Border
  • In service 20th February 2008
  • Total Length (Madrid Figueras) 753 km
  • Madrid Barcelona (621 km) - 2h 38 min
  • Construction Works in progress 99,8 km in
    project 32,2 km
  • Total Investment foreseen 12.375 M

16
European Rail Infrastructure Managers (EIM)
  • Punctuality

17
European Rail Infrastructure Managers (EIM)
  • Traffic evolution on high-speed and conventional
    rail networks

18
European Rail Infrastructure Managers (EIM)
  • Banverket - Sweden

19
European Rail Infrastructure Managers (EIM)
  • Banverket is the Swedish national authority
    responsible for railway maintenance and traffic
    control.
  • Its duties include working together with
    operators, users and other  interested parties to
    promote the development of rail traffic.
  • This means that Banverket is responsible for the
    RD required for developing the rail transport
    sector and for keeping the community as a whole
    informed in this area.

20
European Rail Infrastructure Managers (EIM)
  • Banverkets 2006 2011 RD programme specifies
    four initiatives that should be carried out at
    the outset.

Cooperation with manufacturers of vehicles and
other equipment regarding RD efforts to develop
and maintain competence for construction of rail
materials suitable for Swedish conditions.
Operators, vehicle suppliers and infrastructure
managers need to collaborate with each other and
share their competence when ordering, developing
and manufacturing new vehicles.
21
European Rail Infrastructure Managers (EIM)
  •  High speed train of tomorrow!
  • The Green Train - an RDD program for high-speed
    trains in Sweden
  • The Swedish national rail administration
    Banverket has launched a new vehicle research
    program 'Gröna Tåget'.
  • The aim is to safeguard and further develop the
    competence required for ensuring the operation of
    the future passenger trains which will operate on
    the Swedish railway network. These trains should
    comply with the demands placed on them by the
    special Nordic climatic conditions.

22
European Rail Infrastructure Managers (EIM)
  •  High speed train of tomorrow!
  • It is estimated that a concept for such vehicles
    will reach completion in 2010. Some of the
    partners in the program Bombardier Sweden,
    technical universities, railway industrial
    companies.
  • 250km per hour / using existing tracks

23
European Rail Infrastructure Managers (EIM)
  • Test train factsAn ordinary Regina train was
    used for testing the Green train. Besides testing
    new technical solutions, and bogies in
    particular, the train is being remodelled for
    better performance in order to run at higher
    speeds with due regard to performance and
    safety.
  • For testing, a modified so-called Regina train is
    used. This is a two-car electrical multiple unit.
    Besides testing new technical solutions, the
    train has higher performance for running at
    increased speeds the current goal is 250 km/h,
    taking account of necessary margins.

24
European Rail Infrastructure Managers (EIM)
  • The test train is (or is planned to be) equipped
    with
  • - Traction motors on all 8 axles, with necessary
    converters
  • - Motor reduction gears for higher speeds
  • - Speedometers and pacesetters for speeds up to
    300 km/h
  • - Pantograph tops for higher speeds on existing
    catenaries.

- Adaptation for 16 kV voltages in the mains
supply against the normal 15 kV voltages. -
Track-friendly bogies for improved running
stability as well as low track forces and
wheel-rail wear. - Brake pads for higher
temperatures and speed - Bogie fairings for
reduced external noise and improved aerodynamics.
25
European Rail Infrastructure Managers (EIM)
  • Technical Aspects of the Green Train
  • Heavy rail investment program ( 11 bn)
  • Capacity enhancements
  • Upgrading of existing lines
  • High-speed links freight corridors.
  • Still, on most lines high-speed trains will share
    tracks with heavy freight trains (axle load to up
    to 25 metric tonnes).
  • A new generation of long-distance trains is
    foreseen to be needed and introduced within in
    the next 5 10 years.
  • Other Nordic countries (Denmark, Finland, Norway)
    have similar needs, possibly later.

26
European Rail Infrastructure Managers (EIM)
  • Technical Aspects of the Green Train
  • Desired features for Swedish (Nordic) conditions
  • Short travelling time (on upgraded and new
    infrastructure) top speed 250 km/h or higher.
    Tilting car body is needed.
  • Improved passenger comfort (seating and working
    ability, noise ride, pressure tightness,
    reduced motion sickness).
  • Space-efficient, flexible and attractive
    interiors.

27
European Rail Infrastructure Managers (EIM)
  • Technical Aspects of the Green Train

28
European Rail Infrastructure Managers (EIM)
  • Further Technical Aspects of the Green Train
    2006 2008
  • Noise reduction (external internal)
  • Current collection (improved pantographs on
    existing overhead catenaries)
  • Aerodynamics
  • Winter climate protection at high-speed operation.

29
European Rail Infrastructure Managers (EIM)
  • Technical Aspects of the Green Train
  • Improved environmental performance (energy,
    noise) Energy consumption (per seat-km) should
    be reduced.
  • No higher noise level at higher speeds (cf. 200
    km/h).
  • Opportunity (according to proposed EN)
  • The Swedish (and Nordic) rail network allows
    wider trains than continental Europe

30
European Rail Infrastructure Managers (EIM)
  • Infrabel - Belgium

31
European Rail Infrastructure Managers (EIM)
  • Belgian High-Speed network
  • Completed in 2008
  • 314 km HS Lines
  • Speeds of 300km/h

32
European Rail Infrastructure Managers (EIM)
  • Soumagne Tunnel
  • Homologation and commercial use in 2008
  • 6.53 kilometres longest tunnel in Belgium
  • Double tracked
  • Up to 200 km/h

33
European Rail Infrastructure Managers (EIM)
  • High-Speed Line 4 Antwerp Luchtbal-Dutch border
  • Homologation and commercial use in 2008
  • Cost 780 million Euros
  • Brussels Amsterdam 1h39
  • Can also be used with new generation IC trains at
    200 km/h

34
European Rail Infrastructure Managers (EIM)
  • Diabolo project
  • Aims
  • Unlock access to Zaventem (Brussels Airport)
  • Allow for better connections between Brussels
    Airport and other major European cities (Paris,
    Amsterdam, Cologne, Francfort)
  • Financing public-private partnership (PPP)
  • 300 million Euros financed by PPP structure
  • Finalisation in 2012

35
European Rail Infrastructure Managers (EIM)
  • Jernbaneverket (JBV)- Norway

36
European Rail Infrastructure Managers (EIM)
  • Jernbaneverket is the Norwegian national railway
    authority and is responsible for the management
    of the national railway network, on behalf of the
    Ministry of Transport and Communication.
  • Through public funding and with a socio-economic
    perspective, its objective is to operate,
    maintain and develop the national railway
    network.

37
European Rail Infrastructure Managers (EIM)
  • Jernbaneverket is responsible for
  • Developing and operating a rail network that
    meets the requirements of society and the market
  • Railway stations and terminals
  • Timetabling
  • Traffic management
  • Regulation of the public rail network
  • Studies and planning in the rail sector

38
European Rail Infrastructure Managers (EIM)
  • High-speed lines in Norway a feasibility study
  • The VWI - group, Verkehrswissenschaftliches
    Institut Stuttgart GmbH, has done a Feasibility
    Study Concerning High-Speed Railway Lines in
    Norway. In phase one of the study the Consultant
    Group suggested to concentrate the study on the
    two lines
  • Oslo Trondheim 464km
  • Oslo Gøteborg 313km
  • The two corridors have been chosen as reference
    corridors as it was anticipated that they will
    have the best benefit-cost-ratio due to relative
    low investment costs compared to the other
    corridors and demand potentials ranged on a quite
    similar level.

39
European Rail Infrastructure Managers (EIM)
  • High-speed lines in Norway a feasibility study
  • Study parameters
  • Concentrating on the main markets between the
    major points of demand and only a few
    intermediate stops in greater communities with
    adequate traffic demand
  • Offers strictly oriented on demand
  • Cost efficient planning of infrastructure with
    single track lines wherever sufficient
  • Additional regional services as feeder systems
    for the High-Speed-Services

40
European Rail Infrastructure Managers (EIM)
  • High-speed lines in Norway a feasibility study
  • Results
  • The corridor Oslo Gøteborg shows a slightly
    better result than the corridor Oslo Trondheim
    (BCR 1.85 gt 1.81). Macroeconomic
    cost-benefit-analysis on the basis of the
    evaluation procedure shows a positive result for
    both corridors and indicates both lines as
    economically useful and being worth to realise.

41
European Rail Infrastructure Managers (EIM)
  • High-speed lines in Norway a feasibility study
  • High-speed traffic
  • improves the accessibility between the major
    cities in Norway and between the regions.
    High-Speed-Traffic reduces domestic air traffic
    significantly and will solve capacity problems of
    airports in the future.
  • reduces travel times, greenhouse gases and
    exhaust emissions as well as they increase
    traffic safety and give contributions to
    environmental benefits.
  • Jernbaneverket will now examine the conclusions
    of the study and make suggestions as to what
    further steps should be taken for the Ministry of
    Transport and Communication.

42
European Rail Infrastructure Managers (EIM)
  • Network Rail United Kingdom

43
European Rail Infrastructure Managers (EIM)
  • The size and scale of the engineering projects is
    enormous. In 2006 alone,  3 billion was spent on
    engineering projects.
  • All projects are focused on a single aim to
    make Britains railways better. Some do this by
    reducing journey times between major cities,
    others open up new routes for passengers/freight/t
    ourists/rural areas and others aim to make the
    railway safer.
  • Network Rail owns and operates Britains rail
    infrastructure.
  • Network Rail aims to provide Britain with a safe,
    reliable and efficient railway fit for the 21st
    century.
  • The investment programme is transforming
    Britains railway.

44
European Rail Infrastructure Managers (EIM)
  • High Speed 1 (HS1), known as the Channel Tunnel
    Rail Link (CTRL) during construction, is a 108 km
    (67 mile) high speed railway line running from
    London through Kent to the British end of the
    Channel Tunnel.
  • The second and final section of the line,
    travelling across the River Thames and into
    London St Pancras, opened on 14 November 2007.

45
European Rail Infrastructure Managers (EIM)
  • Built at a cost of 5.2bn, the new link has cut
    pre-2003 Eurostar journey times by 40 minutes. It
    is now possible to travel from London St Pancras
    to Paris Gare du Nord in 2 hours 15 minutes and
    to Brussels South in 1 hour 51 minutes.
  • On 14 November 2006, London and Continental
    Railways adopted the brand name High Speed 1 for
    the completed railway. Official legislation,
    documentation and line-side signage has continued
    to refer to "CTRL".

46
European Rail Infrastructure Managers (EIM)
Legend
  • Section 1 of the Channel Tunnel Rail Link, opened
    in 2003 and is a 74 km section of high-speed
    track from the Channel Tunnel to Fawkham
    Junction in north Kent.
  • The section's completion cut the LondonParis
    journey time by around 21 minutes, to 2h 35mn.
    The line includes the Medway Viaduct, a 1.2 km
    (¾ mile) bridge and the North Downs Tunnel, a
    3.2 km long, 12 m (40 ft) diameter tunnel.

47
European Rail Infrastructure Managers (EIM)
Legend
  • Section 1 of the Channel Tunnel Rail Link
  • In safety testing on the section prior to
    opening, a new UK rail speed record of 334.7 km/h
    (208.0 mph) was set.
  • Much of the new high-speed line runs alongside
    the M2 M20 motorways through Kent. After
    completion, Eurostar trains continued to use
    suburban lines to enter London, arriving at
    Waterloo International.

48
European Rail Infrastructure Managers (EIM)
  • Section 2 of the project opened on in 2007 and is
    a 39.4 km (24 mile) stretch of track from the
    newly built Ebbsfleet station in Kent to London
    St Pancras.
  • The route starts with a 2.5 km (1.5 mile) tunnel
    which dives under the Thames, then runs alongside
    the London, Tilbury and Southend Railway as far
    as Dagenham, where it enters a 19 km (12 mile)
    tunnel before emerging over the East Coast Main
    Line near St Pancras.

49
European Rail Infrastructure Managers (EIM)
  • The tunnel is interrupted by the new Stratford
    Int. Railway station where a 1 km stretch runs
    close to the surface, dividing the tunnel into
    London East and London West sections.
  • Stratford International will serve the main site
    for the 2012 Summer Olympic.

50
European Rail Infrastructure Managers (EIM)
  • Facts and figures
  • One train approximately every 15 seconds will
    serve the Park carrying 240,000 people per hour
    by rail.
  • Central London to Olympic Park will take just 7
    minutes. Travelling to the Games daily will be
    50,000 athletes, officials, media and other
    staff 140,000 staff and volunteers and 500,000
    spectators.
  • The Javelin service will deliver up to 25,000
    people per hour to the Olympic Park.

51
European Rail Infrastructure Managers (EIM)
  • Three stations Stratford Regional, Stratford
    International and West Ham will act as key
    'gateways' to the Olympic Park. A total of 12
    lines will serve these stations, including the
    Javelin rail shuttle from St Pancras
    International to Stratford International.
  • The shuttle will take up to 25,000 people per
    hour from central London to the Olympic Park in
    just seven minutes.
  • During the Games up to 120,000 passengers, of
    which about 60,000 will be spectators, will
    arrive and depart through the improved Stratford
    Regional Station.

52
European Rail Infrastructure Managers (EIM)
  • Rede Ferroviaria Nacional (REFER) - Portugal

53
European Rail Infrastructure Managers (EIM)
Portuguese High Speed Rail Project General
Overview
54
European Rail Infrastructure Managers (EIM)
Historical Milestones
Dec.2000
Creation of RAVE
Creation of AVEP (Spanish-Portuguese HSR
coordination entity for the development of all
the cross-border axis between the two countries)
Jan.2001
  • Portuguese-Spanish Summit
  • Memorandum of Understanding was signed defining
  • HSR cross-border axis
  • Journey time targets

Nov.2003
Apr.2004
Lisbon-Oporto, Lisbon-Madrid, Aveiro-Salamanca
(PP 3) and Oporto-Vigo (PP 19) included in the
TEN-T 30 Priority Projects
55
European Rail Infrastructure Managers (EIM)
Historical Milestones
Nov.2005
  • Portuguese-Spanish Summit
  • Memorandum of Understanding signed
  • regarding the Lisbon-Madrid HSL
  • Mix traffic Passenger and Freight
  • Definition of completion dates

Dec.2005
  • Project public announcement
  • Priority links (Lisbon-Madrid and
  • Lisbon-Oporto)
  • Technical options to be defined

Sep.2006
Delivery of the first Environmental Impact Study
for the Lisbon-Oporto HSL
Oct.2006
  • Strategic Guidelines for the Rail
    SectorOporto-Vigo announced as Priority Link
  • Final decision on the location of Oporto central
    station

56
European Rail Infrastructure Managers (EIM)
Historical Milestones
Jun.2007
  • Project public announcement
  • Business and procurement model
  • Master plan 2007/2011

Jul.2007
Completion of design studies and delivery of
Environmental Impacts Studies for the
Lisbon-Madrid HSL
Aug.2007
Final decision on the location of Lisbon central
station
Dec.2007
57
European Rail Infrastructure Managers (EIM)
Trans-European HSR Network
2020
  • Main goal of European transport policy
  • Improve cohesion, competitiveness and single
    European market
  • Sustainable development
  • Relieving of congestion of main European axis
  • Successful ongoing projects

58
European Rail Infrastructure Managers (EIM)
Portuguese HSR Network
  • Part of the TEN-T
  • European Parliament and European Council Project
    of Community Interest
  • Interoperability with the European HSR Network
  • Lisbon-Madrid already being built (Spanish
    territory)
  • East European Countries with HSR projects ongoing

59
European Rail Infrastructure Managers (EIM)
Portuguese HSR Main Objectives
  • Transport system efficiency
  • European and Iberian HSR Network Integration
  • Regional development
  • Atlantic South-West front competitiveness
  • Sustainable mobility
  • Socio-economic and technologic development

60
European Rail Infrastructure Managers (EIM)
Intermodality
  • HSR lines will be the main structure of the
    future Portuguese Rail Network
  • Articulation between the high speed rail network
    and the actual conventional rail network is of
    key importance
  • Rail network will be connected with ports,
    airports end logistic platforms

61
European Rail Infrastructure Managers (EIM)
Population
  • Geographic area between Lisbon, Oporto and Madrid
    has about 17 millions of inhabitants
  • Lisbon, Oporto and Madrid represent around 60 of
    total (about 10 millions of inhabitants)

62
European Rail Infrastructure Managers (EIM)
LisbonOporto LisbonMadrid axis
Millions of Passengers/year (2030)
63
European Rail Infrastructure Managers (EIM)
Priority Links LISBONOPORTO AXIS
64
European Rail Infrastructure Managers (EIM)
LisbonOporto LisbonMadrid axis Market Share
Long distance traffic

65
European Rail Infrastructure Managers (EIM)
Priority Links LISBONOPORTO AXIS
66
European Rail Infrastructure Managers (EIM)
Priority Links LISBONMADRID AXIS
HSR Conventional Rail between Évora and Caia
67
European Rail Infrastructure Managers (EIM)
Priority Links THIRD TAGUS CROSSING (TTC)
(Lisbon-Madrid Axis)
HSR Conventional Railway Roadway
68
European Rail Infrastructure Managers (EIM)
Priority Links - THIRD TAGUS CROSSING (TTC)
(Lisbon-Madrid axis)
  • Close the railway suburban ring in the Lisbon
    Metropolitan Area, allowing a more balanced
    development of the Lisbon Metropolitan Area
  • Remove the actual bottleneck for the conventional
    freight trains and improving the long distance
    North - South railway services (less 30 minutes
    between Lisbon and Algarve)
  • Establish the HSR link between Lisbon and Madrid
    in 2h45m
  • Improve the roadway access in the Lisbon
    Metropolitan Area

69
European Rail Infrastructure Managers (EIM)
  • Réseau Ferré de France (RFF) - France

70
European Rail Infrastructure Managers (EIM)
  • Réseau Ferré de France
  • Largest rail network in Europe
  • 29.000 km of operational rail track
  • High speed lines (HSL) 1550 km
  • 15.000 trains on the network everyday

71
European Rail Infrastructure Managers (EIM)
  • 15 major railway projects in progress
  • High-speed rail links (LGVs)
  • LGV East 2nd phase
  • Bordeaux - Toulouse LGV
  • Rhine - Rhone LGV
  • Britanny Pays de la Loire LGV

72
European Rail Infrastructure Managers (EIM)
  • LGV Est (East European High-Speed Line)
  • First phase inaugurated on March 15th 2007 and
    opened to traffic on June 10th 2007
  • Trains travel at speeds of 320 km/h
  • Paris-Strasbourg 2 hours and 20 minutes

73
European Rail Infrastructure Managers (EIM)
  • LGV Est (East European High-Speed Line) 2nd
    phase
  • Extending the existing high speed line by 106 km
    between Baudrecourt (Moselle) and Vendenheim
    (Lower-Rhine)
  • 474 km of track
  • 1 million tons of ballast
  • 395,000 sleepers
  • 2 links between the HSL networks and the
    traditional network
  • in Baudrecourt for the Luxembourg-Metz-Strasbourg
    TGV service
  • to the East of Réding (Moselle region) for the
    Nancy-Strasbourg TGV links
  • 97 crossings
  • Road crossings (91)
  • Rail line crossings (4)
  • Waterway crossings (2)

74
European Rail Infrastructure Managers (EIM)
  • LGV Est (East European High-Speed Line) 2nd
    phase
  • By 2015, once this new stretch of track has been
    completed, it will be possible to travel at "high
    speeds" over a total distance of 406 km between
    Paris and eastern France, thus reinforcing the
    objectives already achieved by the first phase
  • Provide a direct link between the French capital
    and major city centres in eastern France
  • Create new high speed links between Strasbourg
    and north, west and south-west France and other
    Eastern regions
  • Place the eastern regions of France at the heart
    of Europes high speed rail network.

75
European Rail Infrastructure Managers (EIM)
  • LGV Rhine-Rhone
  • This new 425 km line will be formed of a three
    branches star

76
European Rail Infrastructure Managers (EIM)
  • LGV Rhine-Rhone Eastern Branch
  • Beginning of the service end 2011
  • Cost 2.506 billion Euros
  • - North-South links from Frankfort, Bale and
    Zurich and the East of France towards the
    Rhone-Alps and Midi regions and Spain
    (Barcelona).
  • - East-West links from Bale, Berne, Zurich,
    Mulhouse and Paris with extensions to the
    Roissy-Charles-de-Gaulle airport and to Lille,
    allowing connections with London and Brussels
  • Annual traffic expected 1.2 million passengers
    per year and per station in the 2 new stations
  • Mulhouse-Paris linked in 2h30 Strasbourg-Marseill
    e in 4h30

77
European Rail Infrastructure Managers (EIM)
  • Brittany-Loire Valley High Speed Line
  • aims to reduce journey times to Brittany and the
    Loire Valley and thus make these regions more
    accessible
  • Construction of approximately 182 km of new line
    and approximately 32 km of connections (at Le
    Mans, Sablé-sur-Sarthe and Laval)
  • No new stations
  • Section to the north of Le Mans is intended to be
    used for transporting both passengers and freight
  • Overall cost estimated at 2.375 billion

78
European Rail Infrastructure Managers (EIM)
  • Rete Ferroviaria Italiana (RFI) - Italy

79
European Rail Infrastructure Managers (EIM)
  • RFI Objectives 2007-2011
  • Development of infrastructure capacity along the
    national and international corridors and at the
    metropolitan nodes, and retaining leadership in
    the rail traffic safety sector.

HS/HC SYSTEM Bringing Italy closer to other
European countries which have already started
with this type of infrastructure. The
construction of 5 new high-speed rail stations is
planned (Turin, Bologna, Florence, Rome, Naples).
The HS/HC will increase the growth of freight
transport to and from the rest of Europe SAFETY
TECHNOLOGIES SCMT ERTMS SCC ACC
Automation will run alongside interoperability
and progressive improvement of the punctuality
of passenger and freight transport
80
European Rail Infrastructure Managers (EIM)
  • RFI Objectives 2007-2011
  • Solving the problem of the so-called
    bottlenecks within large metropolitan areas or
    along parts of the network with a high traffic
    density.

81
European Rail Infrastructure Managers (EIM)
  • High-speed rail development in Italy

82
European Rail Infrastructure Managers (EIM)
  • RFI Future scenarios
  • Scenario at 2015
  • Some 3,285 km of interoperable system is planned,
    equal to more than 25 of the 12,615 km of the
    HS/HC system and the conventional system equipped
    with SCMT, with 100 of the HS/HC lines (1,115
    Km) and almost 20 (2,170 Km / 11,500 Km) of the
    conventional system corresponding to corridors A,
    B and D.

83
European Rail Infrastructure Managers (EIM)
  • RFI Future scenarios
  • Scenario at 2026
  • More than 8.000 km of interoperable system is
    planned, equal to almost 65 of the HS/HC system
    and the conventional system equipped with SCMT
    (more than 12,600 km) with 100 of the HS/HC
    lines (1,115 Km) and 60 (7,000 Km / 11,500 Km)
    of the conventional system represented by
    Corridors A, B and D and by other essential lines.
About PowerShow.com
