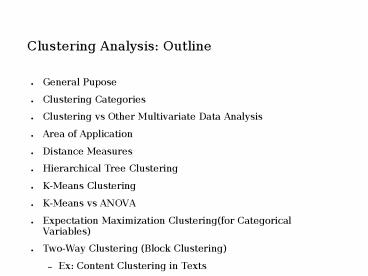

Clustering Analysis: Outline

1
Clustering Analysis Outline

• General Pupose
• Clustering Categories
• Clustering vs Other Multivariate Data Analysis
• Area of Application
• Distance Measures
• Hierarchical Tree Clustering
• K-Means Clustering
• K-Means vs ANOVA
• Expectation Maximization Clustering(for
  Categorical Variables)
• Two-Way Clustering (Block Clustering)
• Ex Content Clustering in Texts

2
Clustering AnalysisGeneral Purpose

• How to organize observed data into meaningful
  structures, that is, to develop taxonomies.
• Ex To organize the different species of animals
  before a meaningful description of the
  differences between animals is possible.
• Target Both minimize within-group variation
  and maximize between-group variation.

3
Clustering Analysis Categories

• A. Hierarchical Clustering
• Ex Tree Clustering.
• B. i ) K-means Clustering
• ii) Expecatation Maximization Clustering
• C. Block Clustering(Two-way Joining)
• Ex Concept Clustering within Texts

4
Clustering Analysis Similarity to Discriminant
and Factor Analysis

• In Factor Analysis original set of variables are
  reduced to smaller number of Factors, while in
  clustering original set of variables are grouped.
• In Discriminant Analysis Clusters are known in
  advanced and discriminating variables are worked,
  while in clustering we try to discover natural
  clusters within the data.

5
Clustering Analysis Statistical Significance
Testing

• Unlike many other statistical procedures, cluster
  analysis methods are mostly used when we do not
  have any a priori hypotheses, but are still in
  the exploratory phase of our research. In a
  sense, cluster analysis finds the "most
  significant solution possible." Therefore,
  statistical significance testing is really not
  appropriate for clustering analysis.

6
Clustering Analysis Area of Application

• In general, whenever one needs to classify a
  "mountain" of information into manageable
  meaningful piles, cluster analysis is of great
  utility.
• Ex clustering diseases, cures for diseases, or
  symptoms of diseases can lead to very useful
  taxonomies. In the field of psychiatry, the
  correct diagnosis of clusters of symptoms such as
  paranoia, schizophrenia, etc. is essential for
  successful therapy.

7
Clustering Analysis Hierarchical Clustering

• i.) Bottom-Up(upward)The purpose of this method
  is to join together variables into successively
  larger clusters, using some measure of similarity
  or distance.
• Initially each variable is considered as a
  separate cluster.
• Thus, similarity threshold is relaxed.
• ii.) Top-Down(downward) In that method, a
  partitioning scheme is followed.
• Initially all data set is considered as a single
  cluster.
• Repeatedly similarity threshold is tightened.

8
Clustering Analysis Hierarchical Tree Clustering
9
Clustering AnalysisDistance Measures

• Euclidean distance
• The distance between any two objects is not
  affected by the addition of new objects to the
  analysis, which may be outliers.
• distance(x,y) i (xi - yi)2 ½
• Chebychev distance
• differentiate furthest dimensions or attributes
• distance(x,y) Maximumxi - yi
• Percent disagreement
• This measure is particularly useful if the data
  for the dimensions included in the analysis are
  categorical in nature.
• distance(x,y) (Number of xi yi)/ i

10
Clustering AnalysisK-Means Clustering

• When we already have hypotheses concerning the
  number of clusters in your cases or variables
  then we can address the k- means clustering.
• In general, the k-means method will produce
  exactly k different clusters of greatest possible
  distinction.

11
Clustering Analysis K-Means vs ANOVA

• K-Means clustering is analogous to "ANOVA in
  reverse" in the sense that
• - The significance test in ANOVA evaluates the
  between group variability against the
  within-group variability when computing the
  significance test for the hypothesis that the
  means in the groups are different from each
  other.
• - In k-means clustering, the program tries to
  move objects (e.g., cases) in and out of groups
  (clusters) to get the most significant ANOVA
  results.

12
Clustering AnalysisExpectation Maximization
Clustering(Categorical Variables)

• Classification probabilities instead of
  classifications Each observation belongs to each
  cluster with a certain probability.
• Categorical variablesThe EM algorithm can also
  accommodate categorical variables. The program
  will at first randomly assign different
  probabilities (weights, to be precise) to each
  class or category, for each cluster. In
  successive iterations, these probabilities are
  refined (adjusted) to maximize the likelihood of
  the data given the specified number of clusters.

13
Clustering Analysis Two-Way Clustering (Block
Clustering)

• Block Clustering is useful in the relatively rare
  circumstances when one expects that both cases
  and variables will simultaneously contribute to
  the uncovering of meaningful patterns of clusters.
