Resonant Tunneling Diodes (RTDs)

1

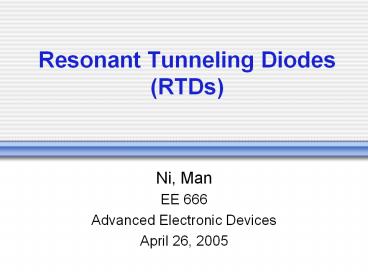

Resonant Tunneling Diodes(RTDs)

• Ni, Man
• EE 666
• Advanced Electronic Devices
• April 26, 2005

2
Outline

• Introduction
• RTD basics
• RTDs in different material systems
• III-V
• IV, II-VI, etc.
• Molecular RTDs
• RITDs (Resonant Interband Tunneling Diodes)
• Applications
• High-frequency oscillator
• Digital applications (HBT, HEMT, CMOS)
• RTTs (Resonant Tunneling Transistors)
• Conclusion

3
Why RTDs?

• Intrinsic bistability and high-speed switching
  capability (e.g., 1 ps switch, fmax1 THz)
• Low power consumption
• Small device footprint
• Increased functionality

4
What is an RTD?

• RTD Two potential barrier sandwiching a well
  region.

5
How does an RTD work?
Peak current density IPION
Peak-to-valley current ratio (PVCR) ION/IVALLEY
6
Valley Current

• Theory underestimates valley current because of
• (i) scattering by phonons and impurities
• (ii) extra tunneling via impurity states in the
  barriers
• (iii) tunneling via X and L states
• (iv) disorder in alloy barriers
• (v) interface steps and roughness

I
IP
IV
V
7
III-V RTDs

• GaAs family
• AlGaAs/GaAs/AlGaAs
• InP family (IP500 kA/cm2, PVCR52)
• InGaAs/AlAs/InAs

8
RTDs in other materials systems

• IV
• Si0.7Ge0.3/Si/Si0.7Ge0.3 on a relaxed Si0.7Ge0.3
  bufffer layer
• PVCR1.2 due to the low conduction-band offsets
  (lt 0.5 eV)
• II-VI
• HgCdTe/HgTe
• PVCR1.4
• Mixed Crystalline
• MnTe/InSb/MnTe, PVCR1.7 at 77 K
• CaF2/CoSi2, PVCR2
• AlAs/ErAs/AlAs on GaAs substrate
• Amorphous
• SiO2/Si/SiO2, Si3N4/Si/Si3N4
• SiC/Si/SiC, PVCR9.4

9
Molecular RTDs

• Small (1.5 nm) ultra-dense IC
• Natural nanometer-scale structure identical in
  vast quantities

James C. Ellenbogen, A brief overview of
nanoelectronic devices
10
Resonant Interband Tunneling Diodes (RITDs)

• A hybrid of RTD and Esaki diode
• Type II heterojunction RITD
• p-n type I heterojunction double quantum well
  RITD
• Type II heterojunction RITD

Electron injection
11
(No Transcript)
12
RITDs

• p-n type I heterojunction double quantum well RITD

PVCR 144
H. H. Tsai, et al., IEEE EDL, Vol. 15, no. 9,
Sep. 1994
13
Applications

• Oscillator ------ NDR
• Digital Logic ------ Bistability

14
Applications Oscillator
LC Oscillator
L
L
R
L
R
- R
C
C
C
Rtot
Ideal Case
Real Case
One-port Oscillator
w 1/ LC
w 1/ LC
15
Applications Digital Logic

• Logic circuits ------ Bistability
• Integration with transistors (HEMT, HBT, CMOS) is
  a requirement for a complete IC technology based
  on RTDs
• Transitors Input/output isolation, controllable
  gain
• RTDs increased functionality, enhanced circuit
  speed, reduced power consumption
• Its all about Load lines!

16
Inverter
VDD
I
I
VINLO VOUTHI
VOUT
VIN
VOUT
VINHI VOUTLO

• Concept A digital inverter cell with a low
  on-state current for low static power dissipation
• Evaluation The low on-state current also reduces
  the switching speed because the current stays low
  until the RTD again reaches resonance

17
Memory cell
VRTD
IRTD
Write Select
Read Select
RTD1
RTD2
RTD1
Read Data
Write Data
Storage Node
IRTD
RTD2
VRTD
VLO
VHI
Storage Node

• Concept A static memory cell with a low device
  count and low static power dissipation
• Evaluation Works and is fast, the difficulty is
  making RTDs reproducibly and integrating them
  with IC process

18
Multivalued Logic
I
R
Voltage
VOUT
RTD1
I
RTD2
VOUT

• There is some difference between the two devices
  such that they reach the peak current at
  different applied biases.

19
RTD/Transistor Monolithic IC

• RTD-HEMT

J. Hontschel, et al.
20
RTD/Transistor Monolithic IC

• RTD-HBT

S. Thomas III, et al., J. Vac. Sci. Technol. B
18(5), Sep/Oct 2000
21
RTD-CMOS

• Substantial improvement in speed, power
  dissipation, and circuit complexity over CMOS
  only circuits.
• A hybrid integration process for RTD to be
  transferred and bonded to CMOS

J. I. Bergman, et al., IEEE EDL, Vol. 20, no. 3,
March 1999
22
RTD-CMOS
A 1-bit RTD/CMOS comparator 6 devices

• A 1-bit conventional CMOS comparator 18 devices

J. I. Bergman, et al., EDL, 1999
23
Resonant Tunneling Transistors (RTTs)

• Three-terminal (RTTs) vs two-terminal (RTDs)
• Enhanced isolation between input and output
• Higher circuit gain
• Greater fan-out capacity
• Greater Versatility in circuit functionality
• Better suited for large circuits than RTD-only
  circuits

Emitter
Base
Base
Collector
Collector
24
Multivalued RTTs

• Different quantum levels different current peaks
  in I-V
• Square well not evenly spaced
• Parabolic well energy levels and the
  corresponding current peaks are all evenly spaced
• Difficult to make the multiple peaks of
  comparable magnitude

25
Multivalued RTTs

• Double-barrier structure in Emitter region

Federico Capasso, et al., IEEE Trans. Electron
Devices, Vol. 36, no. 10, Oct. 1989
26
Promising Future
