Building Lexicons

1

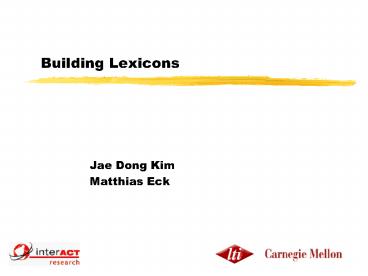

Building Lexicons

• Jae Dong Kim
• Matthias Eck

2
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

3
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

4
Definitions

• Translational equivalence A relation that holds
  between two expressions with the same meaning,
  where two expressions are in different languages.
• Statistical Translation Models statistical
  models of translational equivalence
• Empirical estimation of statistical translation
  models is typically based on parallel texts or
  bitexts
• Word-to-Word Lexicon
• A list of word pairs
  (source word, target word )
• Bidirectional
• Probabilistic word-to-word lexicon (source word,
  target word, prob.)

5
Additional Universal Property

• Translation models benefit from the best of both
  the empiricist and rationalist traditions
• Models to be proposed
• Most word tokens translate to only one word
  token. Approximated by one-to-one assumption -
  Method A
• Most text segments are not translated word for
  word. Explicit Noise Model - Method B
• Different linguistic objects have statistically
  different behavior in translation. Translation
  models on different word classes. - Method C
• Human judgment has shown that each of three
  estimation biases improves translation model
  accuracy over a baseline knowledge-free model

6
Applications of Translation Models

• Where word order is not important
• Cross-language information retrieval
• Multilingual document filtering
• Computer-assisted language learning
• Certain machine-assisted translation tools
• Concordancing for bilingual lexicography
• Corpus linguistics
• crummy machine translation
• Where word order is important
• Speech transcription for translation
• Bootstrapping of OCR systems for new languages
• Interactive translation
• Fully automatic high-quality machine translation

7
Advantages of translation models

• Compared to handcrafted models
• The possibility of better coverage
• The possibility of frequent updates
• More accurate information about relative
  importance of different translations

IRDB
Q
T
Qi
IR
Uniform Importance?
8
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

9
Models of Co-occurrence

• Intuition words that are translations of each
  other are more likely to appear in corresponding
  bitext regions than other pairs of words.
• A boundary-based model assumes that both halves
  of the bitext have been segmented into s
  segments, so that segment Ui in one half of the
  bitext and segment Vi in the other half are
  mutual translations, 1ltilts
• Co-occurrence count by Brown et al
• Co-occurrence count by Melamed

10
Nonprobabilistic Translation Lexicons (1)

• Summary of non-probabilistic translation lexicon
  algorithms
• Choose a similarity function S between word types
  in L1 and word types L2
• Compute association scores S(u,v) for a set of
  word type pairs (u,v) ? (L1 x L2) that occur in
  training data
• Sort the word pairs in descending order of their
  association scores
• Discard all word pairs for which S(u,v) is less
  than a chosen threshold. The remaining word pairs
  become the entries in the translation lexicon
• Main difference choice of similarity function
• Those functions are based on a model of
  co-occurrence with some linguistically motivated
  filtering

11
Nonprobabilistic Translation Lexicons (2)

• Problem independence assumption in step 2
• Models of translational equivalence that are
  ignorant of indirect association have a tendency
  to be confused by collocates
• If all the entries in a translation lexicon are
  sorted by their association scores, the direct
  associations will be very dense near the top of
  the list, and sparser towards the bottom

He nods his
head Il hoche la
tete
Direct association
Indirect association
12
Nonprobabilistic Translation Lexicons (3)

• The very top of the list can be over 98 correct
  - Gale and Church (1991)
• Gleaned lexicon entries for about 61 of the word
  tokens in a sample of 800 English sentences
• Selected only entries with high association score
• 61 word tokens represent 4.5word types
• 71.6 precision with top 23.8 of noun-noun
  entries - Fung(1995)
• Automatic acquisition of 6,517 lexicon entries
  with 86 precision from 3.3-million-word corpus -
  Wu Xia (1994)
• 19 recall
• Weighted precision in (E1,C1,0.533),
  (E1,C2,0.277), (E1,C3,0.190), if (E1,C3,0.190)
  is wrong, we have precision of 0.810
• Higher than unweighted one

13
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

14
Decomposition of Translation Model (1)

• Two stage decomposition of sequence-to-sequence
  model
• First stage
• Every sequence L is just an ordered bag, and the
  bag B can be modeled independently of its order O

15
Decomposition of Translation Model (2)

• First Stage
• Let L1 and L2 be two sequences and let A be a
  one-to-one mapping between the elements of L1 and
  the elements of L2

16
Decomposition of Translation Model (2)

• First Stage
• Let L1 and L2 be two sequences and let A be a
  one-to-one mapping between the elements of L1 and
  the elements of L2

17
Decomposition of Translation Model (3)

• First Stage
• Bag-to-bag translation model

18
Decomposition of Translation Model (4)

• Second Stage
• From bags of words to the words that they contain
• Bag pair generation process - how word-to-word
  model is embeded
• Generate a bag size l. l is also the assignment
  size
• Generate l language-independent concepts C1,,Cl.
• From each concept Ci, 1ltiltl, generate a pair of
  word sequences from L1 x L2, according to
  the distribution , to lexicalize
  the concept in the two languages. Some concepts
  are not lexicalized in some languages, so one of
  ui and vi may be empty.
• Bags
• An assignment (i1,j1),,(il,jl)

19
Decomposition of Translation Model (5)

• Second Stage
• The probability of generating a pair of bags
  (B1,B2)

20
Decomposition of Translation Model (5)

• Second Stage
• The probability of generating a pair of bags
  (B1,B2)
• is zero for all concepts
  except one
• is symmetric unlike the models
  of Brown et al.

21
The One-to-One Assumption

• and may consist of at most one word each
• A pair of bags containing m and n nonempty words
  can be generated by a process where the bag size
  l is anywhere between max(m,n) and mn
• Not as restrictive as it may appear. What if we
  extend a word to include spaces?

22
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

23
Reestimated Seq.-to-Seq. Trans. Model (1)

• Variations on the theme proposed by Brown et al.
• Conditional probabilities, but can be compared to
  symmetric models if the letter are normalized
  marginally
• Only Co-occurrence Information
• EM
• When information about segment lengths is not
  available

24
Reestimated Seq.-to-Seq. Trans. Model (2)

• Word Order Correlation Biases
• In any bitext, the positions of words relative to
  the true bitext map correlate with the positions
  of their translations
• The word order correlation bias is most useful
  when it has high predictive power
• Absolute word positions - Brown et al. 1988
• A much smaller set of relative offset parameters
  - Dagan, Church, and Gale. 1993
• Even more efficient parameter estimation using
  HMM with some additional assumptions - Vogel,
  Ney, and Tillman. 1996

25
Reestimated Bag-to-Bag Trans. Models

• Another Bag-to-Bag model by Hiemstra. 1996
• The same one-to-one assumption
• The difference empty words are allowed in only
  one of the two bags, the one representing the
  shorter sentence
• Iterative Proportional Fitting Procedure(IPFP)
  for parameter estimation
• IPFP is subjective to initial conditions
• With the most advantageous, more accurate than
  Model 1

26
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

27
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

28
Parameter Estimation

• Methods for estimating the parameters of a
  symmetric word-to-word translation model from a
  bitext.
• Interested in probability trans(u,v) Probability
  to jointly generate the pair of words (u,v)
• trans(u,v) cannot be directly inferred It is
  unknown which words were generated together
• Observable in bitext is only cooc(u,v)
  (co-occurrence count)

29
Definitions

• Link counts links(u,v) hypothesis about the
  number of times u and v were generated together
• Link token Ordered Pair of word tokens
• Link type Ordered Pair of word types
• links(u,v) ranges over Link types
• trans(u,v) can be calculated using links(u,v)

30
Definitions (continued)

• score(u,v) chance u and v can ever be mutual
  translationssimilar to trans(u,v), convenient
  for estimation
• Relationship between trans(u,v) and score(u,v)
  can be direct (depending on model)

31
General outline for all Methods

• Initialize the score parameter to a first
  approximation based only on cooc(u,v)
• REPEAT
• Approximate links(u,v) based on score and cooc
• Calculate trans(u,v), Stop if only little change
• Reestimate score(u,v) based on links and cooc

32
EM-Algorithm!

• Initialize the score parameter to a first
  approximation based only on cooc(u,v)
• REPEAT
• Approximate links(u,v) based on score and cooc
• Calculate trans(u,v), Stop if only little change
• Re-estimate score(u,v) based on links and cooc

Initial E-Step
M-Step
E-Step
33
EM Maximum Likelihood Approach

• Find the parameters that maximize the probability
  of the given bitext
• Assignments cannot be decomposed due to the
  one-to-one assumption (compare to Brown et al.
  1993)
• MLE approach is infeasible
• Approximating EM is necessary

34
Maximum a Posteriori

• Evaluate Expectations using the single most
  probable assignment only (Maximum a posteriori
  (MAP) assignment)

35
Maximum a Posteriori

• Evaluate Expectations using the single most
  probable assignment (Maximum a posteriori (MAP)
  assignment)
• l number of Concepts, number of produced words

36
Maximum a Posteriori

• Evaluate Expectations using the single most
  probable assignment (Maximum a posteriori (MAP)
  assignment)

37
Maximum a Posteriori

• Evaluate Expectations using the single most
  probable assignment (Maximum a posteriori (MAP)
  assignment)
• l, Pr(l) constant

38
Maximum a Posteriori

• Evaluate Expectations using the single most
  probable assignment (Maximum a posteriori (MAP)
  assignment)

39
Bipartite Graph

• Represent bitext as bipartite graph
• Find solution for weighted maximum matching
• Still too expensive to solve
• Competitive Linking Algorithm approximates

u


log(trans(u,v))
v


40
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

41
Method A Competitive Linking

• Step 1
• Co-occurrence counts
• Use whole table information
• Initialize score(u,v) to G2(u,v) (similar to
  Chi-square)
• Good-Turing Smoothing gives improvements

42
Step 2 Estimation of link counts

• Competitive Linking algorithm is employed
• Greedy approximation of the MAP approximation

• Algorithm
• Sort all score(u,v) from the highest to the
  lowest
• For each score(u,v) in order
• Link all co-occurring token pairs (u,v) in the
  bitext(If u is NULL consider all tokens of v in
  the bitext linked to NULL and vice versa)
• One-to-One assumption Linked words cannot be
  linked againRemove all linked words from the
  bitext

43
Example Competitive Linking
u
a
b
c
d
v
44
Competitive Linking
X
X
X
u
X
X
X
X
X
X
a
X
b
X
X
X
c
d
v
45
Competitive Linking
X
X
X
X
X
X
u
X
X
X
X
X
X
a
X
X
X
X
X
X
b
X
X
X
X
X
X
c
d
v
46
Competitve Linking per sentence
b
a


links(a,c) links(b,d)
c
d


a
b


links(a,d) links(b,e)
c
d
e


47
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

48
Method B

• Most texts are not translated word-for-word
• Why is that a problem with Method A?

a
b
x


c
d
e
f


49
Method B

• Most texts are not translated word-for-word
• Why is that a problem with Method A?

a
b
x


Competitive Linking
c
d
e
f


a
b
x


We are forced to connect (b,d)!
c
d
e
f


50
Method B

• After one iteration of Method A on 300k sentences
  Hansard

• links cooc
• often, probably correct
• links lt cooc
• rare, might be correct
• links ltlt cooc
• often, probably incorrect

51
Method B

• Use information links(u,v)/cooc(u,v) to bias
  parameter estimation
• Introduce p(u,v) as the probability of u and v
  being linked when they co-occur.
• Leads to binomial process for each co-occurrence
  (either linked or not linked)
• Too sparse data to model p(u,v)
• Just 2 cases

If u,v are mutual translations (Rate of true
positives)
If u,v are not mutual translations (Rate of false
positives)
52
Method B
53
Maximum Likelihood Estimation
54
Maximum Likelihood Estimation

• on 300k sentences Hansard

55
Method B

• Overall score calculation for Method B
• Probability for generating correct links(u,v)
  given cooc(u,v)
• Probability for generating incorrect links(u,v)
  given cooc(u,v)
• Score is ratio

56
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

57
Method C

• Improved Estimation using Preexisting Word
  Classes
• Method A, B
• All word pairs that co-occur the same number of
  times and are linked the same number of times are
  assigned the same score
• But Frequent words are translated less
  consistently than rare words
• Introduce classes to get Statistics per class

58
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

59
Method C for Evaluation

• We have to choose classes
• EOS End of sentence punctuation
• EOP End of phrase punctuation (, )
• SCM Subordinate clause markers ( ()
• SYM Symbols ( )
• NU NULL word
• C Content words
• F Function words

60
Experiment 1

• Training Data
• 29,614 sentence pairs French, English (Bible)
• Test Data
• 250 hand linked sentences (gold standard)
• Procedure
• Single Best Models guess one translation per
  word on each side
• Whole Distribution Model outputs all possible
  translation with probabilities

61
Experiment 1 Results

• Single Best All links (95 confidence
  intervals)

62
Experiment 1 Results

• Single Best open-class links only (just the
  content words)

63
Experiment 1 Results

• Whole Distribution All Links

64
Experiment 1 Results

• Whole Distribution open-class links only (just
  the content words)

65
Experiment 2

• Influence of training data size
• Model A is 102 more correct than Model 1 when
  trained on only 250 sentence pairs
• Overall up to 125 improvements

66
Evaluation at the Link Type Level

• Sorted scores for all link types
• 1/1, 2/2 and 3/3 correspond to links/cooc

67
Coverage vs. Accuracy

• incomplete Lexicon contains only part of correct
  phrase

68
Building Lexicons

• Introduction
• Previous Work
• Translation Model Decomposition
• Reestimated Models
• Parameter Estimation
• Method A
• Method B
• Method C
• Evaluation
• Conclusion

69
Conclusion - Overview
a
b
x

• IBM Model 1 co-occurrence information only
• Method A one-to-one assumption
• Method B Noise Model
• Method C condition auxiliary parameters on
  word classes

c
d
e
f


a
b
x


c
d
e
f


a
b
x


c
d
e
f
