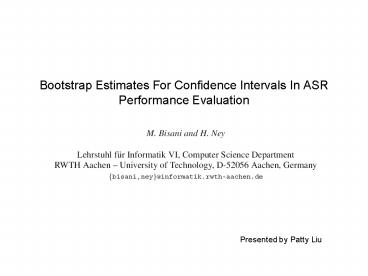

Bootstrap Estimates For Confidence Intervals In
ASR Performance Evaluation
Presented by Patty Liu
2
Introduction (1/2)

• The most popular performance measure in automatic
  speech recognition is the word error rate
• the number of word in sentence
• the edit distance, or Levenshtein distance
  ,between the recognizer output and the reference
  transcription of sentence
• The edit distance is the minimum number of
  insert, substitute and delete operations
  necessary to transform one sentence into the
  other.

3
Introduction (2/2)

• The word error rate is an attractive metric,
  because it is intuitive, it corresponds well with
  application scenarios and (unlike sentence error
  rate) it is sensitive to small changes.
• On the downside it is not very amenable to
  statistical analysis.
• - W is really a rate (number of errors per
  spoken word), and not a probability (chance of
  misrecognizing a word).
• - Moreover, error events do not occur
  independently.
• Nevertheless hardly any other publication reports
  figures on these significance tests. Instead it
  is common to report the absolute and relative
  change in word error rate only.

4
Motivation

• What error rate do we have to expect when
  changing to a different test set?
• How reliable is a observed improvement of a
  system?

5
Bootstrap (1/5)

• The bootstrap is a computer-based method for
  assigning measures of accuracy to statistical
  estimates.
• The core idea is to create replications of a
  statistic by random sampling from the data set
  with replacement (so-called Monte Carlo
  estimates).
• We assume that the test corpus can be divided
  into s segments for which the recognition result
  is independent and the number of errors can thus
  be evaluated independently.
• For speaker-independent CSR it seems appropriate
  to to choose the set of all utterances of one
  speaker as a segment.

6
Bootstrap (2/5)

• For each sentence we record the number of
  words and the number errors
• The following procedure is repeated B times
  (typically B 103 . . . 104) For b 1. . . B
  we randomly select with replacement s pairs from
  X, to generate a bootstrap sample
• The sample will contain several of the original
  sentences multiple times, while others are
  missing.

7
Bootstrap (3/5)
8
Bootstrap (4/5)

• Then we calculate the word error rate on this
  sample
• The Wb are called bootstrap replications of W.
  They can be thought of as samples of the word
  error rate from an ensemble of virtual test sets.
• The uncertainty of Wboot can be quantified by the
  standard error, which has the following bootstrap
  estimate

9
Bootstrap (5/5)

• For large s the distribution of W is
  approximately Gaussian. In this case the true
  word error rate lies with 90 probability in the
  interval .
• Even when s is small, we can use the table of
  replications Wb to determine percentiles which
  in turn can serve as confidence intervals.
• For a chosen error threshold a, let be
  the
• smallest value in the list ,
  and be the largest.
• The interval
• contains the true value of W with probability
  1 - 2a. This is the bootstrap-t confidence
  interval.
• For example With B 1000 and a 0.05, we
  sort the list of Wb and use the values at
  position 50 and 950.

10
EXAMPLE NAB (North American Business News)
ERROR RATES
smaller standard error
narrower confidence intervals
11
EXAMPLE NAB ERROR RATES
narrower confidence intervals
90
5
5
Cboot
Cboot
Wboot
12
Comparing Systems (1/2)

• Competing algorithms are usually tested on the
  same data.
• Given two recognition systems A and B with word
  error counts and , the (absolute)
  difference in word error rate is
• We can apply the same bootstrap technique to the
  quantity ?W as we did to W. The crucial point is
  that we calculate the difference in the number of
  errors of the two systems on identical bootstrap
  samples.
• The important consequence that ?W has much lower
  variance than W of either system.

13
Comparing Systems (2/2)

• In addition to the two-tailed confidence interval
  , we may be more interested in
  whether system B is a real improvement over
  system A.
• T(x) is the step function, which is one for x gt 0
  and zero otherwise. So the poi function is the
  relative number of bootstrap samples which favor
  system B. We call this measure probability of
  improvement (poi).

14
Example System Comparison

• The system used for the examples described
  earlier now plays the role of system B, while a
  second system with slightly different acoustic
  models is system A.
• System B is apparently better by 0.3 to 0.4
  absolute in terms of word error rate. The
  probability of improvement ranging between 82
  and 95, indicates that we can be moderately
  confident that this reflects a real superiority
  of system B, but we should not be too surprised
  if a fourth test set would be favorable to system
  A.
• The notable advantage of this differential
  analysis is that the standard error of ?W is
  approximately one third of the standard error of
  W.

15
Example System Comparison
16
Example System Comparison
0.4
17
Conclusion

• We would like to emphasize that what we propose
  is not a new metric for performance evaluation,
  but a refined analysis of an established metric
  (word error rate).
• The proposed method seems attractive, because it
  is easy to use, it makes no assumption about the
  distribution of errors, results are directly
  related to word error rate, and the probability
  of improvement provides an intuitive figure of
  significance.

18
Open Vocabulary Speech Recognition with Flat
Hybrid Models
19
Introduction (1/3)

• Large vocabulary speech recognition systems
  operate with a fixed large but finite vocabulary.
• Systems operating with a fixed vocabulary are
  bound to encounter so-called out-of-vocabulary
  (OOV) words. These are problematic for a number
  of reasons
• - An OOV word will never be recognized (even if
  the user repeats it), but will be substituted by
  some in-vocabulary word.
• - Neighboring words are also often
  misrecognized.
• - Later processing stages (e.g. translation,
  understanding, document retrieval) cannot recover
  from OOV errors.
• - OOV words are often content words.

20
Introduction (2/3)

• The decision rule and knowledge sources used by a
  large vocabulary speech recognition system
• acoustic model
• relates acoustic features x to phoneme
  sequences , typically an HMM (vocabulary
  independent)
• pronunciation lexicon
• assigns one (or more) phoneme string(s)
  to each word
• language model
• assigns probabilities to sentences from a
  finite set of words

21
Introduction (3/3)

• For open vocabulary recognition, we propose to
  conceptually abandon the words in favor of
  individual letters. Unlike words, the set of
  different letters G in a writing system is
  finite.
• Concerning the link to the acoustic realization,
  the set of phonemes can also be considered
  finite for a given language. These considerations
  suggest the following model
• - acoustic model
• - pronunciation model
• provides a pronunciation for any
  string of letters
• - sub-lexical language model
• assigns probabilities to character strings

22
Introduction (3/3)

• Alternatively the pronunciation model and
  sub-lexical language model can be combined into a
  joint graphonemic model

23
Grapheme-to-Phoneme Conversion (1/3)

• Obviously this approach to open-vocabulary
  recognition is strongly connected to
  grapheme-to-phoneme conversion (G2P), where we
  seek the most likely pronunciation for a given
  orthographic form
• The underlying assumption of this model is that,
  for each word, its orthographic form and its
  pronunciation are generated by a common sequence
  of graphonemic units.
• Each unit is a pair
  of a letter sequence and a phoneme sequence
  of possibly different length.
• We refer to such a unit as a graphone. (Various
  other names have been suggested
  grapheme-phonemejoint multigram, graphoneme,
  grapheme-to-phoneme correspondence (GPC), chunk)

24
Grapheme-to-Phoneme Conversion (2/3)

• The joint probability distribution
  is thus reduced to a probability distribution
  over graphone sequences which we model
  using a standard M-gram
• The complexity of this model depends on two
  parameters the range of the M-gram model and the
  allowed size of the graphones. We allow the
  number of letters and phonemes to vary between
  zero and an upper limit

25
Grapheme-to-Phoneme Conversion (3/3)

• We were able to verify that shorter units in
  combination with longer range M-gram modeling
  yields the best result for the grapheme-to-phoneme
  task.

26
Models for Open Vocabulary ASR (1/2)

• We combine the lexical entries with the
  (sub-lexical) graphones derived from
  grapheme-to-phoneme conversion to form an unified
  set of recognition units .
• From the perspective of OOV detection the
  sub-lexical units Q have been called fragments
  or fillers.
• By treating words and fragments uniformly the
  decision rule becomes
• The sequence model p(u) can be characterized as
  hybrid because it contains mixed M-grams
  containing both words and fragments.
• It can also be characterized as flat, as
  opposed to structured approaches that predict and
  model OOV words with different models.

27
Models for Open Vocabulary ASR (2/2)

• A shortcoming of this model is that it leaves
  undetermined were word boundaries (i.e. blanks)
  should be placed.
• The heuristic used in this study is to compose
  any consecutive sub-lexical units into a single
  word and to treat all lexical units as individual
  words.

28
Experiments

• We have three different established vocabularies
  with 5, 20 and 64 thousand words, each
  corresponding to the most frequent words in the
  language model training corpus.
• For each baseline pronunciation dictionary a
  grapheme-to-phoneme model was trained with
  different length constraints

• using EM training with M-gram
  length of 3 . The recognition vocabulary was then
  augmented with all graphones inferred by this
  procedure.
• For quantitative analysis, we evaluated both word
  error rate (WER) and letter error rate (LER).
  Letter error rate is more favorable with respect
  to almost-correct words and corresponds with the
  correction effort in dictation applications.

29
Experiments
30
Experiments--Bootstrap Analysis of OOV Impact

• We are particularly interested in the effect of
  OOV words on the recognition error rate. This
  effect could be studied by varying the systems
  vocabulary.
• However, changing the recognition system in this
  way might introduce secondary effects such as
  increased confusability between vocabulary
  entries.
• Alternatively we can alter the test set. By
  extending the bootstrap technique , we create an
  ensemble of virtual test corpora with a varying
  number of OOV words, and respective WER. This
  distribution allows us to study the correlation
  between OOV rate and word error rate without
  changing the recognition system.

31
Experiments

• This procedure is detailed in the following For
  each sentence i 1 . . . s we record the number
  of words , the number of OOV words and
  the number of recognition errors
• For b 1 . . .B (typically ) we randomly
  select with replacement s tuples from X to
  generate a bootstrap sample
• The OOV rate and word error rate on this sample

32
Experiments

• The bootstrap replications OOVb and WERb can be
  visualized by a scatter plot. We quantify the
  observed linear relation between OOV rate and WER
  by a linear lest squares fit.
• The slope of the fitted line reflects the number
  of word errors per OOV word. For this reason we
  call this quantity OOV impact.

33
Discussion (1/2)
34
Discussion (2/2)

• Obviously the improvement in error rate depends
  strongly on the OOV rate.
• It is interesting to compare the OOV impact
  factor (word errors per OOV word) The baseline
  systems have values between 1.7 and 2, supporting
  the common wisdom that each OOV word causes two
  word errors.
• Concerning the optimal choice of fragment size L,
  we note that there are two counteracting effects

• - Larger L values increase the size of the
  graphone inventory, which in turn causes data
  sparseness problems, leading to worse
  grapheme-to-phoneme performance.
• - Smaller values for L cause the unit
  inventory to contain many very short words with
  high probabilities, leading to spurious
  insertions in the recognition result. The present
  experiments suggest that the best trade-off is at
  L 4.

35
Conclusion

• We have shown that we can significantly improve a
  well optimized state-of-the-art recognition
  system by using a simple flat hybrid sub-lexical
  model. The improvement was observed on a wide
  range of out-of-vocabulary rates.
• Even for very low OOV rates, no deterioration
  occurred.
• We found that using fragments of up to four
  letters or phonemes yielded optimal recognition
  results, while using non-trivial chunks is
  detrimental to grapheme-to-phoneme conversion.

36
OPEN-VOCABULARY SPOKEN TERM DETECTIONUSING
GRAPHONE-BASED HYBRID RECOGNITION SYSTEMS
Murat Akbacak, Dimitra Vergyri, Andreas
Stolcke Speech Technology and Research
Laboratory SRI International, Menlo Park, CA
94025, USA
37
Introduction (1/3)

• Recently, NIST defined a new task, spoken term
  detection (STD), in which the goal is to locate a
  specified term rapidly and accurately in large
  heterogeneous audio archives, to be used
  ultimately as input to more sophisticated audio
  search systems.
• The evaluation metric has two important
  characteristics
• (1) Missing a term is penalized more heavily
  than having a false alarm for that term,
• (2) Detection results are averaged over all
  query terms rather than over their occurrences,
  i.e., the performance metric considers the
  contribution of each term equally.

38
Introduction (2/3)

• Results of the NIST 2006 STD evaluation have
  shown that systems based on word recognition have
  an accuracy advantage over systems based on
  sub-word recognition (although they typically pay
  a price in run time).
• Yet, word recognition system are usually based on
  a fixed vocabulary, resulting in a word-based
  index that does not allow text-based searching
  for OOV words.
• To retrieve OOVs, as well as misrecognized IV
  words, audio search based on sub-word units (such
  as syllables and phone N-grams) has been employed
  in many systems.
• During recognition, shorter units are more robust
  to errors and word variants than longer units,
  but longer units capture more discriminative
  information and are less susceptible to false
  matches during retrieval.

39
Introduction (3/3)

• In order to move toward solutions that address
  the problem of misrecognition (both IV and OOV)
  during audio search, previous studies have
  employed fusion methods to recover from ASR
  errors during retrieval.
• Here, we propose a hybrid STD system that uses
  words and sub-word units together in the
  recognition vocabulary. The ASR vocabulary is
  augmented by graphone units.
• We extract from ASR lattices a hybrid index,
  which is then converted into a regular word index
  by a post-processing step that joins graphones
  into words.
• It is important to represent ASR lattices with
  only words (with an expanded vocabulary) rather
  than with words and sub-word units since the
  lattices might serve as input to other
  information processing algorithms, such as for
  named entity tagging or information extraction,
  which assume a word-based representation.

40
The STD Task -Data

• The test data consists of audio waveforms, a list
  of regions to be searched, and a list of query
  terms.
• For expedience we focus in this study on English
  and the genre with the highest OOV rate,
  broadcast news (BN).

41
The STD Task -Evaluation Metric

• Basic detection performance will be characterized
  in the usual way via standard detection error
  tradeoff (DET) curves of miss probability (
  ) versus false alarm probability ( ).
• detection threshold
• the number of correct (true)
  detections of term with a score greater than or
  equal to .
• the true number of occurrences of
  term in the corpus.
• the number of spurious
  (incorrect) detections of term with a score
  greater than or equal to .
• the number of opportunities for
  incorrect detection of term in the corpus (
  Non-Target term trials).

42
STD System Description (1/3)
43
STD System Description (2/3)

• I. Indexing step
• First, audio input is run through the STT system
  that produces word or word graphone recognition
  hypotheses and lattices. These are converted into
  a candidate term index with times and detection
  scores (posteriors).
• When hybrid recognition (wordgraphone) is
  employed, graphones in the resulting index are
  combined into words. To be able to do this, we
  keep word start/end information with a tag in the
  graphone representation (e.g., .,
  .,. indicate a graphone at the
  beginning, or end, or in the middle of a word,
  respectively).

44
STD System Description (3/3)

• II. Searching step
• During the retrieval step, first the search terms
  are extracted from the candidate term list, and
  then a decision function is applied to accept or
  reject the candidate based on its detection
  score.

45
STD System Description -Speech-to-Text System

• I. Recognition Engine
• The STT system used for this task was a sped-up
  version of the STT systems used in the NIST
  evaluation for 2004 Rich Transcription (RT-04).
• STT is using SRIs Decipher(TM)
  speaker-independent continuous speech recognition
  system, which is based on continuous density,
  state-clustered hidden Markov models (HMMs), with
  a vocabulary optimized for the BN genre.

46
STD System Description -Speech-to-Text System

• II. Graphone-based Hybrid Recognition
• To compensate for OOV words during retrieval, we
  used an approach that use sub-word units
  -graphones- to model OOV words.
• The underlying assumption used in this model is
  that, for each word, its orthographic form and
  its pronunciation are generated by a common
  sequence of graphonemic units.
• Each graphone is a pair of a letter sequence and
  a phoneme sequence of possibly different lengths.

47
STD System Description -Speech-to-Text System

• In our experiments, we used 50K words (excluding
  the 10K most frequent ones in our vocabulary) to
  train the graphone module, with maximum window
  length, M, set to 4.
• A hybrid word graphone LM was estimated and
  used for recognition.
• Following is an example of an OOV word modeled by
  graphones
• abromowitz abro mo
  witz
• where graphones are represented by their
  grapheme strings enclosed in brackets, and
  and tags are used to mark word boundary
  information that is later used to join graphones
  back into words for indexing.

48
STD System Description -N-gram Indexing

• Since the lattice structure provides additional
  information about the correct hypothesis could
  appear, to avoid misses (which have a higher cost
  in the evaluation score than false alarms)
  several studies have used the whole hypothesized
  word lattice to obtain the searchable index.
• We used the lattice-tool in SRILM (version 1.5.1)
  to extract the list of all word/graphone N-grams
  (up to N5 for a word-only (W) STD system, N8
  for a hybrid (WG) STD system).
• The term posterior for each N-gram is computed as
  the forward-backward combined score (acoustic,
  language, and prosodic scores were used) through
  all the lattice paths that share the N-gram
  nodes.

49
STD System Description -Term Retrieval

• The term retrieval was implemented using the Unix
  join command, which concatenates the lines of the
  sorted term list and the index file for the terms
  common to both. The computational cost of this
  simple retrieval mechanism depends only on the
  size of the index.
• Each putative retrieved term is marked with a
  hard decision (YES/NO). Our decision-making
  module relies on the posterior probabilities
  generated by the STT system.
• One of two techniques were employed during the
  decision-making process.
• - The first one determines a global threshold
  for posterior probability (GL-TH) by maximizing
  the ATWV score, which for this task was found to
  be 0.4 and 0.0001 for word-based and hybrid
  systems respectively.
• - An alternative strategy can be formulated
  that computes a term-specific threshold
  (TERM-TH), which has a simple analytical solution.

50
STD System Description -Term Retrieval

• Based on decision theory the optimal threshold
  for each candidate should satisfy
• where is the value of a correct detection and
  is the cost for a false alarm.
• For the ATWV metric we have
• Since the number of true occurrences of the
  term is unknown we approximate it for the
  calculation of the optimal by the sum of the
  posterior probabilities of the term in the
  corpus.

51
Experiment Results (1/2)

• In the hybrid (WG) STD system there are
  approximately 15K graphones added to the
  recognition vocabulary.
• On average every OOV word results in two errors
  (itself, and one for a neighboring word because
  of incorrect context in the language model
  scoring). (e.g., going from 60K vocabulary to 20K
  vocabulary leads to a 3.2 increase in WER, and
  the hybrid system brings this number down to
  1.3).

52
Experiment Results (2/2)

• An interesting observation is that even for IV
  terms the hybrid (WG) STD yields better
  performance than the word-only (W) STD system.
• This is because hybrid recognition improves both
  IV-word and OOV-word recognition, resulting in
  better retrieval performance for IV and OOV words
  at the same time.
