Title: Initiating and Planning Systems Development projects

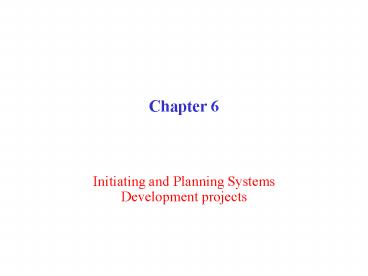

1
Chapter 6
  • Initiating and Planning Systems Development
    projects

2
Initiating planning systems development project
  • Input Output phase 1
  • Output
  • Statement Of Work (SOW)
  • Baseline Project Plan (BPP)
  • Purpose (objective) develop a business case, i.e.
    the justification for IS in term of tangible
    intangible benefits, costs, technical and
    organisational feasibility of the proposed
    system.
  • Who is responsible to perform phase 2?
  • Experienced systems analysts
  • Team of analyst who work close to managers,
  • Users
  • Other technical development staff
  • Process of PIP
  • Project initiation
  • Project planning

3
Project initiation elements
  • Establishing the project initiation team
  • Establishing relationship with the customer
  • Establishing the project initiation plan (scope
    and objectives)
  • Establishing management procedure (communication
    and reporting procedures, conflict management,
    funding billing)
  • Establishing project management environment
    project workbook

4
Project planning elements
  • Describing project scope, alternatives and
    feasibility
  • Dividing the project into manageable tasks and
    logical order
  • Estimating resources and creating a resources
    plan
  • Developing a preliminary schedule
  • Developing a communication plan
  • Establishing work standards and procedures
    (alternatives to SDLC, case tools)
  • Identifying and assessing risks (potential
    problems)
  • Creating a preliminary budget
  • Developing a Statement Of Work
  • Setting a Baseline Project Plan (specify detailed
    project for next phase of SDLC)

5
Output of PIP
  • Baseline Project Plan (BPP)
  • It is a major output from the PIP phase which
    contains the best estimate of the projects
    scope, benefits, costs, risks, and resource
    requirements
  • Statement Of Work (SOW)
  • It is document prepared for the customer during
    project initiation and planning that describes
    what the project will deliver (objectives), when
    it will be completed, resources it may consume
    and outline is generally at a high level all work
    required to complete the project including
    constraints of the project

6
Business CaseTangible and Intangible cost
  • Business case
  • the justification for an information system,
    presented in terms of the tangible and intangible
    economic benefits and costs and the technical and
    organization feasibility of the proposed system.
  • Tangible costs A cost associated with an IS that
    can be measured in dollars and with certainty.
  • E.g. hardware cost, internet services setup fee,
    data entry
  • Intangible costs A cost associated with an IS
    that can NOT be easily measured in dollars and
    with certainty.
  • E.g. Loss of customer goodwill
  • One time cost A cost associate with project
    start-up and development, or system start-up
  • User training, site preparation, new hardware
  • Recurring cost A cost resulting from the ongoing
    evolution and use of a system.
  • Software maintenance

7
Assessing project feasibility
  • There many factors that should be taken into
    consideration when assessing a potential project
  • Economic feasibility
  • Technical feasibility
  • Operational feasibility
  • Schedule feasibility
  • Legal and contractual feasibility
  • Political feasibility
  • Analyses of all the above factors constitute the
    business case

8
Definitions
  • Economic feasibility
  • A process of identifying the financial benefits
    and cost associated with development process
  • Technical feasibility
  • A process of assessing the development
    organisations ability to construct a proposed
    system
  • Operational feasibility
  • It is process of assessing the degree to which a
    proposed system solves business problem or take
    advantages of business opportunities
  • Schedule feasibility
  • The process of assessing the degree to which the
    potential time frame and completion dates for all
    major activities within a project meet
    organisational deadlines and constraints for
    affecting change
  • Schedule feasibility
  • The process of assessing the degree to which the
    potential time frame and completion dates for all
    major activities within a project meet
    organizational deadline and constraint for
    affecting change.
  • Legal contractual feasibility
  • It is the process of assessing potential legal
    and contractual ramifications due the
    construction of a system
  • Political feasibility
  • The process of evaluating how key stakeholders
    withing the organization view the proposed
    system.

9
Project risk assessment factors
  • Project size
  • Project structure
  • Development group
  • User group

10
Project risk assessment factors
Project Size and Project Structure
  • Project size
  • Small projects are less riskier than large
    projects
  • Factors that increase risks
  • Number of members on the project team
  • Number of organisational departments involve
  • Understanding the targets of the projects
  • Size of programming efforts
  • Project structure
  • Projects with clear requirements (well
    structured) will have less risks than project
    with messy (or ill-structured) requirements
  • Factors that increase risks
  • User perception to participate in effort
  • Organisational, procedural personal change
    resulting from the system
  • Management commitment to the system

11
Project risk assessment factors
Development group and User group
  • Development group
  • Group with more experience with similar systems
    (technology), and employing commonly used or
    standard technology will be less risky than one
    employing novel or non-standard technology
  • Factors that affect development group
  • Familiarity with target-hardware software
    development environment (operating environments
    to be used )
  • Familiarity with similar technology
  • Familiarity with proposed application area
  • User group
  • A project is less risky when the user group is
    familiar with the system development process and
    application area than unfamiliar

12
Building the baseline project plan (BPP)
  • All the information collected during PIP is
    collected and organised into a document called
    baseline project plan (BPP)
  • Two objectives of BPP. It helps
  • customer and development group share a common
    understanding of the project
  • sponsoring organisation with a clear idea of the
    scope, benefits, and duration of the project
  • Once the BPP is completed, a milestone take take
    place, i.e. a review meeting between all
    concerned parties.
  • The result of the review meeting is called
    walkthrough action list
