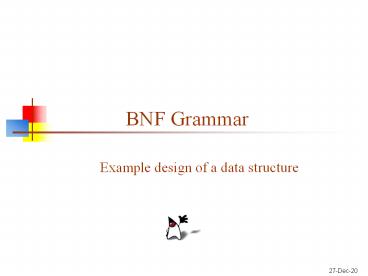

BNF Grammar

1
BNF Grammar

• Example design of a data structure

2
Form of BNF rules

• ltBNF rulegt ltnonterminalgt ""
  ltdefinitionsgt
• ltnonterminalgt "lt" ltwordsgt "gt"
• ltterminalgt ltwordgt ltpunctuation markgt
  ' " ' ltany charsgt ' " '
• ltwordsgt ltwordgt ltwordsgt ltwordgt
• ltwordgt ltlettergt ltwordgt ltlettergt ltwordgt
  ltdigitgt
• ltdefinitionsgt ltdefinitiongt ltdefinitionsgt
  "" ltdefinitiongt
• ltdefinitiongt ltemptygt lttermgt
  ltdefinitiongt lttermgt
• ltemptygt
• lttermgt ltterminalgt ltnonterminalgt
• Not defined here (but you know what they are)
  ltlettergt, ltdigitgt, ltpunctuation markgt, ltany
  charsgt (any printable nonalphabetic character
  except double quote)

3
Notes on terminology

• A grammar typically has a top level element
• A string is a sentential form if it satisfies
  the syntax of the top level element
• A string is a sentence if it is a sentential
  form and is composed entirely of terminals
• A string belongs to a grammar if it satisfies
  the rules of that grammar

4
Uses of a grammar

• A BNF grammar can be used in two ways
• To generate strings belonging to the grammar
• To do this, start with a string containing a
  nonterminalwhile there are still nonterminals
  in the string replace a nonterminal with
  one of its definitions
• To recognize strings belonging to the grammar
• This is the way programs are compiled--a program
  is a string belonging to the grammar that defines
  the language
• Recognition is much harder than generation

5
Generating sentences

• I want to write a program that reads in a
  grammar, stores it in some appropriate data
  structure, then generates random sentences
  belonging to that grammar
• I need to decide
• How to store the grammar
• What operations to provide on the grammar
• These decisions are intertwined!
• How I store the grammar determines what
  operations are easy and efficient (and even
  possible!)

6
Development approaches

• Bad approachDesign a general representation for
  grammars and a complete set of operations on them
• Actually, this is a good approach if you are
  writing a general-purpose package for general
  use--for example, for inclusion in the Java API
• Otherwise, it just makes your program much more
  complex
• Good approachDecide the operations you need for
  this program, and design a representation for
  grammars that supports these operations
• Its a nice bonus if the design can later be
  extended for other purposes
• Remember the Extreme Programming slogan YAGNI
  You aint gonna need it.

7
Requirements and constraints

• We need to read the grammar in
• But we dont need to modify it later
• Any tools for building the grammar structure can
  be private
• We need to look up the definitions of
  nonterminals
• We need this because we will need to replace each
  nonterminal with one of its definitions
• We need to know the top level element of the
  grammar
• But we can just assume that we know what it is
• For example, we can insist that the top-level
  element be ltsentencegt

8
First cut

• public class Grammar implements Iterable
• ListltStringgt rule
  // a single alternative for a nonterminal
• ListltListltStringgtgt definition
  // all the rules for one nonterminal
• MapltString, ListltListltStringgtgtgt grammar //
  rules for all the nonterminals
• public Grammar() grammar new
  TreeMapltString, ListltStringgtgt()
• public void addRule(String rule) throws
  IllegalArgumentException
• public ListltListltStringgtgt getDefinition(String
  nonterminal)
• public ListltStringgt getOneRule(String
  nonterminal) // random choice
• public Iterator iterator()
• public void print()

9
First cut Evaluation

• Advantages
• Small, easily learned interface
• Just one class
• Can be made to work
• Disadvantages
• As designed, ltfoogt bar baz is two rules,
  requiring two calls to addRule hence requires
  caller to do some of the parsing, to separate out
  the left-hand side
• Requires some fairly complicated use of generics
• ArrayList implements List (hence is a List), but
  consider ListltListltStringgtgt
  definition makeList()
• This statement is legal if makeList() returns an
  ArrayListltListltStringgtgt
• It is not legal if makeList() returns an
  ArrayListltArrayListltStringgtgt

10
Second cut Overview

• We can eliminate the compound generics by using
  more than one class
• public class Grammar implements Iterable
  MapltString, Definitiongt grammar // all the
  rules
• public class Definition ListltRulegt
  definition
• public class Rule String lhs //
  the definiendum ListltStringgt rhs // the
  definiens

11
Second cut More detail

• public class Grammar implements Iterable
  MapltString, Definitiongt grammar // rules for all
  the nonterminals public Grammar()
  grammar new TreeMapltString, Definitiongt()
  // constructor public void addRule(String
  rule) throws IllegalArgumentException public
  Definition getDefinition(String nonterminal)
  public Iterator iterator() public void
  print()
• public class Definition ListltRulegt
  definition // all definitions for some
  unspecified nonterminal Definition()
  // constructor void addRule(Rule rule)
  Rule getOneRule() public String
  toString()
• public class Rule String lhs //
  the definiendum ListltStringgt rhs //
  the definiens Rule(String text) //
  constructor public String getLeftHandSide()
  public ListltStringgt getRightHandSide()
  public String toString()

12
Second cut Evaluation

• Advantages
• Simplifies use of generics
• Disadvantages
• Many more methods
• Definitions are unattached from nonterminal
  being defined
• This makes it easier to parse definitions
• Seems a bit unnatural
• Need to pass the tokenizer around as an
  additional argument
• Doesnt help with the problem that the caller
  still has to separate out the definiendum from
  the definiens

13
Third (very brief) cut

• Definition and Rule are basically both just lists
  of strings
• Why not just have them implement List?
• Methods to implement
• public boolean add(Object o)public void add(int
  index, Object element)public boolean
  addAll(Collection c)public boolean addAll(int
  index, Collection c)public void clear() public
  boolean contains(Object o)public boolean
  containsAll(Collection c)public Object get(int
  index)public int indexOf(Object o)public
  boolean isEmpty()public Iterator iterator()
  public int lastIndexOf(Object o)public
  ListIterator listIterator()public ListIterator
  listIterator(int index)public boolean
  remove(Object o)public Object remove(int
  index)public boolean removeAll(Collection
  c)public boolean retainAll(Collection c)public
  Object set(int index, Object element)public int
  size() public List subList(int fromIndex, int
  toIndex)public Object toArray()public
  Object toArray(Object a)

14
Fourth cut, not quite as brief

• The class AbstractList provides a skeletal
  implementation of the List interface...the
  programmer needs only to extend this class and
  provide implementations for the get(int index)
  and size() methods.
• I tried this, but...
• If I dont know how AbstractList is implemented,
  how can I write these methods?
• No book or API class that I looked at provided
  any clues
• I may be missing something, but it looks like the
  only thing to do is to look at the source code
  for some of Javas classes (like ArrayList) to
  see how they do it
• Doable, but too much work!

15
Letting go of a constraint

• It is good practice to use a more general class
  or interface if you dont need the services of a
  more specific class
• In this problem, I want to use lists, but I dont
  care whether they are ArrayLists, or LinkedLists,
  or something else
• Hence, I generally prefer declarations like
  ListltStringgt list new ArrayListltStringgt()
• In this case, however, trying to do this just
  seems to be the cause of many of the problems
• What happens if I just make all lists ArrayLists?

16
Fifth (and final) cut

• public class Grammar
• MapltString, Definitionsgt grammar // rules for
  all the nonterminals
• public Grammar() grammar new TreeMapltString,
  Definitionsgt()
• public void addRule(String rule) throws
  IllegalArgumentException
• public Definitions getDefinitions(String
  nonterminal)
• public void print()
• private void addToGrammar(String lhs,
  SingleDefinition definition)
• private static boolean isNonterminal(String s)
  return s.startsWith("lt")
• public class Definitions extends
  ArrayListltSingleDefinitiongt
• _at_Override public String toString()
• public class SingleDefinition extends
  ArrayListltStringgt
• _at_Override public String toString()

17
Explanation I of final BNF API

• Exampleltunsigned integergt ltdigitgt
  ltunsigned integergt ltdigitgt
• The above is a rule
• ltunsigned integergt is the definiendum (the thing
  being defined)
• ltdigitgt is a single definition of ltunsigned
  integergt
• ltunsigned integergt ltdigitgt is another single
  definition of ltunsigned integergt
• So,
• There is a SingleDefinition consisting of the
  ArrayList "ltdigitgt"
• Another SingleDefinition consists of the
  ArrayList "ltunsigned integergt", "ltdigitgt"
• A Definitions object is a list of single
  definitions, in this case "ltdigitgt" ,
  "ltunsigned integergt", "ltdigitgt"
• A Grammar maps nonterminals onto their
  definitions thus, a grammar containing the above
  rule would include the mapping"ltunsigned
  integergt" ? "ltdigitgt" , "ltunsigned
  integergt", "ltdigitgt"

18
Explanation II of final BNF API

• A Grammar is a set of mappings from definienda
  (nonterminals) to definitions, along with some
  operations on that set of definitions
• You can addRule(String rule) to a Grammar
• The rule is parsed, and an entry made in the map
• Definitions for a nonterminal may be together, as
  in the above example, or separate
• ltunsigned integergt ltdigitgt
• ltunsigned integergt ltunsigned integergt ltdigitgt
• You can get a list of all the Definitions for a
  given nonterminal
• You can print the complete Grammar

19
Final version Evaluation

• Advantages
• Grammar has one constructor and three public
  methods
• Definitions and SingleDefinition are just
  ArrayLists, so there are no new methods to learn
• All rule parsing is consolidated into a single
  public method, addRule(String rule)
• I was able to come up with more meaningful names
  for classes
• Disadvantages
• User has to do a bit more list manipulation in
  particular, choosing a random element from a list
• This doesnt seem like an appropriate thing to
  have in a grammar, anyway

20
Morals

• Weeks of programming can save you hours of
  planning.
• The mistake most programmers make is to use the
  first design that comes to mind
• This usually can be made to work, but its seldom
  optimal
• Much as we would like to pretend otherwise,
  programming is an iterative process--we design,
  then try to implement, then change the design,
  then try to implement....
• TDD (Test-Driven Development) is a lightweight
  (low cost) way to try out a design
• For example, in my first design, I discovered how
  difficult it was to write tests that used the
  complex generics
• Consequently, I never even tried to implement
  this first design
• Morals to take home
• Be flexible try out more than one design
• Do TDD

21
Aside Tokenizing the input grammar

• I wrote a BnfTokenizer class that returns every
  token as a String
• Nonterminals keep their angle brackets, and may
  be multi-word
• Double-quoted strings are returned as a single
  token (minus the double quotes)
• and are returned as single tokens
• BnfTokenizer uses StreamTokenizer
• It provides two constructors, BnfTokenizer()
  and BnfTokenizer(String text)
• And two methods, void tokenize(text) and
  String nextToken()

22
The End
