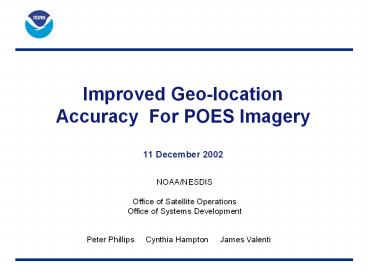

Improved Geolocation Accuracy For POES Imagery 11 December 2002

1
Improved Geo-location Accuracy For POES
Imagery11 December 2002
NOAA/NESDIS Office of Satellite
Operations Office of Systems Development
Peter Phillips Cynthia Hampton James
Valenti
2
Topics

• Basics of POES Geo-location and Clock Management
• The Problem
• Legacy Architecture and Findings
• Corrective Actions
• New System Details
• Calibration and Validation
• Operational Implementation
• User Impact

3
Geo-location and Clock Management

• Timing information (Day of Year and Millisecond
  of Day) is embedded in POES imagery data
• Imagery users geolocate pixels by projecting this
  time onto an ephemeris-based map of spacecraft
  location
• POES spacecraft have no internal means to know
  what time it is--time is set by the ground, and
  an on-board crystal oscillator provides pulses to
  advance the clock
• The on-board oscillator drifts relative to true
  time, requiring the NOAA/NESDIS Office of
  Satellite Operations (OSO) to measure the
  difference between the spacecraft time and a true
  timing reference--called a clock delta
• OSO clock delta measurements are used in two
  ways
• Provided to users to correct timing information
  prior to geolocation
• Used to correct the spacecraft clock to true
  periodically

4
The Problem
OSO-measured NOAA-15 and -16 clock deltas did not
match imagery In example, OSO measured a clock
delta of -400 ms, but imagery showed it was 1200
ms This caused a geolocation error of over 10 km!
5
Legacy Findings

• Though synchronized to Global Positioning System
  (GPS) time, clock delta measurement system only
  processed spacecraft and ground reference times
  to nearest 100 milliseconds
• Expected clock delta measurement error of 100
  milliseconds could not explain magnitude of
  problem
• OSO and users had image navigation software which
  performed best fit of pixels using coastlines
• For 40-day period in 2001 where OSO clock delta
  measurement for NOAA-16 remained constant at -600
  milliseconds, average clock delta from navigation
  software was 440 milliseconds
• Navigation results normally distributed, with
  standard deviation of 600 milliseconds
• Results consistent between OSO and users

6
Legacy Findings(continued)

• In 1999, NOAA-15 on-orbit tests to set spacecraft
  clocks resulted in time being 500 milliseconds
  off target value on 5 of 8 attempts
• Clock delta measurement system extracted time
  code information from different spacecraft data
  stream than users
• Used TIROS Information Processor (TIP)
  data--spacecraft time code only available once
  every 32 seconds
• Users extract time code from High Resolution
  Picture Transmission (HRPT) frames, which is
  available 6 times per second

7
Corrective Actions

• NASA engineers discovered bug in NOAA-15 and
  NOAA-16 on-board clock-setting software
• Used 1 Hz instead of 2 Hz reference to determine
  hardware cycle
• Corrected via flight software patch in 2000
• In mid-2001, NOAA/NESDIS Office of Systems
  Development (OSD) engineers discovered incorrect
  Polar Frame Synchronizer (PFS) TIP data blocking
  setting for KLM spacecraft
• Caused clock delta error of -900 milliseconds
• Reconciling brought clock deltas to within 1? of
  navigation results
• OSD procured new clock delta measurement system
  in 2002
• Part of PFS upgrades to Wallops and Fairbanks
  Command and Data Acquisition Stations (CDAS)
• Goal was to keep spacecraft clocks within 75
  milliseconds of GPS reference--equal to dimension
  of 1 high-resolution pixel

8
New System Details

• Uses HRPT data stream
• PFS receives ground timing reference from GPS
  receiver and performs internal Time Stamping as
  follows
• Extracts spacecraft time from header of every
  third frame of HRPT
• Latches GPS-based Ground Receipt Time (GRT) to
  end of frame
• Passes spacecraft time/GRT data pair to main
  ground system computer
• Since Time Stamping is internal to the PFS,
  blocking and transmission delays no longer impact
  clock deltas
• Spacecraft time and GRT processed with
  1-millisecond precision

9
New System Calibration

• New system includes settable GRT offset
• Accounts for delay from spacecraft time
  extraction to GRT latch
• Must be correct for system to produce accurate
  clock deltas
• Testing at WCDAS compared new to legacy system
• Legacy system had proper PFS blocking factor for
  TIP data
• New deltas highly consistent within and between
  contacts
• New deltas differed from legacy by 1000
  milliseconds in all cases
• PFS vendor found 640 millisecond delay in GRT
  output
• 360 milliseconds of difference remained between
  new and legacy
• WCDAS tests in January 2002 of MIT/Lincoln Labs
  clock delta measurement system recorded similar
  differences with legacy
• Inspection of legacy code showed incorrect block
  transfer delay term--value of -400 milliseconds,
  but should be -750 milliseconds

10
New System Validation

• Timing system calibration validated by Aerospace
  Corporation and MIT/Lincoln Labs
• Post-installation testing at WCDAS and FCDAS with
  corrected GRT offset showed clock deltas
  consistent with initial test results and
  identical between stations
• Navigation of imagery with spacecraft time set to
  within 75 milliseconds of true validated by OSO
  HRPT ingest system
• Navigation also validated in Local Area Coverage
  (LAC) data by Air Force Weather Agency (AFWA)

11
Operational Implementation

• New system clock deltas first used operationally
  for NOAA-17
• Spacecraft time set to within 2 milliseconds of
  true on day following launch
• Users report excellent geolocation of NOAA-17
  imagery
• Clock deltas form basis for daily clock
  corrections to compensate for on-board oscillator
  drift
• Archived clock delta information used to
  determine rate, in milliseconds per day, of drift
  relative to GPS reference
• Daily 24-hour clock decrement term in spacecraft
  stored command table modified to include drift
  rate correction
• OSO maintains spacecraft clock deltas to 75
  milliseconds
• By August 2002, OSO using new system for clock
  management of NOAA-14, 15, 16, and 17 spacecraft

12
Operational Implementation(continued)
13
User Impact
Direct Data users can now use POES imagery
directly, without any need for post-ingest
navigation to correct for timing errors!
14
Backup Slides
15
Navigation Histogram
16
Legacy Architecture
17
New Architecture
18
PFS Blocking Cycle
19
Legacy Clock Delta Equation
20
New Clock Delta Equation
21
Calibration Details

• PFS software includes settable GRT offset
• Accounts for delay from spacecraft time
  extraction to GRT latch
• Must be correct for system to produce accurate
  clock deltas
• Initial testing at WCDAS compared new to legacy
  system
• Legacy system had proper PFS blocking factor for
  TIP data
• GRT offset was -173 milliseconds--length of 1
  HRPT frame plus average link transit time from
  spacecraft to ground
• New deltas highly consistent within and between
  contacts
• New deltas differed from legacy by 1000
  milliseconds in all cases
• PFS vendor notified of test results and reviewed
  design
• Found delay in output of ground time code
  following receipt of IRIG-B clocking signal
• Delay was 640 milliseconds, causing GRT to be
  less than expected at time of latch

22
Calibration Details(continued)

• 360 milliseconds of difference remained between
  new and legacy
• WCDAS tests in January 2002 of MIT/Lincoln Labs
  clock delta measurement system recorded similar
  differences with legacy
• Inspection of legacy clock delta calculation code
  showed incorrect offset term to account for block
  transfer delay--value of -400 milliseconds, but
  should be -750 milliseconds
• Findings explained differences, justified change
  of GDP 225WA GRT offset from -173 to 467
  milliseconds
• Post-installation testing at WCDAS and FCDAS with
  new GRT offset showed clock deltas consistent
  with initial test results and identical between
  stations
• Calibration validated by Aerospace Corporation
  Geolocation Study and MIT/Lincoln Labs
