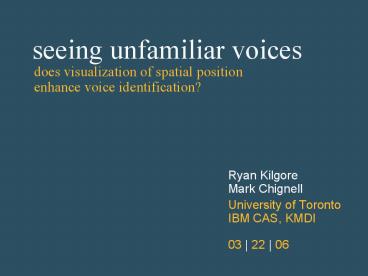

seeing unfamiliar voices
does visualization of spatial position enhance
voice identification?

• Ryan KilgoreMark Chignell
• University of Toronto IBM CAS, KMDI03 22 06

2
presentation overview

• Voice collaboration and spatial audio
• Visualizing audio spaces
• Experimental methodology
• Results
• Discussion

Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
02 19
3
problems with voice collaboration

• Traditional methods of synchronous communication
  do not adequately support large groups
• Monaural audio, lack of visual feedback, and poor
  audio quality make it difficult to determine
• Who is present?
• Who is speaking?
• What is being said?

03 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
4
spatial audio overview

04 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
5
spatial audio benefits (1 of 2)

• Reduction in masking facilitation of auditory
  scene analysis (Bregman, 1990 Gilkey Anderson,
  1997)
• Increased speech intelligibility in noisy
  environments (Ericson McKinley, 1997)
• Increased speech intelligibility in multi-talker
  listening tasks (Drullman Bronkhorst, 2000
  Abouchacra, 2001 Bolia, 2001)

05 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
6
spatial audio benefits (2 of 2)

• Distinct voice locations aid in cognition of
  audio conference events (Baldis, 2001 Kilgore
  et al, 2003)
• Significantly preferred to traditional, monaural
  voice presentation
• Reduced perception of attention required for
  speaker identification task
• Increased speaker identification performance,
  particularly for personalized audio spaces

06 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
7
Vocal Village interface
07 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
8
visualization audio spaces

• Early Vocal Village field trials indicated users
  want GUI for monitoring and controlling audio
  space
• Participants in audio-only field trials have
  highlighted the difficulty of knowing who was
  present in the audio space (Singer et al, 1999)
• Visual modality can convey awareness-supporting
  information parallel to audio communication
• Will increased awareness of voice locations aid
  listeners in learning to identify completely
  unfamiliar voices?

08 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
9
visualization previous studies

• Spatially arranged photos of speakers showed no
  performance benefits but preference (Baldis,
  2001)
• Graphic insert w/ voice names and locations
  showed no benefit to voice identification in an
  ATC task (MacDonald, 2002)
• HOWEVER These studies used familiar
  collaborators, or were limited to only four voices

09 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
10
experiment overview

• Determine if visual representation of voice
  locations will aid listeners in learning to
  recognize voices that are completely unfamiliar
• Dependent variables
• Accuracy and response time for voice
  identification task
• Confidence in voice identification task
  performance
• Mental workload (NASA-TLX) (Hart Staveland,
  1998)

10 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
11
experiment methodology (1 of 2)

• Modified Coordinate Response Measure (CRM)
  listening task (Bolia et al, 2000)
• Ready call sign, go to color number now
• 4 male, 4 female voices
• Response to target with color, number, speakers
  name
• 27 Participants, no voice training
• Provided performance feedback (w/ correct answer)

11 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
12
experiment methodology (2 of 2)

• Two independent variables
• 4 experimental blocks
• 40 stimuli per block (160 total)

12 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
13
experiment stimuli

13 19
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
14
experiment 3 results (1 of 3)
Correct Voice Identifications by Experimental
Block

Experimental Block F3, 30 61.15, p lt
.001 Number of Voices F1, 30 68.21, p lt .001
Format F2, 30 1.39, p .27 Number
Format F lt 1
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
15 19
15
experiment 3 results (2 of 3)

• Removed data for low-learning participants
• Excluded subjects that showed no improvement in
  voice identification over duration of experiment
• 2 Mono participants removed3 Spatial
  participants removed3 SpatialVisual
  participants removed

Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
16 19
16
experiment 3 results (3 of 3)
Correct Voice Identifications (low-learning
subjects removed)

4V Format Block F lt 1 8 Format
Block F2,10 5.43, p .025
Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
17 19
17
discussion

• Simple visual representation of voice locations
  improves the learning of completely unfamiliar
  voices in larger audio spaces (8 talkers)
• Visualizations continue to support identification
  as voices become increasingly familiar
• Spatial presentation of voice, coupled with
  low-cost visualization methods, may be
  particularly useful in supporting
• Large collaborative groups
• Groups with limited familiarity

Kilgore Chignell, Seeing Unfamiliar Voices
HFT 2006
18 19
18
current work visual scale

19 19
19
questions?
fin
