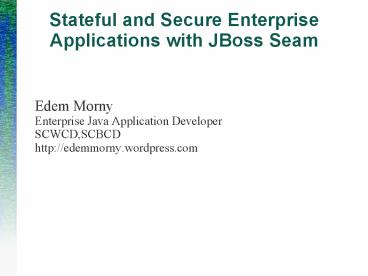

Stateful and Secure Enterprise Applications with JBoss Seam

1
Stateful and Secure Enterprise Applications with
JBoss Seam

• Edem Morny
• Enterprise Java Application Developer
• SCWCD,SCBCD
• http//edemmorny.wordpress.com

2
Challenges of Enterprise Applications

• Remote Invocation
• Transactions
• Load balancing Fail over
• Message-orientation
• Resource Pooling
• Security
• Integration
• And a LOT more...

3
Enterprise Platforms Evolution

• Enterprise Java technologies before Java EE 5
• J2EE 1.3/1.4 (Standard promoted by Sun, IBM etc)?
• Spring (Alternative promoted by SpringSource)?
• Advancements achieved by Java EE 5
• JSF Java's Standard Web Presentation Framework
• A rich set of custom components to leverage
• JavaBean Binding using Expression Language
• Advanced AJAX capabilities
• Simplified Business Logic Components Enterprise
  Java Beans (EJB) 3.0 using Annotations
• JPA Standard ORM framework for persistence.
• Enter JBoss Seam An RAD Web Framework
• Improving integrating already standard
  technologies as well as incorporating
  non-standard ones

4
JBoss Seam

• Simplified programming model through
• Bijection
• The exciting concept of scopes/contexts
• Powerful yet simple navigation
• Business process integration
• Powerful events model
• DRY validation on entities
• Security model applicable on all tiers of
  application

5
JBoss Seam Continued

• Other exciting features
• Productivity IDE Support

6
Achieving Statefulness

• The Statelessness of HTTP
• A more stateful model through
• Contexts/Scopes
• Bijection
• AJAX Support
• Advanced navigation
• Stateful workflows business process modelling
• Events

7
Contexts/Scopes

• Application
• Business Process
• Session
• Conversation
• Page
• Event
• Stateless

8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
Conversations - A Closer Look

• _at_Name("shopper")?
• _at_Scope(CONVERSATION)?
• public class BookingManager
• _at_In EntityManager entityManager
• _at_Out(requiredfalse)private Booking booking
• _at_Begin public void selectHotel(Hotel
  selectedHotel)
• hotel em.merge(selectedHotel)
• _at_End public void confirm()
• em.persist(booking)
• facesMessages.add("Your booking id
  isbooking.getId)
• facesMessages.add("Thank you for your custom)

12
Bijection

• Injection and Outjection Bijection
• _at_Name("shopper")?
• _at_Scope(CONVERSATION)?
• public class Shopper
• _at_RequestParameter Integer cartId
• _at_In EntityManager entityManager
• _at_Out(requiredfalse)_at_In private Cart cart
• public String initilizeCart()
• cart entityManager.find(Cart.class,cartId)
• return ok

13
AJAX Support

• Asynchronous JavaScript XML
• AJAX Support on JSF Components
• Ajax4jsf from JBoss RichFaces (JBoss)?
• MyFaces Trinidad (Apache)?
• ICEFaces AJAX Support (ICESoft)?
• Direct AJAX Remoting
• Can also make use of other JavaScript AJAX
  libraries which are not Java based
• Dojo Toolkit
• JMaki
• Prototype
• JQuery

14
Navigation

• JSF 1.1-1.2
• XML based navigation. Sometimes too complex.
• No support for opening in new tabs
• No support for binding selected data in a
  DataModel
• Limited support for exception handling
• Seam solves these with
• component
• _at_DataModel and _at_DataModelSelection annotations
• pages.xml navigation better than faces-config.xml

15
Stateful Workflows - BPM

• Business Process Management a gist.
• Involves many tasks
• Involves many users
• A task normally maps to a Seam conversation
• A business process could take more than a day
• JBoss JBPM Open source Java's preferred
  business process management engine.
• Integration with Seam
• jpdl.xml describe business process, tasks etc.
• JBPM Actor object hold identity of users
• _at_CreateProcess, _at_BeginTask, _at_EndTask etc.

16
Events Model

• _at_Name(hotelBooker)
• public class BookingManager
• _at_End public void saveBooking()
• entityManager.persist(booking)
• Events.instance().raiseEvent(roomBooked)?
• _at_Name(roomList)
• public class RoomList
• _at_DataModel List rooms
• _at_Observer(roomBooked)?
• public void reload()
• rooms em.createQuery(select r from ...)

17
DRY Validation

• Hibernate Validator integration
• Example Annotations - _at_Min, _at_Max, _at_Email,
  _at_Future, _at_Past, _at_NotNull etc.
• public _at_Entity class Student
• _at_NotNull
• _at_Length(min5,max40,messageName must be
  between 5 and 40 chars long)?
• private String name
• _at_Email
• private String email
• _at_Past
• private Date dateOfBirth
• ...

18
Achieving Security

• Seam Identity object
• Authentication, authorisation, integrity
  confidentiality at
• Presentation tier
• schemehttps
• shasRole('Admin')

• Business Logic tier
• _at_Restrict(shasRole('Admin'))?
• public class AdminManager
• Model tier as well

19
Other features

• PDF document generation using Facelets
• Email using Facelets
• Web Services
• Asynchronicity (Quartz or EJB3)?
• Unit Integration testing
• Portal support
• Dynamic language support - Groovy
• Deploys to most Java application servers eg.
  Apache's Tomcat, JBoss' JBAS, Sun's Glassfish,
  IBM's WebSphere, Oracle's OC4J etc.
• And a whole lot more.

20
Productivity Tools

• The Red Hat Developer Studio (commercial).
• Eclipse with JBoss Tools (open source).
• NetBeans with Seam plugin and Facelets support
  (open source).

21
The Future

• Standardization efforts led by JBoss (Seam) and
  Google (Guice) Web Beans.
• Web Beans to be official standard in Java EE 6.
• Seam becomes a middle tier support for GWT,
  Wicket and Flex being worked on.
• JSF 2.0 Incorporating new features
• JSR 303 Standard validation support on the way
• And further enhancements to the framework.

22
Summary

• The Web is the New Desktop. The Statelessness of
  HTTP is well on its way to being overcome and
  Seam is spearheading that revolution.

23
Further info

• The home of the Seam Community
• http//www.seamframework.org
• JBoss Seam
• http//www.jboss.com/products/seam
• Seam blogs and news
• http//in.relation.to
• My blog
• http//edemmorny.wordpress.com
