WAP

1

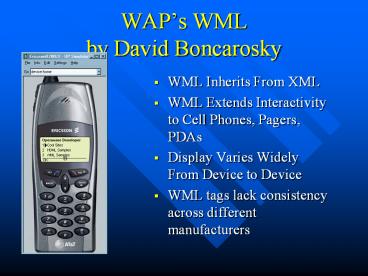

WAPs WMLby David Boncarosky

• WML Inherits From XML
• WML Extends Interactivity to Cell Phones, Pagers,
  PDAs
• Display Varies Widely From Device to Device
• WML tags lack consistency across different
  manufacturers

2
WML Coding

• WML Based on a Deck of Cards -- the device only
  shows 1 card at a time
• Cards in a Deck can Interact with other Cards in
  Deck and Cards in External Decks

3
WML Coding

• All WML documents MUST have a specific header
• The Deck is delimited by the ltwmlgt . . . lt/wmlgt
  tag

lt?xml version"1.0"?gt lt!DOCTYPE wml PUBLIC
"-//WAPFORUM//DTD WML 1.1//EN" "http//www.wapforu
m.org/DTD/wml_1.1.xml"gt ltwmlgt ltcard id"main"
title"First Example"gt ltpgtHello
World!lt/pgtlt/cardgt lt/wmlgt
4
Entering Text

• Cards are delimited by the ltcardgt . . . lt/cardgt
  tags
• All Text within a card must be placed in ltpgt . .
  . lt/pgt tags

ltwmlgt ltcard id"main" title"Hello
World"gt ltpgt My First WML Card! (a.k.a. Hello
World!) lt/pgt lt/cardgt lt/wmlgt
5
WML Anchors (links)

• Similar to HTML links
• lta hrefaddressgt text lt/agt
• Use to reference a card (e.g. href
  myCard). Otherwise, will go to the first card
  in a deck

ltwmlgt ltcard id"main" titleLink
Example"gt ltpgt lta href"anotherCard"gt My
First link lt/agt lt/pgt lt/cardgt lt/wmlgt
6
WML sample Site

• lt?xml version"1.0"?gt
• lt!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML
  1.1//EN"
• "http//www.wapforum.org/DTD/wml_1.1.xml"gt
• ltwmlgt
• lttemplategt
• ltdo type"accept" label"Find a Person"gt
• ltgo href"search" /gt
• lt/dogt
• ltdo type"accept" label"School Info"gt
• ltgo href"schools" /gt
• lt/dogt
• ltdo type"accept" label"My CMU email"gt
• ltgo href"login" /gt
• lt/dogt
• lt/templategt

7
WML sample site (cont.)

• ltcard id"main" title"Welcome to CMU"gt
• ltpgt
• Welcome to CMU ltbr/gt
• lta href"search"gtFind a Personlt/agt ltbr/gt
• lta href"schools"gtSchool Infolt/agt ltbr/gt
• lta href"login"gtMy CMU emaillt/agt
• lt/pgt
• lt/cardgt

8
WML Sample Site (cont.)

• ltcard id"search" title"Find Someone at CMU"gt
• ltpgt
• Find Someone at CMU ltbr/gt
• First Name ltinput name"f_name" /gt ltbr/gt
• Last Name ltinput name"l_name" /gt
• lt/pgt
• ltpgt
• ltanchorgt
• Submit
• ltgo method"post" href"http//www.cmu.edu/sea
  rch.jsp"gt
• ltpostfield name"f_name" value"(f_name)" /gt
• ltpostfield name"l_name" value"(l_name)" /gt
• lt/gogt
• lt/anchorgt
• lt/pgt
• lt/cardgt

9
WML Sample Site (cont.)

• ltcard id"schools" title"Info on the Schools"gt
• ltpgt
• Select the School
• ltselect title"school"gt
• ltoptiongtCFAlt/optiongt
• ltoptiongtGSIAlt/optiongt
• ltoptiongtHeinzlt/optiongt
• ltoptiongtHSSlt/optiongt
• ltoptiongtMISMlt/optiongt
• lt/selectgt
• ltanchorgt
• Get Info
• ltgo method"post" href"http//www.cmu.edu/sch
  ool.jsp"gt
• ltpostfield name"school" value"(school)" /gt
• lt/gogt
• lt/anchorgt
• lt/pgt

10
WML Sample Site (cont.)

• ltcard id"login" title"Login to Check Mail"gt
• ltpgt
• Login to Check eMail ltbr/gt
• User ID ltinput name"user_id" /gt ltbr/gt
• Pass ltinput name"passw" /gt ltbr/gt
• ltanchorgt
• Login
• ltgo method"post" href"http//www.cmu.edu/log
  in.jsp"gt
• ltpostfield name"user_id" value"(user_id)" /gt
• ltpostfield name"passw" value"(passw)" /gt
• lt/gogt
• lt/anchorgt
• lt/pgt
• lt/cardgt
• lt/wmlgt
