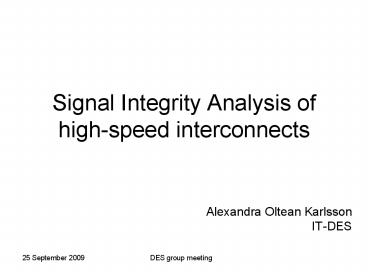

Signal Integrity Analysis of high-speed
interconnects

• Alexandra Oltean Karlsson
• IT-DES

2
Overview

• Need for electromagnetic simulation and circuit
  simulation at CERN
• Look at the existent tools at CERN
  electromagnetic field solvers and circuit
  simulators
• Test compatibility between tools
• Two case studies

3
Need for simulation

• CERN is involved with more complex systems
  (detectors, accelerators) and higher-speed
  electronics
• Need for electromagnetic (EM) simulation
• Use EM field solvers
• Analyse complex/arbitrary 3D geometries
• Provide design rules and guidelines
• Optimize design
• Need for system and circuit simulation
• Perform analysis at the electronics board-level
• Account for Signal Integrity
• Make sure design can meet specifications

4
EM Field Solvers at CERN

• Ansoft HFSS
• HFSS is a frequency domain full-wave field solver
• HFSS uses Finite Element Method to solve
  Maxwells equations in the frequency domain
• HFSS results are E/H fields, S-parameters, Z, Y
  matrices
• CST Microwave Studio (MWS)
• MWS is a time domain field solver
• MWS uses Finite Integration Technique to solve
  Maxwells equations in the time domain
• MWS results are time-domain signals, Z,
  indirectly computed S-parameters
• Others ANSYS, Flex3D, Tosca

5
Circuit Simulators at CERN

• Basic circuit simulators integrated with the
  field solvers
• (Not always good enough)
• CST Design Studio
• General purpose non-linear circuit simulators
• Synopsys HSpice (de facto non-linear simulator)
• Cadence PSpice
• Specific tools for Signal integrity analysis
• Cadence Allegro PCB SI (old SpecctraQuest) -
  tlsim or HSpice simulator
• General purpose non-linear and linear circuit
  simulators
• Applied Wave Research (AWR) APLAC or HSpice
  simulator

6
Case Studies

• Case Study1
• the Low Mass Cable (LMC) used by the ALICE
  Silicon Pixel detector and the NA-48 Gigatracker
• Case Study2
• a critical geometry - differential Via
  existent on the Processing trigger board for LHCb
  Muon trigger

7
Case Study 1 -Low Mass Cable (LMC)

• Data rate through the data lines is 2.5Gbps
• The goals are
• to FIND an optimum design for this LMC within
  given constraints such that a
• minimum amount of crosstalk noise will be induced
  in the data lines from the
• adjacent traces
• to GET a model for the LMC which can be used in
  a circuit simulator to validate
• the compatibility between the LMC and the
  detector read-out chip

8
LMC in HFSS

• A simulation in HFSS is a long and a
  computationally expensive process
• using large amount of RAM
• depending on the geometry complexity
• Break the complexity of the LMC into two
  geometries
• Go through several iterations before finding the
  right setup

9
HFSS Methodology
Draw the 3D geometry
Define materials
Aluminium
Kapton
Define boundaries Define excitations
Specify project settings
SOLVE
10
HFSS analysis results (1)
Take out the GND shielding
-60dB
Similar crosstalk results even when NO shielding
at all! Design rule 1 The GND shield is not
necessary - take it out and economize Aluminum
11
HFSS analysis results (2)
Bring VDD traces closer to the serial lines
Crosstalk level increases by bringing the power
closer to the serial lines, but the overall level
is still acceptably low! Design rule 2 bring
power closer to the lines
12
HFSS analysis results (1)
Take out the GND shielding
S11
Similar crosstalk results even when NO shielding
at all! Design rule 1 take out the GND shield
13
HFSS analysis results (2)
Bring closer to each others the lines
Crosstalk level increases by bringing closer the
traces but stays below -55dB at 25GHz! Design
rule 2 bring traces closer each other ? shrink
the width of the LMC
14
System Simulation
Field solver
From HFSS, we obtained a model for the whole LMC
Circuit simulator
Detector
Front-end electronics
TX
RX
Read-out chip
FPGA
Low Mass Cable
15
LMC integration with the read-out electronics

• The read-out chip is a custom designed ASIC by
  the Microelectronics Group at CERN
• The read-out chip drives with 2.5Gbps signal the
  LMC
• - the output at an ideal single and differential
  receiver

Read-out TX?LMC ? RX (Single)
Read-out TX?LMC ? RX (Differential)
16
Case Study 1 - Conclusions

• Fullwave electromagnetic analysis in Ansoft HFSS
  can be used to design the LMC
• From the analysis of the LMC the following design
  rules have been derived
• GND shielding could be removed
• VDD power traces could be brought closer to the
  serial lines
• control lines could be brought closer to each
  others
• We obtained an HSpice model for the whole LMC
• HSpice simulation validates the compatibility of
  the LMC to the read-out chip
• The differential output after LMC has acceptable
  signal characteristics

17
Case Study2 LHCb Trigger board
TX

• Trigger processing board for LHCb
• Design speed is 1.6Gbps
• The goals are
• - to obtained a model for the Vias
• - to integrate this model within the
  transmission channel simulation from TX to RX

Vias
PCB trace
Vias - 3D geometry
RX
Vias
18
Microwave Studio Methodology
Draw 3D geometry
Copper
Assign materials
FR4
Define frequency range
TX
Define boundaries and ports
SOLVE
RX
19
Vias Analysis in MWS

• CST MWS results
• Left S-parameters (Frequency-domain indirect
  results)
• Right - Time-domain results

20
HSpice board level simulation
TX
RX
Measurement
Simulation
21
Case Study2 - Conclusions

• A pair of differential vias on a high-speed board
  has been modeled with CST MWS
• The HSpice model exported from MWS was simulated
  with HSpice
• The MWS Via model was then used within a
  transmission path on the real board
• The simulation result has been successfully
  compared to the measurement.
