Title: Green Commercial Building Retrofitting


1

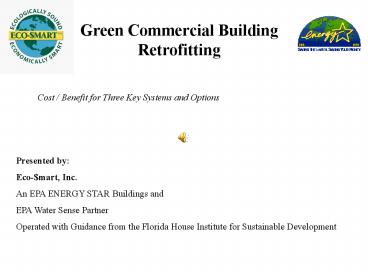

Green Commercial Building Retrofitting
Cost / Benefit for Three Key Systems and
Options
Presented by Eco-mart, Inc. An EPA ENERGY
STAR Buildings and EPA Water Sense
Partner Operated with Guidance from the Florida
House Institute for Sustainable Development
2
The Florida House Learning Center
  • Created by the Nonprofit Florida House Institute
    for Sustainable Development and Sarasota County
    Cooperative Extension Service
  • The Florida House was opened to the public on
    Earth Day, 1994

3
About Eco-mart, Inc.
  • An EPA ENERGY STAR and EPA Water Sense Partner
  • Operates with Guidance from the Nonprofit Florida
    House Institute for Sustainable Development
    (FHI)
  • Offers Free Green Materials Consultations
  • Distributes Approved Systems
  • Sources Installation and Energy Ratings
  • Sources Energy Efficient Financing
  • Provides Educational Seminars for Public and
    Trades

4
Why Green Retrofitting?
  • Create Positive Cash Flow for Building Owner
  • Increase Productivity
  • Increase Occupant Comfort
  • Create Free Positive Publicity
  • Reduce Carbon Footprint, Foreign Oil Dependence
  • Take Advantage of New Tax Credits / Grants /
    Deductions
  • Stimulate the Local Economy

5
Our Priorities for Selecting Green Building
Materials
  • 1. Enhances efficiency, health, disaster
    resistance.
  • 2. Reduces maintenance, construction time,
    construction costs, operating costs.
  • 3. If not capital cost saving, then at least
    creates positive cash flow for building owners.
  • 4. Locally available, supportable.

6
3 Key Systems for Commercial Building Retrofitting
7
Green Commercial Upgrade Package Example
  • 3 Key Systems
  • 1. Demand Buster Water-Cooled A/C Retrofit
  • 2. Eco-Flector Insulating Low-E Window Retrofit
  • 3. LED Lighting Interior and Exterior
  • Options
  • Brac Greywater Recycling (Laundry Facilities)
  • Passive Solar Water Heating
  • 3. Photovoltaic Power Generation, and more

Applying the 3 key systems to a building upgrade
will reduce energy consumption by 25 to 40
percent. Typical payback periods are two to five
years. Project can be leased, creating immediate
positive cash flow and a more comfortable,
productive work environment.
8
Example 3 Key Systems Cost / Benefit
May Also Qualify for 1.80 per Square Foot Tax
Deduction
9
Key System 1 Demand Buster Water-Cooled A/C
Retrofit
Home Depot Study 28 Peak Demand and 55 kWH
Savings
Converts Air-Cooled to Water-Cooled. One Cooling
Tower can Serve Multiple Condensers, up to 100
Tons
10
Key System 1 Demand Buster Water-Cooled A/C
Retrofit
Home Depot Study 28 Peak Demand and 55 kWH
Savings
11
Key System 2 Eco-Flector Insulating/Radiant
Barrier Window Retrofit
Eco-Flector Panels are Held Magnetically to the
Inside of the Window Frame and Can be Reversed to
Trap Heat in Winter
Without Eco-Flector
With Eco-Flector
Eco-Flector Gives Windows the Insulating Value of
a Wall! Also Available as Vertical Blinds
12
Key System 2 Eco-Flector Insulating/Radiant
Barrier Window Retrofit
Eco-Flector Improves Solar Heat Gain Blockage in
Single Pane, Double Pane or even Low-E Windows
  • Eco-Flector Addresses all Four Ways that
    Buildings Lose / Gain Heat through Windows

13
Key System 3 LED Replacement Lamps
  • No ballasts, no mercury.
  • 50,000 hour warranty
  • Available in warm white and daylight colors
  • 3W LED 15W CFL 60W Incandescent

14
Key System 3 LED Retrofit for HID Lighting
  • 400W MH replaced with 88W LED
  • 50,000 hour life
  • Lowers maintenance costs

15
Key System 3LED Retrofit for HID Lighting
HID LIGHTING BELOW
LED LIGHTING ABOVE
16
Additional Options for Commercial Building
Retrofitting
17
Brac Commercial Greywater Systems
Designed for large residential buildings, hotels,
detention complexes, shelter homes and other
facilities with up to 180 people. Can be
retrofitted to recycle laundry rinse water
saving up to 40 of water use.
18
Brac Greywater System(Commercial Install Photos)
19
Thermosiphon Passive Solar Water Heating
  • Saves 90 to 95 of water heating costs
  • No moving parts
  • No storage tank required in building
  • Provides hot water during power outages
  • No freezing, corrosion
  • Can be installed in series to pre-heat water for
    commercial boilers

20
Photovoltaic Systems
  • Rebates and ITC as grants now available
  • Can be roof mounted, ground mounted
  • Eligible for carbon offset and renewable energy
    credits
  • Can provide emergency power

21
Electro-Brom 100 Chlorine-Free Pool / Cooling
Tower Sanitation
  • No off-gassing of chlorine, burning of eyes,
    drying of skin
  • Reduces maintenance costs by 50 to 60 percent
  • No storing of toxic chemicals (uses bromine salt
    only)
  • Best protection against biological agents in
    cooling towers

22
Atmospheric Water Generators
Takes 5 to 8 gallons per day of water from the
air, reducing indoor humidity Typical 0.12 per
gallon for purified water
Electrostatic Air Filter - Removes harmful dust
and particles from the air. R/O and Double-Pass
Ultra-Violet Sanitizer - Eliminates all harmful
bacteria, viruses and micro-organisms. Activated
Carbon Filter - Removes harmful chemicals and
odors to assure great tasting water. Monitored
Recycling - Guarantees your water reserve is
always fresh and pure. Hot and Cold Water
Dispensing Tea or coffee? No Bottle Disposal or
Transportation Reducing carbon emissions.
23
Kirei Renewable Cabinetboard
  • Renewable, attractive material made from recycled
    Sorghum Wheat

24
Torzo Sustainable Solid Surface Counters,
Cabinets or Floors
Recycled wheat straw, sunflower husks, wood chips
or wood fiber, blended with nontoxic acrylic.
Durable, yet workable with standard wood tools
(D, D, S, O, I , I).
25
Renewable Cabinetry Wood - Bamboo, Palm and FSC
Teak
26
FSC Certified Teak and Almendro Flooring
  • Forestry Stewardship Council certified
  • Plantation grown in Costa Rica
  • Available as both solid and engineered

27
Marmoleum Click
  • Durable, easy to clean, glueless installation
  • Made from linseed oil, rosins, wood flour
  • Hypoallergenic, non-static

28
PPG Pure PerformanceZero VOC Paint
  • Top Quality Paint
  • Zero VOC, Including Most Tints
  • Very Low Odor
  • Durable, Washable
  • Mold and Mildew Resistant
  • Available in 1890 Colors from PPG (can Match
    other Mfrs.)

29
Benefits Summary Green Commercial Retrofitting
  • Immediate Positive Cash Flow to Building Owner
    (with lease payment smaller than energy savings)
  • Capitalize on Available Financial Incentives
  • Lower Maintenance Costs
  • Healthier, More Productive Work Environment
  • Positive Media Attention
  • More Money Invested in Local Economy
  • Reduced Dependence on Foreign Oil

30
Thank You
  • We appreciate your taking the time to learn about
    the latest Green Commercial Building Upgrades.
  • Please let us know how we can be of assistance.
  • 888-329-2705 / 941-377-9460
  • www.eco-smart.com
