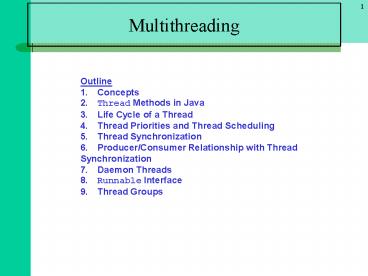

Multithreading

1
Multithreading
Outline 1. Concepts 2. Thread Methods in
Java 3. Life Cycle of a Thread 4. Thread
Priorities and Thread Scheduling 5. Thread
Synchronization 6. Producer/Consumer Relationship
with Thread Synchronization 7. Daemon
Threads 8. Runnable Interface 9. Thread Groups
2
1. Processes

• Consists of
• Thread(s)
• Program counter (PC)
• register set
• stack
• Address Space
• code
• main memory (data)
• open files
• can be shared by multiple threads

3
1. Processes (overview)
4
1.a Threads and Address Space in current OSs

• One address space, one thread/address space
• MS-DOS
• One address space, many threads/address space
• Pilot
• Many address spaces, one thread/address space
• original UNIX
• Many address spaces, many threads/address space
• Solaris, Windows NT

5
1.b Thread States

• Ready
• eligible to run, but another thread is running
• Running
• using the CPU
• Blocked
• waiting for something to happen

6
1.b Thread States
7
1.c Context Switching

• Internal Events (voluntary)
• ex. disk request, wait for another thread
• External Events (involuntary)
• ex. timer
• Scheduler chooses new thread
• Exact state of switched thread is saved in Thread
  Control Block

8
1.d Thread Concurrency

• Race Condition
• when output depends on ordering of thread
  execution
• more formally
• two or more threads access a shared variable with
  no synchronization, and
• at least one of the threads writes to the
  variable
• Atomic Operation
• an operation that, once started, runs to
  completion
• indivisible

9
1.e Critical Section

• Section of code that
• must be executed by one thread at a time
• if more than one thread executes at a time, have
  a race condition
• ex. Non-CSR schedule
• Must have solution that guarantees
• Mutual exclusion
• correctness
• Absence of deadlock/Absence of unnecessary delay
• no hangup
• Eventual entry
• fairness

10
1.f- Structure of Threads for Critical Section
Problem

• while (true)
• non-critical section
• call enter
• execute CS
• call exit
• non-critical section

11
1.g- Locks

• Two Operations
• -Acquire (get it, if cant go to sleep)
• -Release (give it up, possibly wake up a
  thread
• waiting on it)
• Lock is shared among all threads

12
1.h- Lock Implementationlock class has queue,
valueInitially queue is empty, value is free

• Acquire(lock)
• Disable interrupts
• if (lock.valuebusy)
• enQ(lock.queue,thread)
• go to sleep
• else
• lock.valuebusy
• Enable interrupts

• Release(lock)
• Disable interrupts
• if notEmpty(lock.queue)
• threaddeQ(lock.queue)
• enQ(readyList, thread)
• else
• lock.valuefree
• Enable interrupts

13
1.i- Problems with Locks

• Not general
• -Only solve simple critical section problem
• Condition synchronization
• -Need to wait until some condition is true
• -Example bounded buffer problem

14
1.j- Bounded Buffer Problem

• Two threads one producer, one consumer
• Buffer size of n
• Locks are difficult to use here
• -Example producer grabs lock, but must
  release it if
• buffer if full
• -Example producer and consumer can access
  distinct
• location concurrently

15
1.k- Semaphores (Dijkstra)

• Semaphore is an object containing a value and two
  operations
• Semaphore value must be nonnegative
• P operation (atomic)
• -If value is 0, block else value--
• V operation (atomic)
• -If thread blocked, wake up else value
• Semaphores are resource counters

16
1.l- Critical Sections with Semaphores

• Semaphore mutex1
• Entry()
• P(mutex)
• Exit()
• V(mutex)

17
1.m- Bounded Buffer Problemchar bufn, int
front0, rear0semaphore emptyn, full0

• Producer()
• while(true)
• produce message m
• P(empty)
• bufrearm
• rearrear1
• V(full)

• Consumer()
• while(true)
• P(full)
• mbuffront
• frontfront1
• V(empty)
• consume m

18
1.n- Problems with Semaphores

• Used for 2 independent purposes
• -Mutual exclusion
• -Condition synchronization
• Small mistakes may lead to deadlock
• May want to separate mutual exclusion, condition
  synchronization

19
1.o-Monitors (Hoare)

• Consists of variables and procedures, like
  classes
• three key differences from a regular class
• -only one thread in monitor at a time(mutual
  exclusion
• is automatic)
• -special type of variable condition variable
• -four special operations on condition
  variables wait, signal, broadcast, notempty

20
1.p- Wait, Signal, Broadcast

• Given a condition variable cond
• cond-gtWait()
• -thread is put on queue for cond, goes to
  sleep
• cond-gtSignal()
• -if queue for cond not empty, wake up one
  thread
• cond-gtBroadcast()
• -wake up all threads waiting on queue for
  cond

21
1.q- Monitor Solution to CS

• Just make the CS a monitor routine

22
2. Thread Methods in Java

• Portability
• Differences between Solaris and Win32 (Windows95,
  NT, etc.)
• On Solaris
• A thread runs to completion or until a higher
  priority thread becomes ready
• Preemption occurs (processor is given to the
  higher-priority thread)
• On Win32
• Threads are timesliced
• Thread given quantum of time to execute
• Processor then switched to any threads of equal
  priority
• Preemption occurs with higher and equal priority
  threads

23
2. Thread Methods in Java

• Thread-related methods
• See API for more details (especially exceptions)
• Constructors
• Thread( threadName )
• Thread()
• Creates an auto numbered Thread of format
  Thread-1, Thread-2...
• run
• "Does work" of thread
• Can be overridden in subclass of Thread or in
  Runnable object
• start
• Launches thread, then returns to caller
• Calls run
• Error to call start twice for same thread

24
2. Thread Methods in Java

• Thread methods
• static method sleep( milliseconds )
• Thread sleeps (does not contend for processor)
  for number of milliseconds
• Can give lower priority threads a chance to run
• interrupt
• Interrupts a thread
• static method interrupted
• Returns true if current thread interrupted
• isInterrupted
• Determines if a thread is interrupted
• isAlive
• Returns true if start called and thread not dead
  (run has not completed)

25
2. Thread Methods in Java

• Thread methods
• setName( threadName )
• getName
• toString
• Returns thread name, priority, and ThreadGroup
• static method currentThread
• Returns reference to currently executing thread
• join
• Calling thread waits for thread receiving message
  to die before it can proceed
• No argument or 0 millisecond argument means
  thread will wait indefinitely
• Can lead to deadlock/indefinite postponement

26
3. Life Cycle of a Thread
indicates - Quantum Expiration - yield() -
interrupt()
Born
start()
Sleep Interval Expires
Ready
I/O Completion
Dispatch
notify() or notifyAll()

Running
Issue I/O
Complete
wait()
sleep()
Waiting
Sleeping
Dead
Blocked
27
4. Thread Priorities and Thread Scheduling

• All Java applets / applications are multithreaded
• Threads have priority from 1 to 10
• Thread.MIN_PRIORITY - 1
• Thread.NORM_PRIORITY - 5 (default)
• Thread.MAX_PRIORITY - 10
• New threads inherit priority of thread that
  created it

28
4. Thread Priorities and Thread Scheduling

• Java scheduler
• Keeps highest-priority thread running at all
  times
• If timeslicing available, ensure equal priority
  threads execute in round-robin fashion
• New high priority threads could postpone
  execution of lower priority threads
• Indefinite postponement (starvation)
• Priority methods
• setPriority( int priorityNumber )
• getPriority
• yield - thread yields processor to threads of
  equal priority
• Useful for non-timesliced systems, where threads
  run to completion

29
4. Thread Priorities and Thread Scheduling
Priority 10
Priority 9
Priority 8
Priority 7
Priority 6
Priority 5
Priority 4
Priority 3
Priority 2
Priority 1
30
4. Thread Priorities and Thread Scheduling

• Example program
• Create a class derived from Thread
• Use sleep method
• Overview
• Create four threads, which sleep for random
  amount of time
• After they finish sleeping, print their name
• Program has two classes
• PrintThread
• Derives from Thread
• Instance variable sleepTime
• ThreadTester
• Creates four PrintThread objects

31

• Class ThreadTester
• 1. main
• 1.1 Initialize objects
• 1.2 start
• ---------------
• Class PrintThread
• 1. extends Thread
• 1.1 Instance variable

32

• 1.2 Constructor
• 1.2.1 Randomize sleepTime
• 2. run
• 2.1 sleep

33
5. Thread Synchronization

• Monitors
• Object with synchronized methods
• Any object can be a monitor
• Methods declared synchronized
• public synchronized int myMethod( int x )
• Only one thread can execute a synchronized method
  at a time
• Obtaining the lock and locking an object
• If multiple synchronized methods, only one may be
  active

34
5. Thread Synchronization

• Thread may decide it cannot proceed
• May voluntarily call wait while accessing a
  synchronized method
• it is removed from contention for monitor object
  and processor
• Thread goes to waiting state
• Other threads try to enter monitor object
• Can call notify to tell a single waiting thread
  to enter ready state
• notifyAll - tells all waiting threads to enter
  ready state

35
6. Producer/Consumer Relationship with Thread
Synchronization

• Condition variable of a monitor
• Variable used to test some condition
• Determines if thread should call wait
• For our producer / consumer relationship
• Condition variable determines whether the
  producer should write to buffer or if consumer
  should read from buffer
• Use boolean variable writeable
• If writeable true, producer can write to buffer
• If false, then producer calls wait, and awaits
  notify
• If writeable false, consumer can read from buffer
• If true, consumer calls wait

36
6. Producer/Consumer Relationship with Thread
Synchronization

• Example program
• Synchronize the set and get methods
• Once the producer writes to memory, writeable is
  false (cannot write again)
• Once consumer reads, writeable is true (cannot
  read again)
• Each thread relies on the other to toggle
  writeable and call notify
• class HoldIntegerSynchronized
• contains synchronized set and get methods

37

• -------------------------
• Class HoldInteger Synchronized
• 1. Instance variables
• 2. setSharedInt (synchronized)

38

• 3. getSharedInt (synchronized)

39
7. Daemon Threads

• Daemon threads
• Threads that run for benefit of other threads
• Garbage collector
• Run in background
• Use processor time that would otherwise go to
  waste
• Unlike normal threads, do not prevent a program
  from terminating
• When only daemon threads remain, program exits
• Must designate a thread as daemon before start
  called
• setDaemon( true )
• Method isDaemon
• Returns true if thread is a daemon thread

40
8. Runnable Interface

• How to do Multithreading for an already derived
  class ?
• Implement interface Runnable
• New class objects "are" Runnable objects
• Override run method
• Controls thread, just as deriving from Thread
  class
• In fact, class Thread implements interface
  Runnable
• Create new threads using Thread constructors
• Thread( runnableObject )
• Thread( runnableObject, threadName )

41
8. Runnable Interface

• Synchronized blocks of code
• synchronized( monitorObject ) ...
• monitorObject- Object to be locked while thread
  executes block of code
• Suspending threads
• In earlier versions of Java, there were methods
  to suspend/resume threads
• Dangerous, can lead to deadlock
• Instead, use wait and notify

42
9. Thread Groups

• Thread groups
• Threads in a thread group can be dealt with as a
  group
• May want to interrupt all threads in a group
• Thread group can be parent to a child thread
  group
• Class ThreadGroup
• Constructors
• ThreadGroup( threadGroupName )
• ThreadGroup( parentThreadGroup, name )
• Creates child ThreadGroup named name

43
9. Thread Groups

• Associating Threads with ThreadGroups
• Use constructors
• Thread( threadGroup, threadName )
• Thread( threadGroup, runnableObject )
• Invokes run method of runnableObject when thread
  executes
• Thread( threadGroup, runnableObject,
  threadName )
• As above, but Thread named threadName
