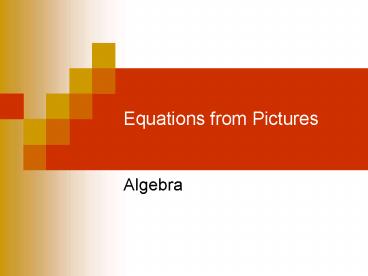

Equations from Pictures

1
Equations from Pictures

• Algebra

2
Equations from pictures In each example make an
equation and solve it. Q1. Make an equation and
solve it to find the length of each car.
( cars shown are bumper to bumper )
3
Q2. Find the length of a fire engine. All
distances are in metres.
Q3. Find the length of the car shown.
4
Q4.
Make an equation and solve it to find the length
of an engine.
Q5.
Find the length of a canoe.
5
Q6.
Find the length of the tanker shown.
Q7.
Make an equation and solve it to find the length
of a digger.
6
Q8.
Make an equation and solve it to find the length
of each transport carrier.
Q9.
Make an equation and solve it to find the length
of each bus.
7
Q10.
Make an equation and solve it to find the length
of each tandem.
Q11.
The diagram shows 5 identical planes lined up on
a runway at an airport. Make an equation and
solve it to find the length of each plane.
8
Q12. The diagram shows 4 identical ships lined
up in a dock. Make an equation and solve it to
find the length of each ship.
