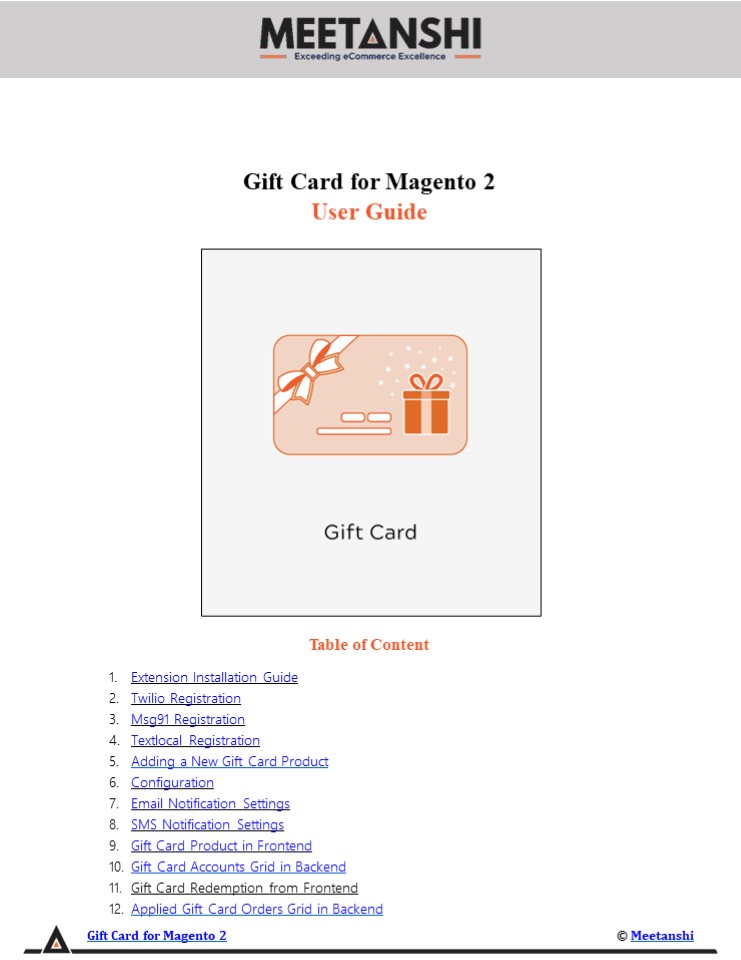

1Gift Card for Magento 2 User Guide
- Table of Content
- Extension Installation Guide
- Twilio Registration
- Msg91 Registration
- Textlocal Registration
- Adding a New Gift Card Product
- Configuration
- Email Notification Settings
- SMS Notification Settings
- Gift Card Product in Frontend
- Gift Card Accounts Grid in Backend
- Gift Card Redemption from Frontend
- Applied Gift Card Orders Grid in Backend
Gift Card for Magento 2
Meetanshi
2- Extension Installation
- For Magento Marketplace Customers
- Find the Composer name and version of the
extension in the - extensions composer.json file.
- Login to your SSH and run
- composer require meetanshi/magento2-gift-card
--ignore-platform-reqs - composer require twilio/sdk
- Enter your authentication keys. Your public key
is your username your private key is your
password. - Wait for Composer to finish updating your project
dependencies and make sure there - arent any errors.
- To verify that the extension is installed
properly, run the command - php bin/magento modulestatus Meetanshi_GiftCard
--ignore-platform-reqs - By default, the extension is probably disabled.
- Enable the extension and clear static view files
- php bin/magento moduleenable Meetanshi_GiftCard
--clear-static-content - php bin/magento setupupgrade
- For Magento version 2.0.x to 2.1.x - php
bin/magento setupstatic-contentdeploy - For Magento version 2.2.x above - php
bin/magento setupstatic-contentdeploy f - php bin/magento cacheflush
Note Dont forget to install Twilio library if
you are using Twilio SMS gateway for our
extension.
Gift Card for Magento 2
Meetanshi
3- Twilio Registration
- If you are going to use Twilio as an SMS gateway
to send Gift Card SMS notifications, you need to
register with the Twilio to get Account SID, Auth
Token and Twilio Phone Number. - First of all, Sign Up for the Twilio account. Add
the details and click to get started.
- After the Email verification, enter your mobile
number and click to Verify.
Gift Card for Magento 2
Meetanshi
4- Once you click Verify, you will get an OTP on
the added mobile number. Enter the OTP and
verify the mobile number. Now move to Settings ?
General where you can see API details both for
live and testing. Copy the Account SID and Auth
Token to use them in Magento backend
configuration for Twilio account.
- Now, click three dots from the left sidebar, go
to Programmable SMS and click Build under the
Learn and Build option. From here, you can get
Twilio phone number to use for sending the SMSs.
Click on the Get a number button.
Gift Card for Magento 2
Meetanshi
5- You will get a number to choose. Click Choose
This Number.
- Once you click the button, you will get a Twilio
phone number. Copy this number and set it in the
Magento backend configuration for Twilio account.
Gift Card for Magento 2
Meetanshi
6- Msg91 Registration
- The extension allows configuration of the Msg91
SMS gateway to send Gift Card SMS notifications.
If you choose to use Msg91 SMS gateway
integration, follow the steps below to get
sender ID and API key. - Visit https//control.msg91.com/signup/. Enter
the details and click to sign up.
Gift Card for Magento 2
Meetanshi
7- You will get and code or a magic link in the
Email to verify the Email address.
- You will be asked to enter the mobile number for
verification.
Gift Card for Magento 2
Meetanshi
8- Enter the OTP to verify the mobile number and you
will be registered successfully. Login with the
credentials.
Gift Card for Magento 2
Meetanshi
9- Under the settings, you can find the Sender ID
which you need to copy and paste in the Magento
configuration.
Gift Card for Magento 2
Meetanshi
10- Now move to API, where you can find the API key
for the Magento configuration.
- You can find the Message type under the Send SMS
tab. Select the SMS type in Msg91 configuration
in Magento as per your requirement.
Note If you are an Indian user of our Magento 2
Gift Card extension with Msg91 API, dont forget
to follow DLT registration process and get your
DLT templates approved for each SMS. Once you get
the DLT template ID, enter the same in the
respective field in Magento 2 extension
configuration.
Gift Card for Magento 2
Meetanshi
11- Textlocal Registration
- The extension allows configuration of the
Textlocal SMS gateway to send Gift Card SMS
notifications. If you choose to use Textlocal SMS
gateway integration, follow the steps below to
get sender ID and API key. - Create a Textlocal account from
https//www.textlocal.in/signup/
Gift Card for Magento 2
Meetanshi
12- After the registration, you will get a
verification link in your registered Email ID,
clicking the link will land you to add
additional information page. Here, add the
account details and submit to activate your
Textlocal account.
Gift Card for Magento 2
Meetanshi
13- Navigate to Settings gt API Keys and create new
key to use. Copy the created API Key and paste
it in Magento 2 extension configuration.
Gift Card for Magento 2
Meetanshi
14- Now move to Settings gt All Settings and click on
Sender Names to get your sender name.
- You can copy your Textlocal sender name from here
and paste it in Magento 2 extension
configuration.
Gift Card for Magento 2
Meetanshi
15- Textlocal requires to create message template to
send SMS notification. Go to Send gt Templates
Drafts and click to create and request new SMS
template.
Gift Card for Magento 2
Meetanshi
16- You have to create new message template for each
SMS notification enabled in Magento 2 Gift Card
extension configuration. Enter title, select
category and sender name. Set message text same
as SMS text in Magento 2 extension configuration
notification settings. You have to create new
SMS template in Textlocal for every enabled SMS
notification in Magento 2. For example, if you
have set SMS Text for GiftCard Notification
from Magento 2 backend, create a message
template for the same in Textlocal having exactly
the same SMS text.
Gift Card for Magento 2
Meetanshi
17- For the dynamic values in text message input,
click Insert Restricted Template Items. Click
Insert an Input Box and it will open a popup to
create new placeholder for the dynamic value.
Add placeholder text name and set maximum length
for the dynamic value. Insert it into the SMS
text and while sending the message, this
placeholder will match the variable in Magento 2
Gift Card notification text and replace it with
the real value.
- Once message templates have been created and
submitted for each Gift Card SMS notification,
it will take approximately a week to be approved
by the Textlocal. You can send Gift Card SMS
notifications only after the message templates
approved by the Textlocal.
Gift Card for Magento 2
Meetanshi
185. Adding a New Gift Card Product Before
configurating the extension you will need to add
gift card as a new product. Login to Magento
backend, move to Catalog ? Products where you can
find Add Product option to add products.
Select the product type as Gift Card from the
drop down.
- Make sure to add all related settings along with
setting comma separated price range for gift
card product.
Gift Card for Magento 2
Meetanshi
19- Configuration
- To configure the extension, login to Magento
backend, move to Stores ? Configuration ? Gift
Card where you can find various settings to
configure the extension. - Gift Card Enable the Gift Card extension from
here. - Gift Code Pattern Prefix Enter prefix to add
before auto generated gift code. - Gift Code Pattern Select one of the gift card
code patterns. - Numeric Generates the code using numbers.
- Alphabetic Generates the code using alphabets.
- AlphaNumeric Generates the code using the mix of
numbers and alphabets. - Gift Code Length Enter the gift code length in
characters. - Gift Code Expiry in Day(s) Enter no. of days
after which you want the gift card to expire. - Gift Code Expiry Notification To Customer Before
Day(s) Enter no. of days before which you want
to notify gift card receiver about gift card
expiration.
Gift Card for Magento 2
Meetanshi
20- Email Notifications
- Email Sender Select sender for the various email
notifications. - Email Template For Gift Card Notification Select
email template for new gift card received email
notification to gift card receiver. - Email Template For Gift Card Reminder Before
Expired Select email template for gift card
expiry reminder to be sent based on the days
added in configuration to gift card receiver. - Email Template For Gift Card Expired Select
email template to notify gift card receiver
about card expiration.
- Email Notifications
- The Gift card receiver will receive Email
notification as shown if the gift card sender has
selected - Email from the frontend while ordering the gift
card. - New Gift Card Received Email Notification to
Receiver
Gift Card for Magento 2
Meetanshi
21- Gift Card Expiry Email Reminder to Gift Card
Receiver - The Gift card receiver will be notified with Gift
Card expiration reminder email if the gift card
expiry is set from the configuration and is about
to expire before the full usage.
- Gift Card Expiry Email Notification to the Gift
Card Receiver - The Gift card receiver will be notified with
email if the gift card has expired before the
full usage.
Gift Card for Magento 2
Meetanshi
22- SMS Notification Settings
- To configure the extension to send Gift Card SMS
notifications, move to Gift Card ? Configuration
? SMS Notification where you can find various
settings to configure SMS Notifications. - Enable SMS Notification Enable gift card SMS
notification from here. - API Provider Select one of the API providers
from the drop down menu. - Twilio
- Twilio SID Enter your SID Number from the
respective API provider account. - Twilio Token Enter the token from the API
provider account here. - Twilio Number Enter your API account number here.
o
Msg91
- Sender ID Enter the sender ID received from
Msg91. - API Key Enter the API key received from Msg91.
- API URL Enter the API URL.
- Message Type Select one of the message types as
purchased from the Msg91. - Textlocal
- Sender ID Enter your sender ID received from
Textlocal. - API Key Enter API key received from Textlocal.
- API URL Enter the API URL.
- Other If you are going to use custom SMS API
other than Msg91, Twilio or Textlocal, you have
to add your CURL URL as below
- Format https//yoursmsapi.com/sms/submitsms.jsp?
useryourusernamesenderidyoursenderidkeyy
oursmskeymobilemobilemessagemsg - Sample CURL URL https//foxxsms.com/sms/submitsm
s.jsp?userMETANSHIsenderidFOXGLVaccusage6key
587e05afbcXXmobilemobilemessagemsg - SMS Text for GiftCard Notification Enter the
text you want to send for the gift card SMS
notification. - SMS Text for GiftCard Reminder Before Expired
Enter the text you want to send through SMS for
reminding that the gift card is going to expire. - SMS Text for GiftCard Expired Enter the text you
send through SMS for notifying that the gift
card has expired.
Gift Card for Magento 2
Meetanshi
23- SMS Notifications
- The Gift card receiver will receive SMS
notification as shown if the gift card sender has
selected - SMS from the frontend while ordering the gift
card. - New Gift Card Received SMS Notification to
Receiver
Gift Card for Magento 2
Meetanshi
24- Gift Card Expiry SMS Reminder to Gift Card
Receiver - The Gift card receiver will be notified with Gift
Card expiration reminder SMS if the gift card
expiry is set from the configuration and is about
to expire before the full usage.
- Gift Card Expiry SMS Notification to the Gift
Card Receiver - The Gift card receiver will be notified with SMS
if the gift card has expired before the full
usage.
Gift Card for Magento 2
Meetanshi
25- Gift Card Product in Frontend
- The customers can place order for gift card just
like any other product. The same will be
delivered virtually through mail/SMS whatever
option is chosen. - Gift Amount Select whatever amount or enter the
gift card amount manually of which you want to
purchase the gift card. - Notification Info Enter respective senders and
receivers name. - Sent Notification By Select the one of the
notification modes - Email
- Recipient Email Enter recipients email address
to send gift card email notifications. - SMS
- Recipient Mobile Number Enter recipients mobile
number to send gift card SMS notification. - Message Add additional gift message for the
receiver. - Gift Card Notification Delivery Date Select date
when you want your gift card to be delivered to
the receiver.
Gift Card for Magento 2
Meetanshi
26- My Gift Cards Tab in Customer Account Section in
Frontend - Registered users can view purchased gift card
details in their respective My Account - section under My Gift Cards tab. They can also
view various details like gift code, balance,
status and expiry date.
Gift Card for Magento 2
Meetanshi
2710. Gift Card Accounts Grid in Backend The admin
can view all the purchased gift card details from
Gift Card ? Gift Card Accounts. The grid shows
the order number, gift card code, receivers
name, email, status of the card, balance, used
gift card amount and expiry date.
11. Gift Card Redemption from Frontend The
receiver can redeem the gift card to purchase the
products from the store in frontend. After
adding the products to card, the gift card
receiver can apply the gift code received
through email/SMS on the cart page.
Gift Card for Magento 2
Meetanshi
28- Customers can apply gift code also from the
checkout page. Paste the gift code and then
click on apply gift code.
Gift Card for Magento 2
Meetanshi
29- Gift Card Redemption Details in My Order Section
- If the gift card receiver has placed order after
registration, he can see the gift card - redemption details in his My Account section
under My Orders tab.
12. Applied Gift Card Orders Grid in Backend The
admin can view all the orders placed by gift card
redemption in a separate grid in Gift Card ?
Applied Gift Card Orders. The grid shows the
order ID, gift code used, customer name, email
and used amount.
Gift Card for Magento 2
Meetanshi
