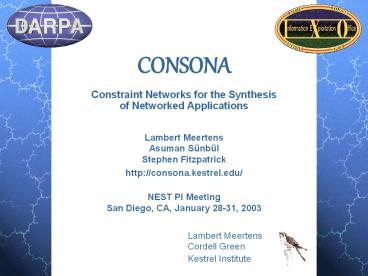

CONSONA Constraint Networks for the Synthesis of Networked Applications

1
CONSONAConstraint Networks for the Synthesisof
Networked Applications
Lambert Meertens Asuman Sünbül Stephen
Fitzpatrick http//consona.kestrel.edu/ NEST PI
Meeting San Diego, CA, January 28-31, 2003

• Lambert Meertens
• Cordell Green
• Kestrel Institute

2
Administrative

• Project Title CONSONA - Constraint Networks for
  the Synthesis of Networked Applications
• PM Vijay Raghavan
• PI Lambert Meertens Cordell Green
• PI Phone [phone]
• PI Email meertens_at_kestrel.edu
• Institution Kestrel Institute
• Contract F30602-01-C-0123
• AO number L545
• Award start date 05 Jun 2001
• Award end date 04 Jun 2004
• Agent name organization Juan Carbonell,
  AFRL/Rome

3
Subcontractors and Collaborators

• Subcontractors
• none
• Collaborators
• none

4
Consona Constraint Networks for the Synthesis
of Networked Applications
Lambert Meertens / Cordell Green Kestrel Institute
5
Project Objective

• The Consona project aims at developing truly
  scalable fine-grain fusion of physical and
  information processes in large ensembles of
  networked nodes
• Truly scalable means that at least
  conceptually the networked system can be viewed
  as a discrete approximation of computation on a
  continuous field
• Large-scale fine-grain systems have many
  potentially serious bottlenecks, and the design
  process must allow exploring trade-offs

6
NEST needs New Methods

• For NEST we need model-based methods and tools
  that
• integrate design and code generation
• design-time performance trade-offs
• of NEST applications and services
• ? cross-layer fusion low composition overhead
• in a goal-oriented way
• ? goal-oriented run-time performance trade-offs

7
Why Middleware?

• Current Software Technology approaches to
  Middleware aim at creating abstractions that hide
  the imperfections of a physical system
• Such abstractions are indispensable to keep
  system design intellectually manageable,
• but threaten to hide the very thing that we need
  for exploring design-time trade-offs

8
Perfection is Unattainable

• In a NEST system all guarantees are
  probabilistic nodes may go dead, messaging may
  be subject to serious interference,
• Sensor readings are subject to noise actuator
  settings differ from the effects
• While the network is maintaining abstractions,
  the outside world changes and information
  gathered becomes obsolete
• A late result may be as useless as no result
• Timeliness (or other resource-related criteria)
  may be more important than precision

9
Tunable Middleware Services

• In the NEST context, a Middleware Service is
  an idiom (e.g., Distributed Constraint
  Optimization or Sense-Fuse-Disseminate),
  expressing a (quantifiably) imperfect but
  nevertheless useful abstraction, typically
  realizable in a variety of ways
• For NEST we need Middleware Services that are
  tunable to desired quality-cost profiles,
  customizable to application-specific aspects, and
  specializable to the actual capabilities used

10
Scalable Middleware Services

• NEST Middleware Services are represented by
  agents that are replicated throughout the network
  (i.e., the code is replicated, not the state)
• Such agents are typically lodged on groups of
  nearby nodes, and the agent-node assignment is
  typically dynamic
• A Middleware Service is an anytime thing

11
Contributions to NEST Program

• Generation of Middleware Services that achieve
  useful global behavior using scalable local
  methods
• Laying out ground rules for techniques that can
  be extended to extremely large network
• (Future) Tool for cross-layer optimizing code
  composition and generation for combined
  Application and Middleware Services

12
Success Criteria

• Applications that use synthesized middleware code
  and scale to arbitrarily large networks
• Applications that use synthesized middleware code
  and run as well as with hand-crafted code (e.g.
  speed, communication cost, tracking accuracy)
• Complexity of middleware services that can be
  generated (e.g. measured in the complexity of the
  constraints)

13
Overview of Technical Approach

• Services and applications are both modeled as
  logical formulas, expressing soft constraints to
  be maintained at run-time
• High-level code is produced by repeated
  instantiation of constraint-maintenance schemas
• Constraint-maintenance schemas are represented as
  triples (C, M, S), meaning that
• provided that ancillary constraints S are
  maintained, executing code M maintains constraint
  C
• High-level code is optimized to generate
  efficient low-level code

14
Project Progress

• Demo Making the Boeing OEP CP Distributed
• implemented Distributed Group Formation Service
• designed and implemented Distributed Assignment
  Service
• designed and implemented Distributed Actuator
  Control
• Modeler (Constraint Refinement System)
• designed a prototype implemented alpha version

15
Distributed Boeing OEP CP Services

• The Boeing OEP Challenge Problem is concerned
  with active control for vibration damping in a
  rocket fairing

• A centralized Assignment Service (for allocating
  nodes to control of vibrational modes) was
  replaced by a distributed Assignment Service
• Sequential Group Formation (of groups of nodes
  assigned to control vibrational modes) was made
  concurrent, thereby reducing delay in control
  startup and reconfiguration

group formation delay
0s 1 2 3 4
16
Distributed Boeing OEP CP Control

• Designed and implemented a distributed algorithm
  for control of vibration damping, strongly
  reducing the vibrational energy
• Algorithm is based on purely local sensor
  readings and actuator control

17
Prototype Modeler

• Alpha version
• Basic capabilities
• multiset matching instantiation
• automatic filtering for applicable schemas
• history mechanism unlimited undo
• Not implemented
• domain-level simplification (such as n 0 V n gt
  0 ? true )
• version tree
• library browser

18
Publications and Milestones

• Publications
• Specifying Components for NEST Applications.
  Asuman Sünbül. The Sixth Biennial World
  Conference on Integrated Design Process
  Technology, H. Ehrig, B.J. Krämer A. Ertas
  (Eds.)
• Scalable, Anytime Constraint Optimization through
  Iterated, Peer-to-Peer Interaction in
  Sparsely-Connected Networks. Stephen Fitzpatrick
  Lambert Meertens. The Sixth Biennial World
  Conference on Integrated Design Process
  Technology, H. Ehrig, B.J. Krämer A. Ertas
  (Eds.)
• Asynchronous Execution and Communication Latency
  in Distributed Constraint Optimization. Lambert
  Meertens Stephen Fitzpatrick. The Third
  International Workshop on Distributed Constraint
  Reasoning, pp. 80-85, Makoto Yokoo (Ed.)
• Experiments on Dense Graphs with a Stochastic,
  Peer-to-Peer Colorer. Stephen Fitzpatrick
  Lambert Meertens. Probabilistic Approaches in
  Search, pp. 24-28, Carla Gomes Toby Walsh
  (Eds.)
• Towards Component-based Systems Refining
  Connectors. Mathias Anlauff Asuman Sünbül.
  Proc. Refine 2002, Electronic Notes in
  Theoretical Computer Science, 2002
• Milestones
• October 2002 design of Prototype Modeler
• January 2003 implementation of Prototype Modeler
  (alpha version)
• January 2003 demonstration on Boeing OEP

19
Goals and Success Criteria

• Measures of success
• flexibility of combining components
• dynamic adaptivity
• run-time efficiency
• correctness maintainability of generated
  applications
• Metrics
• run-time resource utilization
• complexity of specification vs. code
• number of critical errors (that cause failure)

20
OEP Participation

• Berkeley OEP
• Midterm Demo
• distributed resource allocation
• data diffusion
• distributed tracking
• Kestrel POC Lambert Meertens
• Berkeley POC David Culler
• Boeing OEP
• Demo (past contributions)
• distributed group formation constraint service
• distributed control
• Kestrel POC Lambert Meertens
• Boeing POC Kirby Keller

21
Project Plans

• Develop Prototype Code Generator
• Work on Berkeley OEP Midterm Demo
• Adapt existing services and tools to nesC
• Identify middleware services that can be
  synthesized
• Use modeler/generator to produce code
• Specific performance goals
• code gets generated and runs
• Progress will be measured and success determined
  by verifying that code gets generated and runs

22
Project Schedule and Milestones

• Modeling using constraints achieved
• Toolset preliminary design done, informal
• Alpha version prototype modeling toolset done
• Prototype modeling toolset March 2003
• Prototype code generator June 2003

23
Technology Transition/Transfer

• Technology transition activities identified
  currently none

24
Program Issues

• Two recurrent themes
• high-level coding paradigms for mote-like systems
• approximate solution techniques
• It would be a worthwhile program achievement to
  draw out the common ideas
