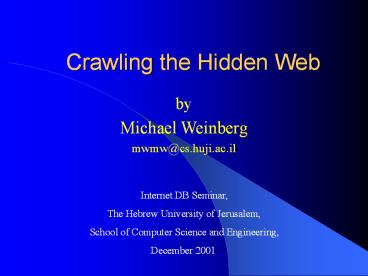

Crawling the Hidden Web

• by
• Michael Weinberg
• mwmw_at_cs.huji.ac.il

Internet DB Seminar,
The Hebrew University of Jerusalem, School
of Computer Science and Engineering,
December 2001
2
Agenda

• Hidden Web - what is it all about?
• Generic model for a hidden Web crawler
• HiWE (Hidden Web Exposer)
• LITE Layout-based Information Extraction
  Technique
• Results from experiments conducted to test these
  techniques

3
Web Crawlers

• Automatically traverse the Web graph, building a
  local repository of the portion of the Web that
  they visit
• Traditionally, crawlers have only targeted a
  portion of the Web called the publicly indexable
  Web (PIW)
• PIW the set of pages reachable purely by
  following hypertext links, ignoring search forms
  and pages that require authentication

4
The Hidden Web

• Recent studies show that a significant fraction
  of Web content in fact lies outside the PIW
• Large portions of the Web are hidden behind
  search forms in searchable databases
• HTML pages are dynamically generated in response
  to queries submitted via the search forms
• Also referred as the Deep Web

5
The Hidden Web Growth

• Hidden Web continues to grow, as organizations
  with large amount of high-quality information are
  placing their content online, providing
  web-accessible search facilities over existing
  databases
• For example
• Census Bureau
• Patents and Trademarks Office
• News media companies
• InvisibleWeb.com lists over 10000 such databases

6
Surface Web
7
Deep Web
8
Deep Web Content Distribution
9
Deep Web Stats

• The Deep Web is 500 times larger than PIW !!!
• Contains 7,500 terabytes of information (March
  2000)
• More than 200,000 Deep Web sites exist
• Sixty of the largest Deep Web sites collectively
  contain about 750 terabytes of information
• 95 of the Deep Web is publicly accessible (no
  fees)
• Google indexes about 16 of the PIW, so we search
  about 0.03 of the pages available today

10
The Problem

• Hidden Web contains large amounts of high-quality
  information
• The information is buried on dynamically
  generated sites
• Search engines that use traditional crawlers
  never find this information

11
The Solution

• Build a hidden Web crawler
• Can crawl and extract content from hidden
  databases
• Enable indexing, analysis, and mining of hidden
  Web content
• The content extracted by such crawlers can be
  used to categorize and classify the hidden
  databases

12
Challenges

• Significant technical challenges in designing a
  hidden Web crawler
• Should interact with forms that were designed
  primarily for human consumption
• Must provide input in the form of search queries
• How equip the crawlers with input values for use
  in constructing search queries?
• To address these challenges, we adopt the
  task-specific, human-assisted approach

13
Task-Specificity

• Extract content based on the requirements of a
  particular application or task
• For example, consider a market analyst interested
  in press releases, articles, etc pertaining to
  the semiconductor industry, and dated sometime in
  the last ten years

14
Human-Assistance

• Human-assistance is critical to ensure that the
  crawler issues queries that are relevant to the
  particular task
• For instance, in the semiconductor example, the
  market analyst may provide the crawler with lists
  of companies or products that are of interest
• The crawler will be able to gather additional
  potential company and product names as it
  processes a number of pages

15
Two Steps

• There are two steps in achieving our goal
• Resource discovery identify sites and databases
  that are likely to be relevant to the task
• Content extraction actually visit the
  identified sites to submit queries and extract
  the hidden pages
• In this presentation we do not directly address
  the resource discovery problem

16
Hidden Web Crawlers
17
User form interaction
Form page
(1) Download form
(2) View form
(4) Submit form
(3) Fill-out form
Web query front-end
(5) Download response
Hidden Database
(6) View result
Response page
18
Operation Model

• Our model of a hidden Web crawler consists of
  four components
• Internal Form Representation
• Task-specific database
• Matching function
• Response Analysis
• Form Page the page containing the search form
• Response Page the page received in response to
  a form submission

19
Generic Operational Model
Hidden Web Crawler
Form page
Internal Form Representation
Form analysis
Download form
Match
Web query front-end
Form submission
Set of value-assignments
Download response
Response Analysis
Response page
20
Internal Form Representation

• Form F
• is a set of n form
  elements
• S submission information associated with the
  form
• submission URL
• Internal identifiers for each form element
• M meta-information about the form
• web-site hosting the form
• set of pages pointing to this form page
• other text on the page besides the form

21
Task-specific Database

• The crawler is equipped with a task-specific
  database D
• Contains the necessary information to formulate
  queries relevant to the particular task
• In the market analyst example, D could contain
  list of semiconductor company and product names
• The actual format and organization of D are
  specific for to a particular crawler
  implementation
• HiWE uses a set of labeled fuzzy sets

22
Matching Function

• Matching algorithm properties
• Input Internal form representation and current
  contents of the database D
• Output Set of value assignments
• associates value with element


23
Response Analysis

• Module that stores the response page in the
  repository
• Attempts to distinguish between pages containing
  search results and pages containing error
  messages
• This feedback is used to tune the matching
  function

24
Traditional Performance Metric

• Traditional crawlers performance metrics
• Crawling speed
• Scalability
• Page importance
• Freshness
• These metrics are relevant to hidden web
  crawlers, but do not capture the fundamental
  challenges in dealing with the Hidden Web

25
New Performance Metrics

• Coverage metric
• Relevant pages extracted / relevant pages
  present in the targeted hidden databases
• Problem difficult to estimate how much of the
  hidden content is relevant to the task

26
New Performance Metrics

• the total number of forms that the
  crawler submits
• num of submissions which result in
  response page with one or more search
  results
• Problem the crawler is penalized if the database
  didnt contain any relevant search results

27
New Performance Metrics

• number of semantically correct form
  submissions
• Penalizes the crawler only if a form submission
  is semantically incorrect
• Problem difficult to evaluate since a manual
  comparison is needed to decide whether the
  form is semantically correct

28
Design Issues

• What information about each form element should
  the crawler collect?
• What meta-information is likely to be useful?
• How should the task-specific database be
  organized, updated and accessed?
• What Match function is likely to maximize
  submission efficiency?
• How to use the response analysis module to tune
  the Match function?

29
HiWE Hidden Web Exposer
30
Basic Idea

• Extract descriptive information (label) for each
  element of a form
• Task-specific database is organized in terms of
  categories, each of which is also associated with
  labels
• Matching function attempts to match from form
  labels to database categories to compute a set of
  candidate values assignments

31
HiWE Architecture
URL 1 URL 2 URL N
URL List
LVS Table
WWW
Label1 Value-Set1 Label2 Value-Set2 Labeln
Value-Setn
Parser
Crawl Manager
Form Analyzer
Form submission
LVS Manager
Form Processor
Feedback
Response
Response Analyzer
Custom data sources
32
HiWEs Main Modules

• URL List
• contains all the URLs the crawler has discovered
  so far
• Crawl Manager
• controls the entire crawling process
• Parser
• extracts hypertext links from the crawled pages
  and adds them to the URL list
• Form Analyzer, Form Processor, Response Analyzer
• Together implement the form processing and
  submission operations

33
HiWEs Main Modules

• LVS Manager
• Manages additions and accesses to the LVS table
• LVS table
• HiWEs implementation of the task-specific
  database

34
HiWEs Form Representation

• Form
• The third component of F is an empty set since
  current implementation of HiWE does not collect
  any meta-information about the form
• For each element , HiWE collects a domain
  Dom( ) and a label label( )

35
HiWEs Form Representation

• Domain of an element
• Set of values which can be associated with the
  corresponding form element
• May be a finite set (e.g., domain of a selection
  list)
• May be infinite set (e.g., domain of a text box)
• Label of an element
• The descriptive information associated with the
  element, if any
• Most forms include some descriptive text to help
  users understand the semantics of the element

36
Form Representation - Figure
Element E1
Label(E1) "Document Type" Dom(E1 ) Articles,
Press Releases,
Reports
Element E2
Label(E2) "Company Name" Dom(E2) s s is a
text string
Element E3
Label(E3) "Sector" Dom(E3) Entertainment,
Automobile
Information Technology, Construction
37
HiWEs Task-specific Database

• Task-specific information is organized in terms
  of a finite set of concepts or categories
• Each concept has one or more labels and an
  associated set of values
• For example the label Company Name could be
  associated with the set of values IBM,
  Microsoft, HP,

38
HiWEs Task-specific Database

• The concepts are organized in a table called the
  Label Value Set (LVS)
• Each entry in the LVS is of the form (L,V)
• L label
• fuzzy set of values
• Fuzzy set V has an associated membership function
  that assigns weights, in the range 0,1 to each
  member of the set
• is a measure of the crawlers
  confidence that the assignment of to E is
  semantically meaningful

39
HiWEs Matching Function

• For elements with a finite domain
• The set of possible values is fixed and can be
  exhaustively enumerated
• In this example, the crawler can first retrieve
  all relevant articles, then all relevant press
  releases and finally all relevant reports

Element E1
Label(E1) "Document Type" Dom(E1 ) Articles,
Press Releases,
Reports
40
HiWEs Matching Function

• For elements with an infinite domain
• HiWE textually matches the labels of these
  elements with labels in the LVS table
• For example, if a textbox element has the label
  Enter State which best matches an LVS entry
  with the label State , the values associated
  with that LVS entry (e.g., California) can be
  used to fill the textbox
• How do we match Form labels with LVS labels?

41
Label Matching

• Two steps in matching Form labels with LVS
  labels
• 1. Normalization includes conversion to a common
  case and standard style
• 2. Use of an approximate string matching
  algorithm to compute minimum edit distances
• HiWE employs D. Lopresti and A. Tomkins string
  matching algorithm that takes word reordering
  into account

42
Label Matching

• Let LabelMatch( ) denote the LVS entry with
  the minimum distance to label( )
• Threshold
• If all LVS entries are more than edit
  operations away from label( ) , LabelMatch(
  ) nil

43
Label Matching

• For each element , compute ( , )
• If has an infinite domain and (L,V) is the
  closest matching LVS entry, then V and

• If has a finite domain, then Dom( )
  and
• The set of value assignments is computed as the
  product of all the s
• Too many assignments?

44
Ranking Value Assignments

• HiWE employs an aggregation function to compute a
  rank for each value assignment
• Uses a configurable parameter, a minimum
  acceptable value assignment rank ( )
• The intent is to improve submission efficiency by
  only using high-quality value assignments
• We will show three possible aggregation functions

45
Fuzzy Conjunction

• The rank of a value assignment is the minimum of
  the weights of all the constituent values.
• Very conservative in assigning ranks. Assigns a
  high rank only if each individual weight is high

46
Average

• The rank of a value assignment is the average of
  the weights of the constituent values
• Less conservative than fuzzy conjunction

47
Probabilistic

• This ranking function treats weights as
  probabilities
• is the likelihood that the choice of
  is useful and is the
  likelihood that it is not
• The likelihood of a value assignment being useful
  is
• Assigns low rank if all the individual weights
  are very low

48
Populating the LVS Table

• HiWE supports a variety of mechanisms for adding
  entries to the LVS table
• Explicit Initialization
• Built-in entries
• Wrapped data sources
• Crawling experience

49
Explicit Initialization

• Supply labels and associated value sets at
  startup time
• Useful to equip the crawler with labels that the
  crawler is most likely to encounter
• In the semiconductor example, we supply HiWE
  with a list of relevant company names and
  associate the list with labels Company ,
  Company Name

50
Built-in Entries

• HiWE has built-in entries for commonly used
  concepts
• Dates and Times
• Names of months
• Days of week

51
Wrapped Data Sources

• LVS Manager can query data sources through a
  well-defined interface
• The data source must be wrapped by a program
  that supports two kinds of queries
• Given a set of labels, return a value set
• Given a set of values, return other values that
  belong to the same value set

52
HiWE Architecture
URL 1 URL 2 URL N
URL List
LVS Table
WWW
Label1 Value-Set1 Label2 Value-Set2 Labeln
Value-Setn
Parser
Crawl Manager
Form Analyzer
Form submission
LVS Manager
Form Processor
Feedback
Response
Response Analyzer
Custom data sources
53
Crawling Experience

• Finite domain form elements are a useful source
  of labels and associated value sets
• HiWE adds this information to the LVS table
• Effective when similar label is associated with a
  finite domain element in one form and with an
  infinite domain element in another

54
Computing Weights

• New value added to the LVS must be assigned a
  suitable weight
• Explicit initialization and build-in values have
  fixed weights
• Values obtained from external data sources or
  through the crawlers own activity, are assigned
  weights that vary with time

55
Initial Weights

• For external data sources - computed by the
  respective wrappers
• For values directly gathered by the crawler
• Finite domain element E with Dom(E)
• 1 iff
• Three cases arise when incorporating Dom(E) into
  the LVS table

56
Updating LVS Case 1

• Crawler successfully extracts label(E) and
  computes LabelMatch(E)(L,V)
• Replace the (L,V) entry by the entry
• Intuitively, Dom(E) provides new elements to the
  value set and boosts the weights of existing
  elements

57
Updating LVS Case 2

• Crawler successfully extracts label(E) but
  LabelMatch(E) nil
• A new entry ( label(E),Dom(E) ) is created in the
  LVS

58
Updating LVS Case 3

• Crawler can not extract label(E)
• For each entry (L,V)
• Compute a score
• Identify the entry with the maximum score
• Identify the value of the maximum score
• Replace entry with new entry
• Confidence of new values

59
Configuring HiWE

• Initialization of the crawling activity includes
• Set of sites to crawl
• Explicit initialization for the LVS table
• Set of data sources
• Label matching threshold
• Minimum acceptable value assignment rank
• Value assignment aggregation function

60
Introducing LITE

• Layout-based Information Extraction Technique
• Physical Layout of a page is also used to aid in
  extraction
• For example, a piece of text that is physically
  adjacent to a form element is very likely a
  description of that element
• Unfortunately, this semantic associating is not
  always reflected in the underlying HTML of the
  Web page

61
Layout-based Information Extraction Technique
62
The Challenge

• Accurate extraction of the labels and domains of
  form elements
• Elements that are visually close on the screen,
  may be separated arbitrarily in the actual HTML
  text
• Even when HTML provides a facility for semantic
  relationships, its not used in a majority of
  pages
• Accurate page layout is a complex process
• Even a crude approximate layout of portions of a
  page, can yield very useful semantic information

63
Form Analysis in HiWE

• LITE-based heuristic
• Prune the form page and isolate elements which
  directly influence the layout
• Approximately layout the pruned page using a
  custom layout engine
• Identify the pieces of text that are physically
  closest to the form element (these are
  candidates)
• Rank each candidate using a variety of measures
• Choose the highest ranked candidate as the label

64
Pruning Before Partial Layout
65
LITE - Figure

• Key Idea in LITE
• Physical page layout embeds significant
  semantic information

DOM Parser
DOM Representation
DOM API
Prune
Pruned Page
List of Elements Submission Info
Partial Layout
Labels Domain Values
Internal Form Representation
66
Experiments

• A number of experiments were conducted to study
  the performance of HiWE
• We will see how performance depends on
• Minimum form size
• Crawler input to LVS table
• Different ranking functions

67
Parameter Values for Task 1

• Task 1
• News articles, reports, press releases and
  white papers relating to the semiconductor
  industry, dated sometime in the last ten years

68
Variation of Performance with
69
Effect of Crawler input to LVS
70
Different Ranking Functions

• When using and the crawlers
  submission efficiency is mostly above 80
• performs poorly
• submits more forms than (less
  conservative)

71
Label Extraction

• LITE-based heuristic achieved overall accuracy of
  93
• The test set was manually analyzed

72
Conclusion

• Addressed the problem of extending current-day
  crawlers to build repositories that include pages
  from the Hidden Web
• Presented a simple operation model of a hidden
  web crawler
• Described the implementation of a prototype
  crawler HiWE
• Introduced a technique for Layout-based
  information extraction

73
Bibliography

• Crawling the Hidden Web, by S. Raghavan and H.
  Garcia-Molina, Stanford University, 2001
• BrightPlanet.com white papers
• D. Lopresti and A. Tomkins. Block edit models for
  approximate string matching
