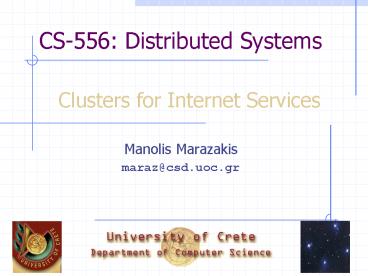

CS-556 Distributed Systems
Clusters for Internet Services

• Manolis Marazakis
• maraz_at_csd.uoc.gr

2
The HotBot search engine

• SPARCstations, interconnected via Myrinet
• Front-ends
• 50-80 threads per node
• dynamic HTML (TCL script tags)
• Load balancing
• Static partition of search DB
• Every query goes to all workers in parallel
• Workers are not 100 interchangeable
• Each worker has a local disk
• Version 1 DB fragments are cross-mounted
• So that other nodes can reach the data, with
  graceful performance degradation
• Version 2 RAID
• 26 nodes loss of 1 node resulted in the
  available DB dropping from 54 M documents to 51
  M
• Informix DB for user profiles ad revenue
  tracking
• Primary/backup failover

3
Internet service workloads

• Yahoo 625 M page views / day
• HTML 7 KB, Images 10 KB
• AOLs proxy 5.2 B requests / day
• Response size 5.5 KB
• Services often take 100s of millisecs
• Responses take several seconds to flow back
• High task throughput non-neglible latency
• A service may have to sustain 1000s of
  simultaneous tasks
• C10K problem
• Human users 4 parallel HTTP/GET requests
  spawned per page view
• A large of service tasks are independent of
  each other

4
Clustering Holy Grail

• Goal
• Take a cluster of commodity workstations make
  them look like a supercomputer.
• Problems
• Application structure
• Partial failure management
• Interconnect technology
• System administration

5
Cluster Prehistory Tandem NonStop

• Early (1974) foray into transparent fault
  tolerance through redundancy
• Mirror everything (CPU, storage, power supplies)
• can tolerate any single fault (later processor
  duplexing)
• Hot standby process pair approach
• Whats the difference between high availability
  fault tolerance?
• Noteworthy
• Shared nothing--why?
• Performance and efficiency costs?
• Later evolved into Tandem Himalaya
• used clustering for both higher performance
  higher availability

6
Pre-NOW Clustering in the 90s

• IBM Parallel Sysplex and DEC OpenVMS
• Targeted at conservative (read mainframe)
  customers
• Shared disks allowed under both (why?)
• All devices have cluster-wide names (shared
  everything?)
• 1500 installations of Sysplex, 25,000 of OpenVMS
  Cluster
• Programming the clusters
• All System/390 and/or VAX VMS subsystems were
  rewritten to be cluster-aware
• OpenVMS cluster support exists even in
  single-node OS!
• An advantage of locking into proprietary
  interfaces
• What about fault tolerance?

7
The Case For NOW MPPs a Near Miss

• Uniprocessor performance improves by 50 / yr
  (4/month)
• 1 year lagWS 1.50 MPP node perf.
• 2 year lagWS 2.25 MPP node perf.
• No economy of scale in 100s gt
• Software incompatibility (OS apps) gt
• More efficient utilization of compute resources
• statistical multiplexing
• Scale makes availability affordable (Pfister)
• Which of these do commodity clusters actually
  solve?

8
Philosophy Systems of Systems

• Higher Order systems research
• aggressively use off-the-shelf hardware OS
  software
• Advantages
• easier to track technological advances
• less development time
• easier to transfer technology (reduce lag)
• New challenges (the case against NOW)
• maintaining performance goals
• system is changing underneath you
• underlying system has other people's bugs
• underlying system is poorly documented

9
Clusters Enhanced Standard Litany

• Software engineering
• Partial failure management
• Incremental scalability
• System administration
• Heterogeneity

• Hardware redundancy
• Aggregate capacity
• Incremental scalability
• Absolute scalability
• Price/performance sweet spot

10
Clustering Internet Services

• Aggregate capacity
• TB of disk storage, THz of compute power
• If we only we could harness it in parallel!
• Redundancy
• Partial failure behavior only small fractional
  degradation from loss of one node
• Availability industry average across large
  sites during 1998 holiday season was 97.2
  availability (source CyberAtlas)
• Compare mission-critical systems have four
  nines (99.99)

11
Spike Absorption

• Internet traffic is self-similar
• Bursty at all granularities less than about 24
  hours
• Whats bad about burstiness?
• Spike Absorption
• Diurnal variation
• Peak vs. average demand typically a factor of 3
  or more
• Starr Report CNN peaked at 20M hits/hour
  (compared to usual peak of 12M hits/hour thats
  66)
• Really the holy grail capacity on demand
• Is this realistic?

12
Diurnal Cycle (UCB dialups, Jan. 1997)

• 750 modems at UC Berkeley
• Instrumented early 1997

13
Clustering Internet Workloads

• Internet vs. traditional workloads
• e.g. Database workloads (TPC benchmarks)
• e.g. traditional scientific codes (matrix
  multiply, simulated annealing and related
  simulations, etc.)
• Some characteristic differences
• Read mostly
• Quality of service (best-effort vs. guarantees)
• Task granularity
• Embarrassingly parallel
• but are they balanced? (well return to this
  later)

14
Meeting the Cluster Challenges

• Software programming models
• Partial failure and application semantics
• System administration

15
Software Challenges (I)

• Message-passing Active Messages
• Shared memory Network RAM
• CC-NUMA, Software DSM
• MP vs SM a long-standing religious debate
• Arbitrary object migration (network
  transparency)
• What are the problems with this?
• Hints RPC, checkpointing, residual state

16
Partial Failure Management

• What does partial failure mean for
• a transactional database?
• A read-only database striped across cluster
  nodes?
• A compute-intensive shared service?
• What are appropriate partial failure
  abstractions?
• Incomplete/imprecise results?
• Longer latency?
• What current programming idioms make partial
  failure hard?

17
Software Challenges (II)

• Real issue we have to think differently about
  programming
• to harness clusters?
• to get decent failure semantics?
• to really exploit software modularity?
• Traditional uniprocessor programming
  idioms/models dont seem to scale up to clusters
• Question Is there a natural to use cluster
  model that scales down to uniprocessors?
• If so, is it general or application-specific?
• What would be the obstacles to adopting such a
  model?

18
Cluster System Administration (I)

• Total cost of ownership (TCO) way high for
  clusters
• Median sysadmin cost per machine per year (1996)
  700
• Cost of a headless workstation today 1500
• Previous Solutions
• Pay someone to watch
• Ignore or wait for someone to complain
• Shell Scripts From Hell
• not general ? vast repeated work
• Need an extensible and scalable way to automate
  the gathering, analysis, and presentation of data

19
Cluster System Administration (II)

• Extensible Scalable Monitoring For Clusters of
  Computers (Anderson Patterson, UC Berkeley)
• Relational tables allow properties queries of
  interest to evolve as the cluster evolves
• Extensive visualization support allows humans to
  make sense of masses of data
• Multiple levels of caching decouple data
  collection from aggregation
• Data updates can be pulled on demand or
  triggered by push

20
Visualizing Data Example

• Display aggregates of various interesting machine
  properties on the NOWs
• Note use of aggregation color

21
SDDS (S.D. Gribble)

• Self-managing, cluster-based data repository
• Seen by services as a conventional data structure
• Log, tree, hash table
• High performance
• 60 K reads/sec, over 1.28 TB of data
• 128-node cluster
• The CAP principle
• A system can have at most two of the following
  properties
• Consistency
• Availability
• Tolerance to network Partitions

22
CAP trade-offs
23
Clusters for Internet Services

• Previous observation (TACC, Inktomi, NOW)
• Clusters of workstations are a natural platform
  for constructing Internet services
• Internet service properties
• support large, rapidly growing user populations
• must remain highly available, and cost-effective
• Clusters offer a tantalizing solution
• incremental scalability cluster grows with
  service
• natural parallelism high performance platform
• software and hardware redundancy fault-tolerance

24
Software troubles

• Internet service construction on clusters is hard
• load balancing, process management,
  communications abstractions, I/O balancing,
  fail-over and restart,
• toolkits proposed to help (TACC, AS1, River, )
• Even harder if shared, persistent state is
  involved
• data partitioning, replication, and consistency,
  interacting with storage subsystem,
• solutions not geared to clustered services
• use (distributed) RDBMS expensive, powerful
  semantic guarantees, generality at cost of
  performance
• use network/distributed FS overly general, high
  overhead (e.g. double buffering penalties).
  Fault-tolerance?
• Roll-your-own custom solution not reusable,
  complex

25
Idea / Hypothesis

• It is possible to
• isolate clustered services from vagaries of state
  mgmt.,
• to do so with adequately general abstractions,
• to build those abstractions in a layered fashion
  (reuse),
• and to exploit clusters for performance, and
  simplicity.
• Scalable Distributed Data Structures (SDDS)
• take conventional data structure
• hash table, tree, log,
• partition it across nodes in a cluster
• parallel access, scalability,
• replicate partitions within replica groups in
  cluster
• availability in face of failures, further
  parallelism
• store replicas on disk

26
Why SDDS?

• Fundamental software engineering principle
• Separation of concerns
• decouple persistency/consistency logic from rest
  of service
• simpler (and cleaner!) service implementations
• Service authors understand data structures
• familiar behavior and interfaces from single-node
  case
• should enable rapid development of new services
• Structure access patterns are self-evident
• access granularity manifestly a structure element
• coincidence of logical and physical data units
• cf. file systems, SQL in RDBMS, VM pages in DSM

27
SDDS Challenges

• Overcoming complexities of distributed systems
• data consistency, data distribution, request load
  balancing, hiding network latency and OS
  overhead,
• ace up the sleeve cluster ? wide area
• single, controlled administrative domain
• engineer to (probabilistically) avoid network
  partitions
• use low-latency, high-throughput SAN (5 µs,
  40-120 MB/s)
• predictable behavior, controlled heterogeneity
• I/O is still a problem
• Plenty of work on fast network I/O
• some on fast disk I/O
• Less work bridging network ? disk I/O in cluster
  environment

Segment-based cluster I/O layer Filtered
streams bet. Disks, network, memory
28
Prototype hash table

• Storage bricks provide local, network-accessible
  hash tables
• Interaction with distrib. hash table through
  abstraction libraries
• C, Java APIs available
• partitioning, mirrored replication logic in each
  library
• Distrib. table semantics
• handles node failures
• no consistency
• or transactions, on-line recovery, etc.

29
Storage bricks
Argument marshalling
Worker pool one thread dispatched per request.
Local hash table implementations
Messaging, event queue
MMAP region management, and alloc(), free() impl.
Transport specific comm. and naming
storage brick

• Individual nodes are storage bricks
• consistent, atomic, network accessible
  operations on a local hash table
• uses MMAP to handle data persistence
• no transaction support
• Clients communicate to set of storage bricks
  using RPC marshalling layer

Service application logic
Virtual to physical node names, inter-node hashing
Service Frontend
30
Parallelisms service

• Provides relevant site information given a URL
• an inversion of Yahoo! directory
• Parallelisms builds index of all URLs, returns
  other URLs in same topics
• read-mostly traffic, nearly no consistency
  requirements
• large database of URLs
• 1 GB of space for 1.5 million URLs and 80000
  topics
• Service FE itself is very simple
• 400 semicolons of C
• 130 for app-specific logic
• 270 for threads, HTTP munging,
• hash table code 4K semicolons of C

http//ninja.cs.berkeley.edu/demos/ paralllelisms
/parallelisms.html
31
Lessons Learned (I)

• mmap() simplified implementation, but at a price
• service working sets naturally apply
• No pointers breaks usual linked list and hash
  table libraries
• Little control over the order of writes, so
  cannot guarantee consistency if crashes occur
• If node goes down, may incur a lengthy sync
  before restart
• Same for abstraction libraries simplicity with a
  cost
• Each storage brick could be totally independent
• because policy is embedded in abstraction
  libraries
• Bad for administration monitoring
• No place to hook in to get view of complete
  table
• Each client makes isolated decisions
• load balancing and failure detection

32
Lessons Learned (II)

• Service simplicity premise seems valid
• Parallelisms service code devoid of persistence
  logic
• Parallelisms front-ends contain only session
  state
• No recovery necessary if they fail
• Interface selection is critical
• Originally, just supported put(), get(), remove()
• Wanted to support java.util.hashtable subclass
• Needed enumerations, containsKey(),
  containsObject()
• Significant re-plumbing required to efficiently
  support these !
• Thread subsystem was troublesome
• JDK has its own, and it conflicted. Had to
  remove threads from client-side abstraction
  library.

33
SDDS goal simplicity

• Hypothesis simplify construction of services
• evidence Parallelisms
• distributed hash table prototype 3000 lines of
  C code
• service 400 lines of C code, 1/3 of which is
  service-specific
• evidence Keiretsu service
• instant messaging service between heterogeneous
  devices
• crux of service is in sharing of binding/routing
  state
• original 131 lines of Java SDDS version 80
  lines of Java
• Management/operational aspects
• To be successful, authors must want to adopt
  SDDSs
• simple to incorporate and understand
• operational management must be nearly transparent
• node fail-over and recovery, logging, etc. behind
  the scenes
• plug-n-play extensibility to add capacity

34
SDDS goal generality

• Potential criticism of SDDSs
• No matter which structures you provide, some
  services simply cant be built with only those
  primitives
• response pick a basis to enable many interesting
  services
• Log, Hash Table, and Tree our guess at a good
  basis
• Layered-model will allow people to develop other
  SDDSs
• allow GiST-style specialization hooks?

35
SDDS Ideas on Consistency (I)

• Consistency / performance tradeoffs
• stricter consistency requirements imply worse
  performance
• we know some intended services have weaker
  requirements
• Rejected alternatives
• built strict consistency, and force people to use
• investigate extended transaction models
• SDDS choice
• Pick a small set of consistency guarantees
• level 0 (atomic but not isolated operations)
• level 3 (ACID)

36
SDDS Ideas on Consistency (II)

• Replica management
• what mechanism will we use between replicas?
• 2 phase commit for distributed atomicity
• log-based on-line recovery
• Exploiting cluster properties
• Low network latency ? fast 2 phase commit
• especially relative to WAN latency for Internet
  services
• Given good UPS, node failures are independent
• commit to memory of peer in group, not to disk
• (probabilistically) engineer away network
  partitions
• unavailable ? failure
• therefore consensus algorithm not needed

37
SDDS Ideas on load management

• Data distribution affects request distribution
• Start simple static data distribution
• Given request, lookup or hash to determine
  partition
• Optimizations
• locality aware request dist. (LARD) within
  replicas
• if no failures, replicas further partition data
  in memory
• front ends often colocated with storage nodes
• front end selection based on data distribution
  knowledge
• smart clients (Ninja redirector stubs..?)
• Issues
• graceful degradation RED/LRP techniques to drop
  requests
• given many simultaneous requests, what should be
  the service ordering policy?

38
Incremental Scalability (I)

• Logs and trees have a natural solution
• pointers are ingrained in these structures
• use the pointers to (re)direct structures onto
  new nodes

39
Incremental Scalability (II)

• Hash table is the tricky one !
• Why? mapping is done by client-side hash
  functions
• Unless table is chained, no pointers inside hash
  structure
• Need to change client-side functions to scale
  structure
• Litwins linear hashing?
• client-side hash function evolves over time
• clients independently discovery when to evolve
  functions
• Directory-based map?
• move hashing into infrastructure (inefficient)
• or, have infrastructure inform clients when to
  change function
• AFS-style registration and callbacks?

40
Getting the Interfaces Right

• Upper interfaces sufficient generality
• setting the bar for functionality (e.g.
  java.util.hashtable)
• opportunity reuse of existing software (e.g.
  Berkeley DB)
• Lower interfaces use a segment-based I/O layer?
• Log, tree natural sequentiality, segments make
  sense
• Hash table is much more challenging
• Aggregating small, random accesses into large,
  sequential ones
• Rely on commits to other nodes memory
• periodically dump deltas to disk LFS-style

41
Evaluation use real services

• Metrics for success
• 1) measurable reduction in complexity to author
  Internet svcs.
• 2) widespread adoption of SDDS by Ninja
  researchers
• 1) Port/reimplement existing Ninja services
• Keiretsu, Ninja Jukebox, the multispace Log
  service
• explicitly demonstrate code reduction
  performance boon
• 2) Convince people to use SDDS for new services
• NinjaMail, Service Discovery Service, ICEBERG
  services
• Challenge operational aspects of SDDS
• goal as simple to use SDDS as single-node,
  non-persistent case

42
Segment layer (motivation)

• Its all about disk bandwidth avoiding seeks
• 8 ms random seek, 25-80 MB/s throughput
• must read 320 KB per seek to break even
• Build disk abstraction layer based on segments
• 1-2 MB regions on disk, read and written in their
  entirety
• force upper layers to design with this in mind
• small reads/writes treated as uncommon failure
  case
• SAN throughput is comparable to disk throughput
• Stream from disk to network saturate both
  channels
• stream through service-specific filter functions
• selection, transformation,
• Apply lessons from high-performance networks

43
Segment layer challenges

• Thread event model
• Lowest level model dictates entire application
  stack
• dependency on particular thread subsystem is
  undesirable
• Asynchronous interfaces are essential
• especially for Internet services w/ thousands of
  connections
• Potential model VIA completion queues
• Reusability for many components
• toughest customer Telegraph DB
• dictate write ordering, be able to roll back
  mods for aborts
• if content is paged, make sure dont overwrite on
  disk
• no mmap( ) !

44
Segment Implementation Plan

• Two versions planned
• One version using POSIX syscalls and vanilla
  filesystem
• definitely wont perform well (copies to handle
  shadowing)
• portable to many platforms
• good for prototyping and getting API right
• One version on Linux with kernel modules for
  specialization
• I/O-lite style buffer unification
• use VIA or AM for network I/O
• modify VM subsystem for copy-on-write segments,
  and/or paging dirty data to separate region

45
Related work (I)

• (S)DSM
• structural element is a better atomic unit than
  page
• fault tolerance as goal
• Distributed/networked FS NFS, AFS, xFS, LFS,
  ..
• FS more general, has less chance to exploit
  structure
• often not in clustered environment (except xFS,
  Frangipani)
• Litwin SDDS LH, LH, RP, RP
• significant overlap in goals
• but little implementation experience
• little exploitation of cluster characteristics
• consistency model not clear

46
Related Work (II)

• Distributed Parallel Databases R, Mariposa,
  Gamma,
• different goal (generality in structure/queries,
  xacts)
• stronger and richer semantics, but at cost
• both and performance
• Fast I/O research U-Net, AM, VIA, IO-lite,
  fbufs, x-kernel,
• network and disk subsystems
• main results get OS out of way, avoid
  (unnecessary) copies
• use results in our fast I/O layer
• Cluster platforms TACC, AS1, River, Beowulf,
  Glunix,
• harvesting idle resources, process migration,
  single-system view

47
Taxonomy of Clustered Services
Stateless
Soft-state
Persistent State

• high availability and
• completeness
• perhaps consistency
• persistence necessary

• high availability
• perhaps consistency
• persistence is an
• optimization

State Mgmt. Requirements
Little or none
TACC distillers
TACC aggregators
Inktomi search engine
River modules
AS1 servents or RMX
Parallelisms
Examples
Scalable PIM apps
Video Gateway
Squid web cache
HINDE mint
48
Performance

• Bulk-loading of database dominated by disk access
  time
• Can achieve 1500 inserts per second per node on
  100 Mb/s Ethernet cluster, if hash table fits in
  memory (dominant cost is messaging layer)
• Otherwise, degrades to about 30 inserts per
  second (dominant cost is disk write time)
• In steady state, all nodes operate primarily out
  of memory, as the working set is fully paged in
• similar principle to research Inktomi cluster
• handles hundreds of queries per s. on 4 node
  cluster w/ 2 FEs

49
SEDA (M. Welsh)

• Staged, event-driven architecture
• Service stages, linked via queues
• Thread pool per stage
• Massive concurrency
• Admission priority control on each individual
  queue
• Adaptive load balancing
• Feedback loop
• No a-priori resource limits

50
Overhead of concurrency (I)
51
Overhead of concurrency (II)
52
SEDA architecture (I)
53
SEDA architecture (II)
54
SEDA architecture (III)
55
References

• S.D. Gribble, E.A. Brewer, J.M. Hellerstein, and
  D. Culler, Scalable, distributed data
  structures for Internet service construction,
  Proc. 4th OSDI, 2000.
• M. Welsh, , Proc. SOSP, 2001
