Chapter 8 File Management

1

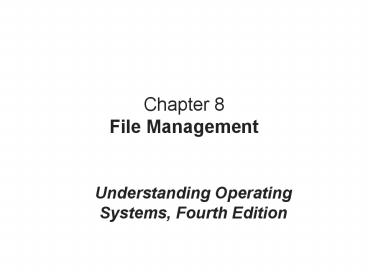

Chapter 8File Management

• Understanding Operating Systems, Fourth Edition

2
Objectives

• You will be able to describe
• The fundamentals of file management and the
  structure of the file management system
• File-naming conventions, including the role of
  extensions
• The difference between fixed-length and
  variable-length record format
• The advantages and disadvantages of contiguous,
  noncontiguous, and indexed file storage
  techniques
• Comparisons of sequential and direct file access

3
Objectives (continued)?

• You will be able to describe
• The security ramifications of access control
  techniques and how they compare
• The role of data compression in file storage

4
File Management

• File Manager controls every file in system
• Efficiency of File Manager depends on
• How systems files are organized (sequential,
  direct, or indexed sequential)?
• How theyre stored (contiguously,
  noncontiguously, or indexed)?
• How each files records are structured
  (fixed-length or variable-length)?
• How access to these files is controlled

5
The File Manager

• File Manager is the software responsible for
  creating, deleting, modifying, and controlling
  access to files
• Manages the resources used by files
• Responsibilities of File Managers
• Keep track of where each file is stored
• Use a policy to determine where and how files
  will be stored
• Efficiently use available storage space
• Provide efficient access to files

6
The File Manager (continued)?

• Responsibilities of File Managers (continued)?
• Allocate each file when a user has been cleared
  for access to it, then record its use
• Deallocate the file when it is returned to
  storage and communicate its availability to
  others waiting for it
• file refers to in memory data structures needed
  when accessing a file on disk.

7
The File Manager (continued)?

• Definitions
• Field Group of related bytes that can be
  identified by user with name, type, and size
• Record Group of related fields
• File Group of related records that contains
  information used by specific application programs
  to generate reports
• Sometimes called flat file has no connections to
  other files
• Database Groups of related files that are
  interconnected at various levels to give users
  flexibility of access to the data stored

8
The File Manager (continued)?

• Program files Contain instructions
• Data files Contain data
• Directories Listings of filenames and their
  attributes
• Every program and data file accessed by computer
  system, and every piece of computer software, is
  treated as a file
• File Manager treats all files exactly the same
  way as far as storage is concerned

9
Interacting with the File Manager

• User communicates with File Manager via specific
  commands that may be
• Embedded in the users program
• OPEN, CLOSE, READ, WRITE, and MODIFY
• Submitted interactively by the user
• CREATE, DELETE, RENAME, and COPY
• Commands are device independent
• User doesnt need to know its exact physical
  location on disk pack or storage medium to access
  a file

10
Interacting with the File Manager (continued)?

• Each logical command is broken down into sequence
  of low-level signals that
• Trigger step-by-step actions performed by device
• Supervise progress of operation by testing status
• Users dont need to include in each program the
  low-level instructions for every device to be
  used
• Users can manipulate their files by using a
  simple set of commands (e.g., OPEN, CLOSE, READ,
  WRITE, and MODIFY)?

11
Typical Volume Configuration

• Volume Each secondary storage unit (removable or
  non-removable)
• Each volume can contain many files called
  multifile volumes
• Extremely large files are contained in many
  volumes called multivolume files
• Each volume in system is given a name
• File Manager writes name other descriptive info
  on an easy-to-access place on each unit
• Linux LVM (Logical Volume Manager)?

12
Typical Volume Configuration (continued)?
Figure 8.1 Volume descriptor, stored at the
beginning of each volume
13
Typical Volume Configuration (continued)?

• Master file directory (MFD) Stored immediately
  after volume descriptor and lists
• Names and characteristics of every file in volume
• File names can refer to program files, data
  files, and/or system files
• Subdirectories, if supported by File Manager
• Remainder of the volume used for file storage

14
Typical Volume Configuration (continued)?

• Disadvantages of a single directory per volume as
  supported by early operating systems
• Long time to search for an individual file
• Directory space would fill up before the disk
  storage space filled up
• Users couldnt create subdirectories
• Users couldnt safeguard their files from other
  users
• Each program in the directory needed a unique
  name, even those directories serving many users

15
About Subdirectories

• Subdirectories
• Semi-sophisticated File Managers create MFD for
  each volume with entries for files and
  subdirectories
• Subdirectory created when user opens account to
  access computer
• Improvement from single directory scheme
• Still cant group files in a logical order to
  improve accessibility and efficiency of system

16
About Subdirectories (continued)?

• Subdirectories
• Todays File Managers allow users to create
  subdirectories (Folders)
• Allows related files to be grouped together
• Implemented as an upside-down tree
• Allows system to efficiently search individual
  directories
• Path to the requested file may lead through
  several directories

17
About Subdirectories (continued)?
Figure 8.2 File directory tree structure
18
About Subdirectories (continued)?

• File descriptor includes the following
  information
• Filename
• File type
• File size
• File location
• Date and time of creation
• Owner
• Protection information
• Record size

19
File Naming Conventions

• Absolute filename (complete filename) Long name
  that includes all path info
• Relative filename Short name seen in directory
  listings and selected by user when file is
  created
• Length of relative name and types of characters
  allowed is OS dependent
• Extension Identifies type of file or its
  contents
• e.g., BAT, COB, EXE, TXT, DOC
• Components required for a files complete name
  depend on the operating system

20
File Organization

• All files composed of records that are of two
  types
• Fixed-length records Easiest to access directly
• Ideal for data files
• Record size critical
• Variable-length records Difficult to access
  directly
• Dont leave empty storage space and dont
  truncate any characters
• Used in files accessed sequentially (e.g., text
  files, program files) or files using index to
  access records
• File descriptor stores record format

21
File Organization (continued)?
Figure 8.4 When data is stored in fixed-length
fields (a), data that extends beyond the fixed
size is truncated. When data is stored in a
variable length record format (b), the size
expands to fit the contents, but it takes more
time to access.
22
Physical File Organization

• The way records are arranged depends on the
  characteristics of the medium used to store them
• On magnetic disks, files can be organized as
  sequential, direct, or indexed sequential
• Considerations in selecting a file organization
  scheme
• Activity of the file
• Size of the file
• Response time

23
Physical File Organization (continued)?

• Sequential record organization Records are
  stored and retrieved serially (one after the
  other)?
• Easiest to implement
• File is searched from its beginning until the
  requested record is found
• Optimization features may be built into system to
  speed search process
• Select a key field from the record
• Complicates maintenance algorithms
• Original order must be preserved every time
  records are added or deleted

24
Physical File Organization (continued)?

• Direct record organization Uses direct access
  files can be implemented only on direct access
  storage devices
• Allows accessing of any record in any order
  without having to begin search from beginning of
  file
• Records are identified by their relative
  addresses (addresses relative to beginning of
  file)
• These logical addresses computed when records are
  stored and again when records are retrieved
• Use hashing algorithms

25
Physical File Organization (continued)?

• Advantages of direct record organization
• Fast access to records
• Can be accessed sequentially by starting at first
  relative address and incrementing to get to next
  record
• Can be updated more quickly than sequential files
• No need to preserve order of the records, so
  adding or deleting them takes very little time
• Disadvantages of direct record organization
• Collision in case of similar keys

26
Physical File Organization (continued)?

• Indexed sequential record organization generates
  index file for record retrieval
• Combines best of sequential direct access
• Divides ordered sequential file into blocks of
  equal size
• Each entry in index file contains highest record
  key and physical location of data block
• Created and maintained through ISAM software
• Advantage Doesnt create collisions
• Uses Btrees.

27
Physical Storage Allocation

• File Manager must work with files not just as
  whole units but also as logical units or records
• Records within a file must have the same format
  but they can vary in length
• Records are subdivided into fields
• Records structure usually managed by application
  programs and not OS
• File storage actually refers to record storage

28
Physical Storage Allocation (continued)
Figure 8.6 Types of records in a file
29
Contiguous Storage

• Records stored one after another
• Advantages
• Any record can be found once starting address and
  size are known
• Direct access easy as every part of file is
  stored in same compact area
• Disadvantages
• Files cant be expanded easily, and fragmentation

Figure 8.7 Contiguous storage
30
Noncontiguous Storage

• Allows files to use any available disk storage
  space
• Files records are stored in a contiguous manner
  if enough empty space
• Any remaining records, and all other additions to
  file, are stored in other sections of disk
  (extents)
• Linked together with pointers
• Physical size of each extent is determined by OS
  (usually 256 bytes)?

31
Noncontiguous Storage (continued)

• File extents are linked in following ways
• Linking at storage level
• Each extent points to next one in sequence
• Directory entry consists of filename, storage
  location of first extent, location of last
  extent, and total number of extents, not counting
  first
• Linking at directory level
• Each extent listed with its physical address,
  size, and pointer to next extent
• A null pointer indicates that it's the last one

32
Noncontiguous Storage (continued)

• Advantage of noncontiguous storage
• Eliminates external storage fragmentation and
  need for compaction
• However
• Does not support direct access because no easy
  way to determine exact location of specific record

33
Noncontiguous Storage (continued)?
Figure 8.8 Noncontiguous file storage with
linking taking place at the storage level
34
Noncontiguous Storage (continued)?
Figure 8.9 Noncontiguous file storage with
linking taking place at the directory level
35
Indexed Storage

• Allows direct record access by bringing pointers
  linking every extent of that file into index
  block
• Every file has its own index block
• Consists of addresses of each disk sector that
  make up the file
• Lists each entry in the same order in which
  sectors are linked
• Supports both sequential and direct access
• Doesnt necessarily improve use of storage space
• Larger files may have several levels of indexes

36
Indexed Storage (continued)?
Figure 8.10 Indexed storage
37
Access Methods

• Dictated by a files organization
• Most flexibility is allowed with indexed
  sequential files and least with sequential
• File organized in sequential fashion can support
  only sequential access to its records
• Records can be of fixed or variable length
• File Manager uses the address of last byte read
  to access the next sequential record
• Current byte address (CBA) must be updated every
  time a record is accessed

38
Access Methods (continued)?
Figure 8.11 (a) Fixed-length records
(b) Variable-length records
39
Access Methods (continued)?

• Sequential access
• Fixed-length records
• CBA CBA RL
• Variable-length records
• CBA CBA N RLk
• Direct access
• Fixed-length records
• CBA (RN 1) RL RN is desired record
  number
• Variable-length records
• Virtually impossible because address of desired
  record cant be easily computed

40
Access Methods (continued)?

• Direct access
• Variable-length records (continued)?
• File Manager must do sequential search through
  records
• File Manager can keep table of record numbers and
  their CBAs
• Indexed Sequential File
• Can be accessed either sequentially or directly
• Index file must be searched for the pointer to
  the block where the data is stored

41
Levels in a File Management System

• Each level of file management system is
  implemented by using structured and modular
  programming techniques
• Each of the modules can be further subdivided
  into more specific tasks
• Using the information of basic file system,
  logical file system transforms record number to
  its byte address
• Verification occurs at every level of the file
  management system

42
Levels in a File Management System (continued)?
Figure 8.12 File Management System
43
Levels in a File Management System (continued)?

• Verification occurs at every level of the file
  management system
• Directory level file system checks to see if the
  requested file exists
• Access control verification module determines
  whether access is allowed
• Logical file system checks to see if the
  requested byte address is within the files
  limits
• Device interface module checks to see whether the
  storage device exists

44
Access Control Verification Module

• Each file management system has its own method to
  control file access
• Types
• Access control matrix
• Access control lists
• Capability lists
• Lockword control

45
Access Control Matrix

• Easy to implement
• Works well for systems with few files few
  users
• Results in space wastage because of null entries

Table 8.1 Access Control Matrix
46
Access Control Lists

• Modification of access control matrix technique
• Each file is entered in list contains names of
  users who
• are allowed access to it and type of access
  permitted

Table 8.2 Access Control List
47
Access Control Lists (continued)?

• Contains the name of only those users who may use
  file those denied any access are grouped under
  WORLD
• List is shortened by putting users into
  categories
• SYSTEM personnel with unlimited access to all
  files
• OWNER Absolute control over all files created in
  own account
• GROUP All users belonging to appropriate group
  have access
• WORLD All other users in system

48
Capability Lists

• Lists every user and the files to which each has
  access
• Can control access to devices as well as to files

Table 8.3 Capability Lists
49
Lockwords

• Lockword similar to a password but protects a
  single file
• Advantages
• Requires smallest amount of storage for file
  protection
• Disadvantages
• Can be guessed by hackers or passed on to
  unauthorized users
• Generally doesnt control type of access to file
• Anyone who knows lockword can read, write,
  execute, or delete file

50
Data Compression

• A technique used to save space in files
• Methods for data compression
• Records with repeated characters Repeated
  characters are replaced with a code
• e.g., ADAMSbbbbbbbbbb gt ADAMSb10
  300000000 gt 38
• Repeated terms Compressed by using symbols to
  represent most commonly used words
• e.g., in a universitys student database common
  words like student, course, grade, department
  could each be represented with single character

51
Data Compression (continued)?
Front-end compression Each entry takes a given
number of characters from the previous entry that
they have in common
Table 8.4 Front-end compression
52
Case Study File Management in Linux

• All Linux files are organized in directories that
  are connected to each other in a treelike
  structure
• Linux specifies five types of files used by the
  system to determine what the file is to be used
  for
• Filenames can be up to 255 characters long and
  contain alphabetic characters, underscores, and
  numbers
• Filename cant start with a number or a period
  and cant contain slashes or quotes

53
Case Study File Management in Linux (continued)?

• Linux users can obtain file directories
• By opening the appropriate folder on their
  desktops
• Using the command shell interpreter and typing
  commands after the prompt
• Linux allows three types of file permissions
  read (r), write (w), and execute (x)?
• Virtual File System (VFS) maintains an interface
  between system calls related to files and the
  file management code

54
Case Study File Management in Linux (continued)?
Table 8.5 Types of Linux files
55
Summary

• The File Manager controls every file in the
  system
• Processes user commands (read, write, modify,
  create, delete, etc.) to interact with any other
  file
• Manages access control procedures to maintain the
  integrity and security of the files under its
  control
• File Manager must accommodate a variety of file
  organizations, physical storage allocation
  schemes, record types, and access methods

56
Summary (continued)?

• Each level of file management system is
  implemented with structured and modular
  programming techniques
• Verification occurs at every level of the file
  management system
• Data compression saves space in files
• Linux specifies five types of files used by the
  system
• VFS maintains an interface between system calls
  related to files and the file management code
