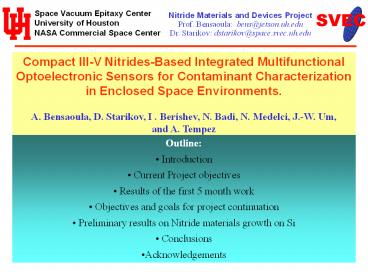

Nitride Materials and Devices Project Prof.
Bensaoula bens_at_jetson.uh.edu Dr. Starikov
dstarikov_at_space.svec.uh.edu
Compact III-V Nitrides-Based Integrated
Multifunctional Optoelectronic Sensors for
Contaminant Characterization in Enclosed Space
Environments. A. Bensaoula, D. Starikov, I .
Berishev, N. Badi, N. Medelci, J.-W. Um, and A.
Tempez

• Outline
• Introduction
• Current Project objectives
• Results of the first 5 month work
• Objectives and goals for project continuation
• Preliminary results on Nitride materials growth
  on Si
• Conclusions
• Acknowledgements
