DESIGNING AGAINST FATIGUE

1

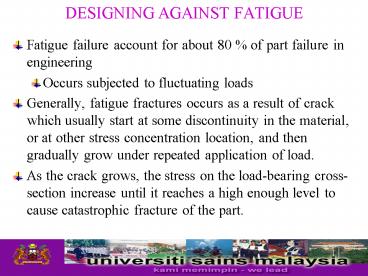

DESIGNING AGAINST FATIGUE

• Fatigue failure account for about 80 of part
  failure in engineering
• Occurs subjected to fluctuating loads
• Generally, fatigue fractures occurs as a result
  of crack which usually start at some
  discontinuity in the material, or at other stress
  concentration location, and then gradually grow
  under repeated application of load.
• As the crack grows, the stress on the
  load-bearing cross-section increase until it
  reaches a high enough level to cause catastrophic
  fracture of the part.

2
DESIGNING AGAINST FATIGUE

• Fracture surface which usually exhibits smooth
  areas which correspond to the gradual crack
  growth stage, and rough areas, which correspond
  to the catastrophic fracture stage.
• The smooth parts of the fracture surface usually
  exhibit beach marks which occurs as a result of
  changes in the magnitude of the fluctuating
  fatigue load.
• Fatigue behavior of materials is usually
  described by means of the S-N diagram which gives
  the number of cycles to failure, N as a function
  of the max applied alternating stress, Sa.

3
DESIGNING AGAINST FATIGUE
4
(No Transcript)
5
DESIGNING AGAINST FATIGUE

• Types of fatigue loading
• Alternating stress
• Alternating tension compression
• Stress ratio, R ?min / ?max -1
• Fluctuating stress
• Positive R value
• Greater tensile stress than compressive stress
• ?max ?m ?a
• ?max ?m - ?a

6
(No Transcript)
7
DESIGNING AGAINST FATIGUE

• Many types of test are used to determine the
  fatigue life of material
• Small scale fatigue test rotating beam test
• Which a specimen subjected to alternating
  compression and tension stresses of equal
  magnitude while being rotate
• Data from this result are plotted in the form of
  S-N curves
• Which the stress S to cause failure is plotted
  against number of cycles N
• Figure (a) S-N curves for carbon steel
• (b) - S-N curves aluminum alloy

8
(No Transcript)
9
DESIGNING AGAINST FATIGUE

• In the majority cases, the reported fatigue
  strength or endurance limits of the materials are
  based on the test of carefully prepared small
  samples under laboratory condition.
• Such values cannot be directly used for design
  purposes because the behavior of a component or
  structure under fatigue loading does depend not
  only on the fatigue or endurance limit of the
  material used in making it, but also an several
  other factors including
• Size and shape of the component or structure
• Type of loading and state of stress
• Stress concentration
• Surface finish
• Operating temperature
• Service environment
• Method of fabrication

10
DESIGNING AGAINST FATIGUE

• Endurance-limit modifying factors
• Se kakbkckdkekfkgkhSe
• Where Se endurance limit of component
• Se endurance limit experimental
• ka surface finish factor (machined parts have
  different finish)
• kb size factor (larger parts greater
  probability of finding defects)
• kc reliability / statistical scatter factor
  (accounts for random variation)
• kd operating T factor (accounts for diff. in
  working T room T)
• ke loading factor (differences in loading
  types)
• kf stress concentration factor
• kg service environment factor (action of
  hostile environment)
• kh manufacturing processes factor (influence
  of fabrication parameters)

11
DESIGNING AGAINST FATIGUE
12
DESIGNING AGAINST FATIGUE

• ka Surface finish factor
• The surface finish factor, ka, is introduced to
  account for the fact that most machine elements
  and structures are not manufactured with the same
  high-quality finish that is normally given to
  laboratory fatigue test specimens.

13
DESIGNING AGAINST FATIGUE

• kb Size factor
• Large engineering parts have lower fatigue
  strength than smaller test specimen
• Greater is the probability of finding
  metallurgical flaws that can cause crack
  initiation
• Following values can be taken as rough guidelines

• kb 1.0 for component diameters less than 10 mm
• kb 0.9 for diameters in the range 10 to 50 mm
• kb 1 ( D 0.03)/15, where D is diameter
  expressed in inches, for sizes 50 to 225 mm.

14
DESIGNING AGAINST FATIGUE

• kc Reliability factor
• Accounts for random variation in fatigue
  strength.
• Published data on endurance limit, represent 50
  survival fatigue test.
• Since most design require higher reliability, the
  published data must be reduced by the factor of
  kc
• The following value can be taken as guidelines
• kc 0.900 for 90 reliability
• kc 0.814 for 99 reliability
• kc 0.752 for 99.9 reliability

15
DESIGNING AGAINST FATIGUE

• kd Operating temperature factor
• Accounts for the difference between the test
  temperature and operating temperature of the
  component
• For carbon and alloy steels, fatigue strength not
  affected by operating temperature 45 to 4500C
  kd 1
• At higher operating temperature
• kd 1 5800( T 450 ) for T between 450 and
  550oC, or
• kd 1 3200( T 840 ) for T between 840 and
  1020oF

16
DESIGNING AGAINST FATIGUE

• ke Loading factor
• Accounts for the difference in loading between
  lab. test and service.
• During service vibration, transient overload,
  shock
• From experience show that repeated overstressing
  can reduce the fatigue life
• Different type of loading, give different stress
  distribution
• ke 1 for application involving bending
• ke 0.9 for axial loading
• ke 0.58 for torsional loading

17
DESIGNING AGAINST FATIGUE

• kf Stress concentration factor
• Accounts for the stress concentration which may
  arise when change in cross-section
• kf endurance limit of notch-free part
• endurance limit of notched part
• Low strength, ductile steels are less sensitive
  to notched than high-strength steels

18
DESIGNING AGAINST FATIGUE

• kg Service environment factor
• Accounts for the reduced fatigue strength due to
  the action of a hostile environment.

19
DESIGNING AGAINST FATIGUE

• kh Manufacturing process factor
• Accounts for the influence of fabrication
  parameter
• Heat treatment, cold working, residual stresses
  and protective coating on the fatigue material.
• kh difficult to quantify, but important to
  included.

20
DESIGNING AGAINST FATIGUE

• Endurance limit/Fatigue strength
• The endurance limit, or fatigue strength, of a
  given material can usually be related to its
  tensile strength, as shown in table 2.2.
• The endurance ratio, defined as (endurance limit/
  tensile strength), can be used to predict fatigue
  behavior in the absence of endurance limits
  results.
• From the table shows, endurance ratio of most
  ferrous alloys varies between 0.4 and 0.6

21
(No Transcript)
22
DESIGNING AGAINST FATIGUE

• Other fatigue-design criteria
• Safe-life or finite-life
• Design is based on the assumption that the
  component is free from flaws, but stress level in
  certain areas is higher than the endurance limit
  of the material
• Means that fatigue-crack initiation is inevitable
  and the life of the component is estimated on the
  number of stress cycles which are necessary to
  initiate crack

23
DESIGNING AGAINST FATIGUE

• Fail-safe design
• Crack that form in service will be detected and
  repaired before they can lead to failure.
• Employed material adapted with high fracture
  toughness, crack stopping features and reliable
  NDT program to detect crack.
• Damage-tolerant design
• Is an extension of fail-safe criteria and assume
  that flaws exist in the component before they put
  in service.
• Fracture mechanics techniques are used to
  determine whether such crack will grow large
  enough to cause failure before they are detected
  during periodic inspection.

24
DESIGNING AGAINST FATIGUE

• Selection of materials for fatigue resistance
• In many application, the behavior of a component
  in service is influence by several other factor
  besides the properties of the material used in
  its manufacture.
• This is particularly true for the cases where the
  component or structure is subjected to fatigue
  loading.
• The fatigue resistance can be greatly influenced
  by the service environment, surface condition of
  the part, method of fabrication and design
  details.
• In some cases, the role of the material in
  achieving satisfactory fatigue life is secondary
  to the above parameters, as long as the material
  is free from major flaws

25
DESIGNING AGAINST FATIGUE

• Steel and cast iron
• Steel are widely used as structural materials for
  fatigue application as they offer high fatigue
  strength and good processability at relatively
  low cost.
• The optimum steel structure for fatigue is
  tempered martensite, since it provide max
  homogeneity
• Steel with high hardenability give high strength
  with relatively mild quenching and hence, low
  residual stresses, which is desire in fatigue
  applications.
• Normalized structure, with their finer structure
  give better fatigue resistance than coarse
  pearlite structure obtained by annealing.

26
DESIGNING AGAINST FATIGUE

• Nonferrous alloys
• Unlike ferrous alloy, the nonferrous alloys, with
  the exception of titanium, do not normally have
  endurance limit.
• Aluminum alloys usually combine corrosion
  resistance, light weight, and reasonable fatigue
  resistance
• Fine grained inclusion-free alloys are most
  suited for fatigue applications.

27
DESIGNING AGAINST FATIGUE

• Plastics
• The viscoelasticity of plastics makes their
  fatigue behavior more complex than that of
  metals.
• Fatigue behavior of plastics is affected by the
  type of loading, small changes in temperature and
  environment and method of fabrication
• Because of their low thermal conductivity,
  hysteretic heating can build up in plastics
  causing them to fail in thermal fatigue or to
  function at reduces stiffness level.
• The amount of heat generated increases with
  increasing stress and test frequency.
• This means that failure of plastics in fatigue
  may not necessarily mean fracture

28
DESIGNING AGAINST FATIGUE

• Composite materials
• The failure modes of reinforced materials in
  fatigue are complex and can be affected by the
  fabrication process when difference in shrinkage
  between fibers and matrix induce internal
  stresses.
• However from practical experiences, some fiber
  reinforced plastics are known to perform better
  in fatigue than some metal, refer table 2.2.
• The advantage of fiber-reinforced plastics is
  even more apparent when compared on a per weight
  basics.
• As with static strength, fiber orientation
  affects the fatigue strength of fiber reinforced
  composite

29
DESIGNING AGAINST FATIGUE

• In unidirectional composites, the fatigue
  strength is significantly lower in directions
  other than the fiber orientation.
• Reinforcing with continuous unidirectional fibers
  is more effective than reinforcing with short
  random fibers.
