Title: Design, Synthesis and Test of Network on Chips


1

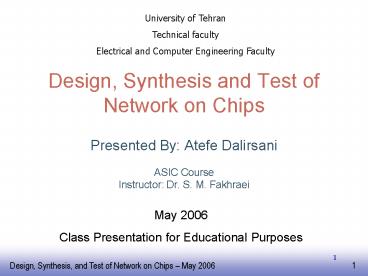

Design, Synthesis and Test of Network on Chips
University of Tehran Technical faculty
Electrical and Computer Engineering Faculty
  • Presented By Atefe Dalirsani
  • ASIC Course
  • Instructor Dr. S. M. Fakhraei

May 2006 Class Presentation for Educational
Purposes
2
Outline
  • On-chip bus architecture problem
  • NoC design
  • NoC design trade-offs and considerations
  • Switch block design
  • Performance evaluation
  • NoC synthesis
  • NoC synthesis tools
  • Testing NoC based systems
  • Reliable SoC/NoC Design

3
On-chip Bus Architecture Problems
  • 2010 MPSoC devices, many GHz, below one volt,
    complex communication architectures
  • In todays SoC devices, all of the IP blocks are
    connected by global on-chip buses but this global
    interconnect is increasingly dominating the
    delay, power, and area of integrated circuits
  • Traditional on-chip bus architectures are
    becoming a bottleneck for two reasons4
  • bus interface in each IP block needs to be
    frequently modified
  • interconnections in each new technology
    generation, become more complex as they need to
    connect more on-chip functions with the result
    that cost/performance factors such as silicon
    area, on-chip communications speed and overall
    power consumption are increasingly dominated by
    the bus.

4
NoC Solution
  • NoC is a new concept that emerged from the
    academic world as recently as 2000 and has since
    been the subject of intensive academic and
    industrial research. Numerous innovative NoC
    architectures have been proposed by a variety of
    universities and industrial research labs,
    including KAIST (Korea Advanced Institute of
    Science and Technology), KTH (Royal Institute of
    Technology, Sweden), Laboratoire dInformatique
    de Paris 6, MIT, Philips Research Lab,
    STMicroelectronics, Technion (Israel Institute of
    Technology), and VTT Technical Research Centre
    (Finland), as well as Universities such as
    Bologna, Manchester, San Diego, Stanford, and
    Tampere.
  • Many issues about NoC concepts as a solution for
    MPSoC interconnects are still open such as the
    choice of the network topology, the packet and
    message format, the end-to-end services, the
    routing strategies, the flow control and the
    queuing management
  • The user expects answers in the tens of topics
    involved in 'real world' NoC design such as
    reset, QoS, testability, application debug,
    timing convergence, error logging, compatibility
    with existing standard, etc.3

5
NoC Design
  • Network-on-a-chip (NoC) paradigm is emerging as a
    new design methodology to meet the communication
    requirements of large SoCs ? new trends
  • Various trade-offs regarding latency, throughput,
    reliability, energy dissipation, silicon area
    requirements and applications nature
    characterize communication-centric interconnect
    fabrics
  • Borrow communication models and techniques from
    networking and parallel processing ? micronetwork
    ? energy efficiency and QoS

6
Design Trade-offs for NoCs
  • Throughput the maximum load the network can
    physically handle ? system aggregate bandwidth
  • Latency the time that elapses between a message
    injection into the network at the source node and
    the end of packet reception at the destination
    node.
  • When data travels on the interconnection network,
    both the inter-switch wires and the logic gates
    in the switches toggle. ? energy
    dissipation
  • Additional buffer and register area, estimating
    wire area complexity ? longest wire segments,

7
Design Considerations
  • Performance perspective high throughput and low
    latency (such as MPSoC platforms)
  • VLSI perspective interconnect architectures
    energy dissipation profile ?significant portion
    of the overall energy budget
  • Silicon area overhead resulting from the
    interconnect fabric
  • Processor and storage cores communicate with one
    another through high-performance links and
    intelligent switches, and communication design
    can be represented at a high abstraction level.

8
Switch Block Design
  • Packet-based on-chip communication
  • Wormhole switching
  • Divide packets into fixed-length flow control
    units (flits)
  • I/O buffers for storing only a few flits
  • Minimizes the buffer space in the switches
    ? switches are small and compact
  • Header flit decoding enables switches to
    establish the path
  • Subsequent flits simply follow this path in a
    pipeline fashion
  • If a flit faces a busy channel, subsequent flits
    must wait at their current locations

9
Switch Bock Design (Cont.)
  • Routing scheme
  • Deterministic
  • Adaptive

10
Performance Evaluation
  • NoC-based interconnect performance correlates
    strongly with the topology ? regular , irregular
  • Regular arch. performance level is homogeneous
    across the whole system ? for the
    realization of multiprocessor communication
    schemes
  • Irregular arch. vary widely for the different
    processors and storage blocks
    ? for realizing application specific SoCs
    such as those in mobile-phone systems

11
NoC Synthesis
  • NoCs have no specialized languages or formalisms
    for their high-level modeling
  • Synthesis is useful in both homogeneous and
    heterogeneous network architectures.
  • Designers can realize the network by means of
    components such as switches, links, and network
    interfaces.

12
Reasons for Using NoC synthesis
  • Sometimes the best network architecture,
    protocols, and parameters for a given system
    application arent known.
  • There are many parameters to optimize in an
    on-chip network implementation.
  • A synthesis flow allows fast design and lets
    designers concentrate on system issues while
    leaving details to the tools

13
NoC Synthesis Tools
  • NoC libraries xPipes, xPipesLite 1
  • xPipes Compiler a network synthesis tool for
    xPipes 1
  • Sunmap9 automatic topology selection tool 1
  • Arteris develops and markets products enabling
    chip designers and system architects to
    effectively build the on-chip communications
    infrastructure for chips comprised of many
    discrete building blocks 3

14
xPipes Compiler
15
Arteris NoC Solution 3
16
Sunmap Automatic Topology Selection Tool
1
17
Testing NoC-based Systems
  • Testing functional and storage blocks and their
    corresponding network interfaces
  • Several parallel path for transmitting test data
  • Testing the interconnect infrastructure
  • Testing the switch blocks
  • FIFO buffer
  • Router logic
  • Testing the inter-switch wire segments
  • Testing the integrated system

18
Reliable SoC/NoC Design
  • Error control coding
  • Advantage of packetized communication is the
    possibly of incorporating error-control
    information into the transmitted data stream
  • Distributed error recovery mechanism
  • Centralized error recovery mechanism
  • Fault tolerant architectures

19
Conclusion
  • Commercial designs are integrating from 10 to 100
    embedded functional and storage blocks in a
    single SoC
  • Several industrial and academic research groups
    are striving to develop efficient communication
    architectures
  • NoC is an enabling solution for this level of
    integration
  • Major issues include the detailed design
    trade-offs and the performance optimization
  • NoC tools for design and synthesis in higher
    levels of abstraction

20
References
  • 1 P. P. Pande et al., Design, Synthesis and
    Test of Networks on chips, IEEE design test of
    computers, Sep. 2005.
  • 2 P.P. Pande et al., Performance Evaluation
    and Design Trade-offs for Network-on-Chip
    Interconnect Architectures, IEEE Trans.
    Computers, vol. 54, no. 8, Aug. 2005, pp.
    1025-1040.
  • 3 www.arteris.com
  • 4 www.soccentral.com
  • 5 S. Kumar et al., A Network on Chip
    Architecture and Design Methodology, IEEE
    computer society annual symposium on VLSI, 2002
  • 6 M.Hosseinabady et al, A Concurrent Testing
    Method for NoC Switches, DATE Conference, 2006.
