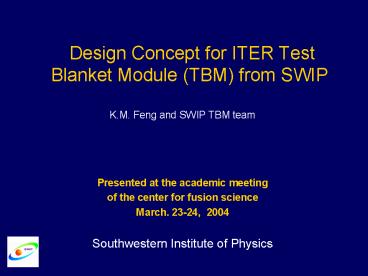

Design Concept for ITER Test Blanket Module TBM from SWIP

1

• Design Concept for ITER Test Blanket Module
  (TBM) from SWIP
• K.M. Feng and SWIP TBM team
• Presented at the academic meeting
• of the center for fusion science
• March. 23-24, 2004
• Southwestern Institute of Physics

2
OUTLINE

• 1. Introduction
• 2. Design Concept
• 3. Test Port Allocation
• 4. Summary

3
1. INTRODUCTION

• One of engineering objective for ITER project is
  to test Tritium Breeding Module (TBM) concepts.
  DEMO-relevant TBM will be inserted in three test
  ports.
• Some the ITER TBM concepts have been proposed by
  EU, RF and JA parties
• Main Concepts
• - Helium ceramic breeder concept main
  stream (database)
• - Liquid breeder concept attractive
  (simple structure)
• ITER Test Blanket Working Group (TBWG) oversees
  and coordinates designs of eventual machine
  users.
• China PT has decided to participate the ITER TBM
  program. Three preliminary TBM design concepts
  from SWIP have been prepared.

4
Tritium Breeding Module in ITER
5
2. Design Concepts

• Design requirements
• - Prospect to be used in DEMO reactor
• - Shielding for V V.,TFC in ITER
• - Within technical limits, e.g.
  temperature, stress limits, etc.
• - Structure should be simple for easy
  fabrication.
• Proposed concepts
• A. Liquid breeder (static concept)
• A1 Liquid LiPb / Ferritic Stee (CHT-9)
  /He
• A2 Liquid lithium / Vanadium / He
• B. Solid breeder concept
• Li4SiO4 / SS / He

6
Static Breeder TBM design

• Static liquid breeder concept is attractive
  for its structural simplicity. On the other hand,
  the issues inherent in liquid breeder self-cooled
  concept , such as, MHD pressure drop and
  corrosion, etc. might be avoided.
• Some design studies of static liquid breeder
  concepts in SWIP had been performed in the past
  decade (Supported by the 863 program).
• SWIP has built and operated a liquid metal
  experiment loop (LMEL) which is useful for the
  design and experiment of ITER TBM concepts.

7
Fig.1 Schematic of the Helium-cooled static
liquid breeder TBM concept
Option 1 LiPb / Ferritic Steel (HT-9)/He
BOT concept Breeder Outside Tube
Plasma Side
Test Port Size
8
Fig.2 TBM concept of Helium-cooled static liquid
breeder
Coolant Manifold
Liquid LiPb Breeder
Coolant (He) Tube
First Wall
9
Main parameters of helium-cooled static liquid
breeder concept
10
Fig. 3 Energy deposition along radial direction
(normalized to one fusion source neutron)
11
Performance Analysis

• The thermal constraint for this blanket is that
  the temperature at interface of structure and
  LiPb should be lower than 450?C to avoid
  excessive corrosion.
• The local TBR is calculated by 1-D transport code
  to be 1.45 and the peak energy deposition is 966
  eV/cm3 per fusion neutron.
• The peak interface temperature is estimated to be
  about 440?C.

12
Fig.4 Schematic of the Liquid lithium /
vanadium TBM concept
Option 2 Liquid lithium / Vanadium / He

• This concept have attractive advantages due to
  the low activation and its structure simplicity.
  Some limits for lithium set by ITER should be
  considered in design.
• To assure an adequate tritium breeding ratio,
  TBR, beryllium is adopted as neutron multiplier
  natural lithium is used as tritium breeder.

13
Performance Analysis

• The 1-D neutronics calculation gives a local TBR
  of 1.39 and a peak energy deposition of 1172
  eV/cm3 per fusion neutron, which corresponds to a
  peak power density of 8.15 W/cm3 under a neutron
  wall loading of 0.78 MW/m2.
• A preliminary estimation gives a peak temperature
  at the interface of LLi and structural material
  of 480? C, which is allowable from the view-
  point of corrosion.
• For the safe operation of ITER, the quantity of
  liquid lithium is limited to lt 35 l to limit
  hydrogen production to 2.5 kg.
• As a result, the size of this TBM is chosen to be
  43x40x30 cm3.

14
Possible and Favored Concept! (cooperation
with domestic institutes, CAEP)
Solid breeder TBM Concept

• He Cooled Solid Breeder with FS is main stream
  and has foundation of the world RD database. We
  will adopt SB/He/FM concept as own option of TBM
  module.
• China TBM Working Group plan to develop an
  independent HCSB sub-module under the framework
  of ITER TBM program in the near future. The
  relevant technology and experiment will be
  developed step by step.

15
B. He Cooled Solid Breeder TBM design
Fig.5 Schematic of the Helium-cooled solid
breeder TBM design concept
16
Fig.6 TBM design concept for Helium-Cooled Solid
Breeder
Coolant /He Manifold
Solid Breeder
Coolant Tube
First Wall
Li4SiO4
Pebble bed size d 0.5 - 1.0 mm
Ribbed Panel Structure
17
Two Types of Coolant Manifolds
Coolant Out
Solid Breeder Zone
First Wall
First Wall
Coolant In
18
Fig.7 Energy deposition along radial direction
for solid breeder blanket
19
Main parameters of helium-cooled solid breeder
TBM concept
Design Constraints

• The temperature of solid breeder should be
  within the temperature window allowed (450-900
  ?C).
• To meet this requirement, a large number of
  cooling plates is needed due to the low thermal
  conductivity of the solid breeder.

20
China Proposed Independent HCSB TBM module
He Cooled Solid Breeder
3. Allocation of TBM Test Ports
EU
Share with RF
JA
Fig.8 ITER test port 1 (for HCSB)

• This allocation scheme has been accepted by the
  TBSG-1
• (at TBWG-12 meeting, March 9-11, Naka Joint
  Work Site)

21
Test port allocation in TBWG-10
- Three ports for three parties at TBWG-10 -
Three ports for six parties at present (TBWG-12)
22
Test Port division for the HCSB at TBSG-12
EU
RF
KO US
CH
JA
Part 1
Part 2
TBD
in the TWCS vault
23
4. Summary

• Three SWIP preliminary TBM concepts have been
  proposed. Merits of these concepts are owing to
  the simple structure and have a high TBR.
• SWIP plans to develop a TBM of its HCSB-favored
  TBM concept during the ITER testing phase. Detail
  of Design Description Document (DDD) will be
  finished within 1-2 years.
• This is a great challenge for us due to the TBM
  will be inserted into the test port on Day one of
  ITER operation (not in D -T phase).

24
Thank You!
Information Center Building of SWIP
25
Key Problem

• The relevant RD
• - Fabrication technique of the solid
  breeder
• - Tritium recovery, processing
• - Temperature control of tritium
  extraction system
• - Tritium permeation barrier , etc.
• Two options for TBM module in China
• Option 1 SB/He/FM concept (SHSB) (SWIP)
• Option 2 Liquid LiPb Blanket (CLLB)
  Concept (ASIPP)
• SWIPs TBM program will face to a great
  challenge
• - lack of the RD experience
• - limited time (the DDD document will
  be finished within 1-2 years)
• - support of personnel and cost

26
Five TBM Working Sub-Groups

• Solid ceramic breeder/ He / FS (TBSG-1)
• Solid ceramic breeder/ water / FS (TBSG-2)
• Liquid lithium-lead / FS (TBSG-3)
• Liquid lithium / Vanadium (TBSG-4)
• Molten Salt (Flibe) / FS (TBSG-5)
• Cost Estimation
• Cost for a TBM module will be 50 million (US )
