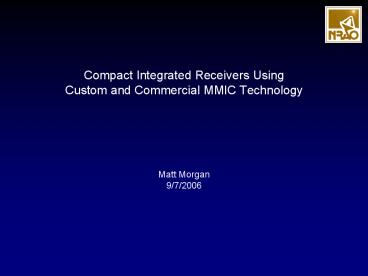

Title: Compact Integrated Receivers Using Custom and Commercial MMIC Technology


1
Compact Integrated Receivers UsingCustom and
Commercial MMIC Technology
  • Matt Morgan
  • 9/7/2006

2
Compact Integrated Receivers
  • 1. critical for focal plane arrays
  • ? beam spacing
  • ? field of view
  • 2. lower mass
  • ? more efficient cryogenics
  • ? tighter temperature control
  • ? reduced mechanical load
  • 3. fewer connectors and cables
  • ? greater reliability
  • ? reduced VSWR effects
  • ? reduced gain slopes
  • ? fewer entry points for RFI

3
MMIC Modules are More Compact, Lightweightand
Manufacturable than Conventional Assemblies
Assembly of Individually Packaged Components
Multi-Chip Module
4
Many MMICs available Commercially
  • Most things below 50 GHz are available
    off-the-shelf for less than 50
  • Exceptions include
  • ? balanced port configurations
  • ? non-standard impedance
  • ? some wide IF-Band mixers
  • Some things in the 50-100 GHz range can be found
    in commercial product
  • listings, but
  • ? sparse frequency coverage
  • ? usually narrow-band, targeted for specific
    applications
  • (communication and radar bands, etc.)
  • ? some exotic functions not supported (compound
    switches, etc.)
  • Finally, there is a large pool of proven custom
    designs to draw from,
  • designed by NRAO and our collaborators (JPL, ATA,
    universities,
  • foundry IRAD designs, etc.)

5
Some Examples W-Band Signal Source
2.5 cm
6
Some Examples Compact Water Vapor Radiometer
All Commercial MMICs!
7
Some Examples ALMA Active Multiplier Chain
8
Some Examples DSN Array Ka-Band Downconverter
9
Working Toward an All-MMIC Receiver
  • 1. Once a design is set, MMIC components and
    assemblies can be mass-
  • produced with exceptional repeatability
  • ? especially in the cm-wave range, where most
    MMICs are
  • commercially available chips are screened by
    the manufacturer
  • and their specs guaranteed.
  • ? module assembly is insensitive to small
    variations bondwires are
  • used for 50 ? interconnects, not for tuning!
  • 2. Repairs are relatively easy to diagnose and
    repair
  • ? because of the inherent uniformity in
    performance, device failure is
  • usually apparent from the DC bias alone.
  • ? when it isn't, the chips are cheap enough to
    simply replace them one
  • at a time until the culprit is found.
  • It is therefore reasonable to think about
    implementing even very sophisticated
  • front-ends in a single module using all MMIC
    technology.
  • ? no internal connectors!
  • ? no internal cables!
  • ? only 1 block to machine
  • ? small, lightweight, manufacturable

10
Shall we take integration a step
furtherReceiver-on-a-Chip?
  • I would say no...
  • ? LNAs, mixers, and multipliers have all been
    demonstrated on common
  • semiconductor technologies, but with
    compromised performance better
  • to pick the right MMIC process for the right
    chip
  • ? even if it works, the yield is too low on
    III-V semiconductors for large-scale
  • integration
  • ? a lot of expensive wafer real estate is wasted
    on passives
  • ? can no longer take advantage of commercial
    components have to design
  • it all from scratch
  • ? no opportunity for chip reuse
  • ? Microwave substrates are thin! A large,
    floppy chip would be too hard to
  • handle and mount without damaging it.

11
Could We Put the Whole Receiver in OneModule and
Cool Everything?
  • Not if it is a heterodyne receiver, because
  • ? LO generation dissipates too much power for
    cryogenics
  • ? IF components are usually Silicon, which will
    not function cold
  • However, special-purpose direct detection
    receivers could occupy
  • a single cold module
  • ? even more compact
  • ? better sensitivity
  • ? better temperature stability
  • ? better component lifetime

12
Another Problem Why are those bias boards so
big?
  • Because we put a lot on them!
  • ? linear regulators
  • ? potentiometers for tuning and gain
  • control
  • ? digital logic for configuration switching
  • and channel selection
  • ? Op-Amps for gate servo loops and
  • monitor points
  • ? IF circuitry
  • It makes for a user-friendly module, but
  • if we're serious about compactness,
  • particularly for focal plane arrays, then we
  • must find a way to trim this part down.

13
Option 1 Develop Common Bias Blocks in Die
Formor Integrated SMT Packages
  • Two external resistors
  • set the desired drain
  • voltage and current.

Probably very expensive! (unless we buy millions
of them) Not suitable for cooling if done in
Silicon.
14
Option 2 Limit DC inputs to analog bias voltages
  • Put nothing in the block except
  • basic EMI and over-voltage
  • protection.
  • All current control, monitoring,
  • and tuning functions can be
  • implemented in a central MC
  • unit (more efficiently, in fact...)

15
Option 2 continued...
  • With all monitor functions in one place, some
    parts can be shared.

16
What About LNAs?
MMIC LNAs
MIC LNAs
? higher-Q passive components ? allows
pre-selection of active devices for
optimum performance
  • ? more compact
  • ? easier to integrate in large
  • multi-function modules
  • ? easy to replicate
  • ? module assembly can be
  • done commercially

Pros
? difficult to transfer assembly "know-how" to
commercial manufacturers.
? larger development cost
Cons
17
A "Nearly Monolithic" LNA
Discrete stage
MMIC stage
  • Maybe we can compromise between optimum
    performance and large-scale
  • manufacturability by using a hand-picked
    first-stage discrete device followed
  • by a MMIC.

18
Case Study Ka-Band All-MMIC Receiver
  • Calculated Performance
  • ? noise temperature 10 K
  • ? gain 60 dB
  • ? P1dB -45 dBm (input)
  • ? LO 2 mW (6-9 GHz)
  • ? power dissipation 150 mW (cold part), 3.5 W
    (warm part)

19
All-MMIC Cold Receiver Module
IF outputs
IF hybrids
MMICs
  • RF inputs

LO input (underneath)
20
All-MMIC Cold Receiver Module
  • The size of a well-designed MMIC module is
    typically
  • dominated by connectors and waveguide flanges.

21
MMIC-Based Cold Receiver Assembly
Cooled Focal Plane Array
  • OMT

MMIC Module
Bias/MC
IF
LO
IF
22
Backup slides follow
23
If the entire receiver is cooled anyway, should
we considerusing superconducting passive
elements (couplers, filters, etc)?
  • I don't think so
  • ? excellent LNA performance can be achieved at
    20K, but a good
  • microwave superconductor would force you to
    much lower
  • temperatures (5K)
  • ? not really a commercial process your passive
    elements
  • could be more expensive than the MMICs!
  • ? you lose the ability to test it at room
    temperature
  • ? not much to gain anyway? superconductors are
    not lossless
  • at high frequency, and cooled copper may be
    competitive if it is
  • reasonably pure
