Review of selected topics ActionMailer Top 10 RoR coding pitfalls

1

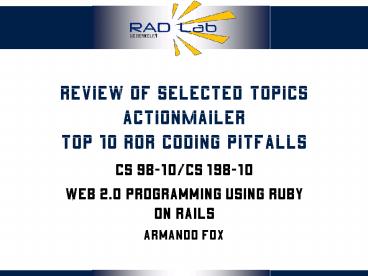

Review of selected topicsActionMailerTop 10 RoR
coding pitfalls

• CS 98-10/CS 198-10
• Web 2.0 Programming Using Ruby on Rails
• Armando Fox

2
Today...

• Review authentication
• Review style tips
• Using ActionMailer to send receive email
• Top 10 pitfalls programming in RoR
• (Next time REST)

3
Example flow authentication

• Ties together several key Rails features
• form submission
• virtual attributes
• the session
• filters
• Strategy
• special key sessionuserid will contain users
  (primary key) ID if logged in, nil otherwise
• users password stored encrypted password
  entered on form encrypted compared

4
password virtual attribute

• Old, bad way
• Login handling code in controller does
  encryption, DB access, etc.
• New, RoR way
• encryption is an implementation detail of the
  user password gt belongs in User model
• Think in terms of what controller methods we
  would like
• set users password to p (e.g., when signing up
  new user or when user changes own password)
• attempt login of user u with password p
• Question where (model vs. controller) does the
  code go that manipulates sessionuid? Why?

5
Making a virtual attribute

• For password, want to be able to set it but not
  (generally) read it. So, in the User model....
• call the underlying DB field encrypted_password
  (or similar)
• def password(pass) ... end declares that
  therelets us write a method password that in
  reality sets the value of encrypted_password
• attr_protected encrypted_password(optional)
  prevents code outside the model from directly
  setting encrypted_password eg as result of mass
  assignment from form submission
• Q what happens if (outside model) we try to
  dereference u.password ?

6
Mechanics of password setter

• Given a plain-text password, set the underlying
  DB field hashed_password to an encrypted value
• hint use self.encrypted_pass for assignment
• hint salt the passwords
• hint require 'digest/sha1' and use SHA1Digest
  to do simple encryption

7
Mechanics of authentication function

• One approach return User object, or string
  describing error
• caller uses kind_of?(User) to distinguish
• More opaque return User model, or nil
• Auth function will take username u plaintext
  password p...
• encrypt password with users salt
• compare encrypted password
• return something

8
Enforcing must be logged in

• Remember controller filters?
• take no args, but can access controller object
  instance session
• must return true or false
• before_filter is_logged_in, only gt ... (or
  except gt ...)
• define filter in application.rb
• def is_logged_in
• User.find_by_id(sessionuid).kind_of?(User)
• end
• Caution!! Bad!! why?
• def is_logged_in
• User.find_by_id(sessionuid).priv_level gt 0
• end

9
When to log out?

• Recall log out remove uid key from session
• sessionuid nil
• also consider ActionControllerBase.reset_session

• One possibility Log me out button
• Another possibility inactivity timeout of n
  seconds
• def is_logged_in
• if (User.find_by_id(sessionuid).kind_of?(User
  ))
• if (Time.now-(sessionlast_action
  1.day.ago))
• lt SESSION_TIMEOUT)
• sessionlast_action Time.now
• end
• end
• end

10
Dont put code in views

• Keep code out of your views as much as possible
• Some code can usually go to model
• e.g. different ways of displaying (aspects of) a
  model object
• a good litmus test options_from_collection_for_se
  lect
• Some code belongs in controller
• e.g. sort, filter, or arrange a collection of
  items that will be passed to a view
• compromise for sorting include Comparable module
  and define instance method ltgt(other)

11
Know your helpers

• A lot of helpers are available for your views
• number_to_currency, number_to_percentage,
  number_to_phone
• cycle(), reset_cycle()
• distance_of_time_in_words_to_now()
• date.to_formatted_s(short long db)
• options_for_select, options_from_collection_for_se
  lect
• Create your own helpers for common tasks
• app/helpers/foo_helper.rb for model/view-specific
  helpers
• app/helpers/application_helper.rb for generally
  useful stuff

12
Action Mailer

• Really 2 different sets of tasks
• your app sends email ActionMailer
• your app receives processes incoming email
  script/runner
• Why would you want to do this?
• Email confirmations, etc. to users
• Email error reports from exceptions to yourself
  (ExceptionNotifiable)

13
Action Mailer Architecture

• Set of methods for sending related types of email
  is a model (without underlying DB table)
• Email message template view
• ActionMailer automatically provides a deliver_foo
  method for foo template
• deliver_ methods actually interact with
  underlying platform to deliver mail
• Steps
• check ActionMailer configuration on your hosting
  site
• create the model
• create view templates (i.e. the actual messages)
• test it

14
ActionMailer configuration

• config/environment.rb
• config.frameworks which frameworks get loaded
  (ActionController, ActionMailer,
  ActionWebService)
• Comment out the line that removes ActionMailer
  and ActionWebService
• config/environments/testing,development.rb
• config.action_mailer.raise_delivery_errors true
• config.action_mailer.delivery_method test
• config.action_mailer.default_charset 'utf-8'
• config/environments/production.rb
• config.action_mailer.delivery_method smtp
• config.action_mailer.server_settings domain
  gt 'berkeley.edu',port gt 25, address gt
  'localhost'

15
Create model

• ruby script/generate mailer OrderMailer
  new_account confirm_password
• Generates app/models/order_mailer.rb with method
  templates for new_account and confirm_password
• default methods take optional sent_at parameter,
  but thats up to you
• each method expects a corresponding view, e.g.
  new_account method gt views/order_mailer/new_accou
  nt.rhtml
• For each method foo, you call deliver_foo to send
  the corresponding email

16
Model methods one per type of email

• Model instance variables email metadata
• _at_bcc, _at_cc, _at_from, _at_subject, _at_recipients... used
  to fill in email headers
• Instance variable _at_body defines variables that
  will be available in the rhtml message body
  template
• _at_body new_password gt newpass,
           nickname gt user.alias
• ...makes variables _at_new_password _at_nickname
  available in .rhtml view
• Caveat if you want (eg) _at_recipient available in
  rhtml view, have to define it as a key in _at_body
• _at_bodyrecipient _at_recipient

17
Create view(s) send email

• To send a plain text email (from any controller
  method)
• Create .rhtml templates free of HTML markup
• Note, it will render without layouts
• OK to use lt gt, partials, etc.
• deliver_new_account(args)
• that's it!

18
Sending HTML email

• Create .rhtml templates containing HTML
• Note, will still render without layouts
• Note, JavaScript etc. probably wont work
• OK to include GIF bugs, etc.
• Extra step set MIME type to text/html before
  send
• in your controller method, instead of deliver_foo
  use
• emailOrderMailer.create_confirm_password(newpass)

• email.set_content_type('text/html')
• OrderMailer.deliver(email)

19
Testing email

• When testing, ActionMailer appends each generated
  email to array ActionMailerBase.deliveries
• So in your functional test...
• _at_emails ActionMailerBase.deliveries
• _at_emails.clear empty the array
• ...in your test case code...
• some action that generates confirmation email
• post(place_order, idgt_at_user)
• assert_equal 1, _at_emails.size
• assert_equal "you_at_berkeley.edu", _at_emails0.to0
• assert_match /confirmation/, _at_emails0.subject
• assert_match /confirmed/, _at_emails0.body
• _at_emails.clear optional but useful...why??

20
Caveats

• on many ISPs, _at_from must match delivery settings
  of ActionMailer (standard anti-spam measure)
• some ISPs only check domain, others also check
  username
• when rendering partials from mailer .rhtml views,
  need to explicitly give path to partial
• Protect calls to deliver_ using rescue, e.g.
• begin
• deliver_new_password(user.login, newpass)
• flashnotice "Your password was emailed to
  user.login."
• rescue Exception gt e
• flashnotice "Error emailing user.login
  " e.message
• end

21
ExceptionNotifiable a neat ActionMailer plugin

• install the plugin
• script/plugin install lturlgt
• in your ApplicationController
• include ExceptionNotifiable
• in environments/production.rb
• config.after_initialize do
• ExceptionNotifier.sender_address
• "errors_at_myapp.rorclass.org"
• ExceptionNotifier.exception_recipients
• "you_at_cs.berkeley.edu"
• end
• Works by hooking rescue_action_in_public, with
  which you should also be familiar

22
Receiving email

• ActionMailer class method receive(raw_email)
• converts a raw email message to TMailMail
  object
• passes that to instance method receive() in your
  class
• create incoming email handler class
• subclass of ActionMailerBase
• receive() instance method takes TMailMail
  object
• 2. arrange to route incoming emails to the
  receive class method
• intercept the email (different ISPs have
  different methods, well publish method for
  rorclass.org)
• use script/runner runs a single command in the
  context of your app
• script/runner 'MyIncomingEmailHandler.receive(STDI
  N.read)'

23
TMailMail useful methods

• def receive(em)
• if em.has_attachments?
• att em.attachments Attachments
• first_att att0
• fn first_att.original_filename
• puts "original attachment name was fn"
• att_contents first_att.read
• behaves like an IO object
• end
• from em.from0
• recipients em.to an Enumerable of
  recipients
• body em.body
• ....

24
Receiving emailcaveats

• Script has no UI when it runsneeds way to
  report errors
• provide full pathname to script/runner
• Protect everything using rescue
• Have script generate an email report to you when
  it finishes
• How to test?
• One way manually cat a raw email to the receive
  script
• cat file /home/me/rails/myapp/script/runner
  'IncomingEmailHandler.receive(STDIN.read)'

25
Top 10? RoR pitfalls

• Confusing Ruby syntax with Javascript -
  attributes vs method calls
• confusing _at_instance vars with local vars in
  views/partials (uninitailized instance vars don't
  throw exceptions)
• using button_to and other constructs inside a
  form_tag
• using disable_with on a form button, and then
  relying on button's name in your controller
  method (when multiple submit buttons on a form)

26
Top 10 cont.

• forgetting that foo.bar will throw a violent
  exception if foo is nil (for strings, can use
  foo.blank? otherwise can define your own
  "helper" methods)
• wrong use of braces in functions that take
  multiple hashes as args, last of which is
  optionalfoo agtb, cgtd will parse
  asfoo(agtb,cgtd) even if you
  meanfoo(agtb,cgtd)(especially problematic
  in link_to_remote, link_to and similar funcs)

27
Top 10 cont.

• Not checking for exceptions when saving a parent
  object in an association (child object(s) will
  silently not be saved)
• Confusing lt gt and lt gt in views. Test does
  it need to appear in HTML?lt javascript_include_
  tag defaults gt
• your favorite here
• your favorite here

28
CalNet authentication

• Why?
• Use existing Calnet ID/password rather than
  rolling your own
• Limit access to your app to specific Calnet IDs
• Access web services that require Calnet
  authentication

29
How CalNet auth works

• calnet.berkeley.edu/developers
• Need to download Rails plugin
• https//calnet.berkeley.edu/developers/downloads/C
  alNetAwsRuby.html

30
CalNet Auth and Rails

• On your apps authentication/login page
• action points to CalNet Authentication Web Server
  (AWS) https//net-auth.berkeley.edu/cgi-bin/krbaw
  s-v3
• URL-embedded parameter AppName contains name of
  your app (user will see when authenticating)
• URL-embedded parameter AppentryURL contains URL
  of real form submission back to your app
• CalNet will post back to your app once user has
  successfully authenticated

31
Back in your app...

• Your app gets post-back from Calnet
• You read the Calnet public key (from a local file
  youve previously grabbed)
• You construct a AwsV3Verifier object using that
  public key
• You pass the parameters AWSSignatureBase64 and
  AWSAuthToken to verifier (these came to you from
  CalNet AWS)
• You get back an aws object (or an exception if
  authentication fails)

32
Using the AWS object

• aws.expired? gt CalNet token has expired
• aws.test_id? gt valid ID that is supposed to be
  used for testing only
• aws.uid gt CalNet ID of authenticated person

33
Example Code
