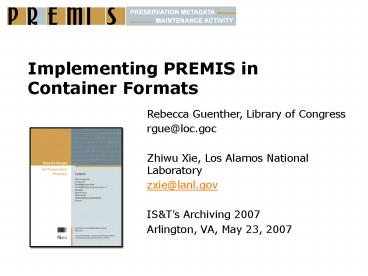

Implementing PREMIS in Container Formats

1
Implementing PREMIS in Container Formats

• Rebecca Guenther, Library of Congress
• rgue_at_loc.goc
• Zhiwu Xie, Los Alamos National Laboratory
• zxie_at_lanl.gov
• ISTs Archiving 2007
• Arlington, VA, May 23, 2007

2
OUTLINE

• Introduction
• OAIS Reference Model and Containers
• METS
• MPEG-21 DID
• Implementing PREMIS in METS
• Implementing PREMIS in MPEG-21 DID
• Summary

3
Digital preservation imperative and challenge

• More and more of scholarly and cultural record
  exists in digital form steps must be taken to
  secure its long-term future
• Significant progress has been made in raising
  awareness about digital preservation imperative
• Shift in focus from articulating problem to
  solving it
• Not so much Why is digital preservation
  important, but What must be done to achieve
  preservation objectives?
• Many practical challenges in implementing
  reliable, sustainable digital preservation
  programs
• One key challenge preservation metadata

4
PREMIS Working Group

• June 2003 OCLC, RLG sponsored new international
  working group
• PREMIS Preservation Metadata Implementation
  Strategies
• Membership
• gt 30 experts from 5 countries, representing
  libraries, museums, archives, government
  agencies, and the private sector
• Co-Chairs Priscilla Caplan (FCLA), Rebecca
  Guenther (LC)
• Objective 1 Identify and evaluate alternative
  strategies for encoding, storing, managing, and
  exchanging preservation metadata
• PREMIS Survey Report (September 2004)
• Snapshot of current practices/emerging trends
  related to managing and using preservation
  metadata in digital archiving systems
• http//www.oclc.org/research/projects/pmwg/surveyr
  eport.pdf
• Objective 2 Define implementable, core
  preservation metadata, with guidelines/recommendat
  ions for management and use

5
PREMIS Data Model
Intellectual Entities
Rights
Agents
Objects
Events
6
PREMIS Data Dictionary

• May 2005 Data Dictionary for Preservation
• Metadata Final Report of the PREMIS Working
  Group
• 237-page report includes
• PREMIS Data Dictionary 1.0
• Context/assumptions, data model, usage examples
• Set of XML schema to support implementation
• Data Dictionary
• Comprehensive view of information needed to
  support digital preservation
• Guidelines/recommendations to support creation,
  use, management
• Used Framework as starting point
• Based on deep pool of institutional experiences
  in setting up and managing operational capacity
  for digital preservation
• Received the 2005 Digital Preservation Award (UK)
  and 2006 Society of American Archivists
  Publication Award

http//www.oclc.org/research/projects/pmwg/premis-
final.pdf
7
Some guiding principles

• Implementable, core, preservation metadata
• Preservation metadata maintain viability,
  renderability, understandability, authenticity,
  identity in a preservation context
• Core What most preservation repositories need
  to know to preserve digital materials over the
  long-term
• Implementable rigorously defined supported by
  usage guidelines/recommendations emphasis on
  automated workflows
• Technical neutrality
• Digital archiving system no assumptions about
  specific archiving technology, system/DB
  architectures, preservation strategy
• Metadata management no assumptions about whether
  metadata is stored locally or in external
  registry recorded explicitly or known
  implicitly instantiated in one metadata element
  or multiple elements
• Promotes flexibility, applicability in wide range
  of contexts

8
Scope

• What PREMIS DD is
• Common data model for organizing/thinking about
  preservation metadata
• Guidance for local implementations
• Standard for exchanging information packages
  between repositories
• What PREMIS DD is not
• Out-of-the-box solution need to instantiate as
  metadata elements in repository system
• All needed metadata excludes business rules,
  format-specific technical metadata, descriptive
  metadata for access, non-core preservation
  metadata
• Lifecycle management of objects outside
  repository
• Rights management limited to permissions
  regarding actions taken within repository

9
PREMIS Maintenance Activity

• Web site
• Permanent Web presence, hosted by
• Library of Congress
• Central destination for PREMIS-related
• info, announcements, resources
• Home of the PREMIS Implementers Group (PIG)
  discussion list
• PREMIS Editorial Committee
• Set directions/priorities for PREMIS development
• Coordinate future revisions of Data Dictionary
  and XML schema
• Membership Library of Congress, OCLC, FCLA,
  National Archives of Scotland, British Library,
  National Library of Australia, U. of Goettingen,
  LANL, Ex Libris, Library Archives Canada

http//www.loc.gov/standards/premis/
10
OAIS Reference Model and Containers
11
OAIS Reference Model

• Developed by the Consultative Committee for Space
  Data Systems (CCSDS)
• ISO 147212003
• A functional model for preservation activities
• An information model specifying types of
  information required for long-term preservation

12
OAIS Reference Model and PREMIS

• OAIS reference model specifies the Preservation
  Description Information (PDI)
• PREMIS used the OAIS information model as a
  starting point
• PREMIS Data Dictionary consolidated and further
  developed the conceptual types of information
  objects into more than 100 structured and
  logically integrated semantic units.
• PREMIS Data Dictionary provided detailed
  descriptions and guidelines to implement these
  semantic units.
• PREMIS Data Dictionary does not provide semantic
  units for Intellectual Entities, but provides
  semantic units to link to other metadata sources
  for Intellectual Entities
• All entities have reference (identification)
  information.
• No packaging information that links content
  with metadata, but PREMIS can be used with
  container schemas
• PREMIS deals mostly with representation, context,
  provenance, and fixity information, in keeping
  with PREMIS definition of preservation metadata.

13
PREMIS XML schemas

• One schema for each PREMIS entity in data model
• Allows user to choose which parts of PREMIS to
  use
• PREMIS container schema
• References schema for each entity type
• Provides a container if it is desirable to keep
  some or all PREMIS metadata together
• If using container requires at least an object
  which in turn requires objectIdentifier and
  objectCategory
• Individual schemas may used alone or with
  container
• Semantic units in PREMIS schemas
• XML is faithful to data dictionary
• Only those units mandatory for all categories of
  objects are mandatory in object schema

14
Need a Container in the XML Implementation

• Archival Information Package (AIP) may include
  much more metadata besides the preservation
  metadata
• A well defined container is usually necessary to
  group and appropriately associate these metadata
  with the data object
• For example METS or MPEG-21 DID

15

• METS records the (possibly hierarchical)
  structure of digital objects, the names and
  locations of the files that comprise those
  objects, and the associated metadata
• A METS document may be a unit of storage (e.g.
  OAIS AIP) or a transmission format (e.g. OAIS SIP
  or DIP)
• METS is extensible and modular
• METS uses extension wrappers or sockets where
  elements from other schemas can be plugged in
• METS uses the XML Schema facility for combining
  vocabularies from different Namespaces
• The METS Editorial Board has endorsed PREMIS as
  an extension schema
• Many institutions trying to use PREMIS within the
  METS context

16
The structure of a METS file
17
OAIS and METS
ltMETSgt
described by
delimited by
Archival Information Package
Descriptive Information
Packaging Information
identifies
derived from
ltdmdSecgt
MODS MARCXML DC
Preservation Description Information
Content Information
further described by
ltfileGrpgt
ltamdSecgt
Reference Information
ltmdRefgt
Representation Information
Data Object
ltrightsMDgt
Context Information
metsRights premisrights
lttechMDgt
ltfilegt
ltstructMapgt
ltdigiProvMDgt ltsourceMDgt premisevent
Provenance Information
Semantics
Structure
described by
Fixity Information
lttechMDgt
premisobject
File formats
premisobject textMD MIX
Legend Black Arial OAIS Red Times New Roman
METS Primary Schema Blue Times New Roman Italics
Extension Schema
18
METS extension schemas

• wrappers or sockets where elements from other
  schemas can be plugged in
• Provides extensibility
• Uses the XML Schema facility for combining
  vocabularies from different Namespaces
• Endorsed extension schemas
• Descriptive MODS, DC, MARCXML
• Technical metadata MIX (image) textMD (text)
• Preservation related PREMIS

19
Issues in using PREMIS with METS

• Which METS sections to use and how many
• Whether to record elements redundantly in PREMIS
  that are defined explicitly in the METS schema
• How to record elements that are also part of a
  format specific technical metadata schema (e.g.
  MIX)
• Recording structural relationships
• How to deal with locally controlled vocabularies
• Whether to use the PREMIS container

20
PREMIS and METS sections

• Flexibility of METS requires implementation
  decisions
• You cant put all PREMIS metadata directly under
  amdSec
• What sections to use for PREMIS metadata?
• Alternative 1
• Object in techMD
• Event in digiProvMD
• Rights in rightsMD
• Agent with event or rights
• Alternative 2
• Everything in digiProvMD
• Alternative 3
• Everything in techMD
• How many administrative MD sections to use?
• Experimentation will result in best practices

21
Inserting technical metadata in a METS Document
ltmetsgt ltamdSecgt lttechMDgt ltmdWrapgt
ltxmlDatagt lt!-- insert data from
different namespace here --gt
lt/xmlDatagt lt/mdWrapgt lt/techMDgt
lt/amdSecgt ltfileSec /gt ltstructMap /gt lt/metsgt
22

• ltfileSecgtltfileGrpgt
• ltfile ID"FID1" SIZE"184302" ADMID"TMD1PREMIS
  TMD1MIX DP1EVENT DP1AGENT CHECKSUM"4638bc65c5b97
  15557d09ad373eefd147382ecbf" CHECKSUMTYPE"SHA-1"gt

• ltFLocat LOCTYPE"OTHER" xlinkhref"BXF22.JPG" /gt
• lt/filegtlt/fileGrpgtlt/fileSecgt
• lttechMD ID"TMD1PREMIS"gt
• ltmdWrap MDTYPE"PREMIS"gt
• ltxmlDatagt ltpremisobject gt
  ltobjectCharacteristicsgt ltfixitygt
  ltmessageDigestAlgorithmgtSHA-1 lt/messageDigestAlgor
  ithmgt ltmessageDigestgt4638bc65c5b9715557d09
  ad373eefd147382ecbf
• lt/messageDigestgt
  ltmessageDigestOriginatorgtEchoDep/me
  ssageDigestOriginatorgt lt/fixitygt
  ltsizegt184302lt/sizegt lt/objectCharacteristicsgt
• Elements defined in both METS and PREMIS
• METS Checksum, Checksumtype
• attribute of ltfilegt
• not repeatable
• PREMIS fixity
• also includes messageDigestOriginator
• allows multiples

23

• ltfileSecgtltfileGrpgt
• ltfile ID"FID1" ADMID"TMD1PREMIS DP1EVENT
  DP1AGENT MIMETYPE"image/jpeg"
• ltFLocat LOCTYPE"OTHER" xlinkhref"BXF22.JPG"/gt
• lt/filegtlt/fileGrpgtlt/fileSecgt
• lttechMD ID"TMD1PREMIS
• ltmdWrap MDTYPE"PREMIS"gt
• ltxmlDatagt
• ltpremisobjectgt
• ltobjectCharacteristicsgt
• ltformatgt
• ltformatDesignationgt
• ltformatNamegtimage/jpeglt/formatNam
  egt
•   ltformatVersiongt1.02 lt/formatVersi
  ongt
• lt/formatDesignationgtlt/formatgt
• lt/objectCharacteristicsgt
• Elements defined both in METS and PREMIS
• METS MIMETYPE
• attribute of ltfilegt

24

• ltfileSecgt ltfileGrpgt
• ltfile ID"FID1" ADMID"TMD1PREMIS TMD1MIX
  DP1EVENT DP1AGENT"gt
• lttechMD ID"TMD1PREMIS"gt
• ltlinkingEventIdentifiergt
• ltlinkingEventIdentifierTypegtECHODEP Hub
  Event
• lt/linkingEventIdentifierTypegt
• ltlinkingEventIdentifierValuegtecho12345lt/linki
  ngEventIdentifierValuegt
• lt/linkingEventIdentifiergt
• ltdigiprovMD ID"DP1EVENT"gt
•   ltpremiseventgt
• lteventIdentifiergt
• lteventIdentifierTypegtECHODEP Hub Eventlt/e
  ventIdentifierTypegt
• lteventIdentifierValuegtecho12345 lt/eventId
  entifierValuegt
• lt/eventIdentifiergt
• lteventTypegtingestionlt/eventTypegt
• lteventDateTimegt2006-05-02T151253 lt/eventD
  ateTimegtlt/eventgt
• Elements defined both in METS and PREMIS
• METS ID/Idref used to associate metadata in
  different sections and for different files

25

• ltstructMap TYPEphysicalgt
• ltdiv ORDER"1" TYPE"text"gt
• ltfptr FILEID"FID9"/gt
• ltdiv ORDER"1" TYPE"page" LABEL" Page
  1"gt
• ltfptr FILEID"FID1"/gtlt/metsdivgt
• ltdiv ORDER"2" TYPE"page" LABEL" Page
  2"gt
• ltfptr FILEID"FID2"/gtlt/metsdivgt
• lt/divgt
• ltrelationshipgt
• ltrelationshipTypegtstructurallt/relationshipTypegt

• ltrelationshipSubTypegtis sibling of
  lt/relationshipSubTypegt
• ltrelatedObjectIdentificationgt
• ltrelatedObjectIdentifierTypegtUCBlt/relatedObje
  ctIdentifierTypegt
• ltrelatedObjectIdentifierValuegtFID2lt/relatedOb
  jectIdentifierValuegt
• ltrelatedObjectSequencegt1lt/relatedObjectSequen
  cegt
• Elements defined both in METS and PREMIS
• METS structMap

26
How to record elements from 2 different technical
metadata schemas

• Format specific metadata may be included in
  addition to PREMIS general technical metadata
• Use multiple techMD sections and specify source
  in MDType attribute and/or namespace declaration
• e.g. MDTYPENISOIMG or PREMIS
• Give MIX schema declaration in METS document
• MIX was recently revised to correspond with the
  revision of the Z39.87 technical metadata for
  digital still images standard names harmonized
  with corresponding PREMIS semantic units
• For digital still images, best practice may be to
  use PREMIS for general semantic units defined in
  PREMIS and MIX for format specific units without
  redundancy

27
MPEG-21 Digital Item Declaration (DID)

• ISO/IEC 21000-2 Digital Item Declaration
• A promising alternative to represent Digital
  Objects
• Starting to get supported by some repositories,
  e.g., aDORe, DSpace, Fedora
• A flexible and expressive model that easily
  represents compound objects (recursive item)
• Attach well-formed XML from persistent namespaces
  as metadata
• Strong industry support

28
Abstract Model for MPEG-21 DID
container grouping of items and
descriptor/statement constructs pertaining to the
container
container
item represents a Digital Item aka Digital
Object aka asset. Descriptor/statement constructs
convey information about the Digital Item
descriptor/statement
item
component binding of descriptor/statements to
datastreams
descriptor/statement
item
resource datastream
component
component
descriptor/statement
resource
resource
resource
descriptor/statement
29
Implementing PREMIS in DID

• DID abstract model is an object-centric
  containment model
• Semantically, Descriptor/statement constructs
  under a certain level are the metadata about
  that level of DID container or item or component.
• Descriptor/statement about the DID container
  should be mapped to OAIS packaging information,
  therefore out of the PREMIS scope
• Rights, Agents, and Events in the PREMIS model
  are linked to the objects, but not about the
  objects.
• However, the PREMIS metadata as a whole
  (premispremis), is about an object (the target
  of the preservation)

30
Mapping
All rights, events, and agents go here. The top
level object goes here. Other objects may be
duplicated here or linked here.
DID
DIDInfo
object1
premispremis
object2
object3
object4
premisobject
premis object
resource
resource
resource
premis object
31
Partial Implementation in DID
When metadata are not sufficient to form the top
level PREMIS elements, partial implementation may
be done if PREMIS elements are globally defined.
DID
DIDInfo
object1
premispremis
object2
object3
object4
premissignificantProperties
premis creatingApplication
resource
resource
resource
premis format
32
Examples of PREMIS in XML containers

• PREMIS in METS
• Portrait of Louis Armstrong (Library of Congress)
• PREMIS in MPEG DID
• aDORe example (LANL)

33
Proposed schema changes for new version

• Define an abstract object type to allow for
  better validation of object category
  (representation, file, bitstream)
• Define elements and types globally to allow for
  reuse
• Implement an extensibility mechanism to provide
  for further structure when needed
• Implement a mechanism to use controlled
  vocabularies
• Adjust schemas to support changes in version 2 of
  data dictionary

34
Summary container formats

• A container format is needed to package together
  all forms of metadata (of which PREMIS is one)
  and digital content
• Use of a container is compatible with and an
  implementation of the OAIS information package
  concept
• Co-existence with other types of metadata
  requires best practices for both approaches
  redundancy seems to be preferred
• Changes to the next version of the PREMIS XML
  schemas will facilitate a phased approach to full
  PREMIS implementation
• Development of registries (informal or formal)
  for controlled vocabularies will benefit
  implementation

35
Summary METS vs. MPEG 21 DID

• METS and MPEG DID are similar types of container
  formats in that both are expressed in XML, both
  represent the structure of digital objects, and
  both include metadata
• MPEG DID doesnt have the segmentation in
  metadata sections that METS does, so this
  implementation decision need not be made in DID
• METS is open source and developed by open
  discussion, mainly cultural heritage community
• MPEG DID is an ISO standard and has industry
  support, but is often implemented in a
  proprietary way and standards development is
  closed
• It would be possible to transform a METS
  container to a MPEG DID and vice versa
  development of stylesheets will enable
  transformations
