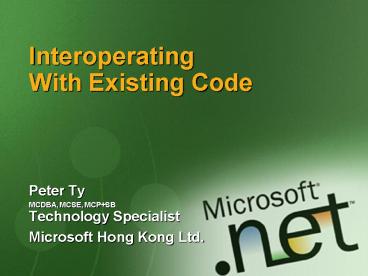

Title: Interoperating With Existing Code


1
InteroperatingWith Existing Code
  • Peter Ty
  • MCDBA, MCSE, MCPSBTechnology Specialist
  • Microsoft Hong Kong Ltd.

2
Common Language Runtime Type System
  • Compilers use the runtime type system to produce
    type compatible components

Runtime Components
PlatformCompilers

C
VB
C
Runtime Type System
3
Interoperability Services
Type SystemStandard
BinaryStandard
Runtime Execution Sys
COM Binary Std
C
VB
MFC/ATL
MSVCRT
C
Runtime Type Sys
4
Why Interop
  • Preserve/Utilize your investment
  • No need to start over
  • Continue to use exist code
  • Incremental migration path
  • Migrate your application step by step
  • Reality some things never change
  • Need to interop with code that cant change

5
Interop
  • COM/DLL
  • Binary standard
  • Type Libraries
  • Immutable
  • Type unsafe
  • Interface based
  • HResults
  • Guids
  • .NET Framework
  • Type Standard
  • Assemblies
  • Resilient Bind
  • Type Safe
  • Class and Interface based
  • Exceptions
  • Strong Names

6
Model Consistency
  • Programming model remains consistent
  • COM developers use COM model
  • .NET Framework developers use .NET Framework
    model
  • Model Transparency
  • .NET Framework
  • new operator
  • Cast operator
  • Memory mgmt
  • Exceptions
  • Static Methods
  • COM/DLL Model
  • CoCreateInstance
  • QueryInterface
  • Reference Counting
  • Hresults
  • GetProcAddress

7
Interop Services
  • COM Interop
  • Use COM components from the runtime
  • Use .NET Framework components from COM
  • Platform Invoke
  • Call static Entry Points in unmanaged DLLs
  • Pass function pointers to unmanaged code for
    callback

8
COM Interoperability
9
COM Interop
  • Provides a bridge between .NET Framework and COM
    and vice versa
  • Maintains programming model consistency on both
    sides
  • Abstracts the inconsistencies between the two
    models
  • Different data types
  • Method signatures
  • Exception/Hresults
  • Interop is for backward compatibility, build .NET
    clients for real simplicity

10
Bi-Directional COM Interop
  • .Net to COM
  • Allows .Net types to access COM types
  • COM to .Net
  • Allows COM types to access .Net types

.Net
COM
COM
.Net
11
.Net To COM Interop
Common Language Runtime
COM Server
Object
Runtime CallableWrapper
ReferenceCounted
Client
Traced Reference
12
Using COM Types From The .NET Framework
  • Create type definitions for COM types
  • By adding references in VS
  • By using type library importer (tlbimp)
  • By defining types manually
  • Use the types as managed types
  • Create instance with new
  • Cast between interfaces
  • Extend them
  • No reference counting
  • Catch Exceptions

13
Helpful Information
  • Dont think of the types as COM types
  • Catch exceptions
  • Use reflection
  • Use delegates based events
  • COM types must be registered (of course)
  • Assembly with COM type definitions must be
    resolvable at runtime
  • Late bind to COM types using reflection
  • Threading model must be compatible
  • Application must have full trust in order to use
    COM types

14
Under the Covers
  • The runtime wraps all COM objects with a Runtime
    Callable Wrapper (RCW)
  • The wrapper handles
  • Reference counting
  • Signature conversion
  • Object identity
  • Exception mapping
  • More
  • Runtime marshals calls between the wrapper and
    the COM object

15
Using COM Types From .NET Framework Code Walk
16
COM To .Net Interop
Traced Reference
Common Language Runtime
COM Client
COM CallableWrapper
IFoo
Object
ReferenceCounted
Client
17
Using .NET Framework Types From COM
  • Create manage type in the usual way
  • Only public are exposed to com
  • Classes must have default constructor to be
    creatable
  • Use TlbExp to create COM type library
  • Register the assembly with RegAsm
  • Only needed for interop
  • Reference the typelib as necessary
  • Use the types as normal COM types
  • Create instance with CoCreateInstance
  • Use QueryInterface to type coercion
  • Use AddRef/Release to reference count
  • Examine Hresults on return

18
Helpful Information
  • Guids generated automatically at export time.
  • Based on assembly and type name
  • Based on complete interface definition
  • Typelib file may be needed at runtime
  • Runtime will produce one automatically
  • Prepackage along with assembly
  • Assembly must be resolvable at runtime to
    activate from COM
  • Installed in application directory or
  • Installed in global assembly store

19
Under The Covers
  • The runtime wraps all .NET Framework objects with
    a COM Callable Wrapper (CCW)
  • The wrapper implements
  • IUnknown
  • IDispatch
  • ITypeInfo
  • IProvideClassInfo
  • IConnectionPoint, etc.
  • The runtime marshals calls between the COM client
    and the wrapper
  • Wrapper also manages identity, handles
    exceptions, signature conversion, etc

CCW
.Net Class
20
Using .NET Types From COM Code Walk Thru
21
Building COM Compatible Types
.NET Framework
COM
IFooBaz
IFooBaz
CCW
22
Building COM Compatible Types
  • COM Compatible types provide compatible
    implementations of existing COM interfaces
  • Interfaces must have compatible layout, IID,
    DispID, method signature
  • Start by importing interface definitions with
    TlbImp
  • Implement necessary interfaces, export with
    TlbExp and register with RegAsm

23
Signature TranslationPerformed by TlbImp/TlbExp
  • .NET Framework Method Signature
  • int FormatDate(String s, DateTime d)
  • HRESULT FormatDate(BSTR s, DATE d, out, retval
    int retval)
  • COM Method Signature

TlbImp
TlbExp
24
Custom Attributes
Custom Attributes can be applied to types,
methods, properties, fields or parameters to
effect the COM type definitions produced by TlbExp
  • Using System.Runtime.InteropServices
  • Guid(), InterfaceType(ComInterfaceType.IsIUnknow
    n)
  • Interface IFooBar
  • DispId(64) int Format( MarshalAs(LPSTR)
    String s)

Custom Attributes are also used for other
purposes
25
Platform Invoke (P/Invoke)
  • Provides access to static entry points in
    unmanaged DLLs
  • Similar to
  • VB Declare statement
  • Load library / GetProcAddress
  • Requires method definition with custom attribute
  • Uses same underlying marshaling service as COM
    Interop

26
