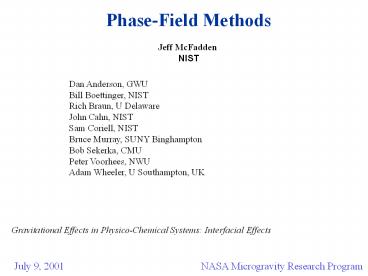

Phase-Field Methods Jeff McFadden NIST
Dan Anderson, GWU Bill Boettinger, NIST Rich
Braun, U Delaware John Cahn, NIST Sam Coriell,
NIST Bruce Murray, SUNY Binghampton Bob Sekerka,
CMU Peter Voorhees, NWU Adam Wheeler, U
Southampton, UK
Gravitational Effects in Physico-Chemical
Systems Interfacial Effects
July 9, 2001
NASA Microgravity Research Program
2

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Multi-phase wetting in order-disorder transitions
• Recent phase-field applications
• Monotectic growth
• Phase-field model of electrodeposition

3
Phase-Field Models
Main idea Solve a single set of PDEs over the
entire domain
Phase-field model incorporates both bulk
thermodynamics of multiphase systems and surface
thermodynamics (e.g., Gibbs surface excess
quantities).
4
Phase-Field Model
The phase-field model was developed around 1978
by J. Langer at CMU as a computational technique
to solve Stefan problems for a pure material. The
model combines ideas from
5
Cahn-Allen Equation
6
Ordering in a BCC Binary Alloy
7
Parameter Identification

• 1-D solution
• Interface width
• Surface energy
• Curvature-dependence (expand Laplacian)

8
Phase-Field Model
J.S. Langer (1978)
9
Free Energy Function
10
Phase-Field Equations
Penrose Fife (1990), Fried Gurtin (1993),
Wang et al. (1993)
11
Sharp Interface Asymptotics

• Consider limit in which

• Different distinguished limits possible.
• Caginalp (1988), Karma (1998), McFadden et al
  (2000)
• Can retrieve free boundary problem with

12

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Multi-phase wetting in order-disorder transitions
• Recent phase-field applications
• Monotectic solidification
• Phase-field model of electrodeposition

13
Anisotropic Equilibrium Shapes
W. Miller G. Chadwick (1969)
Hoffman Cahn (1972)
14
Cahn-Hoffman -Vector
Taylor (1992)
Phase field
15
Cahn-Hoffman -Vector
Cahn Hoffmann (1974)
Phase field
16
Diffuse Interface Formulation
Kobayashi(1993), Wheeler McFadden (1996),
Taylor Cahn (1998)
17
Corners Edges In Phase-Field

• changes type
  when -plot is concave.

• where
• interpret as a stress tensor

Fried Gurtin (1993), Wheeler McFadden 97
18
Corners/Edges

• Jump conditions give
• where
• and

Bronsard Reitich (1993), Wheeler McFadden
(1997)
19
Corners and Edges

Eggleston, McFadden, Voorhees (2001)
20

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Multi-phase wetting in order-disorder transitions
• Recent phase-field applications
• Monotectic solidification
• Phase-field model of electrodeposition

21
Cahn-Hilliard Equation
22
Phase Field Equations - Alloy
Wheeler, Boettinger, McFadden (1992)
23
Alloy Free Energy Function
One possibility
Ideal Entropy
?L and ?S are liquid and solid regular solution
parameters
24
W. George J. Warren (2001)

• 3-D FD 500x500x500
• DPARLIB, MPI
• 32 processors, 2-D slices of data

25
Surface Adsorption
McFadden and Wheeler (2001)
26
Surface Adsorption
1-D equilibrium
Cahn (1979), McFadden and Wheeler (2001)
27
Surface Adsorption
Ideal solution model
Surface free energy
Surface adsorption
28

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Multi-phase wetting in order-disorder transitions
• Recent phase-field applications
• Monotectic solidification
• Phase-field model of electrodeposition

29
Solute Trapping
Increasing V
At high velocities, solute segregation becomes
small (solute trapping)
N. Ahmad, A. Wheeler, W. Boettinger, G. McFadden
(1998)
30
Nonequilibrium Solute Trapping

• Numerical results (points) reproduce Aziz
  trapping function

• With characteristic trapping speed, VD, given by

31
Nonequilibrium Solute Trapping (cont.)
32

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Interface structure in order-disorder transitions
• Recent phase-field applications
• Monotectic solidification
• Phase-field model of electrodeposition

33
FCC Binary Alloy
Disordered phase
CuAu
G. Tonaglu, R. Braun, J. Cahn, G. McFadden, A.
Wheeler
34
Ordering in an FCC Binary Alloy
35
Free Energy Functional
36
Equilibrium States in FCC
37
Wetting in Multiphase Systems
Kikuchi Cahn CVM for fcc APB (Cu-Au)
38
Adsorption in FCC Binary Alloy
Interphase Boundaries
G. Tonaglu, R. Braun, J. Cahn, G. McFadden, A.
Wheeler
39

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Multi-phase wetting in order-disorder transitions
• Recent phase-field applications
• Monotectic solidification
• Phase-field model of electrodeposition

40
Monotectic Binary Alloy
A liquid phase can solidify into both a solid
and a different liquid phase.
Expt Grugel et al.
Nestler, Wheeler, Ratke Stocker 00
41
Incorporation of L2 into the solid phase
Expt Grugel et al.
42
Nucleation in L1 and incorporation of L2 into
solid
Expt Grugel et al.
43

• Outline
• Background
• Surface Phenomena in Diffuse-Interface Models
• Surface energy and surface energy anisotropy
• Surface adsorption
• Solute trapping
• Multi-phase wetting in order-disorder transitions
• Recent phase-field applications
• Monotectic solidification
• Phase-field model of electrodeposition

44
Superconformal Electrodeposition

• Cross-section views of five trenches with
  different aspect ratios
• filled under a variety of conditions.

• Note the bumps over the filled features.

D. Josell, NIST
45
Phase-Field Model of Electrodeposition
J. Guyer, W. Boettinger, J. Warren, G. McFadden
(2002)
46
(No Transcript)
47
1-D Equilibrium Profiles
48
1-D Dynamics
49
Conclusions

• Phase-field models provide a regularized version
  of Stefan problems for computational purposes
• Phase-field models are able to incorporate both
  bulk and surface thermodynamics
• Can be generalised to
• include material deformation (fluid flow
  elasticity)
• models of complex alloys
• Computations
• provides a vehicle for computing complex
  realistic microstructure

50
Experimental Observation of Dendrite Bridging
Process
(b) t 10 sfs 0.70
(a) t 0 sfs 0.00
(c) t 30 sfs 0.82
125 mm
Photo W. Kurz, EPFL
(e) t 210 sfs 0.97
(d) t 75 sfs 0.94
(f) t 1500 sfs 0.98
51
Dendrite side arm bridging
X
Y

• Collision of offset arms - Delayed bridging

52
Coalescence of two Grains Using Multi-Grain Model
P Disjoining Pressure
ggb 0.3 gsl 0.1 DT 0 K
ggb 0.3 gsl 0.1 DT 50 K
W. Boettinger (NIST) M. Rappaz (EPFL)
53
-Tensor Derivation
