Title: Advanced Texturing: Stupid Texture Tricks


1

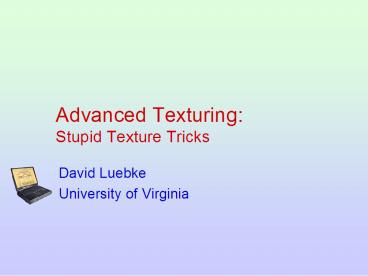

Advanced TexturingStupid Texture Tricks
  • David Luebke
  • University of Virginia

2
Recap
  • A point sprite is a screen-aligned textured quad
    placed by rendering a single vertex
  • A billboard is a textured (usually) quad that
    (usually) rotates to face the viewer
  • Performer demo, Far Cry demo
  • Billboard clouds
  • An imposter is a billboard created on the fly to
    cache rendered imagery
  • Sometimes also refers to just a textured LOD

3
Recap
  • A depth texture affects and is affected by the
    depth buffer
  • NV_DEPTH_TEXTURE demo

4
Imposters Continued
  • Depth meshes
  • UNC MMR system
  • Imposters for urban environments

5
Billboards cont.
  • Can represent an entire object with just
    billboards!
  • Common trick for trees
  • Billboard clouds apply idea to other (all)
    objects
  • Trick is to compute these automatically

6
Multitexturing
  • Modern hardware can read from multiple textures
    at once, even with mipmapping
  • Detail texturing
  • Light mapping
  • Bump mapping

7
TexturesOther Important Stuff
  • Render to texture
  • Environment maps
  • Simplest approach sphere map
  • Hardware supports cube maps
  • Shadow maps
  • Basically, a depth texture from the point of view
    of a light source
  • More later

8
TexturesStill More Stuff
  • Normal maps
  • Gloss maps, reflectance maps, etc
  • Generally
  • Think of textures as global memory for fragment
    programs, w/ built-in filtering
  • Soon (next-gen hardware) will be able to access
    textures in vertex programs too
  • Deferred shading
  • Projective texture mapping

9
Next topic Cg
  • Many of the tricks we discuss in this class do
    not depend on programmable graphics hardware
  • But, most are easier to implement this way!
  • So, the next topic is a brief intro to Cg
  • My apologies to those of you whove seen this
  • My apologies to those of you who havent.
