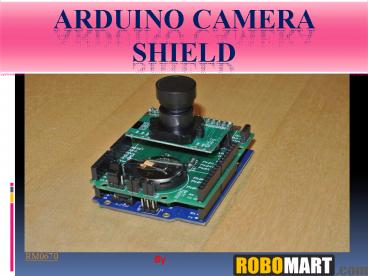

Arduino Camera Shield By Robomart

1
arduino camera shield



• By

RM0670
2
Introduction of arduino camera shield

• This is a high-quality color CMOS camera module.
• Power the module, hook up any display, monitor,
  or LCD screen with an RCA input and get vivid
  color video at 640x480 resolution.
• Module is easily mountable and has a wide
  operating voltage (5V to 15V).
• Comes with high quality optics, all the on board
  circuitry to output RCA signal, and cable harness.

3
SPECIFICATIONS OF ARDUINO CAMERA SHIELD

• Pixel 1.3 mega pixel.
• Resolution 640 x 480 / 1280 x 1024.
• Color 24 bit.
• Transmission rate 30/15 fps.
• Input 5V to 15V.
• Current 50mA (at 12V).
• Switchable NTSC and PAL output using a jumper.

4
FEATURES OF ARDUINO CAMERA SHIELD

• Low voltage suitable for embedded applications.
• Standard SCCB interface compatible with I2C
  interface.
• Raw Rgb to RGB (GRB4 22, RGB565/555/444), YUV
  (422) and ycbcr (422)output format support
  VGA,
• CIF, and from CIF to 40x30 the size.
• Various Pixel sub-sampling way.
• Eliminate light stripes, automatic black level
  calibration image quality control including
  color.
• Saturation, hue, gamma, sharpness ANTI_BLOOM.
• ISP has eliminate noise and dead pixel
  compensation function.
• Support image scaling.
• The lens is the loss of light compensation.
• 50/60Hz detection.

5
APPLICATIONS ARDUINO CAMERA SHIELD

• It is used as a camera.
• AVR/Arduino/Raspberry-pi based camera interfacing
  project.
