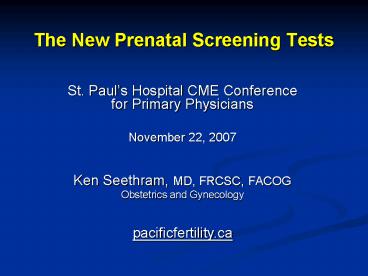

Title: The New Prenatal Screening Tests


1
The New Prenatal Screening Tests
  • St. Pauls Hospital CME Conference for Primary
    Physicians
  • November 22, 2007
  • Ken Seethram, MD, FRCSC, FACOG
  • Obstetrics and Gynecology

pacificfertility.ca
2
Disclosure statement
I have no financial relationship with
pharmaceutical or medical ultrasound corporations
associated with prenatal screening and/or
diagnosis.
3
  • ..wow, things have changed

4
Objectives
  • To make you current with 2007/08 guidelines from
    ACOG and SOCG with regards to Prenatal screening
    options
  • Help fully understand all options in order to
    better undertake counseling
  • Help understand how and when to get your patients
    screened once their options are known

5
(No Transcript)
6
Outline
  • Definitions
  • Background and Evolution
  • Second Trimester Serum Screening
  • First Trimester Screening
  • Combined Screening
  • Guidelines
  • Final words and resources

7
Quick Definitions
  • DR Detection rate
  • the rate at which a test will pick up the
    problem. This is accuracy, not reliability
  • FPR False positive rate
  • the chance that the screening tool will be
    positive when the condition is absent
  • Screen positive
  • the literature term to describe the number of
    times the test will be positive (either truly or
    falsely)

8
Background
  • What are we screening for?
  • Aneuploidy majority of which is Trisomy 21,
    with T18, T13, and monosomy X (45X)
  • Secondary screening benefits?
  • Dating the pregnancy
  • Anatomy evaluation, placental evaluation, twins,
    early anomalies

9
Evolution of screening
  • 1887 John Langdon Down presented
  • 1930s first association made with maternal age
    and risk of major malformations
  • due to egg age, declining quality of spindle
    mechanism nondisjunction at meiosis I prior to
    fertilization aneuploidy results
  • late 1970s age was first put to use to triage
    women for amniocentesis

10
Evolution of screening
  • Age 35 became the high risk age
  • at which the rate of aneuploidy was equal to the
    rate of amniocentesis/CVS related miscarriage.
  • Therefore, maternal age was the first screening
    tool.
  • Bad news its the worst screening tool, with
    only 30-40 detection rate
  • Today dont use age 35 as a cut-off

11
1980s 2nd Trimester serum
  • AFP
  • Total hCG
  • Unconjugated estriol uE3

Inhibin A
Quad Screen (TMS/Quad multiple marker scrg
test, maternal serum screen)
12
TMS and Quad Screening
  • Nothing really has changed with multiple marker
    screening tools
  • Uses 2-4 biochemical markers to adjust the age
    related risks
  • Problem - specificity drops as disease prevalence
    increases
  • i.e. Many false positives

13
What has evolved in the first trimester? (11-14
weeks)
  • Nuchal Translucency (NT)
  • Serum biochemistry
  • Nasal Bone (NB)
  • Tricuspid regurgitation (TR)
  • Frontomaxillary facial angle (FMF Angle)

14
The First Trimester - NT
  • US measurement, 11-14w spine to skin
  • Fetal Medicine Foundation
  • Aneuploidy - a change in extracellular matrix and
    potential for cardiac/lymphatic changes causing
    increased NT
  • Congenital hearts, others

15
(No Transcript)
16
What has evolved in the first trimester?
  • Nuchal Translucency (NT)
  • Serum biochemistry
  • Nasal Bone (NB)
  • Tricuspid regurgitation (TR)
  • Frontomaxillary facial angle (FMF Angle)

17
PAPP-A free beta hCG
  • Serum biochemistry
  • Free beta hCG (different than TMS/Quad)
  • PAPP-A (Preg Assoc. plasma protein-A)
  • relative levels are used to predict T21, T13, T18
  • Low PAPP-A
  • may be associated with a poorly developing
    placenta
  • Evolving method of screening for placental
    disease (IUGR, PIH)

18
What has evolved in the first trimester?
  • Nuchal Translucency (NT)
  • Serum biochemistry
  • Nasal Bone (NB)
  • Tricuspid regurgitation (TR)
  • Frontomaxillary facial angle (FMF Angle)

19
Nasal Bone (NB)
  • 60-70 of T21 absent Nasal bone
  • 99 of euploid fetuses have Nasal bone
  • tremendous increase in detection rates of FTS.
    High learning curve

20
(No Transcript)
21
The First Trimester TR, FMF, Ductus Venosus
  • Tricuspid Regurge, DV, and FMF angle are somewhat
    experimental and not wide clinically used outside
    of research settings

22
(No Transcript)
23
First Trimester Screening (FTS performance)
24
Screening Strategies
First Trimester Screening
Second Trimester Screening
  • Serum integrated
  • Integrated
  • Sequential
  • Contingency

Combined Screening
25
Screening Strategies
  • Serum Integrated Pregnancy Screening (SIPS)
  • 1st TM PAPP-A Quad (SURUSS trial, 2003)
  • Results disclosed at 17/18w
  • Integrated Pregnancy Screening (IPS)
  • 1st TM PAPP-A NT TMS/Quad
  • Same as SIPS but with NT
  • Results disclosed at 17/18w
  • SURUSS and FASTER trials 2003/2005

26
Screening Strategies
  • Sequential screening model
  • IPS but disclosed after 1st, and then 2nd TM
  • People may opt for testing after 1st TM
  • Contingency Screening models
  • FTS done - lt11000, no further testing
  • If risks gt150, CVS offered
  • If risks 150-1999 -
  • quad offered or
  • Nasal bone contingency offer NB to intermediate
    group
  • Probably best for high DRs in population based
    screening

27
Which test is best?
  • How does each model perform…

28
(No Transcript)
29
Best performance
  • For a first trimester result
  • FTS with NT NB serum
  • Contingency screening programs
  • For a combined result
  • IPS/Contingency screening programs
  • For Late entry
  • Quad screen

30
What do the guidelines say?
  • ACOG released similar guidelines in January 2007,
    and SOGC in February
  • Basics
  • Triple screening is no longer good enough
  • Dont use age as a screening tool
  • Aim for highest DRs and lowest FPRs in any
    method
  • Consent and review all options
  • Quality assurance important in FTS programs

31
Quality Assurance?
  • Image and data audit
  • Initial certification, and on-going audit
  • FMF UK/USA
  • NTQR?
  • Importance on program based screening
  • Pre/post test counseling
  • Lab and clinical QA

32
ACOG
  • Regardless of which screening tests you decide
    to offer your patients, information about the
    detection and false-positive rates, advantages,
    disadvantages, limitations, and risks and
    benefits of diagnostic procedures, should be
    available to patients so they can make informed
    decisions.

33
SOGC
  • All women regardless of age, should be offered
    consented screening for the most significant
    aneuploidies, and a second trimester sonogram for
    dating, growth and anomalies
  • 2008 Minimum standard 75 DR, 5 FPR
  • Amnio/CVS can be offered to women over age 40,
    without screening, but screening should still be
    offered.

34
SOGC
  • The practice of using solely the previous cut-off
    of maternal age of 35 or over at the estimated
    date of delivery (EDD) to identify at-risk
    pregnancies should be abandoned

35
Whats the best test?
  • One size does not fit all
  • As long as the definitive diagnosis involves an
    invasive procedure which can cause miscarriage of
    a normal pregnancy, there is simply no substitute
    to explaining all the options, their benefits,
    and risks
  • best screen is the one which will service
    patients needs for time of results, and action
    depending on the results

36
Current Western Canada options
  • Alberta
  • Edmonton/Calgary FTS programs, provincially
    insured
  • British Columbia
  • TMS program (does not yet comply with SOGC)
  • SIPS for women over age 38
  • IPS for women over age 40
  • Private centre's for FTS with or without NB
    (complies)
  • MOH investigating new options

37
FMF Accredited FTS Centre's, BC
  • BCWH (block funding for special groups)
  • IPS (over age 40), SIPS (over age 38)
  • Prior aneuploidy, Twins
  • Pacific Ctr for Reproductive Medicine (495)
  • FTS - NT NB serum genetic counseling
  • o-s-c-a-r modeling after FMF
  • Genesis Fertility Centre (495)
  • FTS - NT serum genetic counseling

38
Resources
  • www.fetalmedicine.com
  • www.earlyriskassessment.com
  • www.mfmedicine.com
  • www.genesis-fertility.com
  • www.pacificfertility.ca
