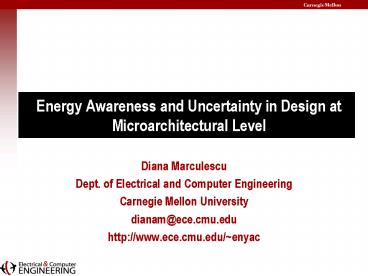

Energy Awareness and Uncertainty in Design at Microarchitectural Level

1
Energy Awareness and Uncertainty in Design at
Microarchitectural Level
Title Goes Here

• Diana Marculescu
• Dept. of Electrical and Computer Engineering
• Carnegie Mellon University
• dianam_at_ece.cmu.edu
• http//www.ece.cmu.edu/enyac

2
Upcoming technology challenges

• Main design constraints energy and power density

Source Shekhar Borkar, DAC/MICRO 2004
3
Upcoming technology challenges
System performance and leakage power severely
affected by variability
Increased soft error rates make reliable
computing a challenge
Source Shekhar Borkar, DAC/MICRO 2004
4
Performance-power-variability interaction

• Deeper pipelining worsens random variation impact
• Total variation impact insensitive to pipeline
  depth
• Variations worsen with increasing number of
  critical paths
• Performance enhancing techniques increase number
  of critical paths the simplest ( deep
  pipelining) increases overall random variations.
• Energy awareness increases variability selective
  voltage scaling adaptive resource scaling, etc.
  e.g., they exploit existing slack for hiding
  voltage scaling latencies.

Source Shekhar Borkar, DAC 2004
5
Multiple Clock/Voltage Architectures

• Need for synergistic approaches that tie
• Lower level technology capabilities such as
  supply and threshold voltage or speed scaling
• with knobs available at higher levels of
  abstraction (microarchitecture, architecture,
  system level)
• Need for coping with design complexity issues
  through localized, fine-grain power management
• Possible solution the use of voltage/frequency
  islands that may run at lower speed/power for a
  prescribed workload
• Need for dealing with variability, be it from
  process or system parameters, or
  application/workload

Proposed solution Multiple clock/voltage (MCV)
domain microarchitectures
6
Using MCVs for energy awareness ISCA2002,
ISCA2005
Synchronous
MCV

• Potential for fine-grain adaptability
• Different speeds among synchronous blocks
• Different voltages, and hence potential for lower
  power consumption
• Can be used with on-the-fly application-driven
  adaptation
• Fits nicely with the multi- paradigm
• Multi-core, multi-threading

7
How many frequency islands?
8
Performance increase coefficient

• Significant speed-up can be achieved increasing
  clock speed in the Fetch or Memory, followed by
  Integer and FP partitions

9
Delay - voltage dependency

• Fine-grain voltage reduction can be beneficial in
  GALS systems
• Each clock domain can be run at a different speed
• Vdd is the supply voltage
• Vt is the threshold voltage
• a is a technology-defined constant between 1 and
  2
• a is 1.2-1.6 for present generation Chen et al.,
  1998

10
A possible solution Dynamic control strategy

• Threshold-based algorithm Iyer et al., 2002
• Assumes two operating modes
• Selects the appropriate mode based on the Issue
  Queue occupancy
• Attack-decay algorithm Semeraro et al., 2002
• Assumes several (tens) operating modes
• Tries to preserve the same Issue Queue occupancy,
  while more aggressively pursuing the best
  power/performance trade-off
• Additional improvements Talpes et al., 2003,
  2005
• Fetch clock speed scaled to match commit rates
• Use cross-domain dependency information to
  eliminate false positives in low occupancy rates

11
Impact on energy reduction ISLPED2003, IEEE
TVLSI2005

• By using DVS, an average energy reduction of up
  to 25 can be achieved at the expense of a 10
  penalty in performance
• Note that these are pessimistic results
  variability is not taken into account

12
Energy-Variability interaction for MCV uarchs

• Potential for less process or system
  parameterinduced variability
• Local clock domains are characterized by static
  or dynamic variations characterized by lower
  means
• Enable faster local speeds AND better overall
  energy efficiency
• Intuitively
• The number of critical paths per clock domain is
  smaller
• Hence, less variability
• Beneficial impact on other parameters as well
• Smaller variations in temperature per clock domain

Synchronous
MCV
13
Variability modeling Bowman et al., 2002

• Assume normal distributions for critical path
  delay (Tcp,nom nominal critical path delay)
• Maximum critical path delay distribution (f
  probability density, F cumulative probability
  function, Ncp number of critical paths)

14
Energy-performance-variability DAC 2005, IEEE
MICRO 2005

• A possible probabilistic design metric that needs
  to be maximized (FMAX clock speed distribution)
  Borkar, 2004
• However, in the case of high-end processors
• Clock speed does not necessarily translate into
  performance
• Moreover, IPC increasing artifacts affect
  variability
• Proposed joint metric that must be minimized
• The goal is to include variability in the maximum
  critical path or minimum clock speed, with and
  without temperature modeling (q temperature,
  ncp logic depth) Basu et al., 2004

15
Critical path delay distribution without Temp

• Locally clocked domains have a mean value for the
  maximum critical path delay that is 2-12 smaller
  than for the fully synchronous baseline

16
Critical path delay distribution with Temp

• Locally clocked domains have a mean value for the
  maximum critical path delay that is 8-18 smaller
  than for the fully synchronous baseline

17
Q Metric Distribution w/ and w/o Temp

• Using local speed/voltage scaling per clock
  domain decreases Q by 26 when compared to the
  synchronous baseline

18
Instead of summary

• Microarchitectural modeling of process
  variability effects is possible
• In conjunction with fine-grain DVS,
  minimally-clocked machines provide a better joint
  energy/performance/variability metric than their
  fully synchronous counterparts
• Considered only WID-induced gate length effects
  and temperature-induced effects
• Ahead
• both WID and D2D variability
• leakage variations
• true microarchitecture design exploration with
  variability in mind

19
Thank you!

• More information
• http//www.ece.cmu.edu/enyac
