Title: Querying the Physical World

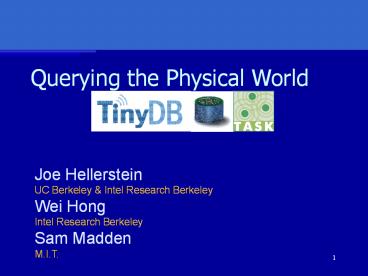

1
Querying the Physical World
  • Joe Hellerstein
  • UC Berkeley Intel Research Berkeley
  • Wei Hong
  • Intel Research Berkeley
  • Sam Madden
  • M.I.T.

2
Motivation
  • Sensor networks (aka sensor webs, emnets) are
    here
  • Several widely deployed HW/SW platforms
  • Low power radio, small processor, RAM/Flash
  • Variety of (novel) applications scientific,
    industrial, commercial
  • Great experimental platform for ubicomp
    mobility
  • Cross-cutting technical challenges
  • Networking, systems, languages, databases, AI,
    stats, signal proc.
  • We will summarize
  • The state of the art
  • Our experiences building TinyDB
  • Current and future research directions

Berkeley Mote
3
Some Sensornet Apps
smart cooling in data centers (hp/intel)
redwood forest microclimate monitoring
http//www.hpl.hp.com/research/dca/smart_cooling/
And More
condition-based maintenance (intel/BP)
  • Homeland security
  • Container monitoring
  • Mobile environmental apps
  • Bird tracking
  • Zebranet
  • Home automation
  • Etc!

structural integrity (ucb/ggbd)
4
Context The Berkeley Stack
5
Declarative Queries
  • Programming TinyOS Apps is Hard
  • Embedded x Distributed Programming!
  • Limited power budget
  • Lossy, low bandwidth communication
  • Require long-lived, zero admin deployments
  • Distributed Algorithms
  • Limited tools, debugging interfaces
  • Queries abstract away much of the complexity
  • Burden on the query engine developer
  • Users get
  • Safe, optimizable programs
  • Freedom to think about apps instead of details

6
TinyDB Query Engine
  • Continuous variant of SQL TinySQL
  • Power and data-acquisition based in-network
    optimization framework
  • Extensible interface for aggregates, new types of
    sensors

7
Agenda
  • Sensornet Background
  • TinyDB
  • Data Model and Query Language
  • Software Architecture
  • TASK
  • Quick overview
  • A Flavor of Research Challenges

8
Sensor Networks a hot topic
  • New university courses
  • New conferences
  • ACM SenSys, IEEE IPSN, etc.
  • New industrial research lab projects
  • Intel, PARC, MSR, HP, Accenture, etc.
  • Startup companies
  • Crossbow, Dust, Ember, Sensicast, Moteiv, etc.
  • Media Buzz
  • Over 30 news articles since July 2002 covering
    Intel-Berkeley/UC Berkeley sensor network
    activities
  • One of 10 emerging technologies that will change
    the world MIT Technology Review

9
A Brief History of Sensornets
  • People have used sensors for a long time
  • Recent CS History
  • (1998) Pottie Kaiser Radio based networks of
    sensors
  • (1998) Pister et al Smart Dust
  • Initial focus on optical communication
  • By 1999, radio based networks, COTS Dust, Motes
  • (1999) Estrin Govindan
  • Ad-hoc networks of sensors
  • (2000) Culler/Hill et al TinyOS Motes
  • (2000) Bonnet/Seshadri Device Database Systems
  • (2002) Madden/Franklin/Hellerstein/Hong TinyDB
  • (2002) Hill / Dust SPEC, mm3 scale computing
  • UCLA / USC / Berkeley Continue to Lead Research
  • Many other players now
  • TinyOS/Motes as most common platform
  • Emerging commercial space
  • Crossbow, Ember, Dust, Sensicast, Moteiv, Intel

10
Why Now?
  • Commoditization of radio hardware
  • Cellular and cordless phones, wireless
    communication
  • Low cost -gt many/tiny -gt new applications!
  • Real application for ad-hoc network research from
    the late 90s
  • Coming together of EE CS communities

11
Motes
12
History of Motes
  • Initial research goal wasnt hardware
  • Has since become more of a priority with emerging
    hardware needs, e.g.
  • Power consumption
  • (Ultrasonic) ranging localization
  • MIT Cricket, NEST Project
  • Connectivity with diverse sensors
  • UCLA sensor board
  • Even so, now on the 5th generation of devices
  • Costs down to 50/node (Moteiv, Dust)
  • Greatly improved radio quality
  • Multitude of interfaces USB, Ethernet, CF, etc.
  • Variety of form factors, packages

13
Motes vs. Traditional Computing
  • Embedded OS
  • Lossy, Adhoc Radio Communication
  • Sensing Hardware
  • Severe Power Constraints

14
NesC/TinyOS
  • NesC a C dialect for embedded programming
  • Components, wired together
  • Quick commands and asynch events
  • TinyOS a set of NesC components
  • hardware components
  • ad-hoc network formation maintenance
  • time synchronization

Think of the pair as a programming environment
15
Radio Communication
  • Low Bandwidth Shared Radio Channel
  • 40kBits on motes
  • Much less in practice
  • Encoding, Contention for Media Access (MAC)
  • Very lossy 30 base loss rate
  • Argues against TCP-like end-to-end retransmission
  • And for link-layer retries
  • Generally, not well behaved

16
Types of Sensors
  • Sensors attach via daughtercard
  • Weather
  • Temperature
  • Light x 2 (high intensity PAR, low intensity,
    full spectrum)
  • Air Pressure
  • Humidity
  • Vibration
  • 2 or 3 axis accelerometers
  • Tracking
  • Microphone (for ranging and acoustic signatures)
  • Magnetometer
  • GPS
  • RFID Reader

17
Non-Volatile Storage
  • EEPROM
  • 512K off chip, 32K on chip
  • Writes at disk speeds, reads at RAM speeds
  • Interface random access, read/write 256 byte
    pages
  • Maximum throughput 10Kbytes / second
  • MatchBox Filing System
  • Provides a Unix-like file I/O interface
  • Single, flat directory
  • Only one file being read/written at a time

18
Power Consumption and Lifetime
  • Power typically supplied by a small battery
  • 1000-2000 mAH
  • 1 mAH 1 milliamp current for 1 hour
  • Typically at optimum voltage, current drain rates
  • Power Watts (W) Amps (A) Volts (V)
  • Energy Joules (J) W time
  • Lifetime, power consumption varies by application
  • Processor 5mA active, 1 mA idle, 5 uA sleeping
  • Radio 5 mA listen, 10 mA xmit/receive, 20mS /
    packet
  • Sensors 1 uA -gt 100s mA, 1 uS -gt 1 S / sample

19
Energy Usage in A Typical Data Collection Scenario
  • Each mote collects 1 sample of (light,humidity)
    data every 10 seconds, forwards it
  • Each mote can hear 10 other motes
  • Process
  • Wake up, collect samples ( 1 second)
  • Listen to radio for messages to forward (1
    second)
  • Forward data

20
Sensors Slow, Power Hungry, Noisy
21
Agenda
  • Sensornet Background
  • TinyDB
  • TinyDB Overview
  • Data Model and Query Language
  • Demo
  • TinyDB Java API and Scripting
  • Demo with TinyDB GUI
  • TinyDB Internals
  • Extending TinyDB
  • TinyDB Status and Roadmap
  • TASK
  • A Flavor of Research Challenges

22
TinyDB Revisited
SELECT MAX(mag) FROM sensors WHERE mag gt
thresh SAMPLE PERIOD 64ms
  • High level abstraction
  • Data centric programming
  • Interact with sensor network as a whole
  • Extensible framework
  • Under the hood
  • Intelligent query processing query optimization,
    power efficient execution
  • Fault Mitigation automatically introduce
    redundancy, avoid problem areas

App
Query, Trigger
Data
TinyDB
23
Feature Overview
  • Declarative SQL-like query interface
  • Metadata catalog management
  • Multiple concurrent queries
  • Network monitoring (via queries)
  • In-network, distributed query processing
  • Extensible framework for attributes, commands and
    aggregates
  • In-network, persistent storage

24
Architecture
TinyDB GUI
JDBC
TinyDB Client API
DBMS
PC side
0
Mote side
0
TinyDB query processor
2
1
3
8
4
5
6
Sensor network
7
25
Query Language (TinySQL)
  • SELECT ltaggregatesgt, ltattributesgt
  • FROM sensors ltbuffergt
  • WHERE ltpredicatesgt
  • GROUP BY ltexprsgt
  • SAMPLE PERIOD ltconstgt ONCE
  • INTO ltbuffergt
  • TRIGGER ACTION ltcommandgt

26
Demo Time
27
TinySQL Examples
Find the sensors in bright nests.
Sensors
  • SELECT nodeid, nestNo, light
  • FROM sensors
  • WHERE light gt 400
  • EPOCH DURATION 1s

1
28
TinySQL Examples (cont.)
Count the number occupied nests in each loud
region of the island.
29
Event-based Queries
  • ON event SELECT
  • Run query only when interesting events happen
  • Event examples
  • Button pushed
  • Message arrival
  • Bird enters nest
  • Analogous to triggers but events are user-defined

30
Query over Stored Data
  • Named buffers in Flash memory
  • Store query results in buffers
  • Query over named buffers
  • Analogous to materialized views
  • Example
  • CREATE BUFFER name SIZE x (field1 type1, field2
    type2, )
  • SELECT a1, a2 FROM sensors SAMPLE PERIOD d
    INTO name
  • SELECT field1, field2, FROM name SAMPLE
    PERIOD d

31
Using the Java API
  • SensorQueryer
  • translateQuery() converts TinySQL string into
    TinyDBQuery object
  • Static query optimization
  • TinyDBNetwork
  • sendQuery() injects query into network
  • abortQuery() stops a running query
  • addResultListener() adds a ResultListener that is
    invoked for every QueryResult received
  • removeResultListener()
  • QueryResult
  • A complete result tuple, or
  • A partial aggregate result, call
    mergeQueryResult() to combine partial results
  • Key difference from JDBC push vs. pull

32
Writing Scripts with TinyDB
  • TinyDBs text interface
  • java net.tinyos.tinydb.TinyDBMain run select
  • Query results printed out to the console
  • All motes get reset each time new query is posed
  • Handy for writing scripts with shell, perl, etc.

33
Inside TinyDB
Multihop Network
Query Processor
10,000 Lines Embedded C Code 5,000 Lines
(PC-Side) Java 3200 Bytes RAM (w/ 768 byte
heap) 58 kB compiled code (largest TinyOS
program)
Filterlight gt 400
Schema
TinyOS
TinyDB
34
Tree-based Routing
  • Tree-based routing
  • Used in
  • Query delivery
  • Data collection
  • In-network aggregation
  • Parent Selection
  • Goals
  • Ensure good connectivity
  • Maintain loop-free
  • Techniques
  • First person you hear from
  • Snoop on others, keep track of promising
    contenders, switch as appropriate

35
Power Management Approach
  • Coarse-grained app-controlled communication
    scheduling

Epoch (10s -100s of seconds)
Mote ID
1
zzz
zzz
2
3
4
5
time
2-4s Waking Period
36
Time Synchronization
  • All messages include a 5 byte time stamp
    indicating system time in ms
  • Synchronize (e.g. set system time to timestamp)
    with
  • Any message from parent
  • Any new query message (even if not from parent)
  • Punt on multiple queries
  • Timestamps written just after preamble is xmitted
  • All nodes agree that the waking period begins
    when (system time epoch dur 0)
  • And lasts for WAKING_PERIOD ms
  • Adjustment of clock happens by changing duration
    of sleep cycle, not wake cycle.

37
Extending TinyDB
  • Why extending TinyDB?
  • New sensors ? attributes
  • New control/actuation ? commands
  • New data processing logic ? aggregates
  • New events
  • Analogous to concepts in object-relational
    databases

38
Adding Attributes
  • Types of attributes
  • Sensor attributes raw or cooked sensor readings
  • Introspective attributes parent, voltage, ram
    usage, etc.
  • Constant attributes constant values that can be
    statically or dynamically assigned to a mote,
    e.g., nodeid, location, etc.

39
Adding Attributes (cont)
  • Interfaces provided by Attr component
  • StdControl init, start, stop
  • AttrRegister
  • command registerAttr(name, type, len)
  • event getAttr(name, resultBuf, errorPtr)
  • event setAttr(name, val)
  • command getAttrDone(name, resultBuf, error)
  • AttrUse
  • command startAttr(attr)
  • event startAttrDone(attr)
  • command getAttrValue(name, resultBuf, errorPtr)
  • event getAttrDone(name, resultBuf, error)
  • command setAttrValue(name, val)

40
Adding Attributes (cont)
  • Steps to adding attributes to TinyDB
  • Create attribute nesC components
  • Wire new attribute components to TinyDBAttr
    configuration
  • Reprogram TinyDB motes
  • Add new attribute entries to catalog.xml
  • Constant attributes can be added on the fly
    through TinyDB GUI

41
Adding Aggregates
  • Step 1 wire new nesC components

42
Adding Aggregates (cont)
  • Step 2 add entry to catalog.xml
  • ltaggregategt
  • ltnamegtAVGlt/namegt
  • ltidgt5lt/idgt
  • lttemporalgtfalselt/temporalgt
  • ltreaderClassgtnet.tinyos.tinydb.AverageClasslt/read
    erClassgt
  • lt/aggregategt
  • Step 3 (optional) implement reader class in Java
  • a reader class interprets and finalizes aggregate
    state received from the mote network, returns
    final result as a string for display.

43
TinyDB Status
  • Latest released with TinyOS 1.1.6 (5/04)
  • Install the task-tinydb package in TinyOS 1.1
    distribution
  • First release in TinyOS 1.0 (9/02)
  • Widely used by research groups as well as
    industry pilot projects
  • Ongoing deployments in Intel Berkeley Lab and
    redwood trees at UCs Sonoma Grove
  • Largest deployment 80 weather station nodes
  • Network longevity 4-5 months

44
The Redwood Tree Deployment
  • Redwood Grove in UC Botanical Garden, Berkeley
  • Collect dense sensor readings to monitor climatic
    variations across
  • altitudes,
  • angles,
  • time,
  • forest locations, etc.
  • Versus sporadic monitoring points with 30lb
    loggers!
  • Current focus study how dense sensor data affect
    predictions of conventional tree-growth models

45
Data from Redwoods
36m
33m 111
32m 110
30m 109,108,107
20m 106,105,104
10m 103, 102, 101
46
TinyDB Roadmap (near term)
  • Support for high frequency sampling
  • For a variety of deployments
  • Intel Fab, BP shipboard, Golden Gate Bridge
  • Store and forward
  • Bulk reliable data transfer
  • Scheduling of communications
  • Research agenda continues
  • Discussion later

47
For more information
  • http//berkeley.intel-research.net/tinydb or
    http//triplerock.cs.bekeley.edu/tinydb

48
Agenda
  • Sensornet Background
  • TinyDB
  • TASK
  • SW/HW architecture
  • Features
  • A Flavor of Research Challenges

49
SensorNet Dilemma
  • Sensors still packaged like HeathKits
  • Pretty hard to cope with out of the box
  • Bare metal encourages one-off applications
  • Inhibits reuse
  • Deployment not intuitive
  • No configuration/monitoring tools
  • SensorNet PhD Factor
  • Today 2.5 PhDs needed to deploy a SensorNet
  • Needs to be Zero

50
TASK Design Requirements
  • Ease of S/W Installation
  • Deployment tools
  • Reconfigurability
  • Health/Mgmt Monitoring
  • Network Reliability Guarantee
  • Interpretable Sensor Results
  • Tool Integration
  • Audit Trails
  • Lifetime estimates

For Developers
  • Familiar API
  • Extensibility of S/W
  • Modular services

51
Tiny Application Sensor Kit
TASK Client Tools
External Tools
TaskView
Internet
TASK Field Tools
SensorNet Appliance
TASK Server
  • Simplicity vs. Functionality
  • Modularity
  • Remote control
  • Fault Tolerant

TinyDB Sensor Network
52
SensorNet Appliance
SNA
  • Intelligent Gateway
  • Proxy for the sensornet
  • Distributes query
  • Stages results
  • Manages configuration
  • Components
  • TASK Server
  • TinyDB Client (Java)
  • DBMS (PostgreSQL)
  • WebServer (Apache)

http, other
TASKServer
DBMS
ODBC
TinyDB Client
SensorNet
53
Tools
  • Field Tool
  • In-situ diagnostics
  • TaskView
  • Integrated tool for management and monitoring

54
Quick TASK Demo
55
Agenda
  • Sensornet Background
  • TinyDB
  • TASK
  • A Flavor of Research Challenges

56
Sensor Network Research
  • Very active research area
  • Cant summarize it all
  • Focus database-relevant research topics
  • Some outside of Berkeley/MIT
  • Other topics that are itching to be scratched
  • But, some bias towards work that we find
    compelling

57
Topics
  • In-network aggregation
  • Acquisitional Query Processing
  • Heterogeneity
  • Intermittent Connectivity
  • In-network Storage
  • Statistical modeling and summarization
  • In-network Joins
  • Adaptivity and Sensor Networks
  • Multiple Queries

58
Topics
  • In-network aggregation
  • Acquisitional Query Processing
  • Heterogeneity
  • Intermittent Connectivity
  • In-network Storage
  • Statistical modeling and summarization
  • In-network Joins
  • Adaptivity and Sensor Networks
  • Multiple Queries

59
Tiny Aggregation (TAG)
  • In-network processing of aggregates
  • Common data analysis operation
  • Aka gather operation or reduction in
    programming
  • Communication reducing
  • Operator dependent benefit
  • Exploit query semantics to improve efficiency!

Madden, Franklin, Hellerstein, Hong. Tiny
AGgregation (TAG), OSDI 2002.
60
Basic Aggregation
  • In each epoch
  • Each node samples local sensors once
  • Generates partial state record (PSR)
  • local readings
  • readings from children
  • Outputs PSR during assigned comm. interval
  • Interval assigned based on depth in tree
  • At end of epoch, PSR for whole network output at
    root
  • New result on each successive epoch

61
Illustration In-Network Aggregation
SELECT COUNT() FROM sensors
Interval 4
Sensor
Sample Period
Interval
Time
1
62
Illustration In-Network Aggregation
SELECT COUNT() FROM sensors
Interval 3
Sensor
2
Interval
63
Illustration In-Network Aggregation
SELECT COUNT() FROM sensors
Interval 2
Sensor
1
3
Interval
64
Illustration In-Network Aggregation
SELECT COUNT() FROM sensors
Interval 1
5
Sensor
Interval
65
Illustration In-Network Aggregation
SELECT COUNT() FROM sensors
Interval 4
Sensor
Interval
1
66
Illustration In-Network Aggregation
SELECT COUNT() FROM sensors
Interval 4
Sensor
Interval
1
67
Aggregation Framework
  • As in extensible databases, TinyDB supports any
    aggregation function conforming to

Aggnfinit, fmerge, fevaluate Finit a0 ?
lta0gt Fmerge lta1gt,lta2gt ? lta12gt Fevaluate lta1gt
? aggregate value
Partial State Record (PSR)
Example Average AVGinit v ?
ltv,1gt AVGmerge ltS1, C1gt, ltS2, C2gt ? lt S1
S2 , C1 C2gt AVGevaluateltS, Cgt ? S/C
Restriction Merge associative, commutative
68
Taxonomy of Aggregates
  • TAG insight classify aggregates according to
    various functional properties
  • Yields a general set of optimizations that can
    automatically be applied

Drives an API!
69
Use Multiple Parents
  • Use graph structure
  • Increase delivery probability with no
    communication overhead
  • For duplicate insensitive aggregates, or
  • Aggs expressible as sum of parts
  • Send (part of) aggregate to all parents
  • In just one message, via multicast
  • Assuming independence, decreases variance
  • Recent research on convertingto robust
    dup-insensitivity
  • E.g. count can be approximated robustlyin a
    dup-insensitive fashionConsidine, et al., 2003

SELECT COUNT()
70
Multiple Parents Results
  • Better than previous analysis expected!
  • Losses arent independent!
  • Insight spreads data over many links

71
Statistical Techniques
  • Approximations, summaries, and sampling based on
    statistics and statistical models
  • Applications
  • Limited bandwidth and large number of nodes -gt
    data reduction
  • Lossiness -gt predictive modeling
  • Uncertainty -gt tracking correlations and changes
    over time
  • Physical models -gt improved query answering

72
Correlated Attributes
  • Data in sensor networks is correlated e.g.,
  • Temperature and voltage
  • Temperature and light
  • Temperature and humidity
  • Temperature and time of day
  • etc.

73
BBQ Model-based Probabilistic Querying over
Sensor Networks
Joint work with Amol Desphande and Carlos
Guestrin
Query Processor
Model
1
3
4
2
5
BarbieQ A Tiny Model Driven Query System
6
7
8
9
74
BBQ Model-based Probabilistic Querying over
Sensor Networks
Query Processor
Model
Consult Model
1
3
4
2
5
6
7
8
9
75
BBQ Model-based Probabilistic Querying over
Sensor Networks
Query Processor
Model
Consult Model
1
3
4
2
5
6
7
8
9
76
BBQ Model-based Probabilistic Querying over
Sensor Networks
Query Results
Query Processor
Model
Update Model
1
3
4
2
5
6
7
8
9
77
Challenges
  • What kind of models to use ?
  • Routing
  • How to tour the selected set of nodes
  • Optimization
  • Given a model and a query, find the best set of
    attributes to observe
  • Cost not easy to measure
  • Non-uniform network communication costs
  • Changing network topologies
  • Depends on touring technique
  • Large plan space
  • Might be cheaper to observe attributes not in
    query
  • e.g. Voltage instead of Temperature
  • Conditional Plans
  • Change the observation plan based on observed
    values

78
BBQ Current Prototype
  • Multi-variate Gaussian Models
  • Kalman Filters to capture correlations across
    time
  • Handles
  • Range predicate queries
  • sensor value within x,y, w/ confidence
  • Value queries
  • sensor value x, w/in epsilon, w/ confidence
  • Simple aggregate queries
  • AVG(sensor value) ? n, w/in epsilon, w/confidence
  • Uses a greedy algorithm to choose the observation
    plan

79
A complex aggregate Wavelets
  • just like AVG or COUNT
  • but fancier -)
  • re-codes a signal into a sum of square waves
  • biggest coefficients ? approx. reconstruction
  • lossy compression
  • multi-resolution
  • Examples
  • histograms
  • 2-d or 3-d compression and reconstruction

80
computing a wavelet
35, -1, 3, 8, -4,
3, 3, 3
81
computing a wavelet
And a correspondingCommunication Graph
82
computing a wavelet
And a correspondingCommunication Graph
83
computing a wavelet
And a correspondingCommunication Graph
84
resulting comm graph
a binomial tree!
85
I never promised you a binomial
  • TinyDB agg trees are not any special shape
  • Parents chosen for reliability, not tree shape
  • Options
  • Cope with non-binomial trees
  • How to merge two subtrees of different sizes?
  • Can muck with the Wavelet, but it biases the
    answer
  • Can forward when merge is impossible, but comm
    cost
  • Develop a scheme to ensure binomial agg trees
  • When is it possible?
  • Distributed algorithm to do it?

86
Concluding Remarks
  • Sensor nets becoming a reality
  • For sensornet system hackers, TinyOS an emerging
    standard
  • For sensornet app writers, TinyDB an emerging
    standard
  • TASK a developing example of a turnkey solution
  • Lots of room for innovation
  • Applications and vertical solutions
  • Systems work in OS, Networks, DBs
  • Opportunities in Statistics, AI, Signal
    Processing
  • This all meshes in new and interesting ways!

87
Sensornets Getting Started
  • TinyDB home page
  • http//telegraph.cs.berkeley.edu/tinydb
  • The TinyOS home page
  • http//webs.cs.berkeley.edu/tinyos
  • Crossbow (motes stargates)
  • http//www.xbow.com
  • Moteiv (motes)
  • http//www.moteiv.com
  • Intel Imote
  • www.intel.com/research/exploratory/motes.htm.

88
Backup Slides
89
computing a wavelet
35, 0, 3, 8, -4,
0, 0, 0
90
computing a wavelet
35, 0, 3, 8, -4,
0, 0, 0
About PowerShow.com
