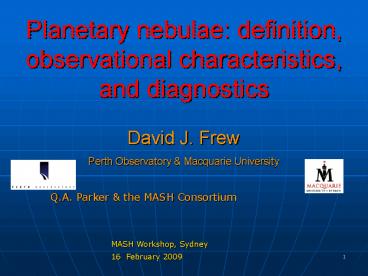

Planetary nebulae: definition, observational characteristics, and diagnostics

1
Planetary nebulae definition,observational
characteristics, and diagnostics

• David J. Frew
• Perth Observatory Macquarie University

Q.A. Parker the MASH Consortium
MASH Workshop, Sydney 16 February 2009
2
Image credits B. Balick, R. Sahai, A. Hajian, M.
Meixner, P. Harrington, K. Borkowski et al.
(STScI/AURA/NASA/ESA/NOAO), G Mellema et al.
(HST, ESA, NASA), A. Block (NOAO/AURA/NSF), G.
Jacoby (WIYN/NOAO/NSF), D. Malin (AAO) and A.
Zijlstra (IPHAS).
3
PN physical characteristicscf. Kohoutek (1983,
2001)

• A round or axisymmetric shape, sometimes with
  multiple shells or outer haloes. Many evolved
  PNe are perturbed through interaction with the
  ISM (Wareing et al.).
• A photoionized emission-line spectrum
  characterized by recombination lines of H and He
  as well as various collisionally-excited
  forbidden lines of heavier elements such as O, C,
  N, S, Ar and Ne. The O III lines are usually,
  but not always, the strongest lines in the
  optical.
• Thermal free-free emission in the radio spectrum.
• A nebular radius, r lt 2.5 pc (vast majority have
  r lt 1.5 pc).
• A ionized nebular mass between the empirical
  limits of 0.005 and 3 M?

4
Physical characteristics

• A shell expansion velocity typically between 10
  60 kms-1 though some strongly bipolar PNe can
  have much higher expansion velocities along the
  major axis
• A hot, low-mass central star with a temperature
  of at least 20,000 K (up to 250,000 K), and a
  mass between the empirical limits of 0.55 and
  1M?. It is possible that lower mass stars might
  be formed via a common-envelope process
• Corresponding surface gravities are generally in
  the range, log g 2.5 7.5 cms-2

5

How many PNe here?
6
Mimics For early reviews, see Kohoutek (1983),
Stenholm Acker (1987) and Acker Stenholm
(1990)

• Emission-line stars (primarily found through
  objective prism surveys)
• Symbiotic stars
• Be and Be stars
• Wolf-Rayet stars
• Luminous blue variables
• Pre-main sequence stars
• Cataclysmic variables, including novae
• Late-type stars (with or without Balmer emission)

7
Mimics

• Extended nebulae (found via imagery)
• HII regions (compact, ultra-compact, or diffuse)
• Reflection nebulae
• Galaxies (emission-line, LSB, ring)
• Symbiotic outflows
• Wolf-Rayet shell and ejecta nebulae
• LBV nebulae
• Supernova remnants
• Herbig-Haro objects / YSOs
• Miscellaneous bow-shock nebulae
• Plate defects and flaws

8
The advent of VO-compliant multi-wavelength data
sets

• Ideal to combine multi-wavelength NIR, MIR,
  optical (including narrow band) and radio imaging
  with large spectral wavelength coverage in
  UV/Optical/NIR/MIR
• Previously difficult to achieve in most cases
  without detailed individual follow-up
• Advent of major wide-area surveys in the last few
  years has improved the situation considerably
  (SHS, SHASSA, IPHAS, VPHAS, SDSS, UKIDSS,
  Skymapper, MOST, NVSS, MSX, GLIMPSE)!
• These surveys offer unprecedented opportunities
  for discovery (e.g. Parker et al., Miszalski et
  al., Corradi et al.)
• New opportunities to eliminate contaminants that
  have bedevilled previous catalogues. The future
  is bright

9
PN or Strömgren sphere?

• A number of large, nearby (currently accepted)
  PNe are likely to be Strömgren spheres in the
  ISM ionized by a hot pre-white dwarf or subdwarf
  (the original PN having long since dissipated).
  That is, they are HII regions!
• These nebulae have emission line ratios which
  mimic true PNe e.g. Hewett 1, DeHt 5, HDW 5, Sh
  2-68, Sh 2-174, and RE J1738665 (Hewett et
  al. 2003 Chu et al. 2004, Frew et al. 2006, Frew
  2008)
• Their true nature is currently being investigated
  where high resolution WHAM velocity maps for
  large angular size nebulae can resolve ambiguity
  (see poster by G. Madsen et al.).

10
Fr 2-11, a new nebulosity discovered from SHASSA
(just outside MASH survey at b -12.5)
(Frew 2008, Frew et al. 2009, in prep.)
11
Beware a PN-like spectrum!
12

Abell 35 a new interpretation (Frew 2008)

• Visual binary, G8 IV DAO
• Spectrum and morphology very like Fr 2-11, a
  bow-shock associated with a CV
• No forward shock !
• Line width of gas is narrow, consistent with no
  expansion
• Systemic velocity of gas is close to LSR, Vhel
  -5 kms-1
• Radial velocity of G8 IV star is different, Vhel
  -40 kms-1
• Wind from active G-star is sufficient to drive
  shock in stationary (photoionized) ISM.

13
Sh 2-174 a PN abandoned by its central star
or a nebulosity abandoned as a PN?

• Pathological morphology with off-centre ionizing

• Ionization structure not consistent with PM
  vector of star (no rim / shock)
• Emission nebula has VLSR 0 kms-1, and narrow
  line-width from WHAM data (Madsen et al. 2006)
• Diffuse Ha emission/ within 2 at VLSR 0 kms-1
• PAGB evolutionary age is 106 years
• Is a HII region

14

Sh 2-174 and Abell 21 WHAM Fabry-Perot spectra
(see Madsen et al. 2006, Madsen Frew, 2009, in
preparation, and our poster at this workshop)
15
Weeding out the impostorsSeveral criteria are
used for classification

• Nebular morphology (is it irregular or otherwise
  pathological?)
• Ionization structure (including the consistency
  of any ISM interaction with proper-motion vector
  of central star)
• Nebular emission-line ratios (use diagnostic
  plots)
• MIR properties (2MASS, MSX, IRAS, Spitzer data
  use diagnostic plots)
• Systemic velocity of nebula (does it differ from
  star?)
• Line width of nebular gas
• Shklovsky (ionized) mass, but need an estimate of
  the distance
• Other bulk properties
• Local Environment
• Properties of central star, including
  evolutionary age
• In some cases, look at Galactic latitude
• No one criterion is generally enough to
  define the status of an object so we use the
  "overall body of evidence".

16
Use of diagnostic emission line ratios

• Best to use lines of similar wavelengths,
  reddening errors are then minimized in
  calculation of ratios
• In blue, use OIII/Hb ratio (traditional
  diagnostic, but has caveats)
• Use HeII 4686/Hb ratio with caution (beware of
  symbiotic stars, WR stars/nebulae etc)
• In red, use both NII and SII line strengths
  (e.g. Sabbadin, Minello Bianchini 1977, Cantó
  1981, Riesgo-Tirado López 2002)
• NII/Ha ratio alone must be used with caution
• Unfortunately, very high excitation PNe
  (including many in MASH and MASH-II), have no
  measurable NII or SII emission.
• If only red spectra are available for such an
  object, then other criteria (morphology, central
  star characteristics, galactic latitude,
  environment) are needed to classify it
  unambiguously.

17

Log I(Ha/NII) versus log I(Ha/SII)
diagram Sabbadin et al. (1977), Cantó (1981),
Riesgo-Tirado López (2002)
Caveat Not applicable to all PNe
18

• Revised log F(Ha/NII) versus log F(Ha/SII)
  diagram (Frew et al., in preparation).

Considerable overlap between fields, especially
evolved PNe and SNRs, and HII regions and
PNe Note the empirical domain of Type I PNe
(permits preliminary classification based on red
spectral data only) Fields are consistent with
photoionization modelling (J. Köppen)
19
BPT diagram(s) (Baldwin et al. 1981, Veilleux
Osterbrock 1987, Kennicutt et al. 2000, Kewley et
al. 2001, Kniazev et al. 2008)
20
Kniazev, Pustilnik Zucker (2008)
Kewley et al. (2001)
21

OIII/Ha vs M5007 diagram Ciardullo (2006),
Herrmann et al. (2008)
Bright PNe plot in well-defined region Excellent
utility for extragalactic PNe, but not yet used
for local samples
22
Diagnostic plot from Gutierrez-Moreno, Moreno
Cortes (1995), where R1 O III4363/Hg and R2
O III5007/Hb. Three regions, A, B and C,
have been defined, containing PNe, young dense
PNe, and bona fide symbiotic stars, respectively.
23
IR diagnostic plots (also see talk by M. Cohen)
Corradi et al. (2008) IPHAS and/or 2MASS data
Schmeja Kimeswenger (2001) DENIS NIR data
24
Extreme bipolar nebulae Symbiotic outflows,
symbiotic PNe or proto-PNe? (Lutz, Shaw,
Corradi, Balick, Phillips, Kwok)

• Morphology is very strongly bipolar
• Extreme collimated outflows, very high velocities
• Homologous expansion, cf. interacting winds model
• Many (not all) have very red NIR colours
• Many have extreme central densities
• Binary central engine, e.g. Mira star
• Many statistically unlikely to be true PNe
  (Corradi)

25
RP 916
KjPn 8
Star has MK -4.7
What is the nature of these bipolar outflows?
26
Hb 5
Size does matter!
27
A necessary questionWhat is a planetary nebula?

• A bit of history
• As to the question of how to define a
  planetary nebula, there is no better way than to
  accept any object in a catalogue of planetary
  nebulae if nobody has serious objections.

R. Minkowski, responding to a query from D.S.
Evans at the 1967 IAU symposium (Osterbrock
O'Dell 1968, p. 290).
28

What is a PN ?

• More recent definitions
• a PN is a star that ejects some material while
  evolving from the red giant to the white dwarf
  phase. (Lutz 1993)
• an ionized shell ejected at the end of the
  AGB phase, either by a single star, or as part of
  a common-envelope ejection. (Frew 2008)

29
Do PN form a heterogeneous class?

• Is there more than one evolutionary sequence
  that can produce nebulae that are catalogued as
  PNe? (Jacoby 2006, Frew 2008, de Marco 2009)

• Conventional post-AGB evolution of a single star
• Common-envelope evolution on AGB (or RGB?)
  binarity is a prerequisite
• O(He) stars and the R CrB connection
• Post-EHB evolution, producing an ejecta nebula ?
• Super-AGB star ejection event (no examples known)
  ?
• Symbiotic novae !

30
Do nebulae around post-EHB or AGB-manqué stars
exist the problem of PHL 932

• PHL 932 is a subdwarf OB (sdOB) star which is
  generally regarded as being in the extended
  horizontal branch (EHB) phase of evolution.
• It has a low ionization, amorphous, elliptical
  nebula associated with it (Arp Scargle 1967),
  traditionally considered to be an evolved PN
  (Acker et al. 1992, Kohoutek 2001).
• See talk by S. OToole at this workshop.

31
Topics for discussion

• Definition of a PN observational or
  phenomenological?
• Taxonomy / nomenclature are PNe a mixed bag?
• Do you have a favorite nebula?
• Be familiar with mimics
• Use multi-wavelength approach
• Consistency in the literature
• Recommended diagnostic plots know their
  limitations
