The Woodlands

1

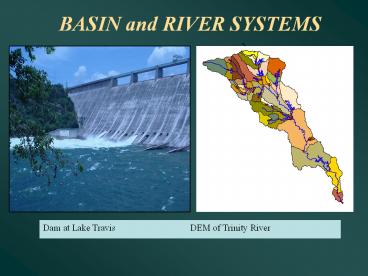

BASIN and RIVER SYSTEMS
Divide
Dam at Lake Travis DEM of Trinity River
2
Watershed Parameters
Divide

• Size
• Slope
• Shape
• Soil type
• Storage capacity

Reservoir
Natural stream
Urban
Concrete channel
3
Parameters that Affect Response in a Watershed
Floodplain
Divide

1. Rainfall intensity / duration
2. Size, Slope, Shape, Storage
3. Channel morphology
4. Location of Developments
5. Land use/land cover
6. Soil type
7. Percent impervious

Reservoir
Natural stream
Urban
Concrete channel
Floodplain
Q
4
Urbanization Effect in a Watershed
Floodplain
Divide
Urban Effects Increase Peak Decrease timing
Confluence
Q
Channeliized stream
Natural
Urban
Concrete channel
T
5
The Floodplain and Floodway
Top Width
6
Watershed Hydraulics
Floodplain
Divide
D
QD
Tributary
C
Reservoir
Confluence
QC
Main Stream
B
QB
A
QA
Cross Sections
Cross Sections
7
Watershed Topography
8
Flood Control Methods - Structural

• Objectives
• Increase channel flow rate
• Decrease flood levels
• Means
• Earthen or concrete
• Swale clearing
• Gobi mats
• Gabions
• Rip-raps

9
Non-Structural - Buyouts

• Objectives
• Manage old and new structures
• Minimize future damages
• Means
• Relocate old structures
• Condemn frequently flooded structures
• Replace storage as areas develop

10
Adding Useable Storage for Flood Control

• Objectives
• Runoff storage controls
• Decrease peak flows
• Means
• Retention/detention ponds
• Natural drainage system
• Runoff catchment areas
• Reservoirs
• Dikes and levees

11
The Woodlands

• The Woodlands is a 30-year-old totally planned
  community north of Houston.
• Designed to minimize the floodplain and water
  quality impacts as development proceeds.

12
USE of Storage Reservoirs
13
Guidelines for Planning in an Urban Drainage Basin

• Maximize the distance of storm water travel
  from the site to a collection area or stream.
• Maximize the concentration time by slowing the
  rate of storm water runoff.
• Minimize the volume of overland flow per unit
  area of developed land.
• Utilize buffers such as forests and wetlands
  to protect collection areas and streams from
  urban impacts.
• Divert storm water away from critical features
  such as steep slopes, unstable soils, or valued
  habitats.

14
Cochrans Crossing
Alden Bridge
College Park
Bear Branch Reservoir
Research Forest
Indian Springs
River Walk
Lake Woodlands
Town Center
Grogans Mill
15
The Woodlands

• The Woodlands planners wanted to design the
  community to withstand a 100-year storm.
• In doing this, they would attempt to minimize any
  changes to the existing, undeveloped floodplain.

16
The Woodlands

• The community was designed as if it were fully
  developed.
• Strict requirements were made about land use and
  drainage and storage volumes.

17
Land Use

• More than 33 was designated as open space
• There are 3.5 lots per acre in residential
  areas, or about 20 impervious
• Extensive use of roadside ditches

18
The Woodlands

• Designed detention ponds that are both
  effective and attractive.
• Incorporated these ponds into the fabric of
  communities and golf courses.
• Ponds were used to control the volume and
  quality of urban runoff into Panther Branch.

19
Channel Design

• Most streams and ditches have been left in
  their natural state, thus increasing their
  Manning roughness coefficients and their storage
  capacities.
• This drainage system design minimizes the
  impact of urbanization on the peak runoff
  response.

20
Flow and Erosion Control

• Another method of controlling the flow rate is
  placing energy dissipaters in the streambeds.
• These are commonly located directly near
  bridges due to steeper downward slopes.

21
Bridge Designs

• Only channelized under the bridges in order to
  reduce erosion of the banks and the deterioration
  of bridge structures.
• Since this increases the flow rate, structures
  are built at each end to control velocities

22
Urbanization

• Urban development designed to complement
  waterways.
• This reflection pool also serves as storage for
  runoff from local parking facilities.
• The concept is to allow for full urbanization
  but with a minimum environmental impact on the
  watershed.

23
Detention Ponds - Amenities

• Ponds constructed so that amenities such as the
  golf course and other community centers could be
  built up around them.
• These ponds store and treat the runoff from such
  facilities and also add to the aesthetics of the
  overall development.

24
Detention Ponds

• Community Center -
• One of the first ponds built in Texas - 1972

• Fountains added for aesthetic value and to
  increase circulation of air for water quality

25
Roadside Drainage

• Culverts are used to move water under streets.
• An attempt is made to blend these culverts in
  with their natural surroundings.

26
The Woodlands - a Major Test

• The hydrologic system at The Woodlands was
  severely tested during October 17-18, 1994, when
  a greater than 100-year event dropped heavy rains
  over the area.
• The design worked well, with only a few houses
  impacted.
• The same storm flooded 1000s in other
  watersheds.

27
Amenities

• Hike-and-bike trails
• Wildlife and habitat
• Water quality benefits

28
(No Transcript)
29
Conclusions

• Example of how to build an environmentally
  sound community
• 70,000 and will reach 150,000 population 2020
• Example of a sustainable watershed concept that
  has worked
• Concepts need to be studied and expanded to
  other areas

30
Brays Bayou - Low Flow
31
Brays Bayou High Flow
32
Kissimee River - The Everglades
33
Bull Creek, Austin - CEVE 412
34
San Antonio River
35
California - Temecula
36
I-45 Bridge over Clear Creek - 1979
37
T.S. Allison - Houston, June 9, 2001
Rice Blvd at Entrance 16 looking west
Jeep indicating high water mark - inlet to Harris
Gully
38
Southwest Freeway (US 59) Detention storage
between Mandell and Hazard
Looking West
Looking East
39
Flood Warning SystemsDowntown Houston

• Emergency
• Response
• Flood Doors
• Flood Gates
• Facility Entrances
• Communications
• Operations
• Training

40
Brays Bayou-Typical Urban System

• Concrete-lined urban channel (200 million)
• Built in the 1960s
• Increase flow rates
• Capacity eroded with upstream development
• Current Federal Project will completely update
  the channel and add upstream storage areas - 450
  million rebuild by 2012

288 Crossing
